- Load per castor550kg per castor
- Wheel diameter125mm
- Overall height164mm + 200mm
- WheelPolyurethane on cast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Braked Swivel Jacking Castor
- Wheel Diameter
- 125mm
- Wheel Material
- Polyurethane on cast iron
- Wheel Colour
- Yellow
- Tread Width
- 50mm
- Bearing Type
- Roller
- Function
- Swivel and braked
- Load Capacity
- 550kg per castor
- Jacking Lift
- Up to 200mm
- Operating Method
- Handle
- Fixing
- 4 bolt hole mounting plate
- Plate Size
- 150 x 100mm
- Plate Hole Centres
- 110 x 60mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 164mm + 200mm
- Total Height to Plate Lower Bolt Hole
- 235mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 339mm
- Jacking Unit Extension Height (Max 200mm)
- 774mm
- Swivel Radius
- 108mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height164mm + 200mm
- Swivel radius108mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Polyurethane Wheel Jacking Castors

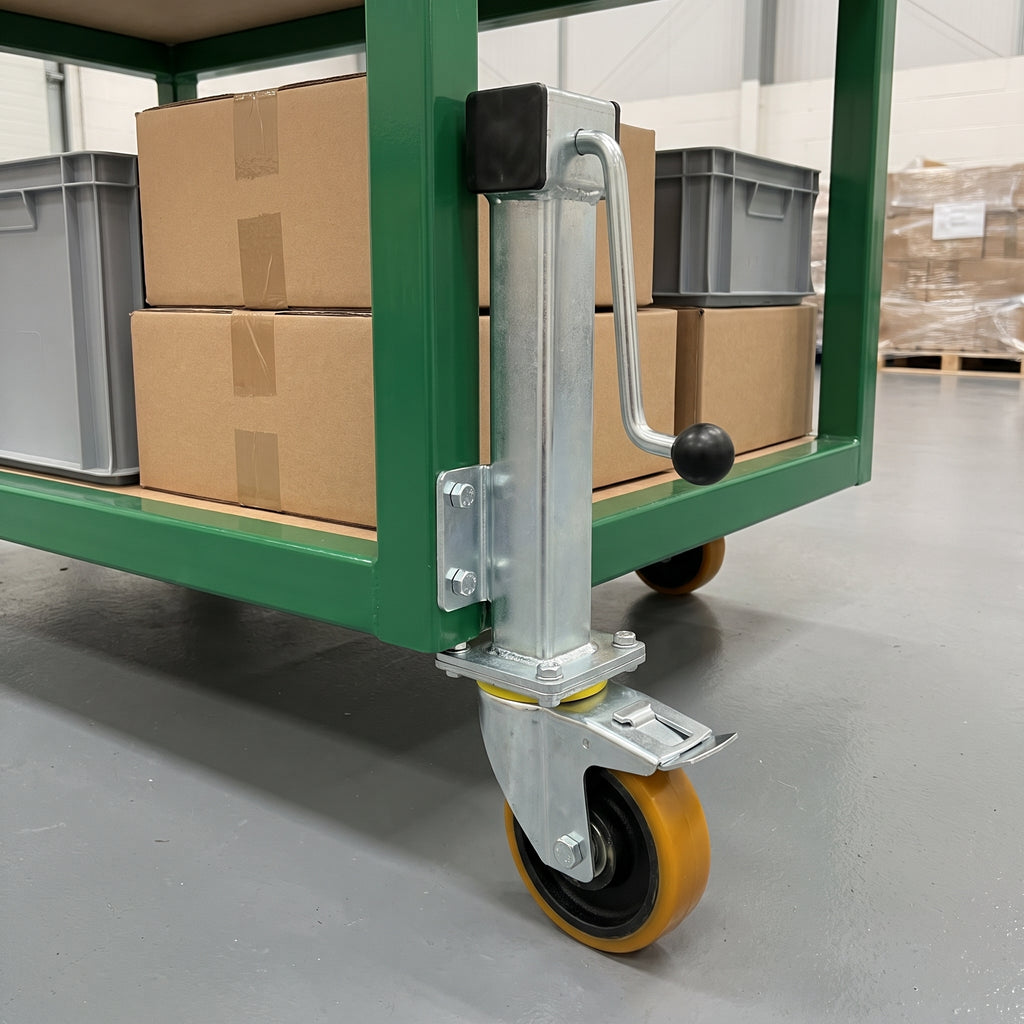

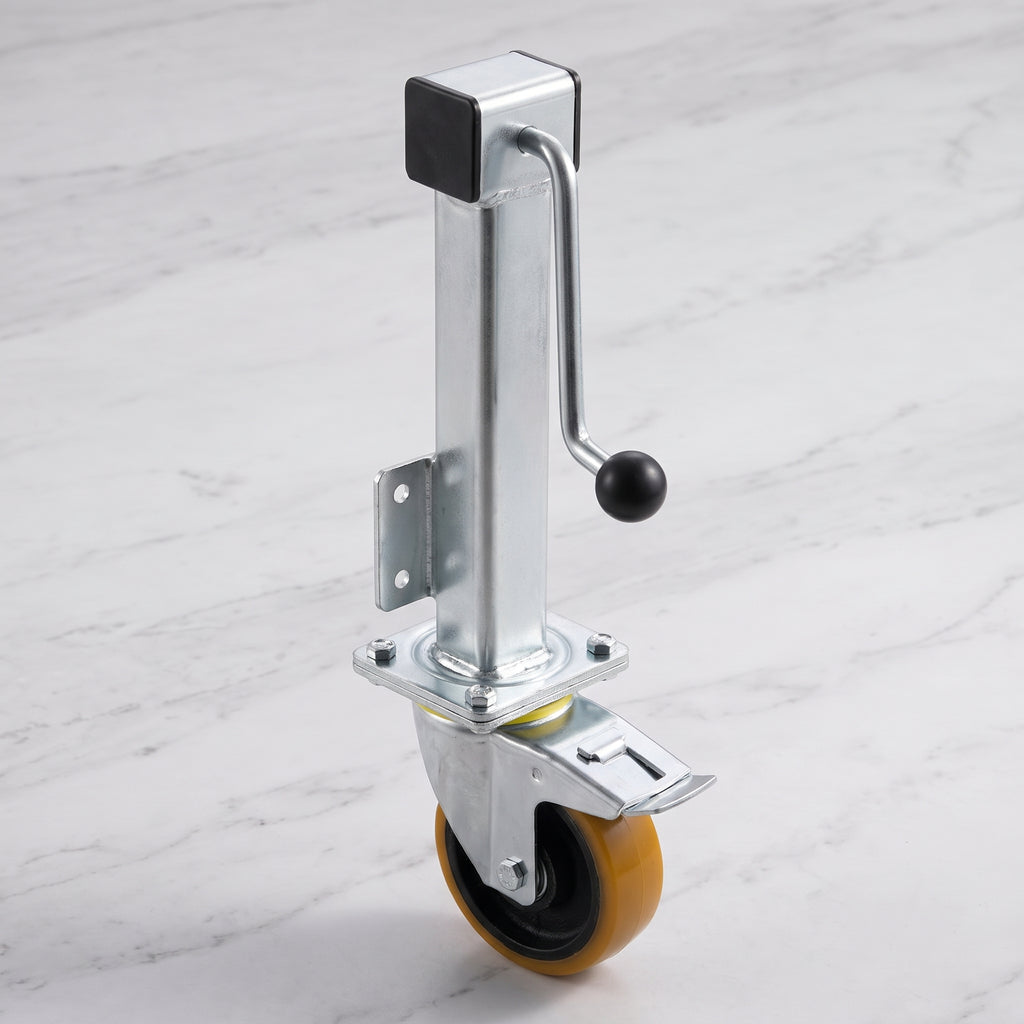

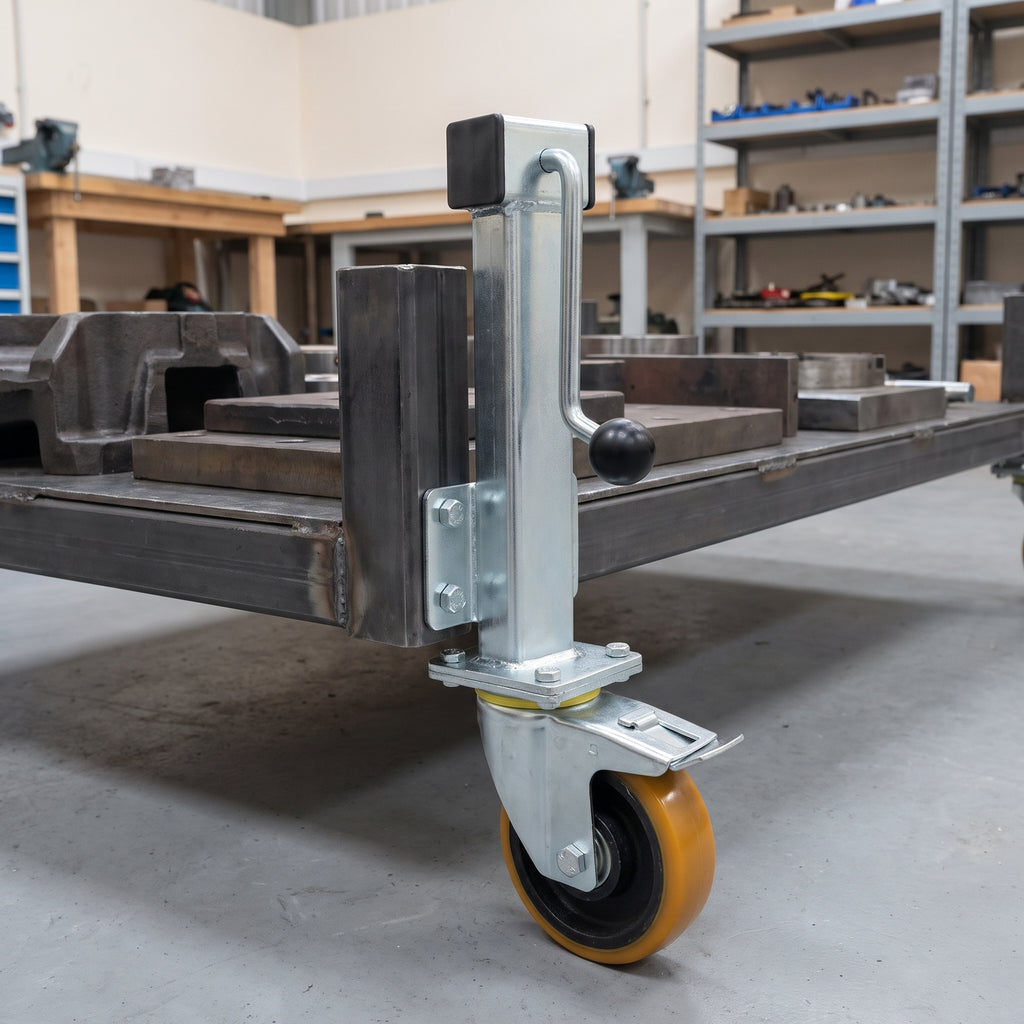

Lift heavy machinery onto its wheels by hand, roll it into place, lock it with the brake, then wind it back down onto its own feet. This heavy duty braked swivel jacking castor pairs a 125mm yellow polyurethane on cast iron wheel with a handle-operated jacking unit that gives up to 200mm of lift. Turn the handle to lower the wheel and raise your machine, trolley or mobile workstation for moving, then wind it back up so it stands firm. The brake holds the wheel still while you position your equipment, the roller bearing keeps it rolling smoothly, and each castor is rated for 550kg.
The polyurethane tread on a strong cast iron centre gives smooth, quiet movement under heavy loads. The castor fixes to your equipment with a 150 x 100mm mounting plate with four 11mm holes on 110 x 60mm centres. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 550kg load capacity per castor for heavy duty equipment.
- ✓ Brake holds the wheel still for stable, secure positioning.
- ✓ 200mm jacking lift raises and lowers heavy equipment so it can roll or stand firm.
- ✓ Handle operation precise height adjustment by hand, with no tools needed.
- ✓ Yellow polyurethane wheel 125mm polyurethane on cast iron wheel with a 50mm tread.
- ✓ Swivel castor 108mm swivel radius for easy steering.
- ✓ Roller bearing for smooth, reliable rolling.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This heavy duty braked swivel jacking castor suits:
- ✓ Industrial equipment: supporting and moving heavy machinery and equipment.
- ✓ Material handling: trolleys and carts in warehouses and factories.
- ✓ Mobile workstations: adjustable, mobile work environments.
Frequently Asked Questions
How does the jacking castor work?
Turn the handle to wind the wheel down by up to 200mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
What does the brake lock?
The brake stops the wheel from rolling, so your equipment stays where you put it while it is on its castors.
Do I need a tool to operate it?
No. The jacking unit is operated by its own handle, so height adjustment is done by hand.
How much weight can this castor carry?
Each castor is rated for 550kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 150 x 100mm mounting plate with four 11mm holes on 110 x 60mm centres, bolted to your equipment frame.
What is the wheel made of?
A 125mm yellow polyurethane tyre on a cast iron centre with a 50mm tread, running on a roller bearing.
