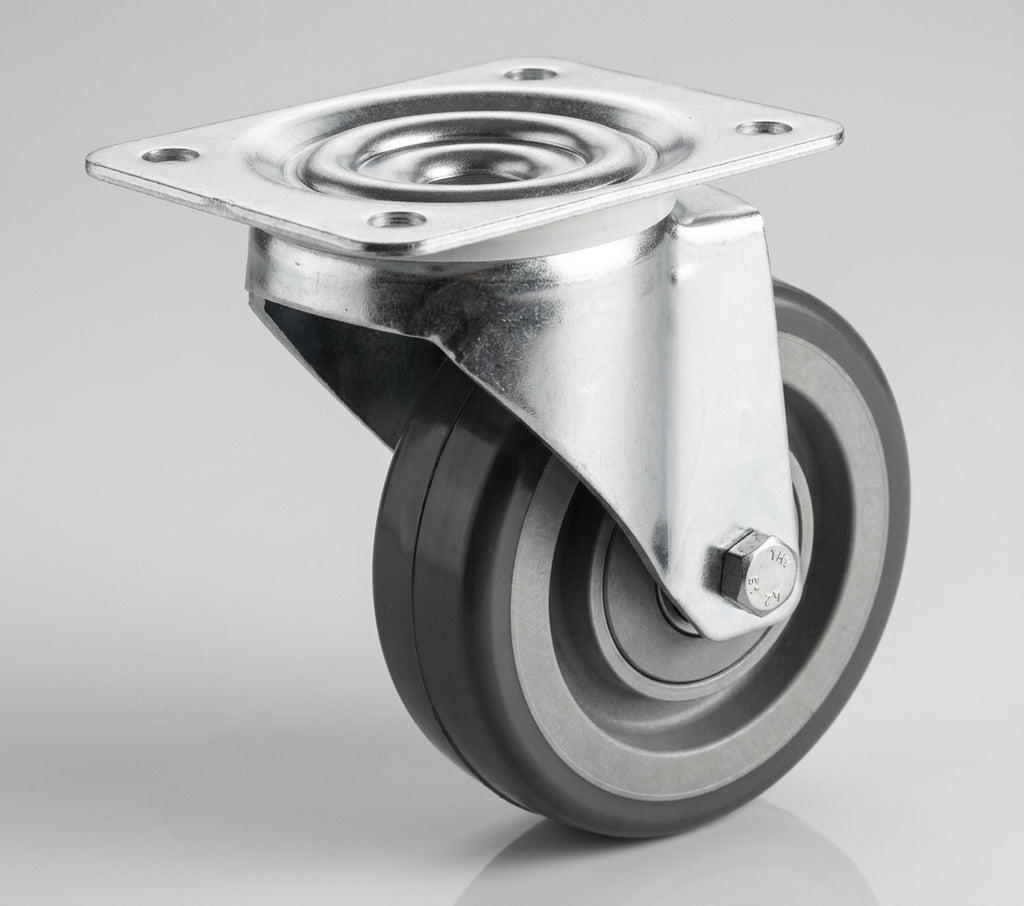

125mm Electro Conductive Swivel Castor - 200kg Capacity

Electro conductive swivel castor for static control.

This 125mm swivel castor is designed with a polyurethane wheel that prevents static build-up, making it perfect for sensitive environments. With a robust load capacity of 200kg per castor, it operates efficiently across a wide temperature range.

Key Features

• Bearing Type: Ball Journal – ensures smooth rotation.
• Hardness of Tread: 95 shore A – indicates the wheel's firmness.
• Load Capacity: 200kg – maximum load rating per castor.
• Max Load Capacity of 4 Castors: 600kg – total load rating for a set of four.
• Plate Length: 105mm – dimension to check for mounting.
• Plate Width: 85mm – dimension to check for mounting.
• Swivel Radius: 103mm – space required for rotation.
• Temperature Range: -40°C to +80°C – operational temperature limits.

Applications

• Electronic Equipment: Used to prevent static discharge during movement.

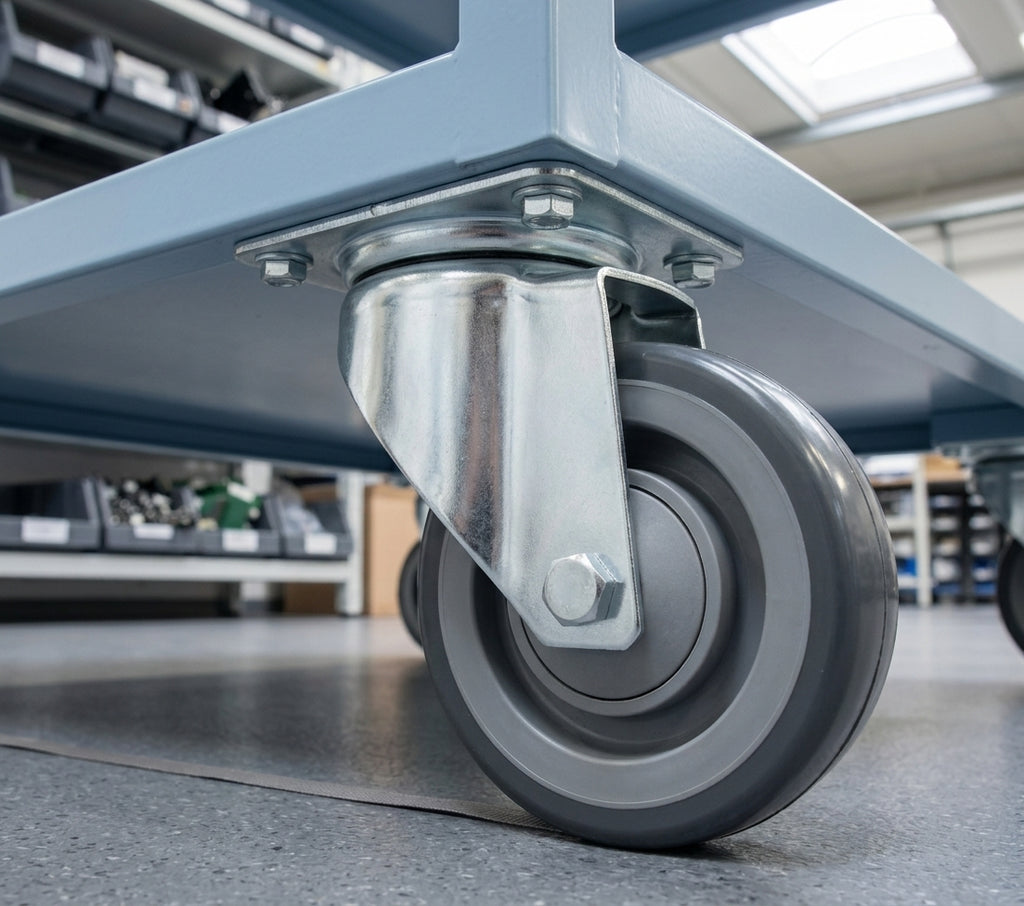

• Laboratory Trolleys: Fitted where static control is essential.
• Cleanroom Equipment: Applied in environments requiring strict static control.
