- Load per castor700kg per castor
- Wheel diameter125mm
- WheelCast nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fabricated Swivel Top Plate Castor
- Directional Lock
- Yes, locks the swivel head for straight line travel
- Wheel Diameter
- 125mm
- Wheel Material
- Cast nylon
- Wheel Colour
- White
- Tread Width
- 50mm
- Hardness of Tread
- 92 Shore A (A92)
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 135 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 110mm
- Load Capacity
- 700kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

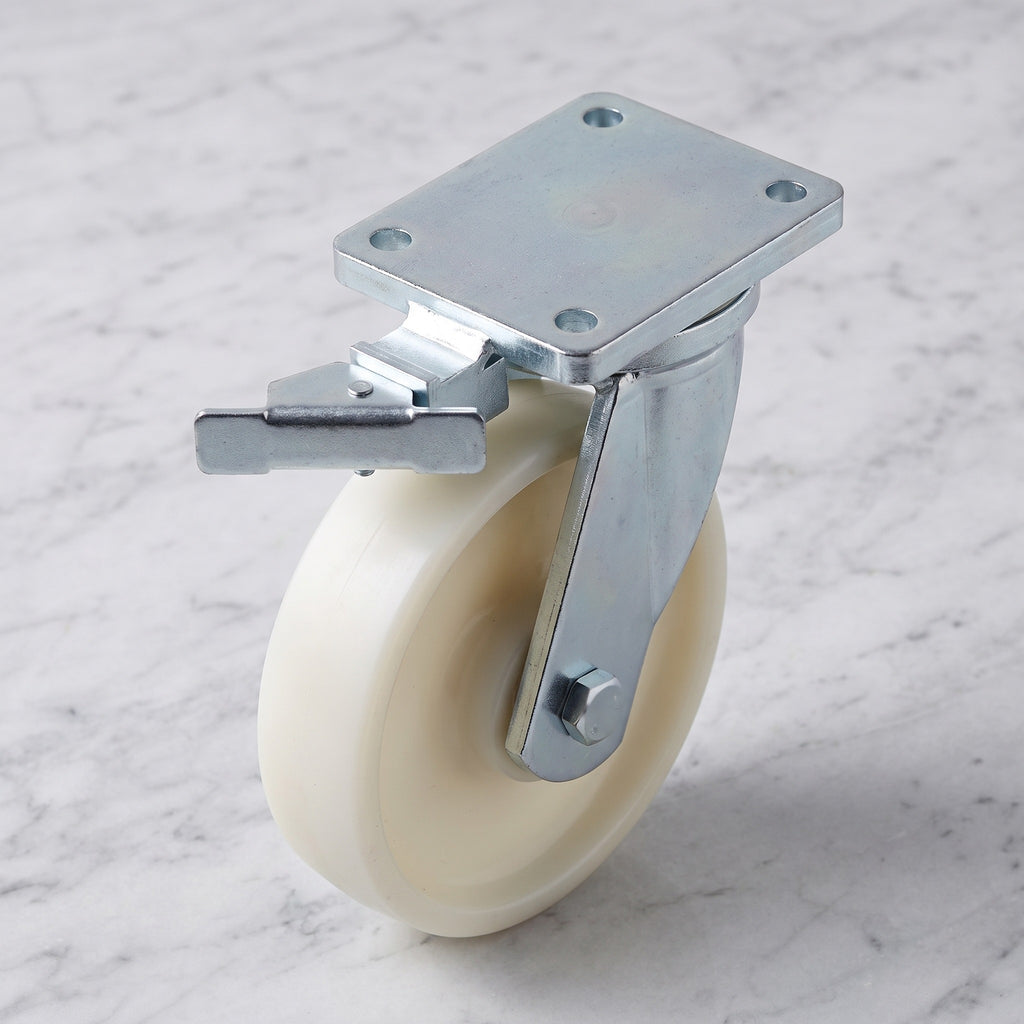

Heavy Duty Fabricated Castors
This 125mm heavy duty fabricated castor is fitted with a directional lock for precise manoeuvrability and stability in demanding settings. The white cast nylon wheel with a firm 92 Shore A (A92) tread gives consistent performance, and the ball journal bearing ensures smooth rotation. Rated for 700kg per castor.
It fixes securely to flat surfaces with a 135 x 110mm top plate, has a 110mm swivel radius and works from -40°C to +80°C.
Why Choose This Castor
- ✓ 700kg load capacity per castor for substantial weight handling.
- ✓ Cast nylon wheel 125mm diameter with a 50mm tread and a firm 92 Shore A hardness.
- ✓ Ball journal bearing for smooth rotation.
- ✓ Directional lock locks the swivel head so the castor runs in a straight line, release it to swivel again.
- ✓ Heavy duty fabricated construction for demanding settings.
- ✓ Swivel head for precise manoeuvring, with a 110mm swivel radius.
- ✓ 135 x 110mm top plate with four 10mm holes for a secure attachment to flat surfaces.
- ✓ Temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty directional lock castor suits:

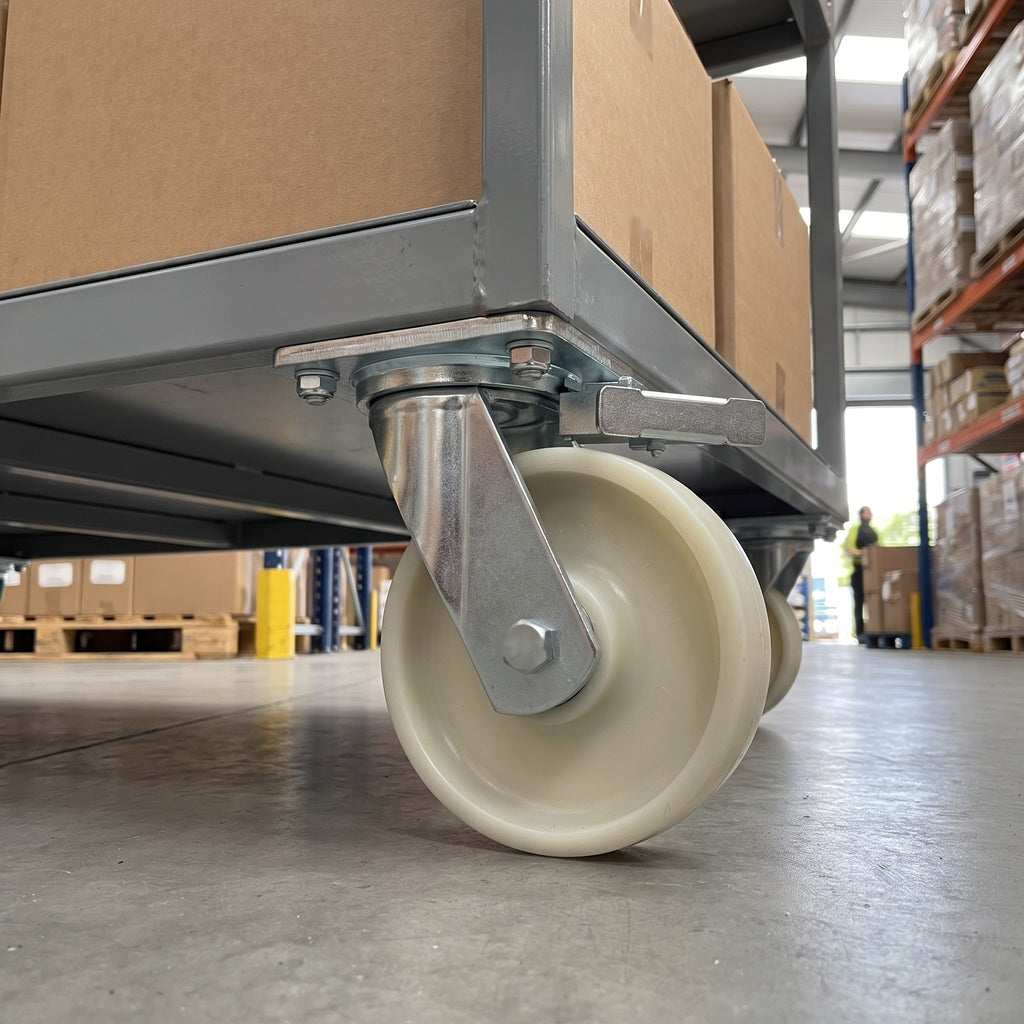

- ✓ Warehouse trolleys: transporting heavy loads with stability and ease.
- ✓ Industrial carts: carts that need high load capacity and directional control.
- ✓ Manufacturing equipment: settings where precise movement and heavy duty performance are required.
- ✓ Material handling units: environments that need reliable load bearing.
Frequently Asked Questions
What does the directional lock do?
It locks the swivel head so the castor travels in a straight line, giving directional control. Release the lock to let the castor swivel again. It is a direction lock, not a brake, so the wheel still rolls.
How much weight can this castor carry?
Each castor is rated for 700kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 125mm white cast nylon wheel with a 50mm tread and 92 Shore A hardness, running on a ball journal bearing.
How is the castor fitted?
It has a 135 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
Yes. It swivels freely when the directional lock is off. The swivel radius is 110mm.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
