In stock SKU CUK-CASTOR-125-VCIR-TP-B

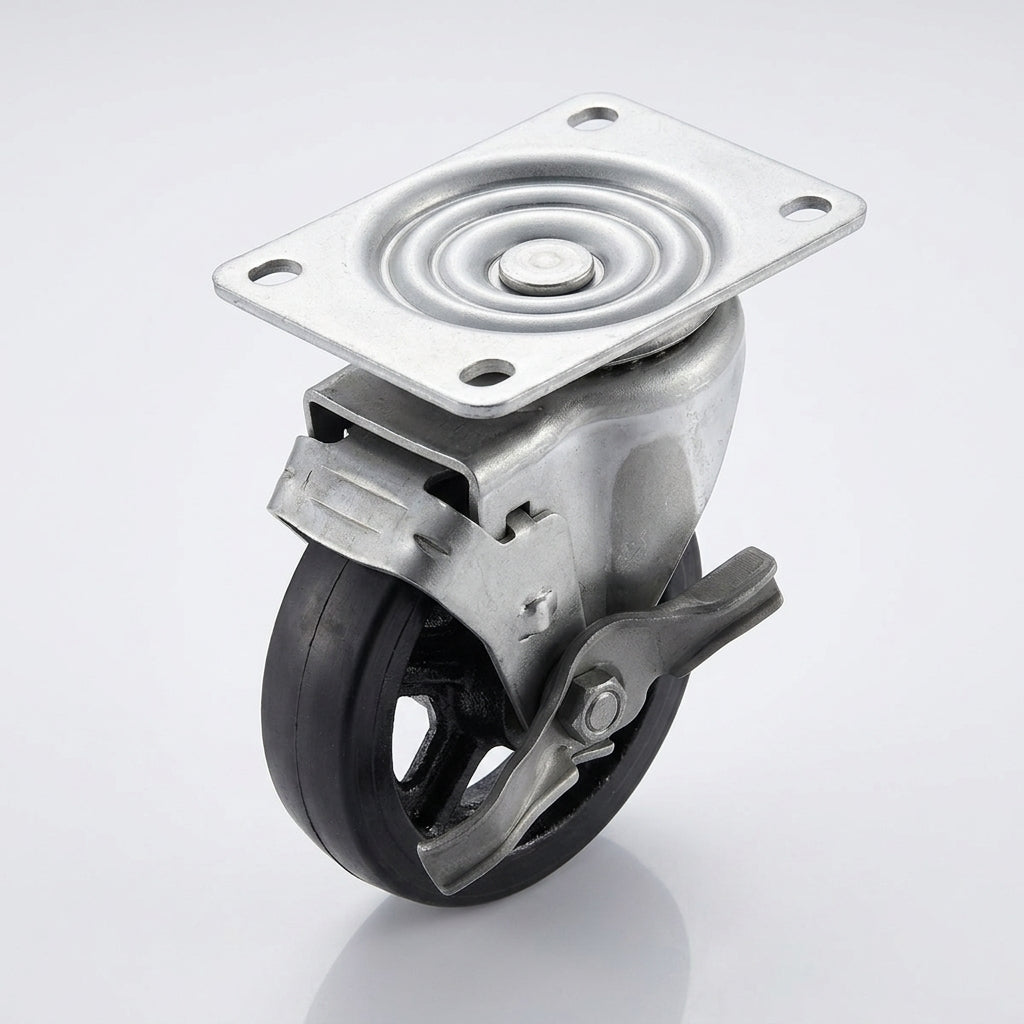

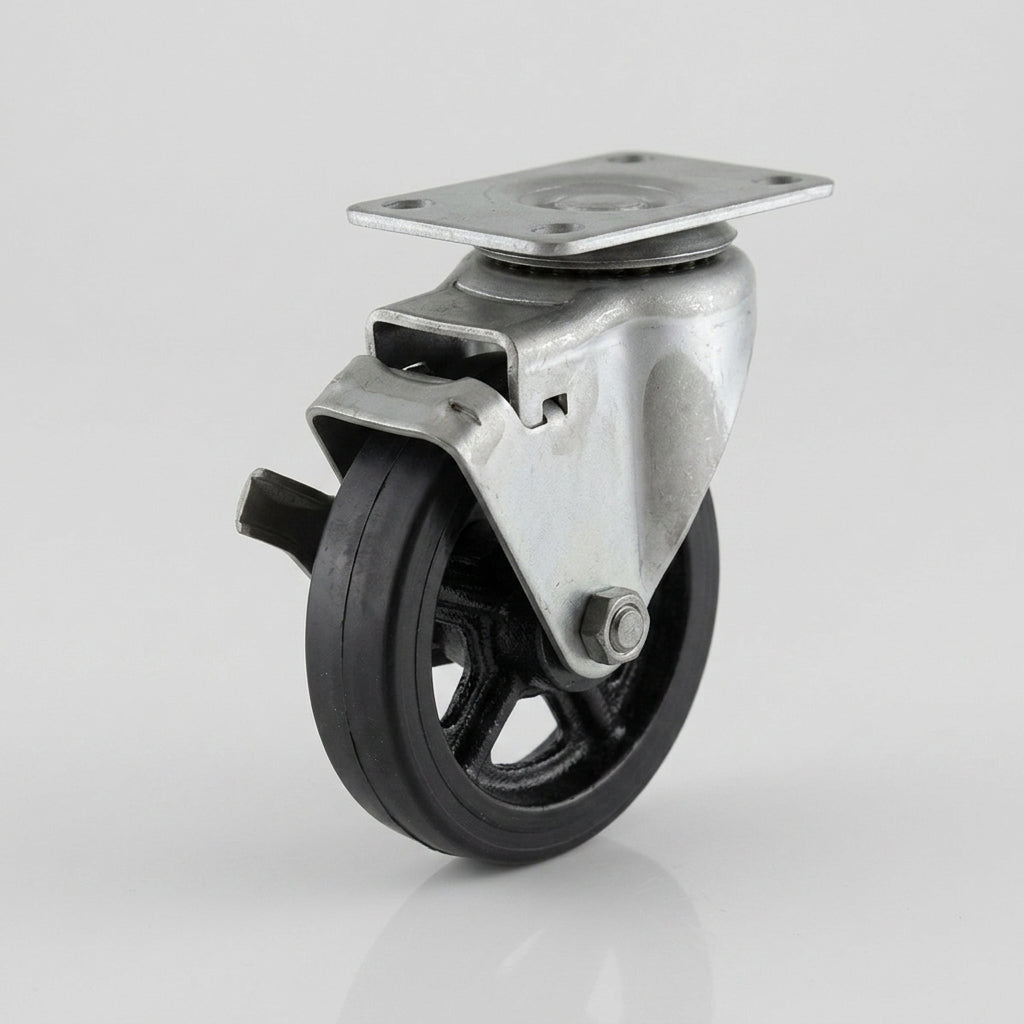

125mm Vintage Braked Swivel Castor Black Rubber on Cast Iron Wheel Top Plate 136kg Load Capacity

  • Load per castor136kg per castor *
  • Wheel diameter125mm
  • Overall height159mm
  • WheelRubber on Cast Iron
Sale price£65.44
inc VAT
£54.53 ex VAT · each
Estimated UK delivery in 4–10 working days Orders placed before 5pm (Mon–Fri) start processing the same day. Flat £9.99 delivery per order, however many you buy.
  • Secure checkout
  • 14-day returns on unused items
  • UK-based castor advice
American Express Apple Pay Diners ClubDiscoverGoogle Pay MaestroMastercard Shop Pay Union PayVisa

Specifications

Castor Type
Vintage Swivel Castor with Brake, Top Plate Fitting
Wheel Diameter
125mm
Wheel Material
Rubber on Cast Iron
Wheel Colour
Black
Tread Width
32mm
Load Capacity
136kg per castor *
Plate Size
92 x 60mm
Plate Hole Centres
72 x 44mm
Plate Hole Diameter
8mm
Swivel Radius
101mm
Total Castor Height
159mm

Load check

Enter the weight of the item plus its heaviest load. This castor is rated 136kg per castor * each.

How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.

Floors & use

Rubber tread

  • Cushions the load and soaks up vibration
  • Quiet on most surfaces
  • Copes with uneven floors, thresholds and outdoor use
  • Good grip on smooth floors
  • Takes more effort to push than nylon under heavy loads
  • Oils and solvents shorten tyre life

Details & FAQs

Vintage Cast Iron Furniture Castors

This 125mm vintage braked castor combines the look of a classic factory wheel with a softer, quieter ride and a reliable brake. The black cast iron spoked centre and raw steel swivel bracket give furniture trolleys, display stands and workshop equipment an authentic industrial character.

The black rubber tread absorbs minor surface irregularities, the swivel bracket allows easy changes of direction and the side brake lever locks the wheel when needed. It fits with a 92 x 60mm four-hole top plate, carries 136kg per castor and stands 159mm tall.

Why Choose This Castor

  • ✓ Authentic vintage look with a black cast iron spoked centre and raw steel bracket.
  • ✓ Built-in brake to lock the wheel and keep furniture in place.
  • ✓ Soft black rubber tread that rolls more quietly and is kinder to indoor floors.
  • ✓ 136kg per castor, strong enough for heavy reclaimed-wood furniture.
  • ✓ Top plate fitting with four 8mm bolt holes for a secure fixing.
  • ✓ Matching swivel and fixed versions so you can build a complete set for one piece.

* Load capacity is per castor. Use a flat, solid mounting surface large enough for the 92 x 60mm plate.

Where It Works Best

  • ✓ Furniture trolleys: mobility and braking for easy positioning.
  • ✓ Display stands: movable stands that stay put once placed.

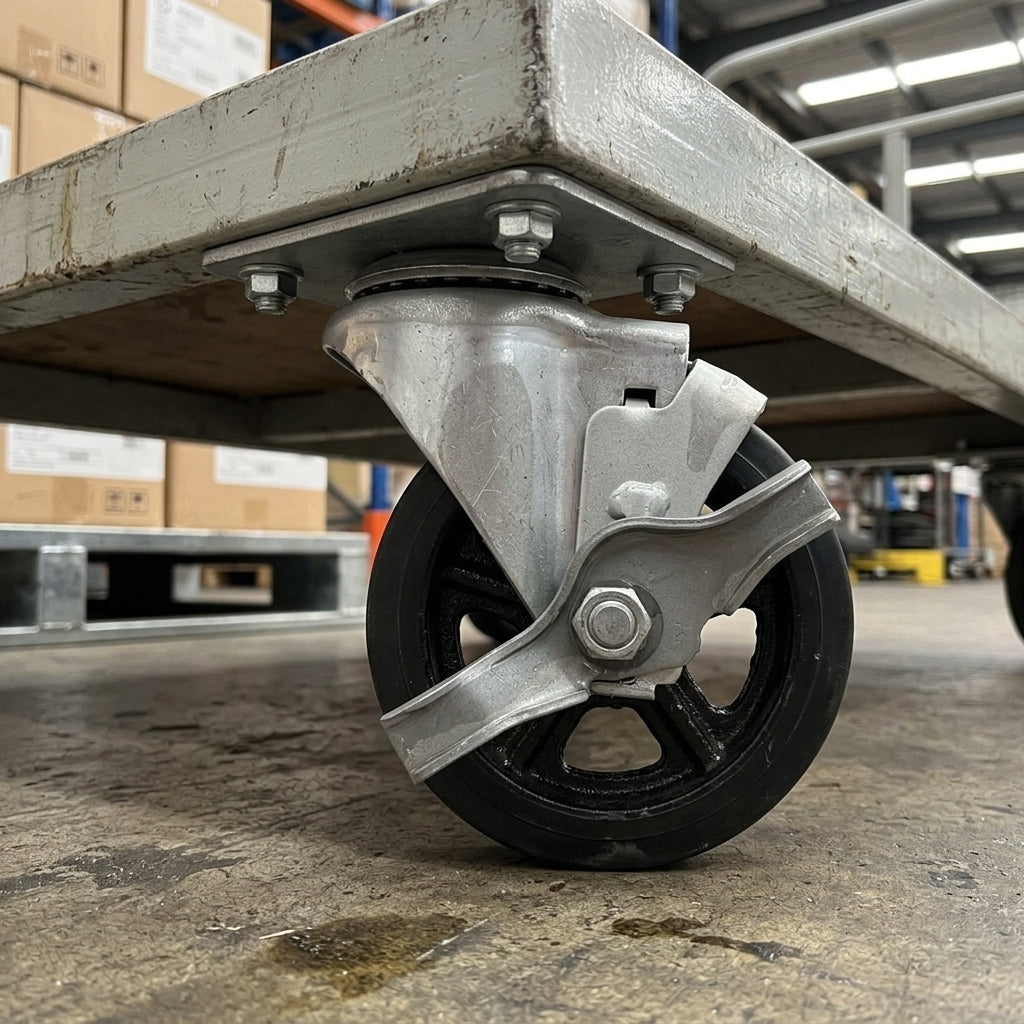

  • ✓ Industrial carts: easy manoeuvring and stability when stationary.
  • ✓ Workshop equipment: smooth movement and secure positioning.
  • ✓ Retail fixtures: repositioning and securing fixtures in shops.

Frequently Asked Questions

What does the brake lock?

The side brake lever presses down on the wheel and stops it from rolling, so the furniture or trolley stays exactly where you put it.

Will it mark or damage my floor?

The rubber tread gives a softer contact surface than bare cast iron. It deforms slightly under load, absorbs small bumps and is kinder to indoor floors such as wood, tiles and polished concrete.

How do I fit this castor?

Bolt the 92 x 60mm top plate to a flat surface through its four 8mm holes. The hole centres are 72 x 44mm, so check these against your furniture before ordering.

How much weight can it carry?

Each castor is rated at 136kg, so a set of four can carry heavy pieces such as kitchen islands, display stands and workshop benches.

Does it swivel?

Yes. The castor swivels freely with a 101mm swivel radius, so it is easy to steer in any direction.

How tall is the castor?

The total castor height is 159mm, from the floor to the top of the plate.
