- Load per castor300kg per castor
- Wheel diameter125mm
- Overall height164mm
- WheelRubber on aluminium centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Braked Swivel Top Plate Castor
- Brake
- Brake acts on the wheel
- Wheel Diameter
- 125mm
- Wheel Material
- Rubber on aluminium centre
- Wheel Colour
- Black
- Tread Width
- 40mm
- Hardness of Tread
- A67
- Bearing Type
- Ball bearing
- Temperature Range
- -20°C to +85°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 148mm
- Total Castor Height
- 164mm
- Load Capacity
- 300kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +85°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Heavy Duty Top Plate Castors

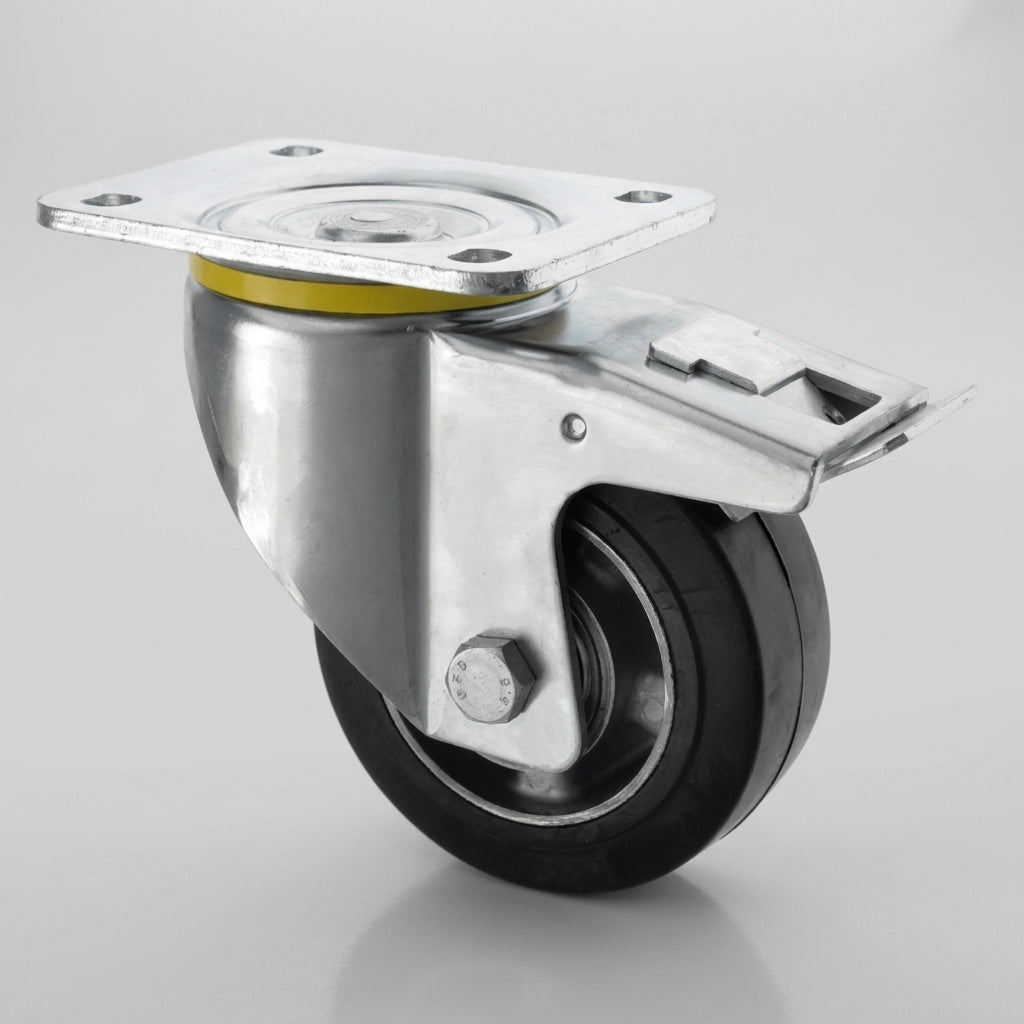

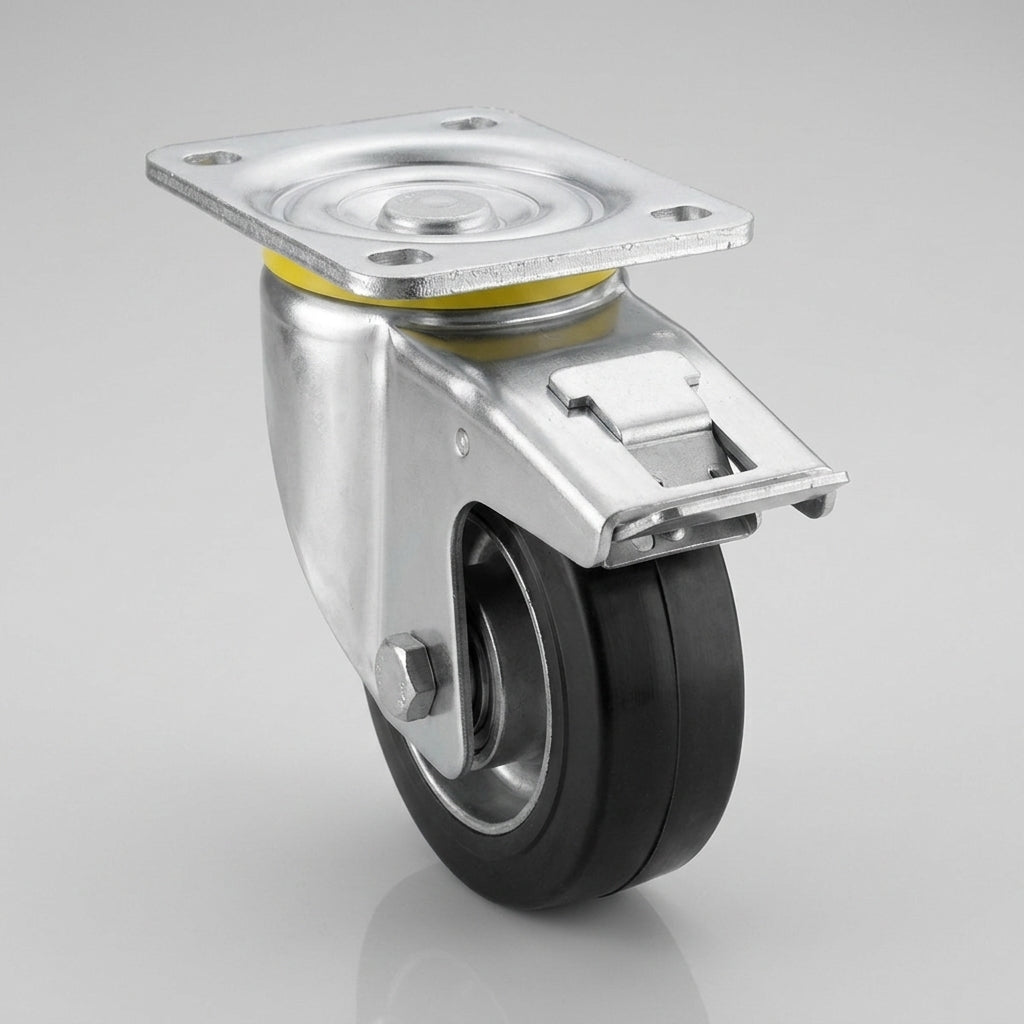

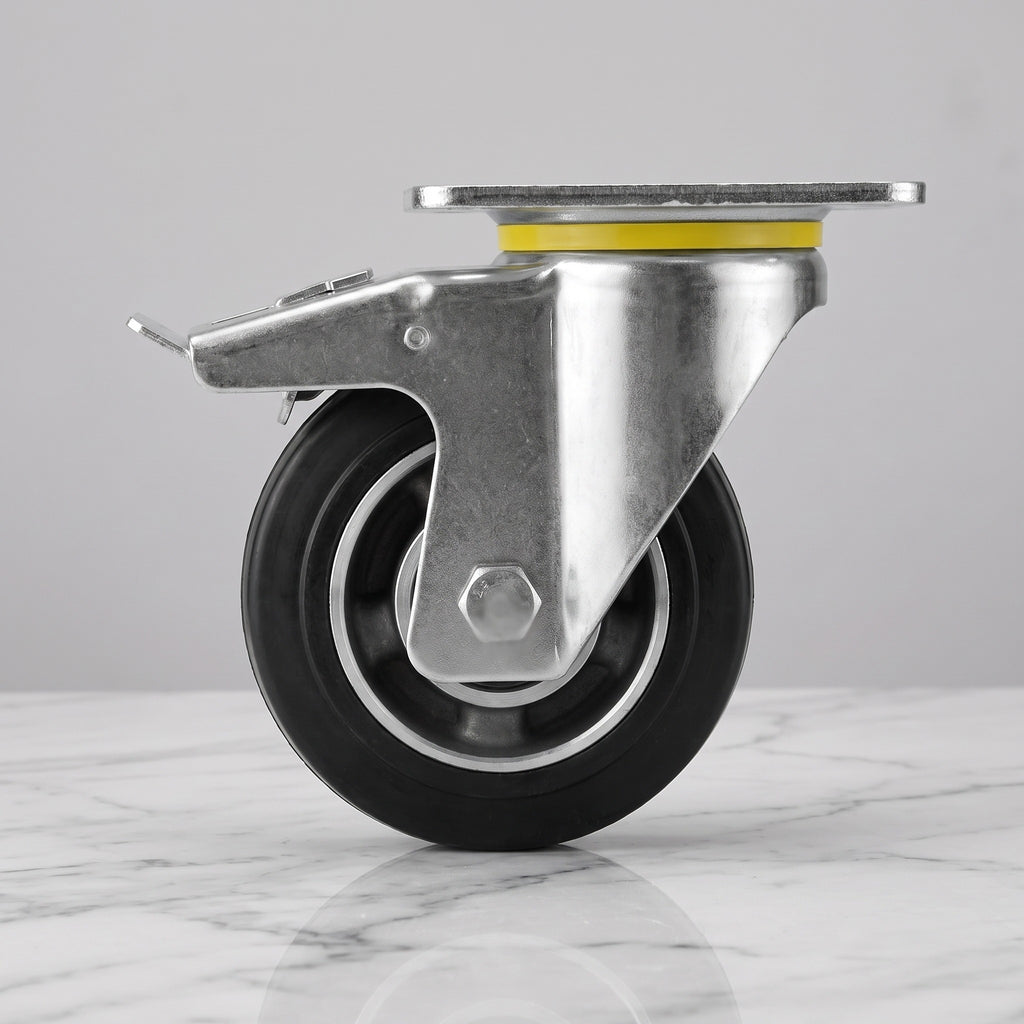

This 125mm heavy duty braked swivel castor has a black rubber wheel on an aluminium centre, made for industrial use and rated for 300kg per castor. The softer A67 rubber tread gives better grip on a range of surfaces, and the ball bearing gives smooth rotation with less friction. The brake acts on the wheel to keep your equipment steady when it is stationary.
It fixes securely to flat surfaces with a 140 x 110mm top plate, has a 148mm swivel radius, stands 164mm tall and works from -20°C to +85°C.
Why Choose This Castor
- ✓ 300kg load capacity per castor for heavy industrial loads.
- ✓ Rubber on aluminium wheel with a 40mm tread and A67 hardness for better grip.
- ✓ Ball bearing for smooth rotation and reduced friction.
- ✓ Swivel head for easy manoeuvring, with a 148mm swivel radius.
- ✓ Wheel brake that acts on the wheel for stability when stationary.
- ✓ 140 x 110mm top plate with four 10mm holes for a secure, stable fixing.
- ✓ Temperature range from -20°C to +85°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty braked top plate castor suits:

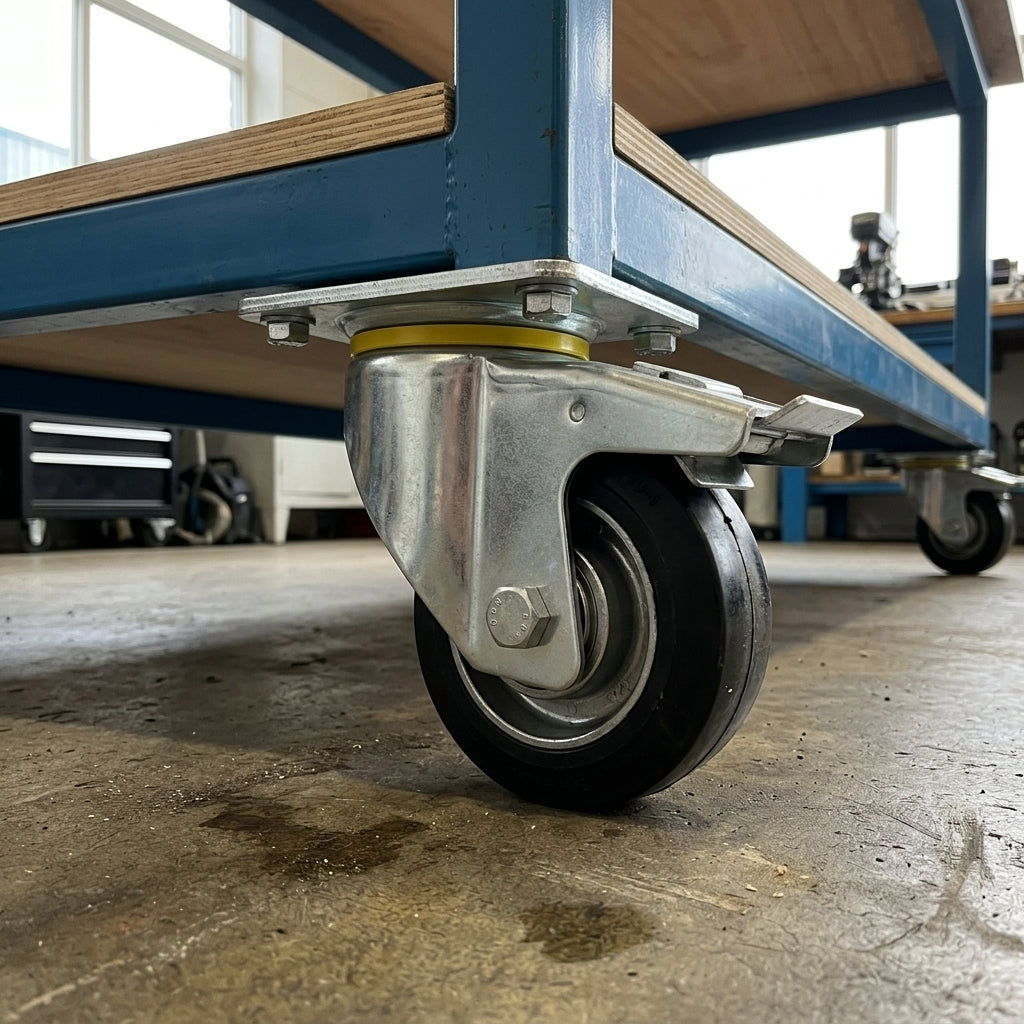

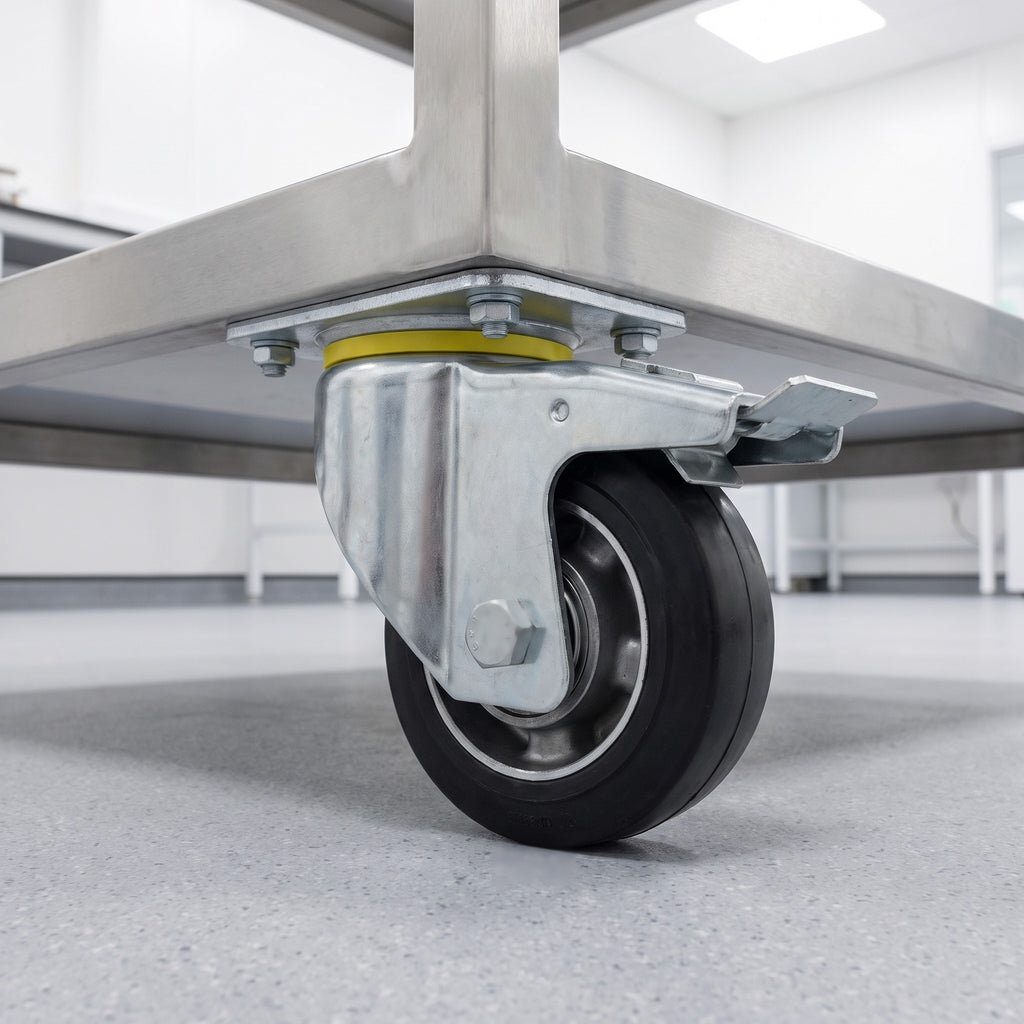

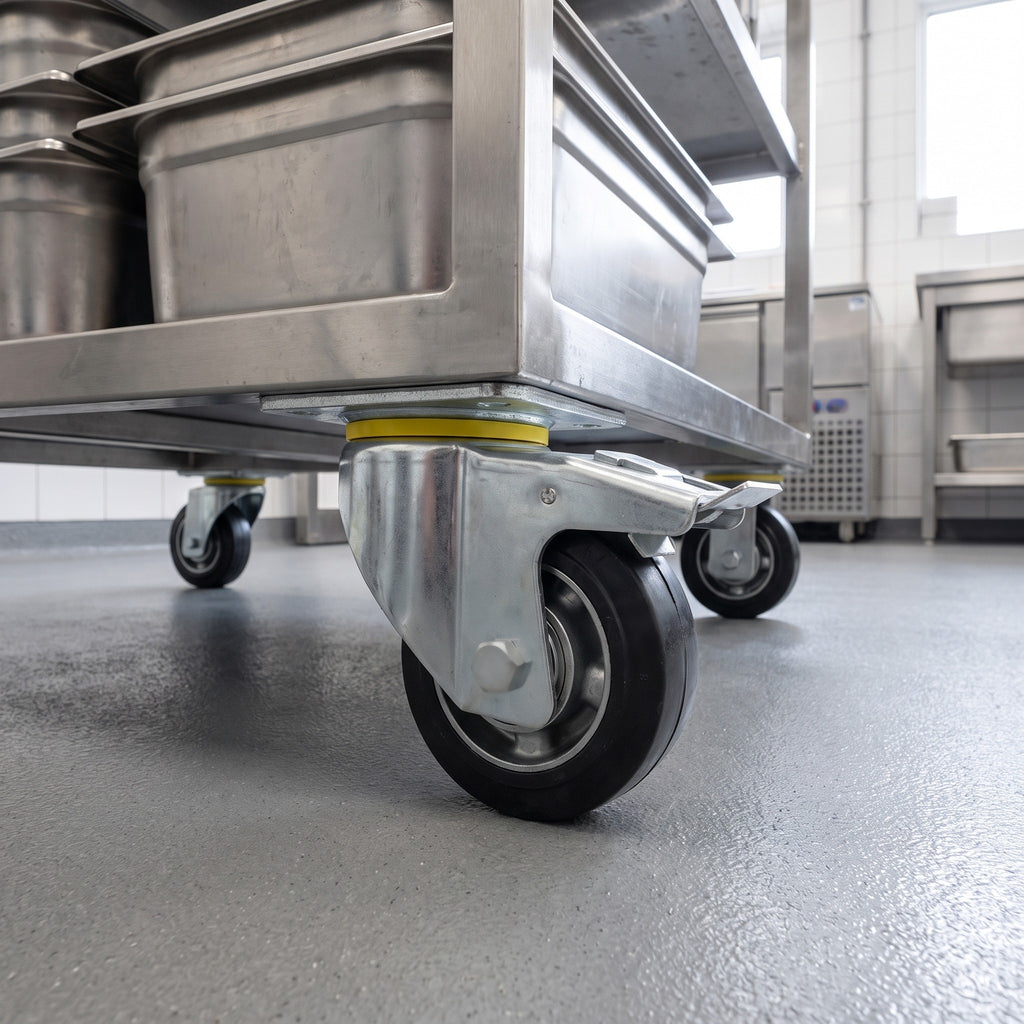

- ✓ Industrial trolleys: transporting heavy loads smoothly.
- ✓ Warehouse carts: mobility for equipment and goods.
- ✓ Factory machinery: supporting and moving heavy equipment.
- ✓ Material handling equipment: better manoeuvrability and stability.
Frequently Asked Questions
What does the brake lock?
The brake acts on the wheel, stopping it from rolling so your equipment stays steady when stationary. Release the brake to move again.
How much weight can this castor carry?
Each castor is rated for 300kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How much space does it need to swivel?
The swivel radius is 148mm and the total castor height is 164mm.
What is the wheel made of?
A 125mm black rubber tread on an aluminium centre, 40mm wide with A67 hardness, running on a ball bearing.
What floors is it suited to?
The A67 rubber tread is softer and deforms slightly under load, giving good traction on a range of surfaces.
What temperatures can it work in?
The castor is suitable for use from -20°C to +85°C.
