- Load per castor100 kg per castor
- Wheel diameter125 mm
- Overall height155 mm
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor type
- Swivel, top plate fixing
- Brake
- None
- Wheel
- Black rubber tyre, ribbed tread, on black polypropylene centre
- Wheel diameter
- 125 mm
- Tread width
- 23 mm
- Tread hardness
- Shore A85
- Bearing type
- Roller bearing
- Top plate size
- 105 x 85 mm
- Plate hole centres
- 80 x 60 mm (slotted)
- Plate hole diameter
- 8 mm (suits M8 bolts)
- Load capacity
- 100 kg per castor
- Load capacity, set of 4
- 300 kg (rated on three castors carrying the load)
- Total castor height
- 155 mm
- Swivel radius
- 103 mm
- Temperature range
- -20°C to +80°C
- Housing
- Zinc-plated pressed steel
- Weight
- 1.09 kg
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
For workshop trolleys, machinery stands and equipment that need a tough, quiet-running wheel, this 125mm swivel castor is a practical, economical choice with a larger wheel that rolls more easily over joints and rough patches. It has a black rubber tyre with a ribbed tread on a black polypropylene centre running on a roller bearing, a zinc-plated pressed steel housing and a 105 x 85mm top plate that bolts straight to the underside of your equipment. Each castor is rated to 100kg and stands 155mm tall. It suits workshop and tool trolleys, machine and equipment stands, warehouse and stockroom trolleys, and workbenches.
Why it works
Black rubber tyre – quiet, grippy and hard-wearing
The black rubber tyre (hardness A85) absorbs small bumps, grips well and runs far more quietly than a hard nylon or steel wheel. It copes with temperatures from -20°C to +80°C. Black rubber can leave dark marks on pale or polished floors, so for hospitals, shops and clean areas choose the grey or blue non-marking versions instead.
Roller bearing for easier rolling
The wheel runs on a roller bearing rather than a plain bore, so it takes less effort to start and keep moving under load, and it wears more evenly over time.
Free swivel, top plate fixing
The swivel head turns a full 360 degrees so the castor follows the direction you push. The 105 x 85mm plate has four 8mm holes on 80 x 60mm centres and suits M8 bolts.
- Black rubber tyre, quiet and hard-wearing
- Free-swivelling, no brake
- Roller bearing, 100kg per castor, 300kg for a set of four
- 105 x 85mm top plate, M8 fixings
- 155mm total height, 103mm swivel radius
Where it's used

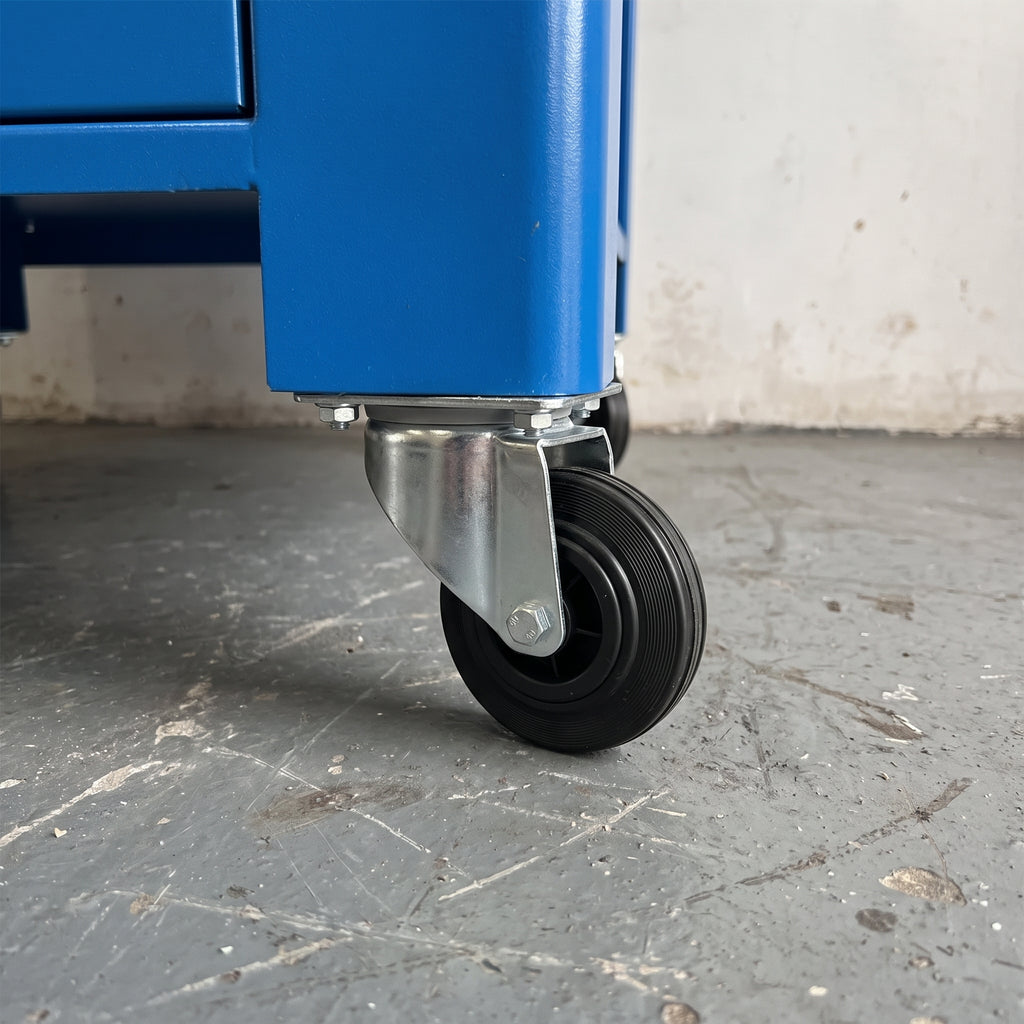

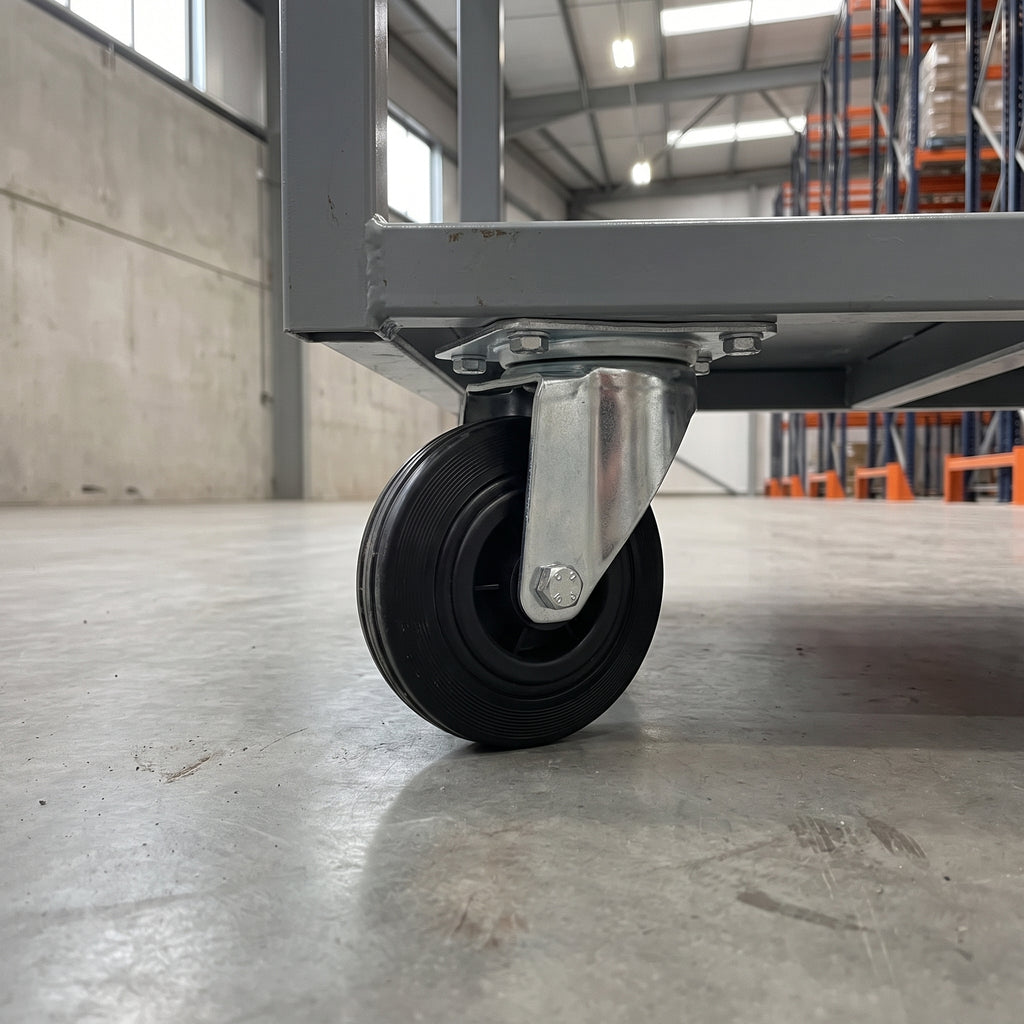

Workshop and tool trolleys, machine and equipment stands, warehouse, stockroom and garage trolleys, and workbenches. Best on concrete, sealed concrete, resin and other hard floors where occasional tyre marks are not a concern.
Choosing the right option
Choose black rubber, as here, for quiet, grippy running on workshop and warehouse floors; choose grey or blue non-marking rubber where floor appearance matters, and polyurethane for heavier industrial loads. Check you have a flat area at least 105 x 85mm under each corner for the plate. This castor has no brake: most equipment has braked castors on two corners and plain swivel castors like this one on the other two. The matching 125mm black rubber castor with a total lock brake has the same plate and stands 154.5mm tall, so a mixed set sits level. For the load, add up the weight of the item and everything on it and divide by three rather than four, because on an uneven floor one castor is often lifted; if the answer is over 100kg, choose a larger wheel. Allow 103mm of swivel clearance around each castor.
Installation, use and care
Hold the plate flat against the base and fix it through all four holes with M8 bolts and nuts. Fixings are not included. Check the fixings after the first few weeks, keep the wheel clear of threads and debris, and wipe clean with a damp cloth. Keep the rubber tyre away from oils and solvents, which can soften rubber.
Frequently asked questions
Will the black wheel mark my floor?
Black rubber can leave dark marks on pale or polished floors, especially when turning under load. For those floors, choose the grey or blue non-marking versions.
What size bolts do I need?
The plate holes are 8mm, so use M8 bolts and nuts. Fixings are not supplied.
What is the load capacity?
Each castor is rated to 100kg. A set of four is rated to 300kg, because the load is calculated on three castors to allow for uneven floors.
Is there a braked version?
Yes. The same 125mm castor is available with a total lock brake that locks both the wheel and the swivel head, with the same plate and a practically identical height (154.5mm).
Ordering and delivery
Sold individually, so order the number of castors you need. Delivery charges are shown at checkout.
