In stock SKU CUK-CASTOR-100-VCI-TP-F

100mm Vintage Fixed Castor Black Cast Iron Wheel Top Plate 120kg Load Capacity

  • Load per castor120kg per castor (360kg for a set of 4) *
  • Wheel diameter100mm
  • Overall height130mm
  • WheelCast Iron
Sale price£79.11
inc VAT
£65.93 ex VAT · each
Estimated UK delivery in 4–10 working days Orders placed before 5pm (Mon–Fri) start processing the same day. Flat £9.99 delivery per order, however many you buy.
  • Secure checkout
  • 14-day returns on unused items
  • UK-based castor advice
American Express Apple Pay Diners ClubDiscoverGoogle Pay MaestroMastercard Shop Pay Union PayVisa

Specifications

Castor Type
Vintage Cast Iron Fixed Castor
Fixing
Top Plate
Plate Size
92 x 68mm
Plate Hole Centres
72 x 44mm
Plate Hole Diameter
8mm
Wheel Diameter
100mm
Wheel Material
Cast Iron
Wheel Colour
Black
Tread Width
32mm
Total Castor Height
130mm
Load Capacity
120kg per castor (360kg for a set of 4) *

Load check

Enter the weight of the item plus its heaviest load. This castor is rated 120kg per castor (360kg for a set of 4) * each.

How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.

Floors & use

Cast iron / steel wheel

  • Carries very heavy loads
  • Tolerates heat and sharp debris
  • Suits concrete, steel and foundry floors
  • Noisy
  • Will mark or damage finished floors

Details & FAQs

Vintage Cast Iron Castor

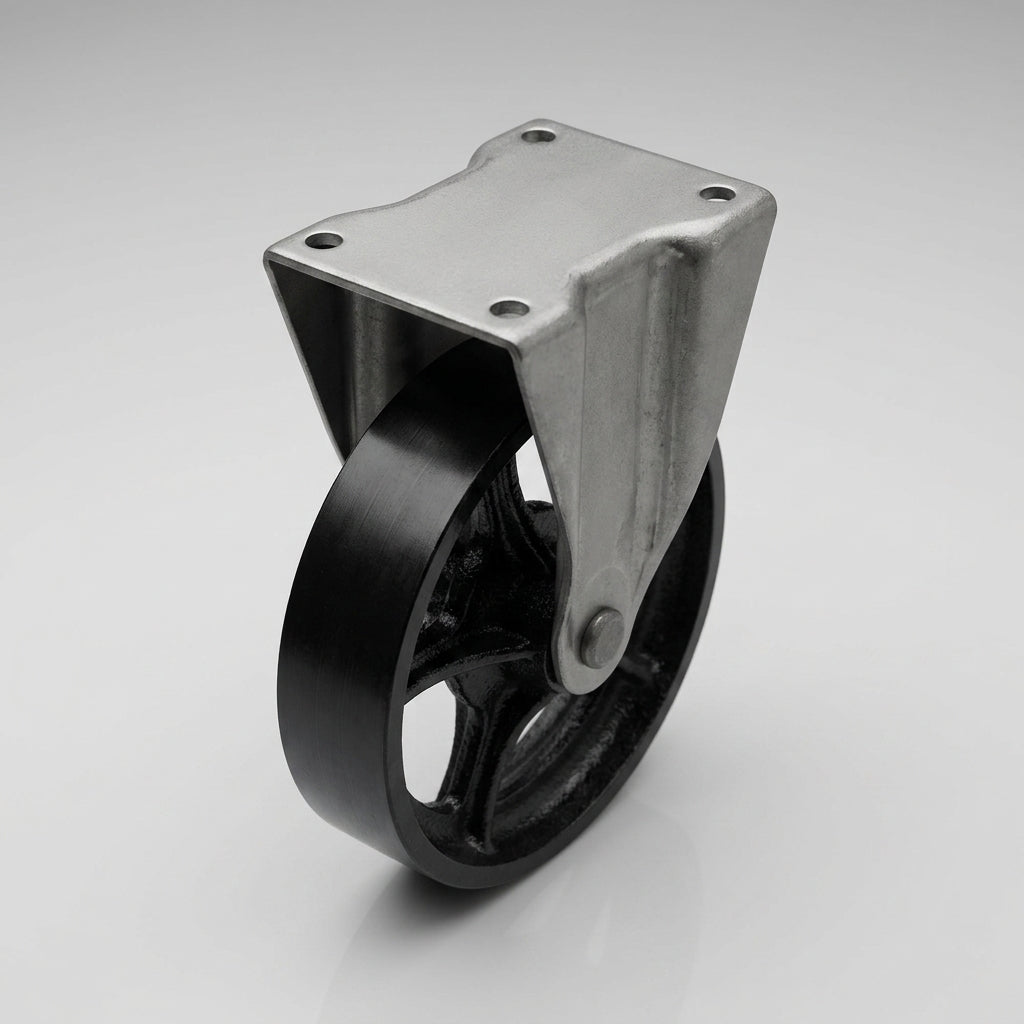

This 100mm vintage fixed castor pairs a black cast iron spoked wheel with a raw steel fork and top plate, rated at 120kg per castor. It brings a classic industrial look to vintage-style furniture, display units and industrial equipment that need steady, straight-line movement.

The castor bolts to the underside of your furniture or trolley through the four holes in its 92 x 68mm top plate. The fixed bracket keeps the wheel pointing in one direction, and the solid cast iron wheel with its five curved spokes gives the authentic period appearance that suits vintage and industrial interiors.

Why Choose This Castor

  • ✓ Black cast iron spoked wheel for a genuine vintage look
  • ✓ 120kg load capacity per castor
  • ✓ 92 x 68mm top plate with four 8mm bolt holes
  • ✓ Fixed wheel for straight, directional movement
  • ✓ 32mm wide tread for stable rolling
  • ✓ Ideal for vintage-style furniture and industrial projects

* Load capacity per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.

Where It Works Best

  • ✓ Furniture manufacturing: vintage-style furniture that rolls in a straight line.
  • ✓ Display units: sturdy fixed castors for retail and exhibition displays.
  • ✓ Industrial equipment: where directional stability is important.

Frequently Asked Questions

How do I fit this castor?

Bolt or screw the 92 x 68mm top plate to a flat, solid area under your furniture or trolley using the four 8mm holes, set at 72 x 44mm centres.

Does this castor swivel?

No. This is a fixed castor, so the wheel only rolls forwards and backwards. Pair it with matching swivel castors if you need to steer.

How much weight can it carry?

Each castor is rated at 120kg, and a set of four up to 360kg.

Will a cast iron wheel mark my floor?

Cast iron is a hard wheel, so on delicate wooden or tiled floors a rug or protective mat underneath helps protect the surface.

How tall is the castor?

The total castor height is 130mm with a 100mm wheel.
