- Load per castor70kg *
- Wheel diameter100mm
- Overall height375mm
- WheelRubber on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Gate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Cast Iron
- Wheel Colour
- Black
- Load Capacity
- 70kg *
- Plate Size
- 165 x 41mm
- Plate Hole Centres
- 85 x 20.5mm
- Plate Hole Diameter
- 8mm
- Height to Lower Plate Bolt Hole
- 242mm
- Total Castor Height
- 375mm
Will it fit?
- Fixing holeØ 8mm
- Bolt hole242mm
- Overall height375mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Heavy Duty Gate Castor

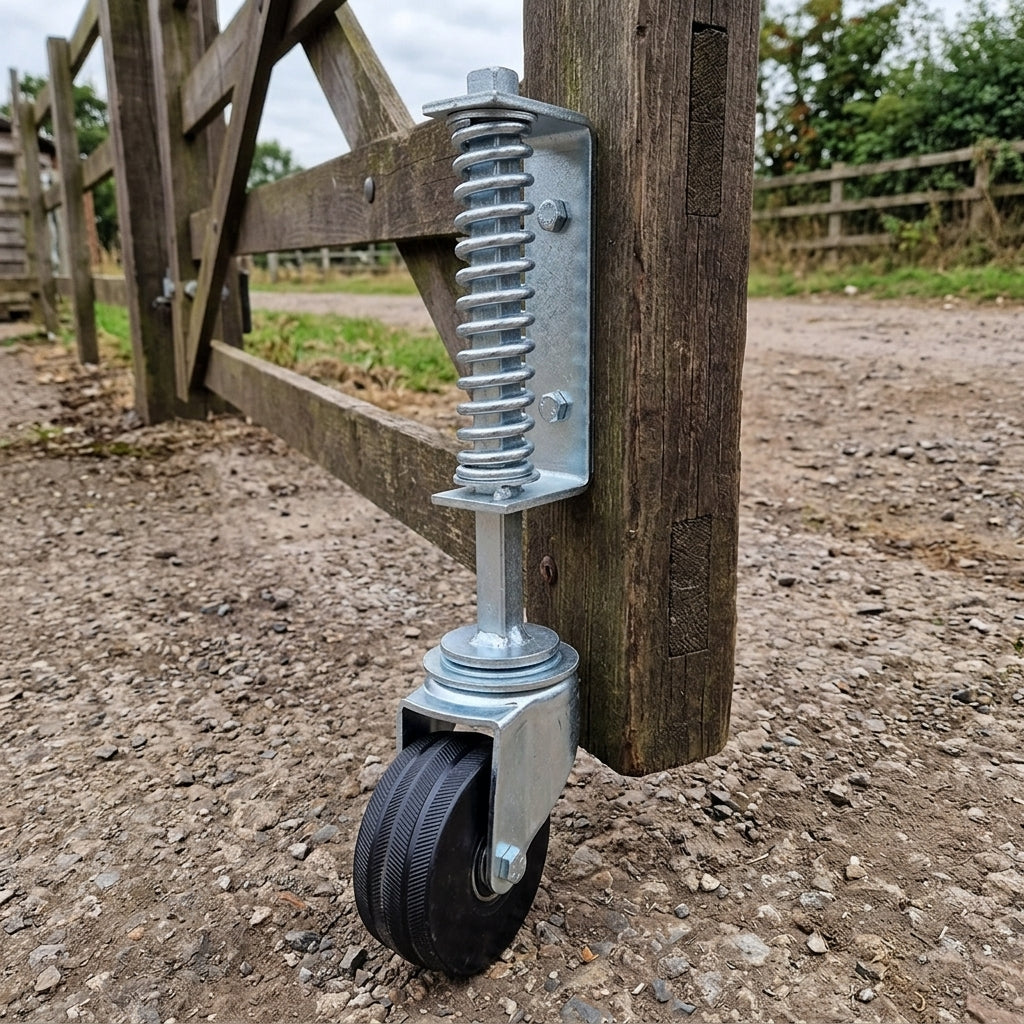

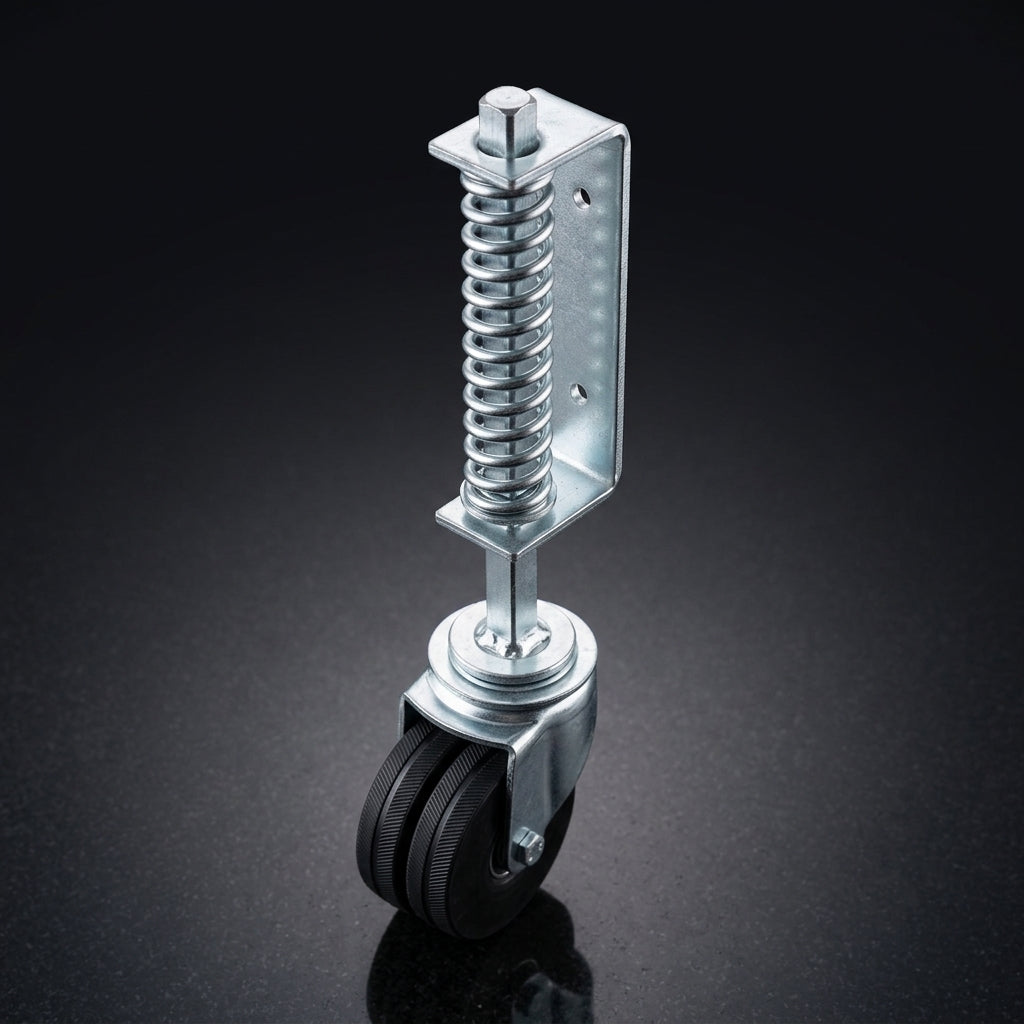

This 100mm heavy duty swivel gate castor supports and guides a gate as it opens and closes, taking up to 70kg off the hinges. It runs on a black rubber wheel with a cast iron centre and bolts to the gate with a 165 x 41mm mounting plate, making it a simple upgrade for driveway, garden, field and yard gates that drag or sag.
The swivel head lets the wheel follow the swing of the gate and change direction easily, while the rubber tread rolls steadily over the ground. With a total castor height of 375mm and 242mm from the ground to the lower plate bolt hole, it suits gates with a good gap underneath.
Why Choose This Castor
- ✓ Supports and guides gates up to 70kg
- ✓ Swivel head follows the swing of the gate
- ✓ Black rubber wheel on a strong cast iron centre
- ✓ 165 x 41mm mounting plate with 8mm bolt holes
- ✓ Takes the strain off gate hinges and stops dragging
* Load capacity is the weight the castor can support. Check the plate size and the gap under your gate before fitting.
Where It Works Best
- ✓ Gates: supporting and guiding a gate during opening and closing, with smooth changes of direction.
Frequently Asked Questions
How much weight can it support?
The castor is rated at 70kg, which suits medium weight timber and metal gates.
How is it fitted?
It bolts to the end stile of the gate with a 165 x 41mm plate. The plate has 8mm holes on 85 x 20.5mm centres.
How much space does it need under the gate?
The total castor height is 375mm, and it is 242mm from the ground to the lower plate bolt hole. Use these to check it fits your gate.
Does the wheel swivel?
Yes. The swivel head lets the wheel turn freely so it follows the gate as it swings open and closed.
What is the wheel made of?
A black rubber tread on a cast iron centre, for a strong wheel that rolls steadily.
