- Load per castor85kg per castor
- Wheel diameter100mm
- Overall height122mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Tread Width
- 22mm
- Bearing Type
- Plain
- Load Capacity
- 85kg per castor
- Top Plate Size
- 60 x 60mm
- Bolt Hole Centres
- 48 / 38mm (slotted)
- Bolt Hole Diameter
- 6mm
- Swivel Radius
- 83mm
- Overall Height
- 122mm
- Housing
- Zinc Plated Pressed Steel
Will it fit?
- Bolt hole48 / 38mm (slotted)
- Overall height122mm
- Swivel radius83mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

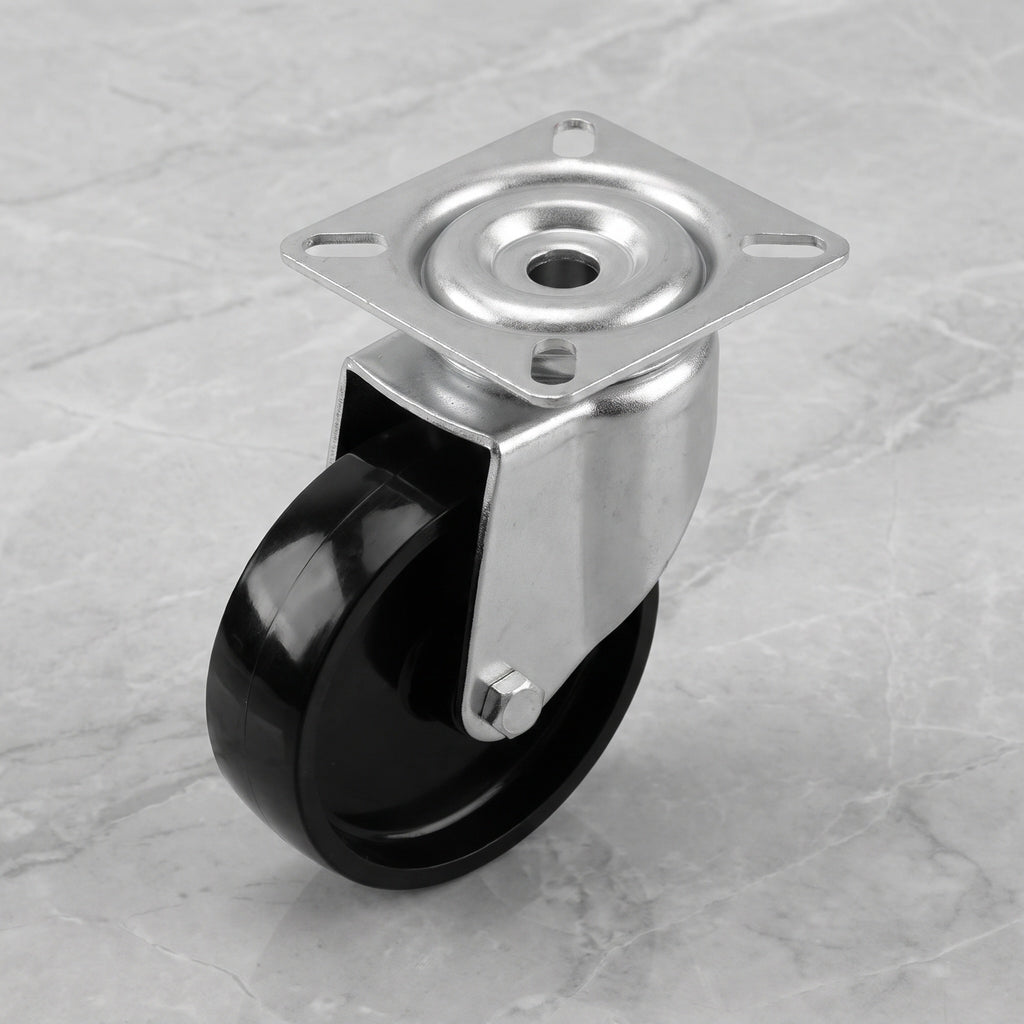

Light Duty Top Plate Castor
This 100mm swivel castor pairs a tough black polypropylene wheel with a bright zinc plated pressed steel swivel housing, carrying up to 85kg per castor on light trolleys, shop fittings, cabinets and mobile furniture.
The larger 100mm wheel rolls over thresholds and small floor joints more easily than smaller castors, while the compact 60 x 60mm top plate with four 6mm slotted holes fits narrow frames and bases. Polypropylene resists water, oils and most cleaning chemicals, so the castor stays easy to look after.
Why Choose This Castor
- ✓ 85kg load capacity per castor
- ✓ 100mm wheel for easier rolling over joints and thresholds
- ✓ Hard polypropylene wheel that resists water, oil and chemicals
- ✓ Zinc plated pressed steel housing for corrosion resistance
- ✓ Full 360 degree swivel for easy steering
- ✓ Compact 60 x 60mm top plate with dual hole centres
Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
Light warehouse and stockroom trolleys, shop fitting and retail displays, office furniture, storage cabinets, catering stands and small workshop trolleys. Best suited to smooth indoor floors such as concrete, vinyl and sealed screed.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated at 85kg. A set of four is best used for loads up to around 255kg, allowing for uneven floors.
What size bolts do I need?
The top plate has four 6mm slotted holes on 48 / 38mm centres, so M5 or M6 bolts, or No. 10 wood screws for timber bases, are a good fit.
Will it mark my floor?
Polypropylene is a hard wheel that rolls easily on smooth floors. For delicate floors such as laminate or wood, a rubber wheel will be quieter and kinder to the surface.
How tall is the castor once fitted?
The overall height from floor to top plate is 122mm, and it needs 83mm of clearance to swivel freely.
Can I mix it with fixed castors?
Yes. Fitting two swivel and two fixed castors of the same wheel size and height gives straight line tracking with easy steering.
