- Load per castor150kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- 316 Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 30mm
- Bearing Type
- Plain
- Load Capacity
- 150kg per castor
- Fixing
- 4 Bolt Hole Top Plate
- Plate Size
- 100 x 85mm
- Plate Hole Centres
- 80 x 60mm
- Plate Hole Diameter
- 9mm
- Swivel Radius
- 62mm
- Total Castor Height
- 128mm
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

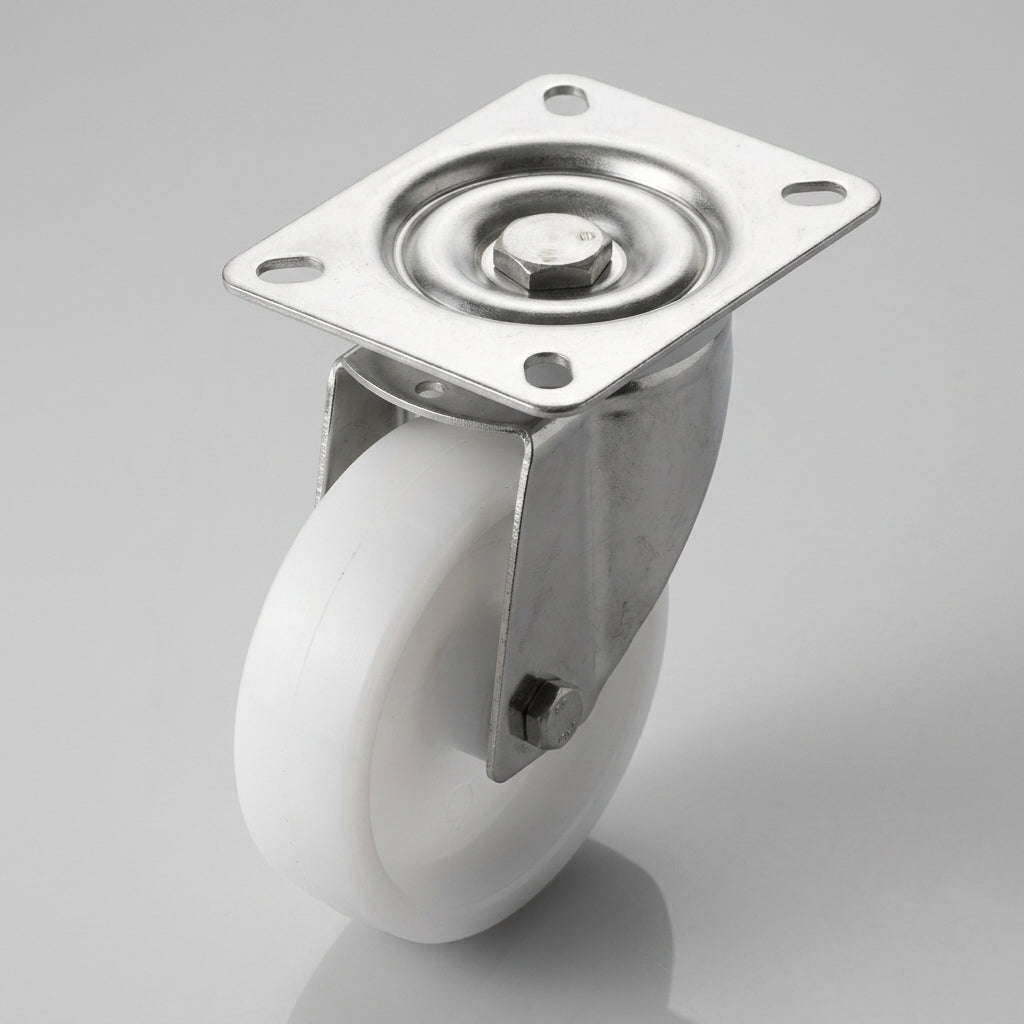

316 Stainless Steel Swivel Castor

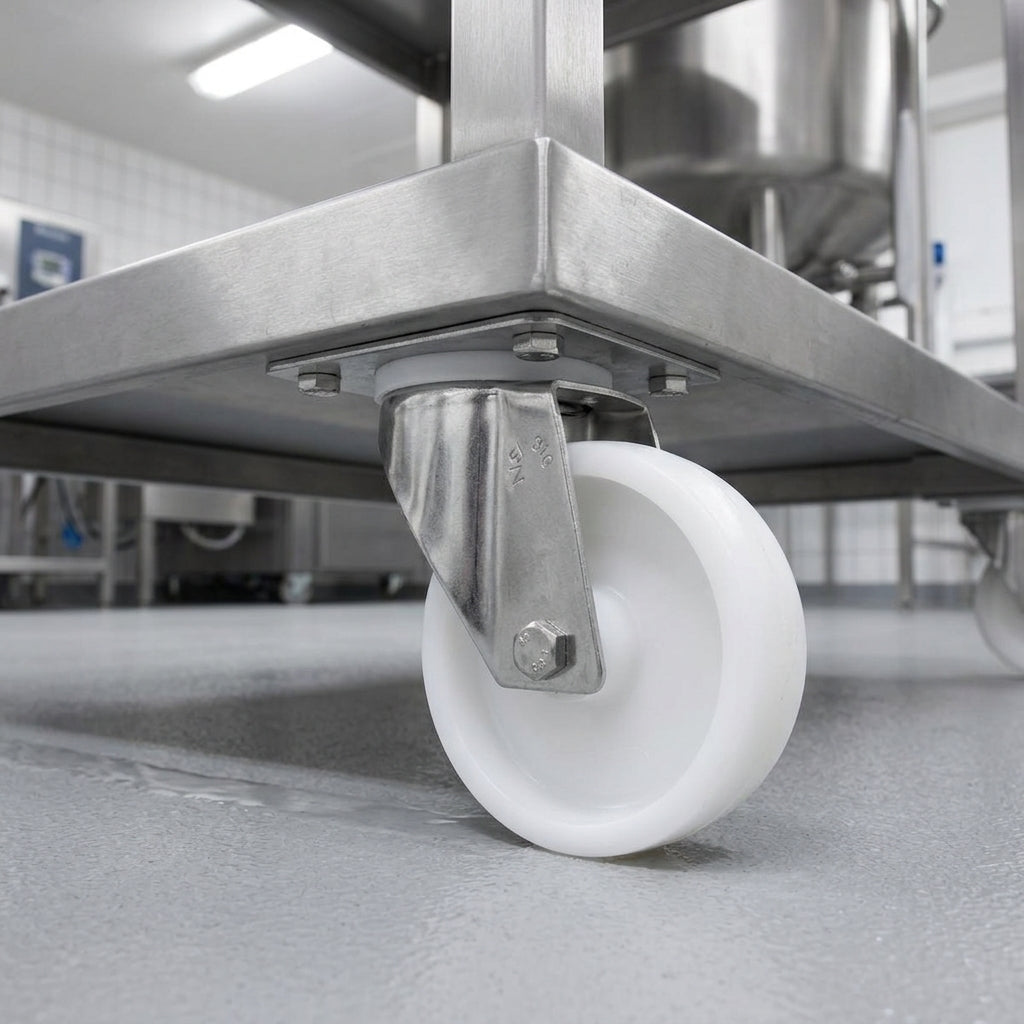

This 100mm 316 stainless steel swivel castor runs on a tough white nylon wheel and carries up to 150kg per castor. It is made for food processing equipment, medical trolleys, laboratory carts and retail display units where corrosion resistance and hygiene matter.
The 316 grade stainless steel housing stands up to corrosive and wet environments, and the 100 x 85mm top plate bolts securely to the underside of your equipment. The hard nylon wheel rolls easily on smooth floors on a plain bearing, and the castor works from -40°C to +80°C.
Why Choose This Castor
- ✓ 316 grade stainless steel for corrosion resistance
- ✓ 150kg load capacity per castor
- ✓ Hard white nylon wheel for smooth floors
- ✓ 100mm wheel with a 30mm tread
- ✓ Wide -40°C to +80°C temperature range
- ✓ 100 x 85mm top plate with four 9mm holes
* Load capacity is per castor on a level surface. Check the plate size and hole centres suit your equipment before fitting.
Where It Works Best
- ✓ Food processing equipment: areas where stainless steel is required for hygiene.
- ✓ Medical trolleys: smooth movement in healthcare settings.
- ✓ Laboratory carts and display units: clean, easy repositioning on smooth floors.
Frequently Asked Questions
What does 316 stainless steel mean?
316 is a higher grade of stainless steel with better corrosion resistance, which makes it a good choice for wet, salty or heavily cleaned areas.
How much weight can it carry?
Each castor is rated at 150kg. Add up the castors fitted to your equipment to work out the total load.
How is it fitted?
It has a 100 x 85mm top plate with four 9mm holes on 80 x 60mm centres, bolted to the underside of your equipment.
Is a nylon wheel good on all floors?
Nylon is hard and rolls best on smooth, level floors. Choose a rubber wheel if you need a quieter, softer ride.
What temperatures is it suitable for?
The castor is rated for use from -40°C to +80°C, so it suits cold stores, food production and normal indoor areas.
How tall is the castor?
The total castor height is 128mm and it needs 62mm of clearance to swivel freely.
