- Load per castor270kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Brake
- Locks the wheel
- Wheel Diameter
- 100mm
- Wheel Type
- Nylon
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 34mm
- Tyre Hardness
- D75
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80/77 x 60mm
- Hole Diameter
- 8mm
- Swivel Radius
- 123mm
- Total Castor Height
- 128mm
- Load Capacity
- 270kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

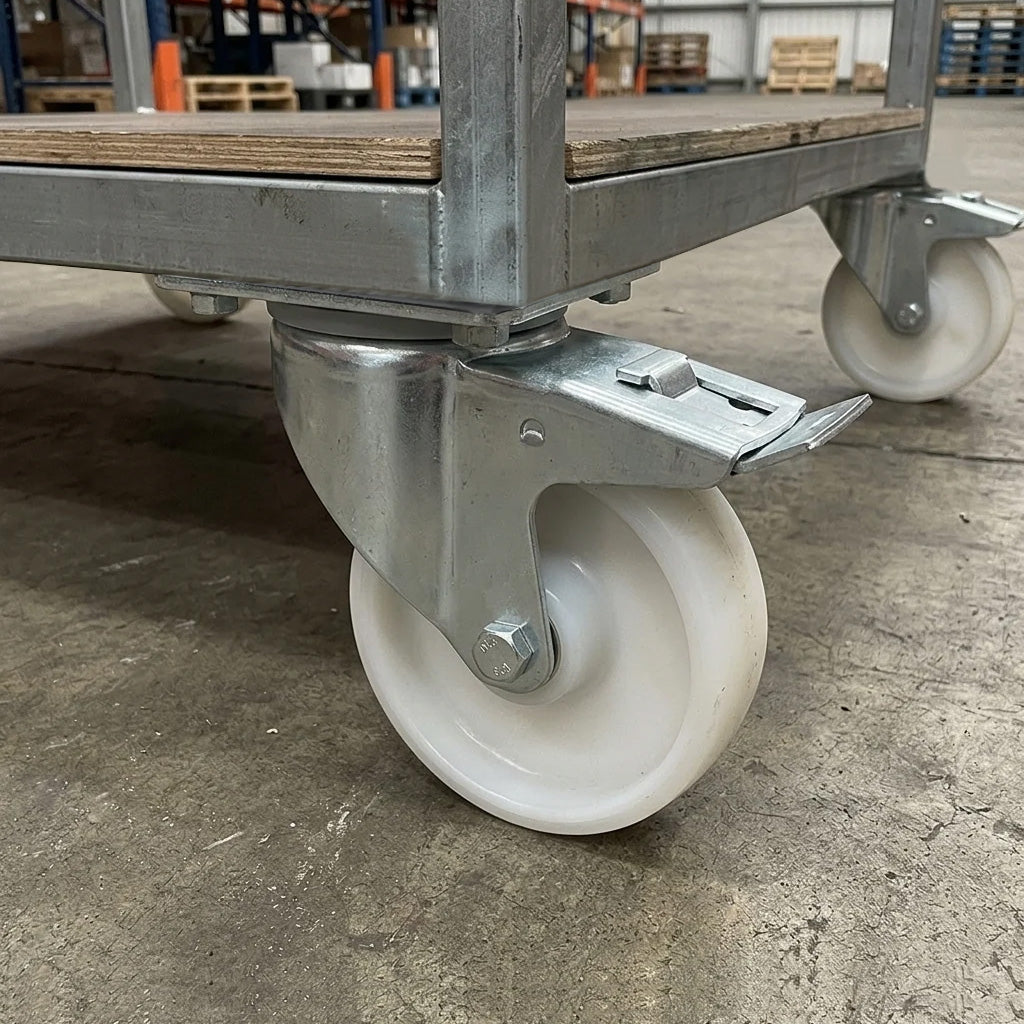

White Nylon Braked Castors
Fitted with a white nylon wheel, this 100mm braked swivel castor is engineered for heavy-duty industrial use, supporting up to 270kg per castor. The brake locks the wheel for extra safety and control, and it suits industrial trolleys, warehouse carts, manufacturing equipment and material handling units.
The solid nylon wheel has a D75 tread hardness for firm contact on smooth floors, and the roller bearing gives smooth movement with reduced friction. This top plate castor fixes with a 105 x 85mm plate, has a 123mm swivel radius, stands 128mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Wheel brake for extra safety and control.
- ✓ White nylon wheel for firm contact on smooth floors.
- ✓ 270kg load capacity per castor for industrial use.
- ✓ Roller bearing for smooth movement and reduced friction.
- ✓ 100mm wheel with 34mm tread and D75 tread hardness.
- ✓ 105 x 85mm top plate with four 8mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This braked top plate castor suits equipment that needs to move easily and then stay put:
- ✓ Industrial trolleys: transporting heavy loads efficiently.
- ✓ Warehouse carts: smooth and controlled movement.
- ✓ Manufacturing equipment: mobility and stability for machinery.
- ✓ Material handling units: better manoeuvrability in industrial settings.
Frequently Asked Questions
What does the brake lock?
The brake locks the wheel, so the castor stays in place once the brake is applied.
How much weight can this castor carry?
Each castor is rated for 270kg.
How is the castor fitted?
It has a 105 x 85mm top plate with four 8mm holes on 80/77 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 123mm and the total castor height is 128mm.
What is the wheel made of?
A solid white nylon wheel, 100mm in diameter and 34mm wide, with D75 hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
