- Load per castor150kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 23mm
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate
- Plate Size
- 105 x 85mm
- Swivel Radius
- 118mm
- Total Castor Height
- 128mm
- Load Capacity
- 150kg per castor
- Temperature Range
- -20°C to +80°C
- Brake
- Yes, foot operated, locks the wheel and the swivel head
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

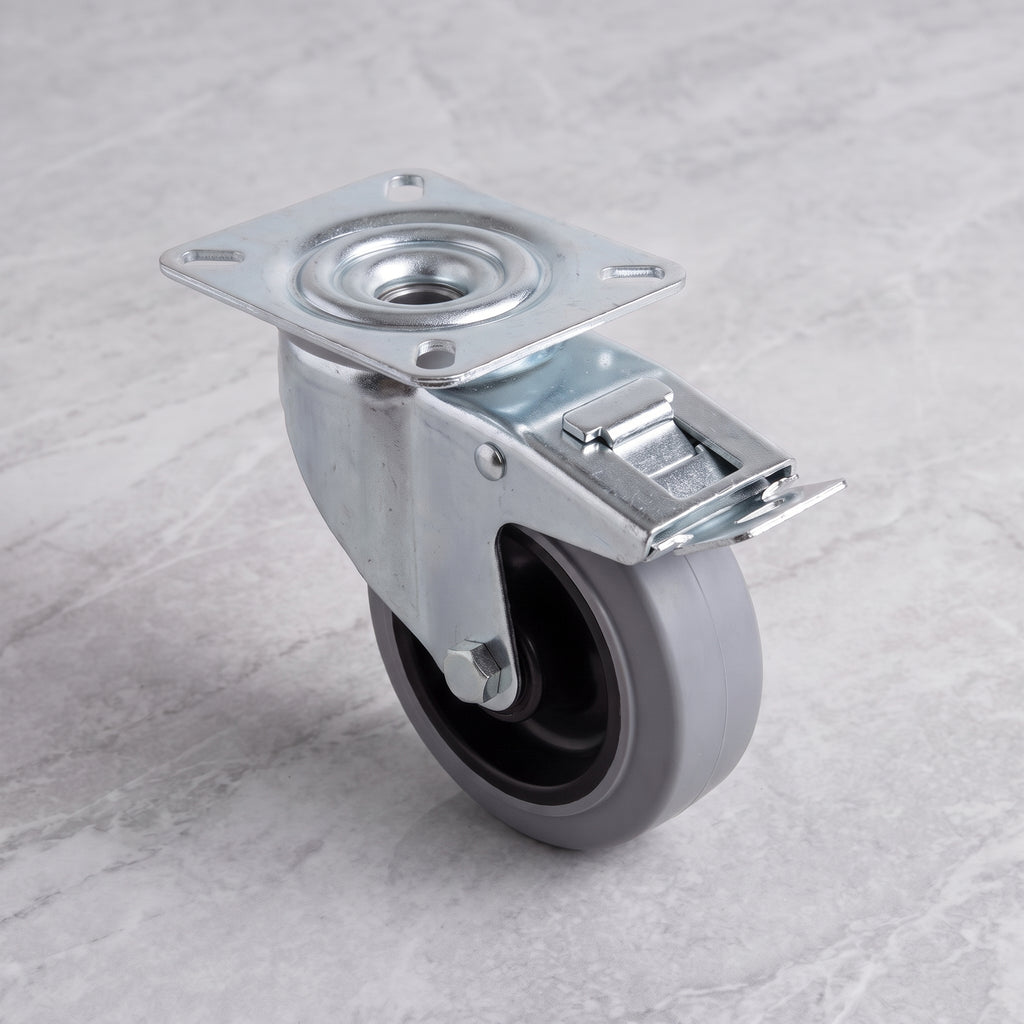

Grey Rubber Top Plate Castors
This 100mm braked swivel castor has a grey rubber wheel on a polypropylene core and is built for industrial and commercial equipment that needs controlled movement and stability. Its foot operated brake locks both the wheel and the swivel head, and the 105 x 85mm top plate bolts securely to warehouse trolleys, industrial carts, workbenches and equipment stands.
The roller bearing supports up to 150kg per castor, and the 23mm grey rubber tread rolls smoothly and quietly. With a 128mm total height and a 118mm swivel radius, this braked top plate castor works from -20°C to +80°C, making it a versatile choice for trolleys and equipment in many environments.
Why Choose This Castor
- ✓ Foot operated brake locks both the wheel and the swivel head for precise positioning and safety during use.
- ✓ Grey rubber wheel on a polypropylene core for quiet, smooth rolling on hard floors.
- ✓ 150kg load capacity per castor for industrial and commercial equipment.
- ✓ Roller bearing for better load handling and easy movement.
- ✓ 105 x 85mm top plate for secure attachment to flat surfaces.
- ✓ Wide temperature range from -20°C to +80°C for many different environments.
* Load capacity is per castor on a smooth, level floor. Check that the plate size matches your mounting area before fitting.
Where It Works Best
This braked top plate castor suits equipment that must move easily and then stay firmly in place:

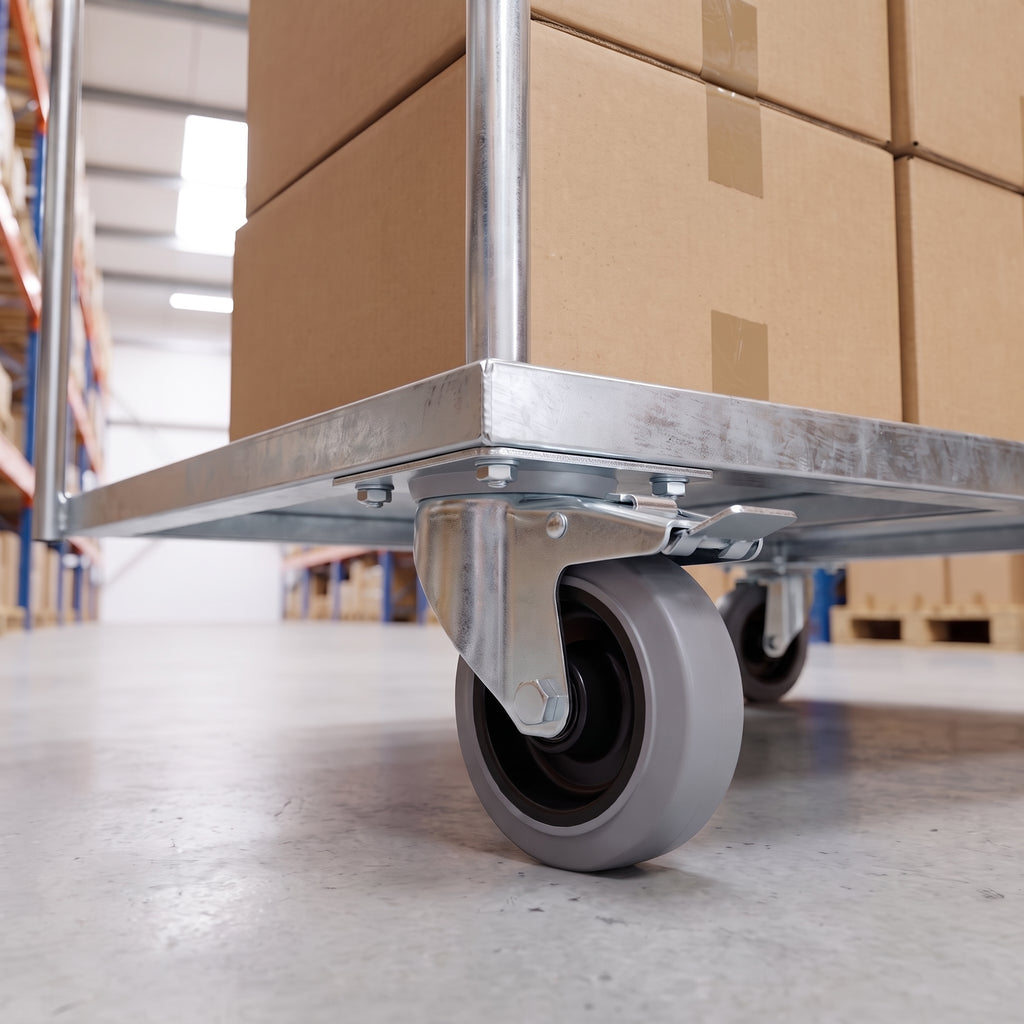

- ✓ Warehouse trolleys: controlled movement and stability when transporting goods.
- ✓ Industrial carts: safe handling of equipment and materials.

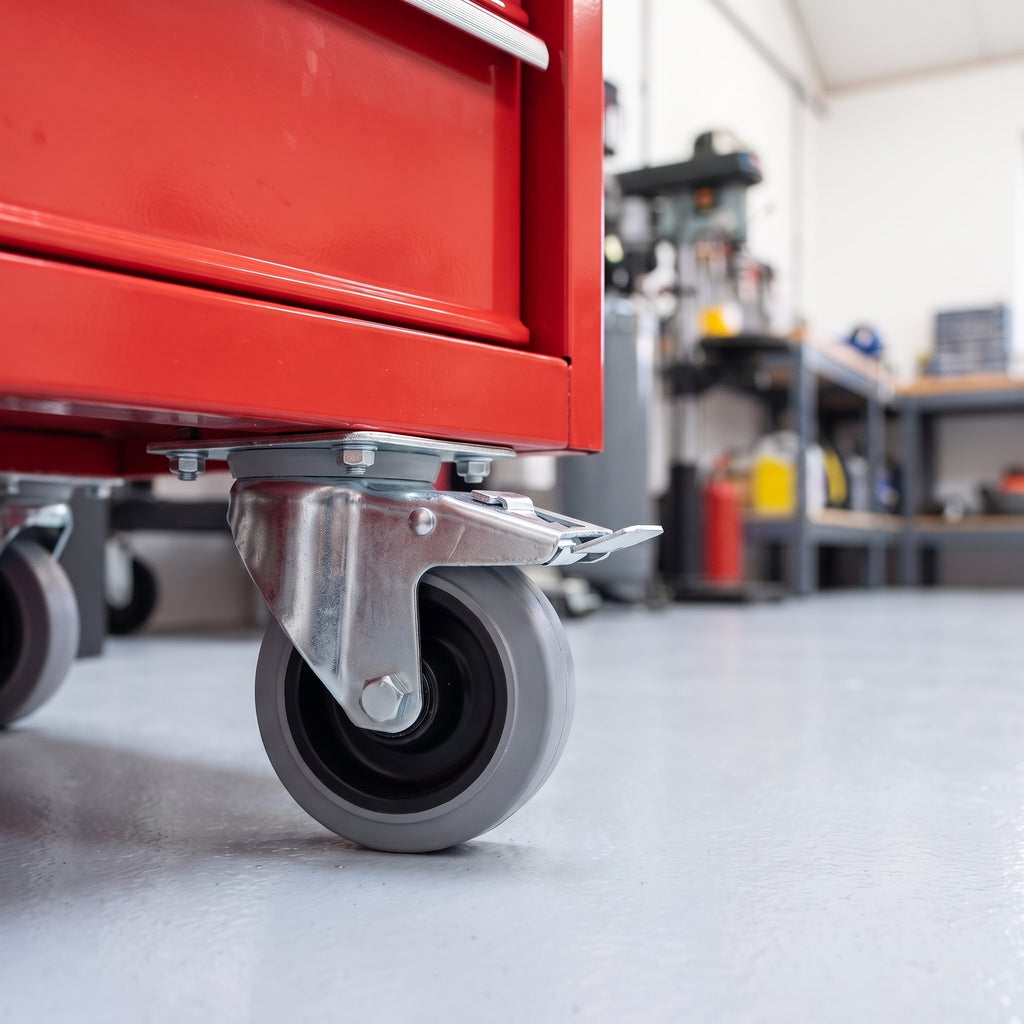

- ✓ Workbenches: easy repositioning and secure locking during work.
- ✓ Equipment stands: stability and manoeuvrability for heavy machinery.
Frequently Asked Questions
What does the brake lock?
The foot operated brake locks both the wheel and the swivel head, so the castor can neither roll nor turn once it is applied.
How much weight can this castor carry?
Each castor is rated for 150kg.
How is the castor fitted?
It has a 105 x 85mm top plate that is bolted flat to the underside of your trolley, cart or workbench through its four holes. The total castor height is 128mm and the swivel radius is 118mm.
What is the wheel made of?
A grey rubber tread on a polypropylene centre, 100mm in diameter with a 23mm tread width.
What bearing does the wheel use?
The wheel runs on a roller bearing for better load handling and smooth movement.
What temperatures can it work in?
The castor is suitable for use from -20°C to +80°C.
