- Load per castor85kg per castor
- Wheel diameter100mm
- Overall height122mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Swivel Castor with Brake
- Wheel Diameter
- 100mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Tread Width
- 22mm
- Bearing Type
- Plain
- Brake
- Foot-operated brake
- Load Capacity
- 85kg per castor
- Fixing
- 4 bolt hole top plate
- Plate Size
- 60 x 60mm
- Plate Hole Centres
- 48/38 x 48/38mm
- Plate Hole Diameter
- 6mm
- Swivel Radius
- 97mm
- Total Castor Height
- 122mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Light Duty Plastic Castors

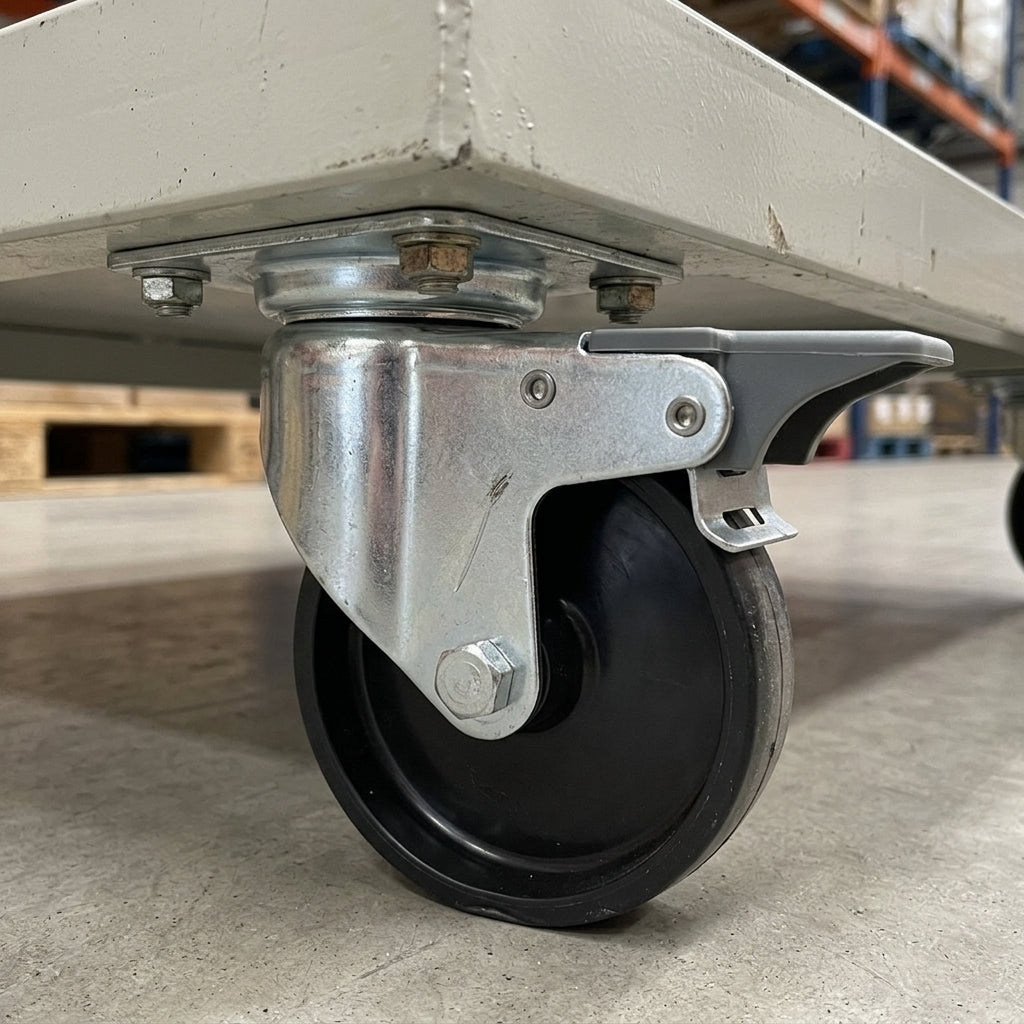

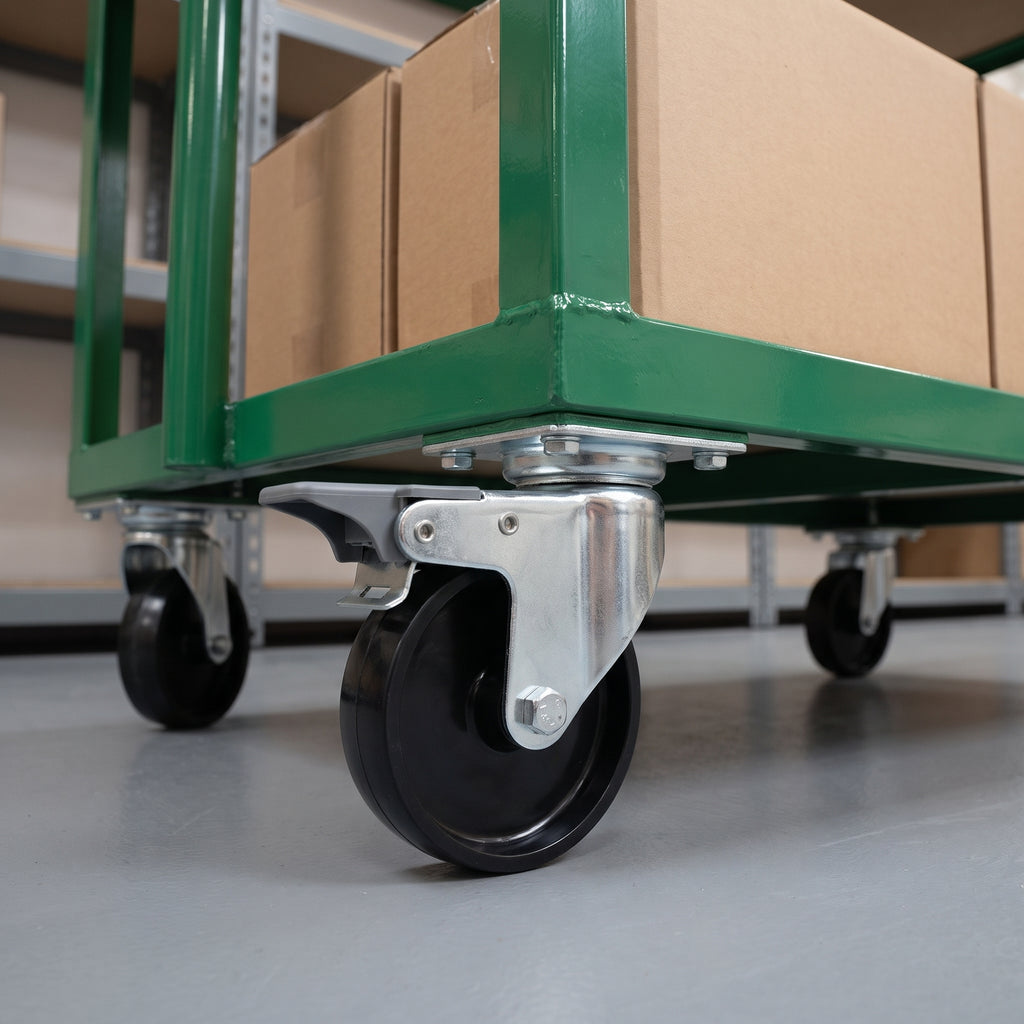

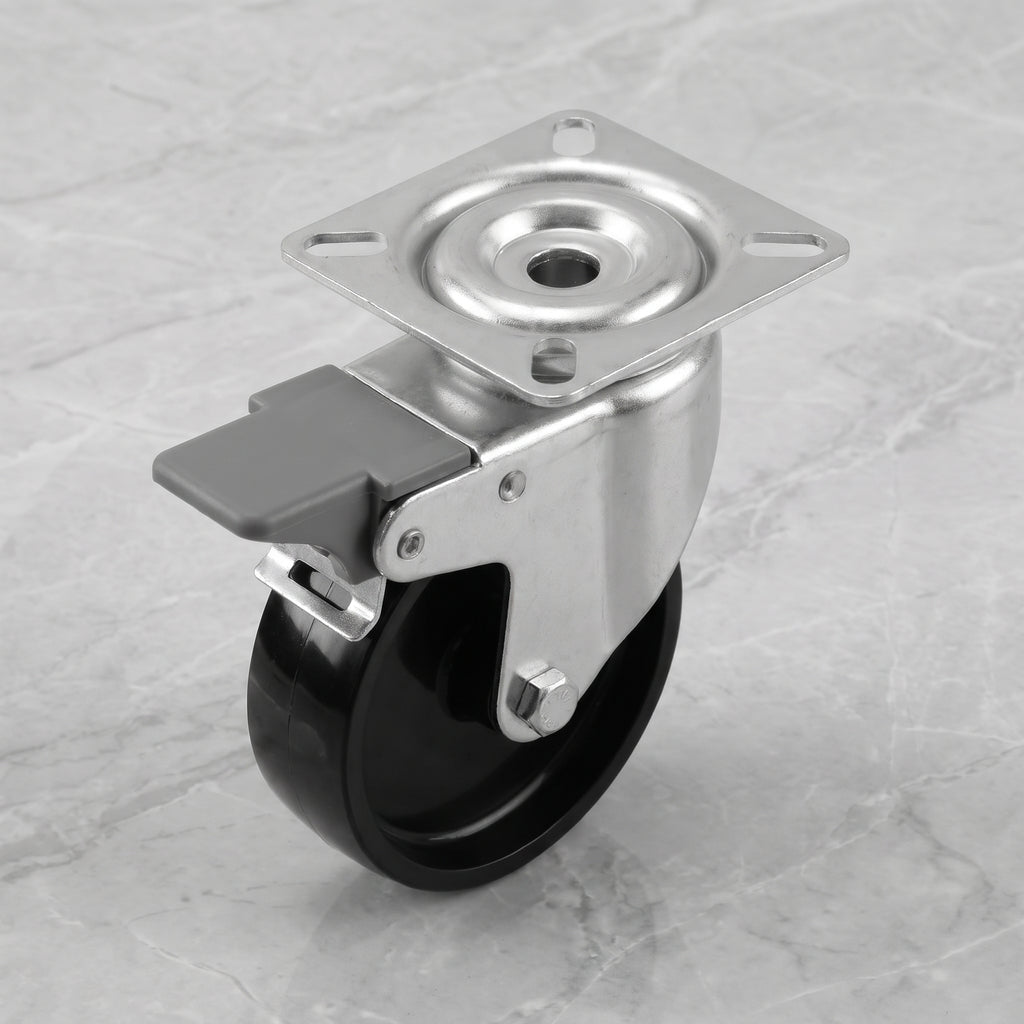

Move it easily, then lock it in place. This 100mm braked swivel castor pairs a black polypropylene wheel with a pressed steel top plate housing and a foot-operated brake, so display units, shop fittings, carts and trolleys turn freely and stay put when parked. It swivels a full 360 degrees for tight spaces, and each castor is rated for 85kg.
The polypropylene wheel is lightweight and hard-wearing, running on a plain bearing with a 22mm tread. The castor fixes to your equipment with a 60 x 60mm top plate with 6mm holes on 48/38mm centres, stands 122mm tall overall and has a 97mm swivel radius. Check the plate size and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ Foot-operated brake holds your equipment securely in position.
- ✓ Swivel castor turns 360 degrees for easy steering in confined areas.
- ✓ Black polypropylene wheel 100mm diameter, lightweight and durable.
- ✓ Plain bearing for a simple, smooth rolling action.
- ✓ 60 x 60mm top plate with 4 bolt holes for straightforward fitting.
- ✓ 85kg load capacity per castor for light duty use.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This 100mm braked swivel castor suits:
- ✓ Retail: display units and shop fittings that are rearranged often.
- ✓ Warehousing: moving goods and equipment around the site.
- ✓ Workshops: tool carts and mobile workstations.
Frequently Asked Questions
What does the brake lock?
Press the foot pedal down to apply the brake and hold the castor in place, so your display, cart or trolley stays where you park it. Lift the pedal to release it.
How much weight can this castor carry?
Each castor is rated for 85kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 60 x 60mm top plate with 6mm holes on 48/38mm centres, bolted or screwed to the underside of your equipment.
What is the wheel made of?
A 100mm black polypropylene wheel with a 22mm tread, running on a plain bearing.
How tall is the castor?
The castor is 122mm tall overall, from the floor to the top of the plate, with a 97mm swivel radius.
* This product does not have free shipping.
