- Load per castor150kg per castor *
- Wheel diameter100mm
- Overall height128mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Blue
- Tread Width
- 30mm
- Tread Hardness
- 60 Shore D
- Bearing Type
- Roller Bearing
- Load Capacity
- 150kg per castor *
- Bolt Hole Size
- 12mm
- Swivel Radius
- 91mm
- Total Castor Height
- 128mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole12mm
- Overall height128mm
- Swivel radius91mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -40°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

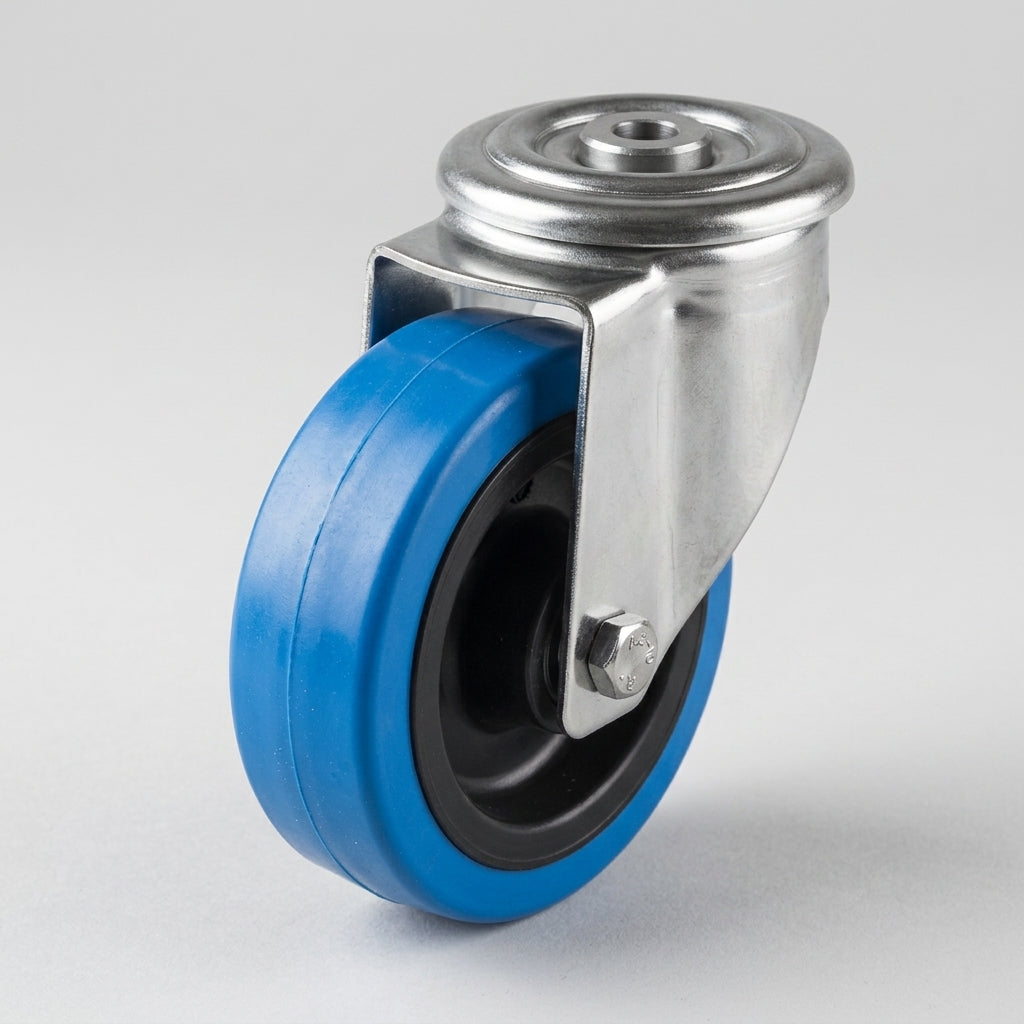

Bolt Hole Stainless Steel Castors
This 100mm stainless steel swivel castor has a blue non-marking rubber wheel, made for places where floor marking is a concern. It carries 150kg per castor, which suits a wide range of handling jobs.
A roller bearing in the wheel hub reduces friction for smooth rotation, the swivel makes tight spaces easier, and it fits through a single 12mm bolt hole.
Why Choose This Castor
- ✓ Blue non-marking rubber wheel for floors that must stay clean.
- ✓ Stainless steel housing with a swivel for tight spaces.
- ✓ Roller bearing that reduces friction.
- ✓ Single 12mm bolt hole for a secure fixing.
- ✓ 150kg load capacity per castor.
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital equipment: trolleys and carts where non-marking wheels are essential.
- ✓ Food service carts: smooth, quiet operation.
- ✓ Retail displays: easy repositioning of display units.
- ✓ Laboratory equipment: sensitive flooring surfaces.
- ✓ Office furniture: mobility without damaging floors.
Frequently Asked Questions
Does this castor have a brake?
No. This is a swivel castor without a brake, so it can change direction freely.
Will the wheel mark my floor?
It has a blue non-marking rubber tread, made for places where floor marking is a concern.
How much weight can a set of four carry?
Each castor is rated for 150kg. Planning on three castors carrying the load, a set of four suits about 450kg.
How is the castor fitted?
It fits with a single bolt through the 12mm bolt hole in the swivel head.
How much space does it need to swivel?
The swivel radius is 91mm and the total castor height is 128mm.
Where can I use this castor?
It suits hospital equipment, food service carts, retail displays, laboratory equipment and office furniture.
