Description

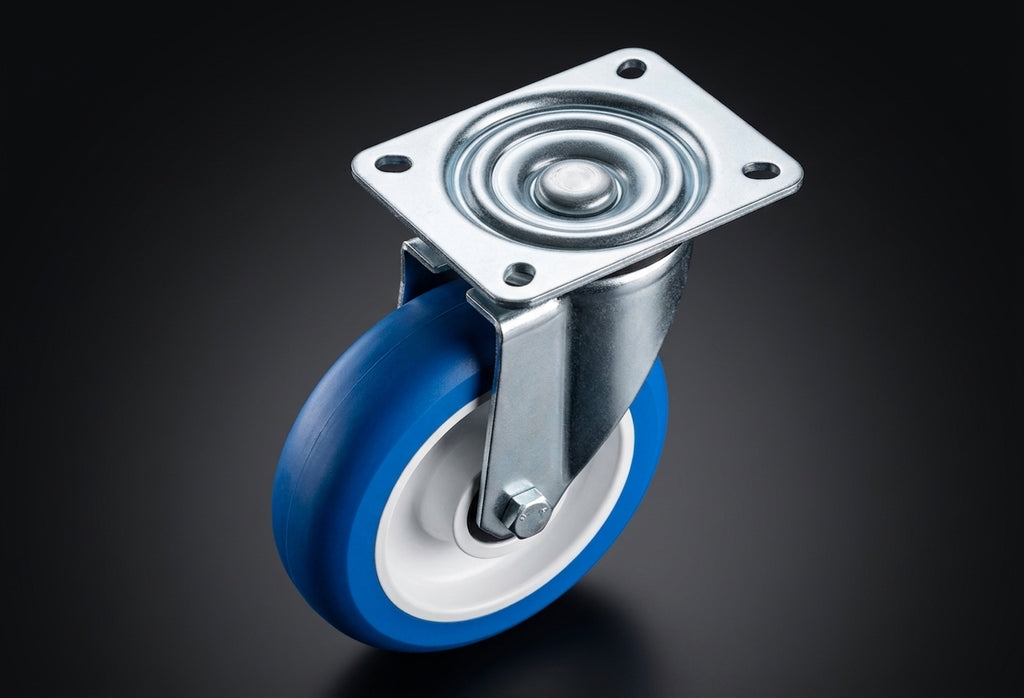

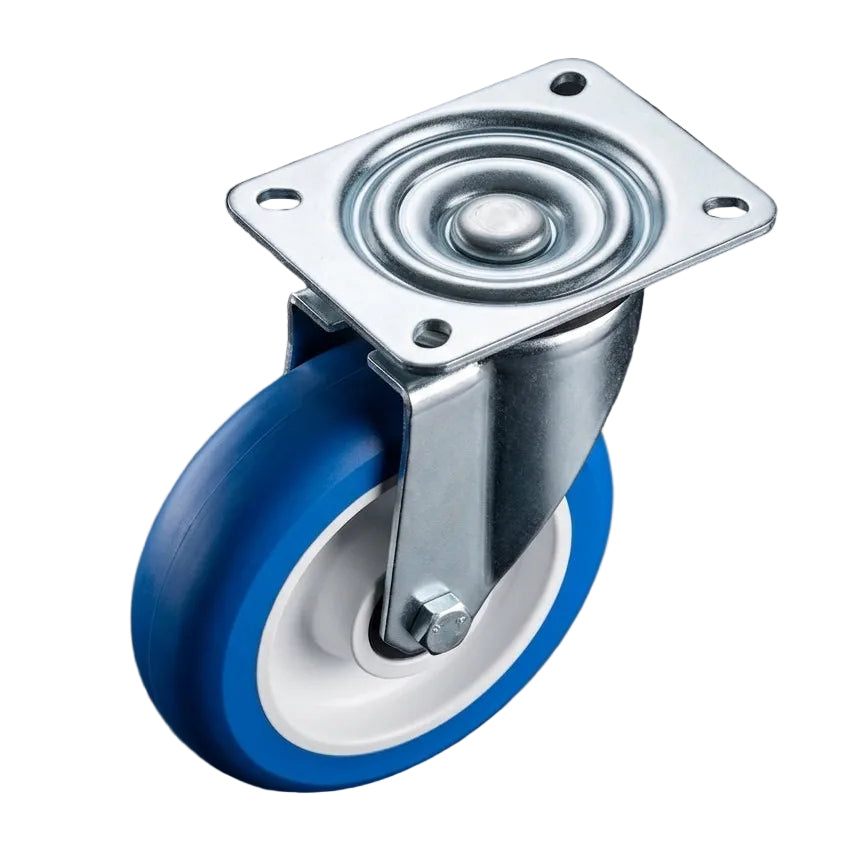

100mm Stainless Steel Swivel Castor with Polyurethane Wheel

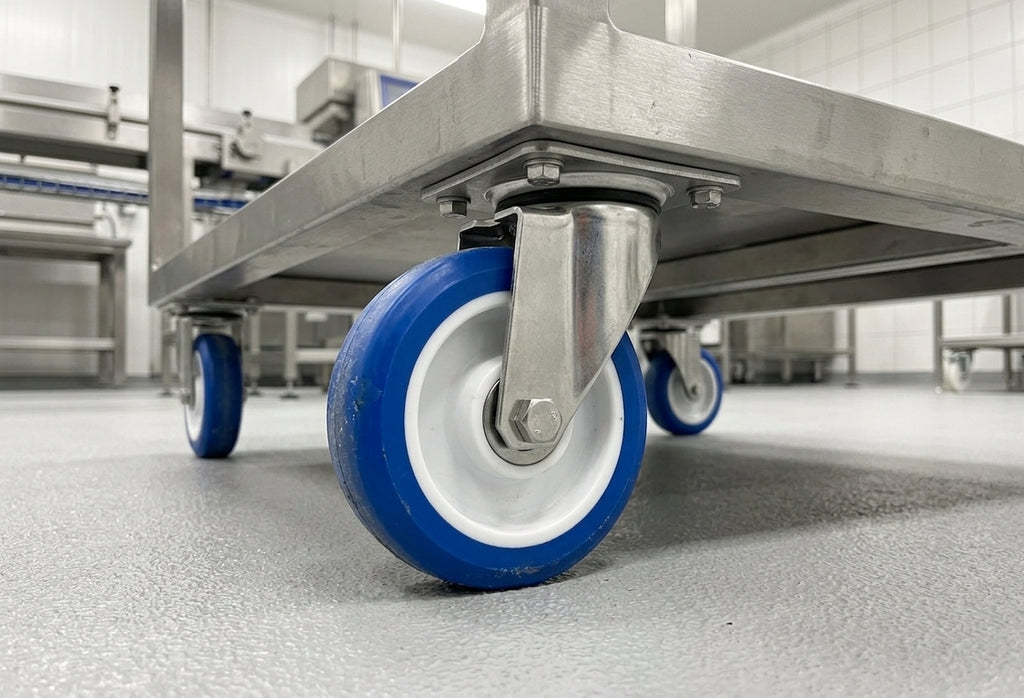

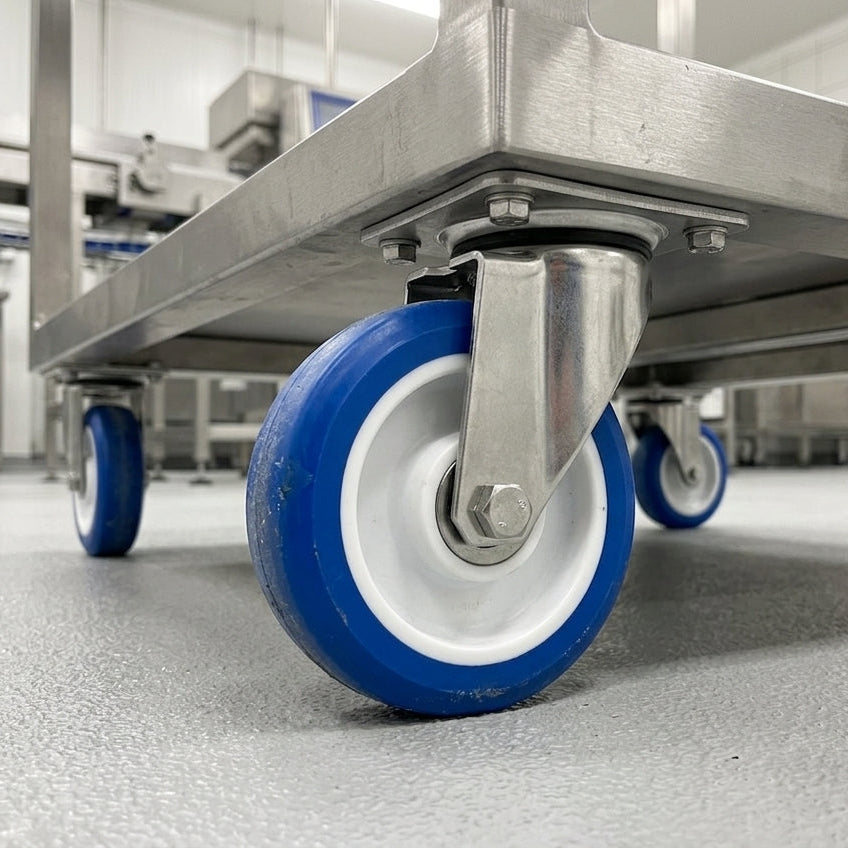

This 100mm stainless steel swivel castor features a durable polyurethane wheel mounted on a robust nylon centre, designed for heavy-duty applications. Ideal for environments requiring smooth mobility and resilience, this castor is perfect for carts, trolleys, and industrial equipment that operate within a temperature range of -30°C to +80°C.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Top Plate Castors |
| Bearing Type | Ball Bearing |
| Load Capacity | 230 kg |
| Tread Width (mm) | 40 |
| Temperature Range | -30°C to +80°C |
| Hardness of Tread | 87 Shore A |
| Max Load Capacity of 4 Castors | 690 kg |
| Plate Length (mm) | 102 |
| Plate Width (mm) | 83 |
| Plate Hole Centres Length (mm) | 80 |
| Plate Hole Centres Width (mm) | 60 |
| Plate Hole Diameter | 8 |
| Swivel Radius | 96 |
| Total Castor Height | 129 |
| Wheel Colour | Blue |
| Wheel Diameter (mm) | 100 |
| Wheel Material | Ergonomic Polyurethane |
Applications
This versatile castor is ideal for a wide range of applications, including:
- Industrial carts and trolleys
- Hospital equipment and furniture
- Warehouse shelving units
- Food service equipment
- Material handling systems
Frequently Asked Questions (FAQs)
Q: What is the load capacity of this castor?
A: The load capacity is 230 kg per castor, with a maximum of 690 kg for four castors.
Q: Can this castor be used outdoors?
A: Yes, it can be used outdoors as it is designed to withstand various temperatures from -30°C to +80°C.
Q: What type of flooring is suitable for this castor?
A: The polyurethane wheel is suitable for various surfaces, including concrete, tiles, and wooden floors, providing smooth mobility.
Q: Is this castor easy to install?
A: Yes, it features a top plate fitting that allows for straightforward installation on most equipment.
Q: What is the hardness of the wheel tread?
A: The hardness of the tread is 87 Shore A, ensuring durability and resistance to wear.
Q: How does the swivel mechanism work?
A: The swivel mechanism allows the castor to rotate 360 degrees, providing excellent maneuverability in tight spaces.
A: The load capacity is 230 kg per castor, with a maximum of 690 kg for four castors.
Q: Can this castor be used outdoors?
A: Yes, it can be used outdoors as it is designed to withstand various temperatures from -30°C to +80°C.
Q: What type of flooring is suitable for this castor?
A: The polyurethane wheel is suitable for various surfaces, including concrete, tiles, and wooden floors, providing smooth mobility.
Q: Is this castor easy to install?
A: Yes, it features a top plate fitting that allows for straightforward installation on most equipment.
Q: What is the hardness of the wheel tread?
A: The hardness of the tread is 87 Shore A, ensuring durability and resistance to wear.
Q: How does the swivel mechanism work?
A: The swivel mechanism allows the castor to rotate 360 degrees, providing excellent maneuverability in tight spaces.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
