- Load per castor160kg per castor *
- Wheel diameter100mm
- Overall height128mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Blue
- Non-Marking
- Yes
- Tread Width
- 29mm
- Tread Hardness
- A70
- Bearing Type
- Roller
- Load Capacity
- 160kg per castor *
- Top Plate Size
- 105 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Swivel Radius
- 91mm
- Total Castor Height
- 128mm
- Temperature Range
- -20°C to +80°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height128mm
- Swivel radius91mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

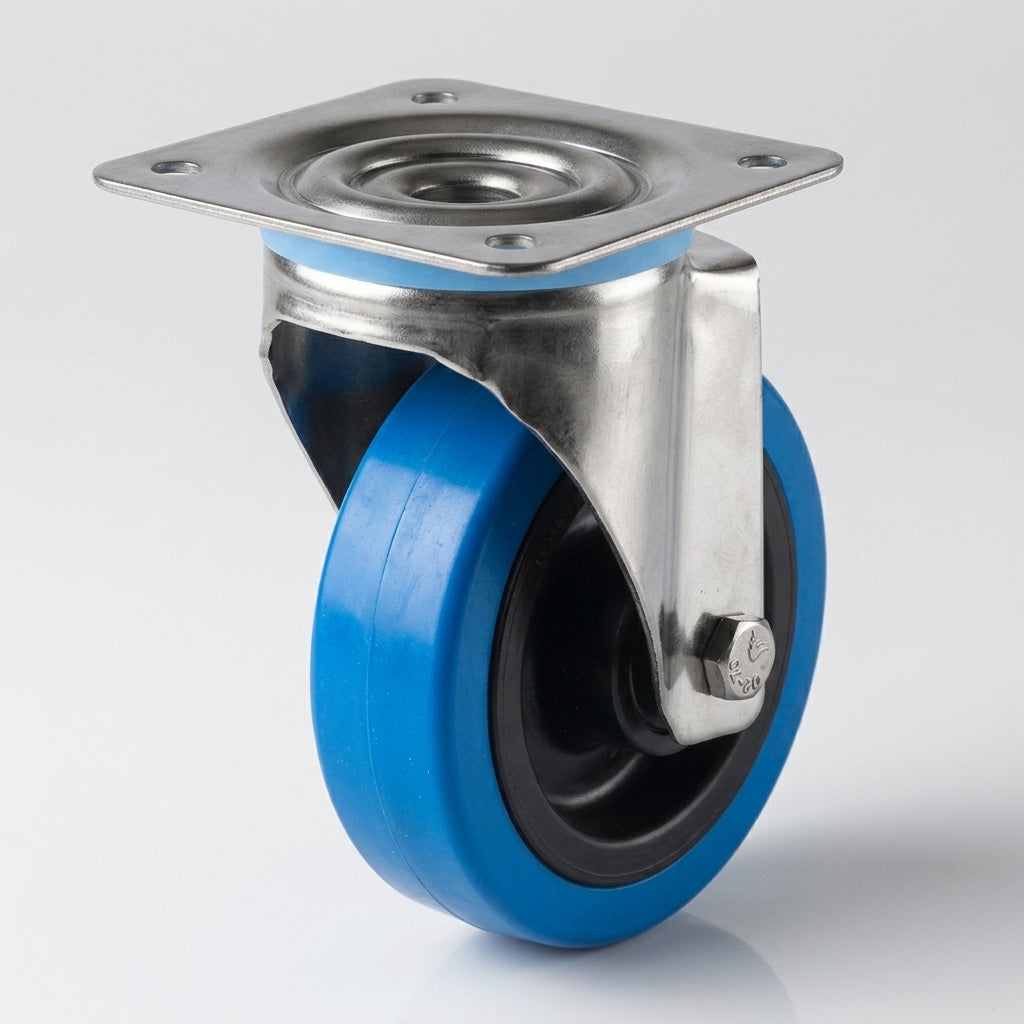

Stainless Steel Swivel Castor

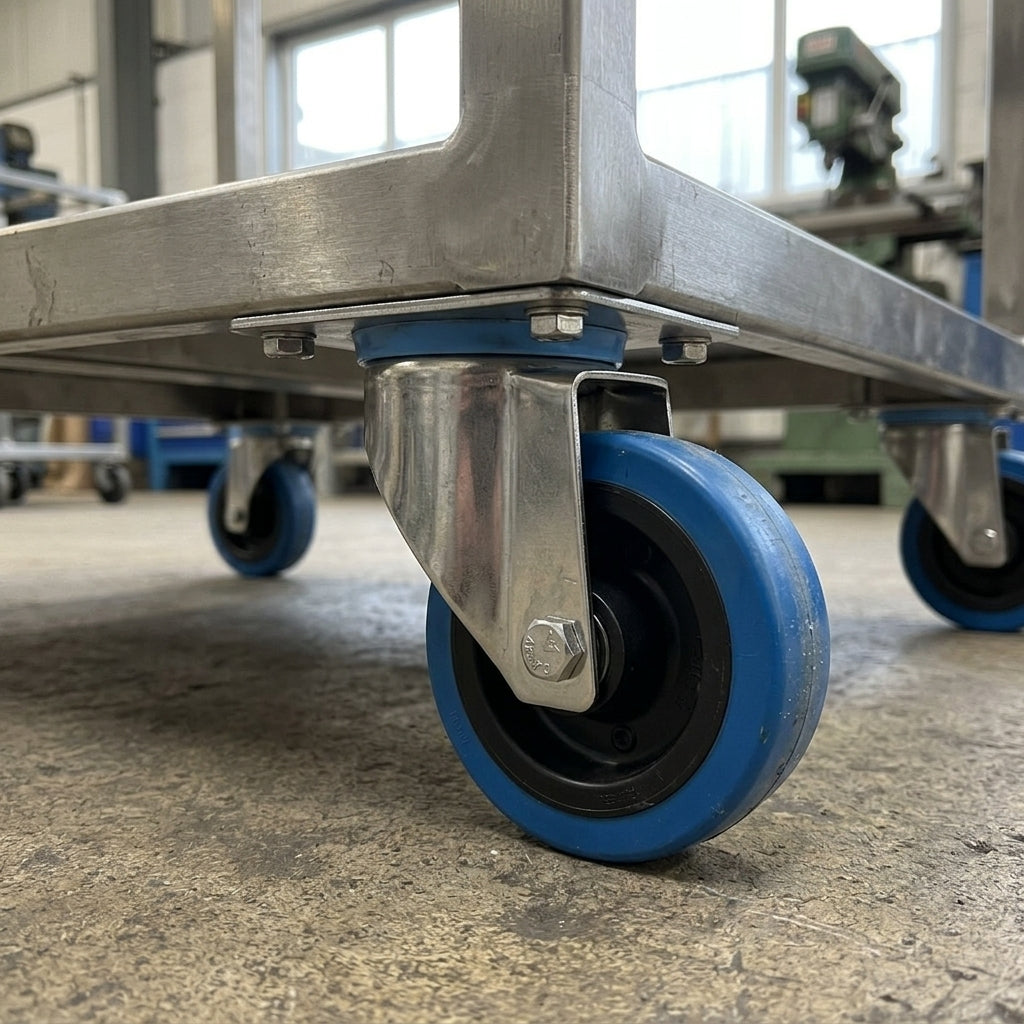

This 100mm stainless steel swivel castor runs on a blue non-marking rubber wheel, carrying up to 160kg per castor. It is made for hospital equipment, food service carts, retail displays and laboratory equipment that need quiet, floor-friendly movement.
The rubber tread is mounted on a polypropylene centre for a strong yet lightweight wheel. The A70 tread grips smooth floors, a roller bearing keeps rotation smooth, and the 105 x 85mm top plate with four 8mm holes bolts securely to flat surfaces. It works from -20°C to +80°C.
Why Choose This Castor
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ Blue non-marking rubber wheel that protects indoor floors
- ✓ A70 tread for good grip and quiet running
- ✓ 360° swivel for easy steering in tight spaces
- ✓ Roller bearing for smooth rotation
- ✓ 160kg load capacity per castor
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital equipment where non-marking wheels are essential
- ✓ Food service carts that need smooth, quiet running
- ✓ Retail display units where floor protection matters
- ✓ Laboratory equipment that needs precise manoeuvring
Frequently Asked Questions
Will the wheel mark my floors?
No. The blue rubber tread is non-marking, so it suits hospital, retail and laboratory floors.
Is this castor quiet?
Yes. The A70 rubber tread absorbs bumps and runs quietly on smooth indoor floors.
How much weight can it carry?
Each castor is rated at 160kg. A set of four is best used for loads up to around 480kg, allowing for uneven floors.
How is it fitted?
The 105 x 85mm top plate has four 8mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 128mm and it needs 91mm of clearance to swivel freely.
