- Load per castor125kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelHigh Temperature Phenolic
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- High Temperature Phenolic
- Wheel Colour
- Black
- Tread Width
- 34mm
- Tread Hardness
- D85
- Bearing Type
- Plain
- Load Capacity
- 125kg per castor
- Top Plate Size
- 105 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Swivel Radius
- 85mm
- Total Castor Height
- 128mm
- Temperature Range
- -40°C to +280°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height128mm
- Swivel radius85mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Phenolic wheel · working temperature -40°C to +280°C
- High load capacity
- Handles heat, e.g. oven and bakery trolleys
- Easy to push
- Hard tread is noisy on rough floors
Details & FAQs

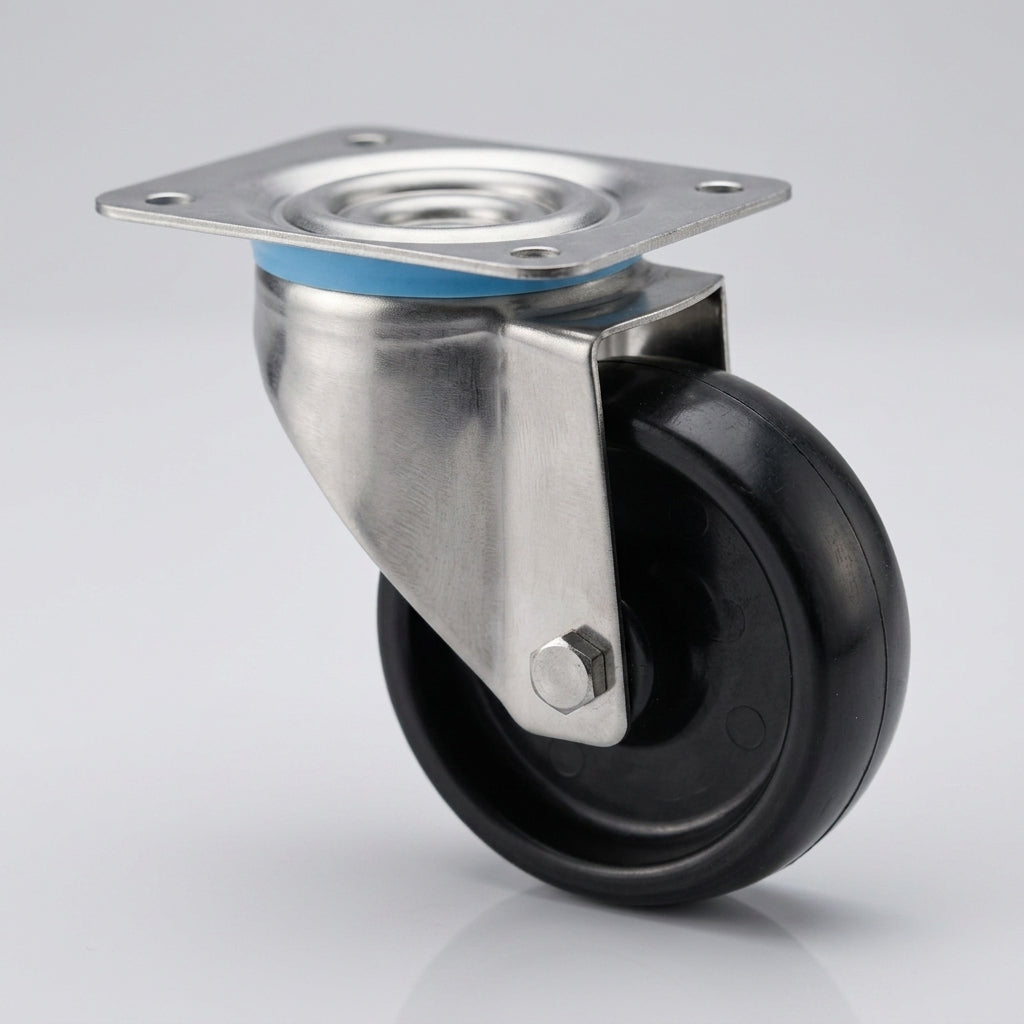

Stainless Steel High Temperature Castor

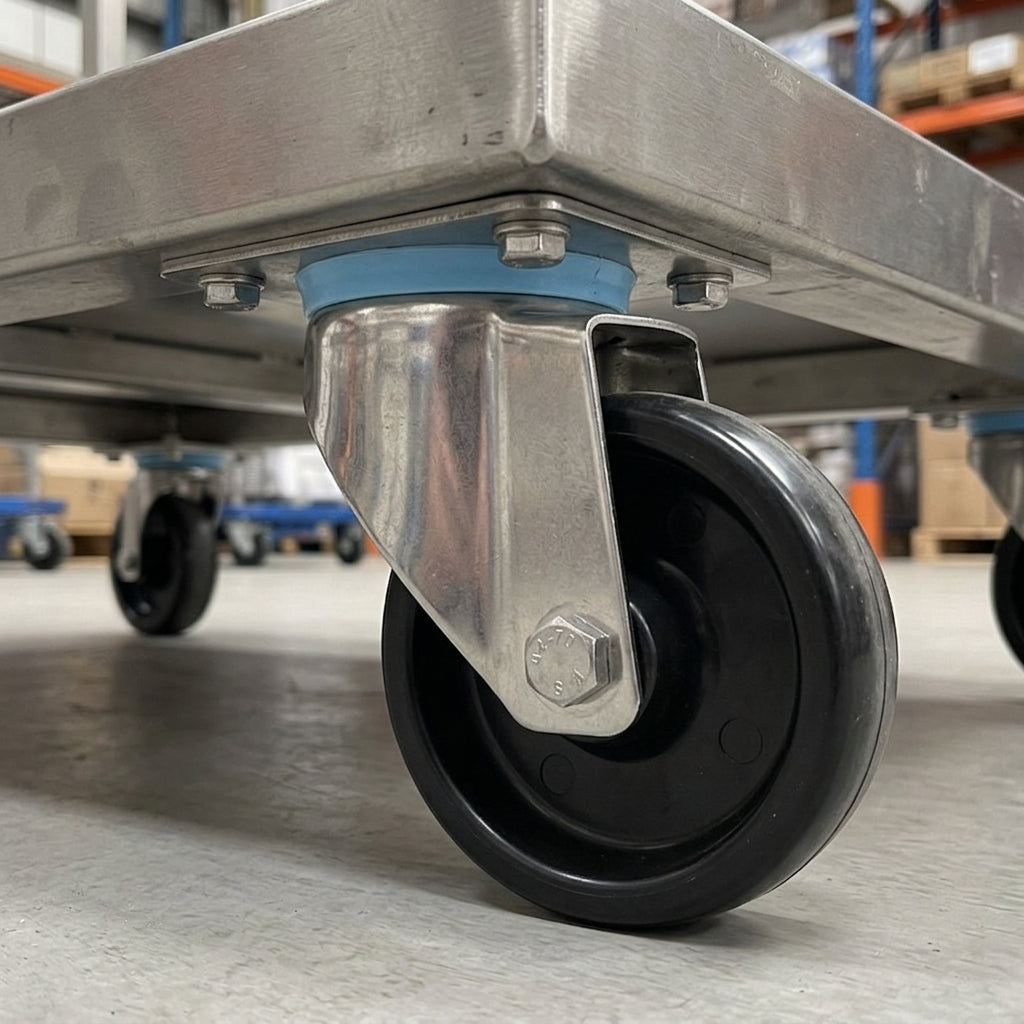

This 100mm stainless steel swivel castor runs on a black high temperature phenolic wheel that works from -40°C to +280°C, carrying up to 125kg per castor. It is built for oven and bakery racks, food production trolleys, drying rooms and washdown areas where heat and hygiene both matter.
The stainless steel housing stands up to regular cleaning and damp conditions, while the 105 x 85mm top plate with four 8mm holes bolts flat under trolleys and racks. A hard D85 phenolic tread rolls easily on smooth floors, and the 85mm swivel radius keeps the castor compact.
Why Choose This Castor
- ✓ Works from -40°C to +280°C for ovens, bakeries and hot areas
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ 125kg load capacity per castor
- ✓ Hard black phenolic wheel with a 34mm tread
- ✓ Standard 105 x 85mm top plate with four 8mm holes
- ✓ Full 360 degree swivel with an 85mm swivel radius
Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
Oven and bakery racks, commercial kitchens, food production lines, catering trolleys, drying and curing rooms, laboratories and washdown areas where castors face heat, steam and regular cleaning. Best on smooth hard floors.
Frequently Asked Questions
What temperatures can this castor handle?
The phenolic wheel works from -40°C up to +280°C, so it suits oven racks, bakery trolleys and hot work areas.
How much weight can it carry?
Each castor is rated at 125kg. A set of four is best used for loads up to around 375kg, allowing for uneven floors.
What size bolts do I need?
The 105 x 85mm top plate has four 8mm holes on 80 x 60mm centres, so M8 bolts with nuts and washers are the right fit.
Can it be washed down?
Yes. The stainless steel housing is made for washdown and damp areas such as kitchens and food production.
Will the wheel mark my floor?
Phenolic is a hard wheel that rolls easily on smooth floors. For delicate floors a rubber or polyurethane wheel is gentler.
How tall is the castor?
The total castor height is 128mm and it needs 85mm of clearance to swivel freely.
