- Load per castor150kg per castor *
- Wheel diameter100mm
- Overall height128mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Bracket
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 34mm
- Tread Hardness
- D75
- Bearing Type
- Roller
- Load Capacity
- 150kg per castor *
- Top Plate Size
- 101 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height128mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

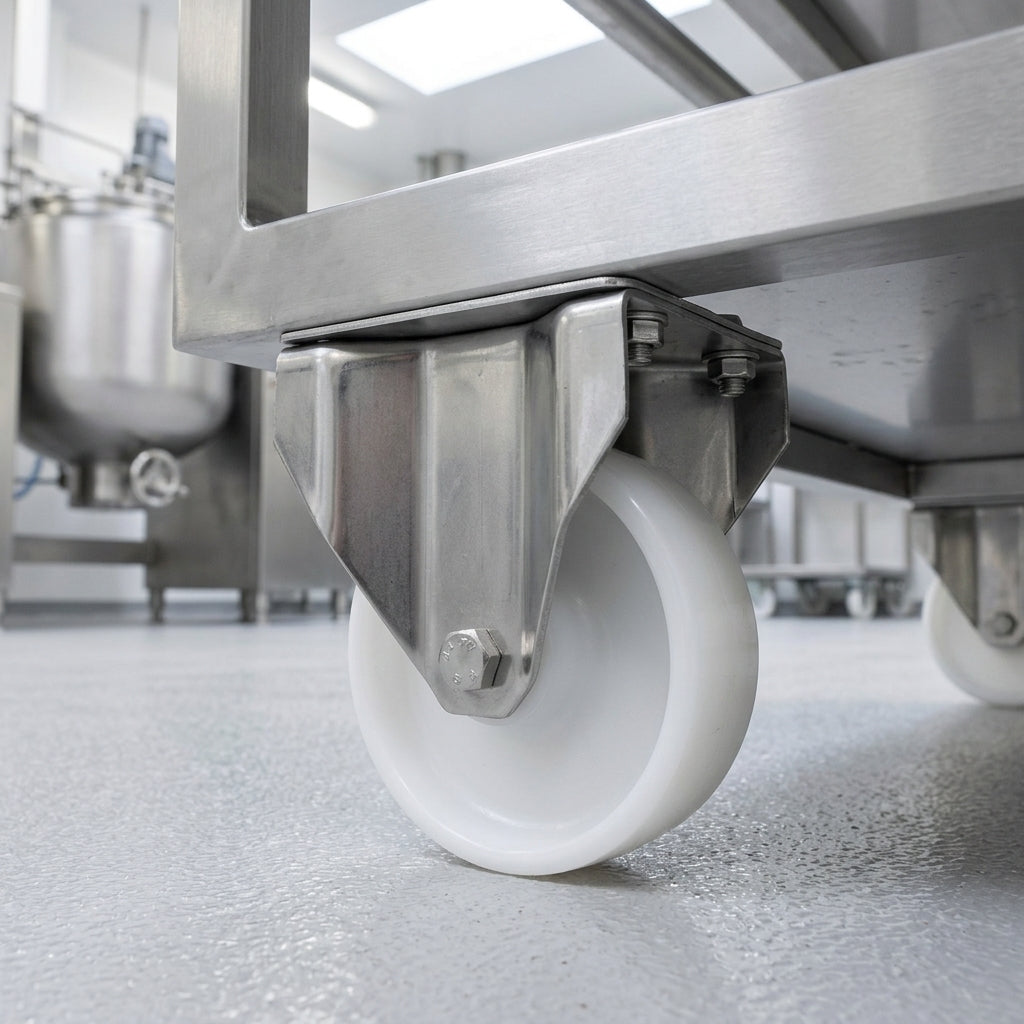

Stainless Steel Fixed Castor
This 100mm stainless steel fixed castor runs on a hard-wearing white nylon wheel, carrying up to 150kg per castor. It is built for food processing, manufacturing lines and logistics trolleys where hygiene and straight-line movement matter.
The rigid stainless bracket keeps equipment tracking in a straight line. The D75 nylon tread rolls easily under load, a roller bearing keeps rotation smooth, and the 101 x 85mm top plate with four 8mm holes bolts securely to flat surfaces. It works from -40°C to +80°C, so it suits chillers and warm production areas alike.
Why Choose This Castor
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ White nylon wheel with a hard D75 tread for easy rolling
- ✓ Fixed (rigid) design for straight, controlled travel
- ✓ 150kg load capacity per castor with a 34mm tread
- ✓ Roller bearing for smooth rotation
- ✓ Works from -40°C to +80°C
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food processing equipment moving in clean environments
- ✓ Manufacturing production lines with heavy loads
- ✓ Logistics carts and trolleys in warehouses
Need a different size? See our stainless steel castor range.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with matching swivel castors so your trolley can steer.
Why choose a nylon wheel?
Nylon is hard and low-friction, so heavy loads roll easily. It resists water, grease and most cleaning chemicals, which suits food and washdown areas.
How much weight can it carry?
Each castor is rated at 150kg. A set of four is best used for loads up to around 450kg, allowing for uneven floors.
How is it fitted?
The 101 x 85mm top plate has four 8mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
Can it be used in cold rooms?
Yes. It is rated from -40°C to +80°C, so it works in freezers, chillers and warm production areas.
How tall is the castor?
The total castor height is 128mm.
