- Load per castor80kg per castor *
- Wheel diameter100mm
- Overall height134mm
- WheelThermoplastic Rubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- Thermoplastic Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 30mm
- Tread Hardness
- A85
- Bearing Type
- Plain
- Load Capacity
- 80kg per castor *
- Brake
- Foot-Operated, Locks Wheel and Swivel
- Top Plate Size
- 90 x 70mm
- Bolt Hole Centres
- 70 x 50mm
- Bolt Hole Diameter
- 8mm
- Swivel Radius
- 106mm
- Total Castor Height
- 134mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole70 x 50mm
- Overall height134mm
- Swivel radius106mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

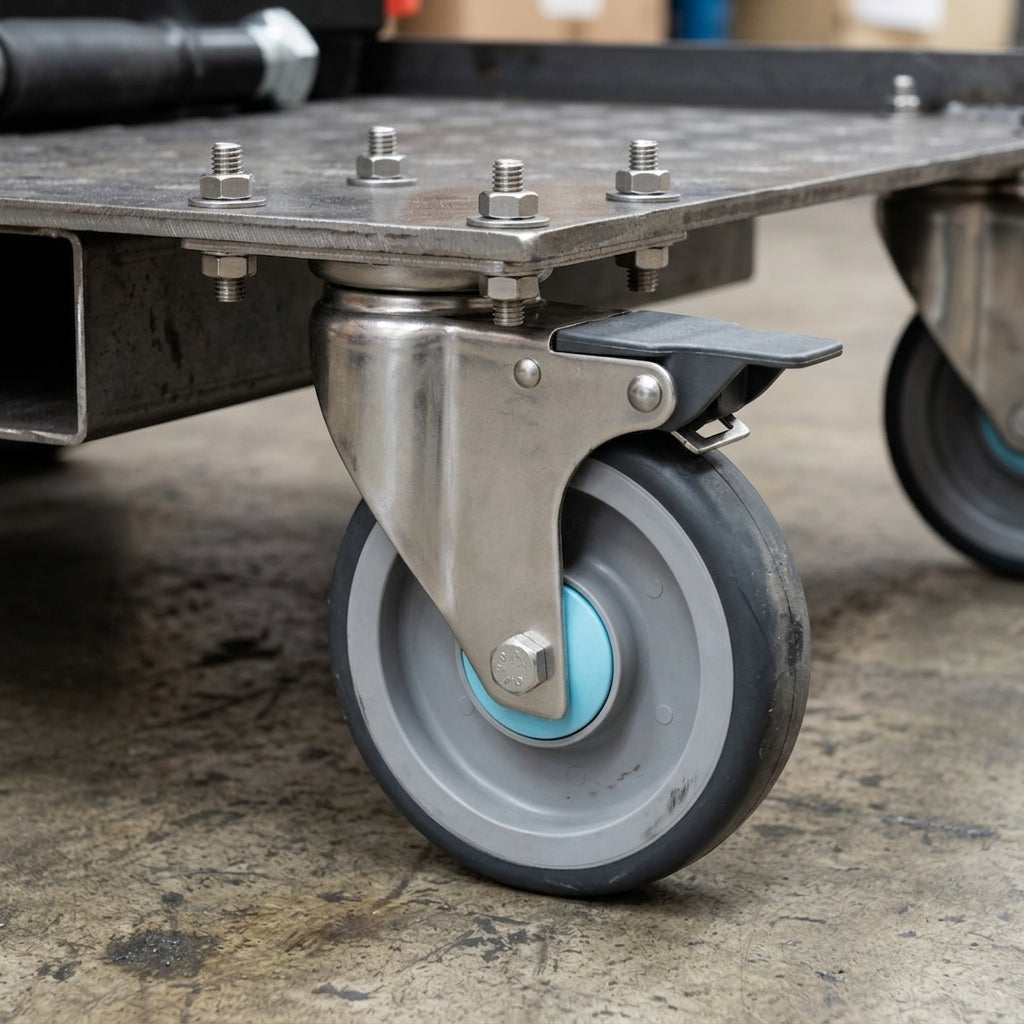

Stainless Steel Braked Castor
This 100mm stainless steel braked swivel castor runs on a grey thermoplastic rubber wheel with a lightweight polypropylene centre, carrying up to 80kg per castor. It is made for medical carts, hospital beds and laboratory equipment that need smooth movement and secure parking.
The foot-operated brake locks both the wheel and the swivel head, so equipment stays exactly where you leave it. A low-maintenance plain bearing keeps the castor simple, the A85 rubber tread grips well and runs quietly, and the 90 x 70mm top plate with four 8mm holes gives a secure fitting to flat surfaces. It works from -20°C to +60°C.
Why Choose This Castor
- ✓ Grey thermoplastic rubber tread on a polypropylene centre
- ✓ Brake locks both the wheel and the swivel head
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ A85 tread hardness with a 30mm width for grip and quiet running
- ✓ 80kg load capacity per castor
- ✓ 90 x 70mm top plate with four 8mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Healthcare equipment such as medical carts and trolleys
- ✓ Hospital beds that need easy manoeuvring and secure parking
- ✓ Laboratory carts used to transport materials
Frequently Asked Questions
What does the brake lock?
The brake locks both the wheel and the swivel head. Press the grey pedal down with your foot to stop the wheel rolling and turning, and lift it to release.
What is a thermoplastic rubber wheel?
It has a soft rubber-like tread moulded onto a rigid polypropylene centre. The tread grips well and runs quietly, while the centre keeps the wheel light.
How much weight can it carry?
Each castor is rated at 80kg. A set of four is best used for loads up to around 240kg, allowing for uneven floors.
How is it fitted?
The 90 x 70mm top plate has four 8mm holes on 70 x 50mm centres. Bolt it flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 134mm and it needs 106mm of clearance to swivel freely.
