- Load per castor100kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelHigh Temperature Rubber Tread, Phenolic Centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Brake
- Locks wheel and swivel head
- Wheel Diameter
- 100mm
- Wheel Material
- High Temperature Rubber Tread, Phenolic Centre
- Wheel Colour
- Blue
- Tread Width
- 34mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 100kg per castor
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 125mm
- Total Castor Height
- 128mm
- Temperature Range
- -30°C to +250°C
Will it fit?
- Bolt hole12mm
- Overall height128mm
- Swivel radius125mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -30°C to +250°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Stainless Steel High Temperature Castor

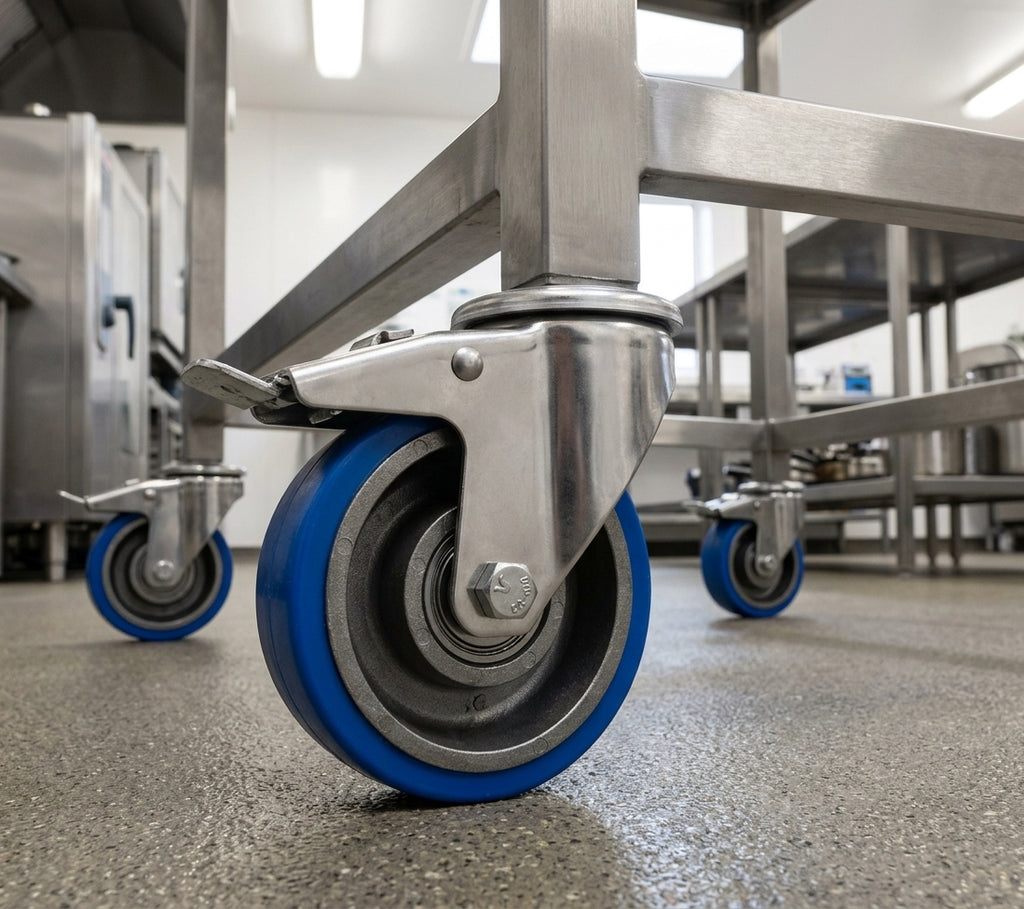

This 100mm stainless steel braked swivel castor runs on a blue high temperature wheel that works from -30°C to +250°C, carrying up to 100kg per castor. Its brake locks both the wheel and the swivel head, so bakery equipment, oven trolleys and food production equipment stay firmly in place when parked.
The stainless steel housing stands up to regular cleaning and damp conditions, and the single 12mm bolt hole fits straight into the end of a tube leg or a threaded fixing. The wheel runs on a ball bearing for smooth, easy rolling, with a 125mm swivel radius.
Why Choose This Castor
- ✓ Brake locks the wheel and the swivel head for secure parking
- ✓ Works from -30°C to +250°C for ovens, bakeries and hot areas
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ 100kg load capacity per castor
- ✓ Blue high temperature wheel with a 34mm tread and ball bearing
- ✓ Single 12mm bolt hole for tube legs and threaded fixings
* Load capacity is per castor on a level surface. Check the bolt size suits your equipment before fitting.
Where It Works Best
- ✓ Food manufacturing: equipment used where temperatures are high.
- ✓ Bakery equipment: equipment exposed to high heat.
- ✓ Industrial ovens: equipment working within the rated temperature range.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
What does the brake lock?
The brake locks both the wheel and the swivel head, so the castor cannot roll or turn once it is applied.
What temperatures can this castor handle?
The wheel works from -30°C up to +250°C, so it suits oven trolleys, bakery equipment and hot work areas.
How much weight can it carry?
Each castor is rated at 100kg. Add up the castors fitted to your equipment to work out the total load.
How is it fitted?
It has a single 12mm bolt hole. Fit it with an M12 bolt or threaded stem, or use a matching tube adaptor to fit it into a round or square tube leg.
Can it be washed down?
Yes. The stainless steel housing is made for washdown and damp areas such as kitchens and food production.
How tall is the castor?
The total castor height is 128mm and it needs 125mm of clearance to swivel freely.
