- Load per castor80kg per castor *
- Wheel diameter100mm
- Overall height128mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 23mm
- Tread Hardness
- 80 Shore A
- Bearing Type
- Roller Bearing
- Load Capacity
- 80kg per castor *
- Brake
- Locks the wheel
- Bolt Hole Size
- 12mm
- Swivel Radius
- 121mm
- Total Castor Height
- 128mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole12mm
- Overall height128mm
- Swivel radius121mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

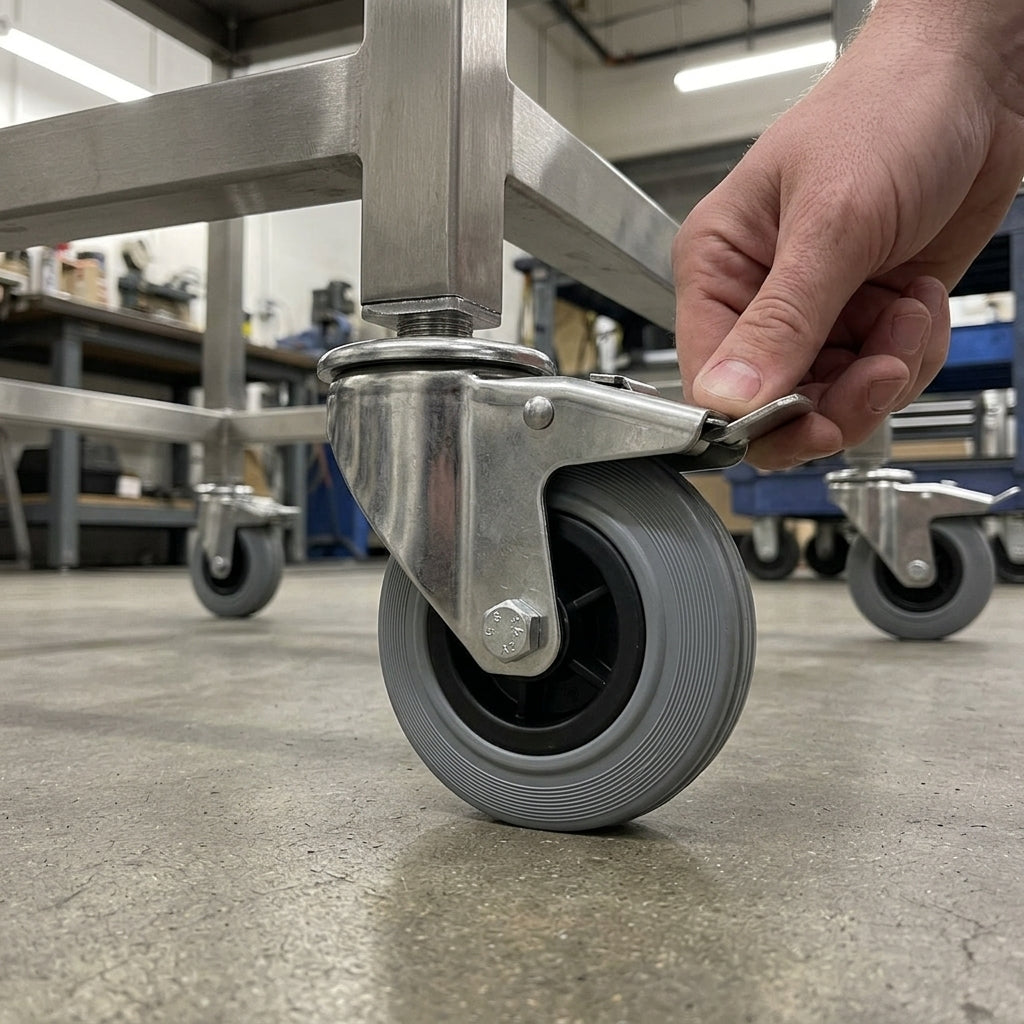

Bolt Hole Stainless Steel Castors
This 100mm stainless steel braked castor has a grey rubber wheel, made for food manufacturing environments. The tread balances grip and durability, and it carries up to 80kg per castor.
A roller bearing keeps operation smooth, the brake locks the wheel in place for control, and the castor fits through a single 12mm bolt hole in the centre of the swivel head.
Why Choose This Castor
- ✓ Brake locks the wheel to hold equipment in place.
- ✓ Stainless steel housing for food manufacturing environments.
- ✓ Grey rubber tread on a polypropylene core, 23mm wide and 80 Shore A.
- ✓ Roller bearing for smooth operation.
- ✓ Single 12mm bolt hole in the centre of the swivel head.
- ✓ 80kg load capacity per castor.
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food manufacturing equipment: where hygiene and ease of cleaning are critical.
- ✓ Industrial trolleys: stability and control when transporting goods.
- ✓ Workstations: movement and positioning in production areas.
Frequently Asked Questions
What does the brake lock?
The brake locks the wheel in place, so the castor stops rolling while it is on.
How much weight can a set of four carry?
Each castor is rated for 80kg. Planning on three castors carrying the load, a set of four suits about 240kg.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head.
What does the 80 Shore A tread mean for me?
It balances grip and durability, so the wheel holds the floor and still wears well.
How much space does it need to swivel?
The swivel radius is 121mm and the total castor height is 128mm.
Where can I use this castor?
It suits food manufacturing equipment, industrial trolleys and workstations.
