- Load per castor140kg *
- Wheel diameter100mm
- Overall height127mm
- WheelCast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Cast Iron
- Wheel Colour
- Grey
- Tread Width
- 30mm
- Hardness of Tread
- 85 shore A
- Bearing Type
- Ball Journal
- Load Capacity
- 140kg *
- Plate Length
- 100mm
- Plate Width
- 85mm
- Plate Hole Centres Width
- 60/80mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 127mm
Will it fit?
- Top plate100mm × 85mm
- Fixing holeØ 8mm
- Overall height127mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Cast iron / steel wheel
- Carries very heavy loads
- Tolerates heat and sharp debris
- Suits concrete, steel and foundry floors
- Noisy
- Will mark or damage finished floors
Details & FAQs
Light Duty Top Plate Castors

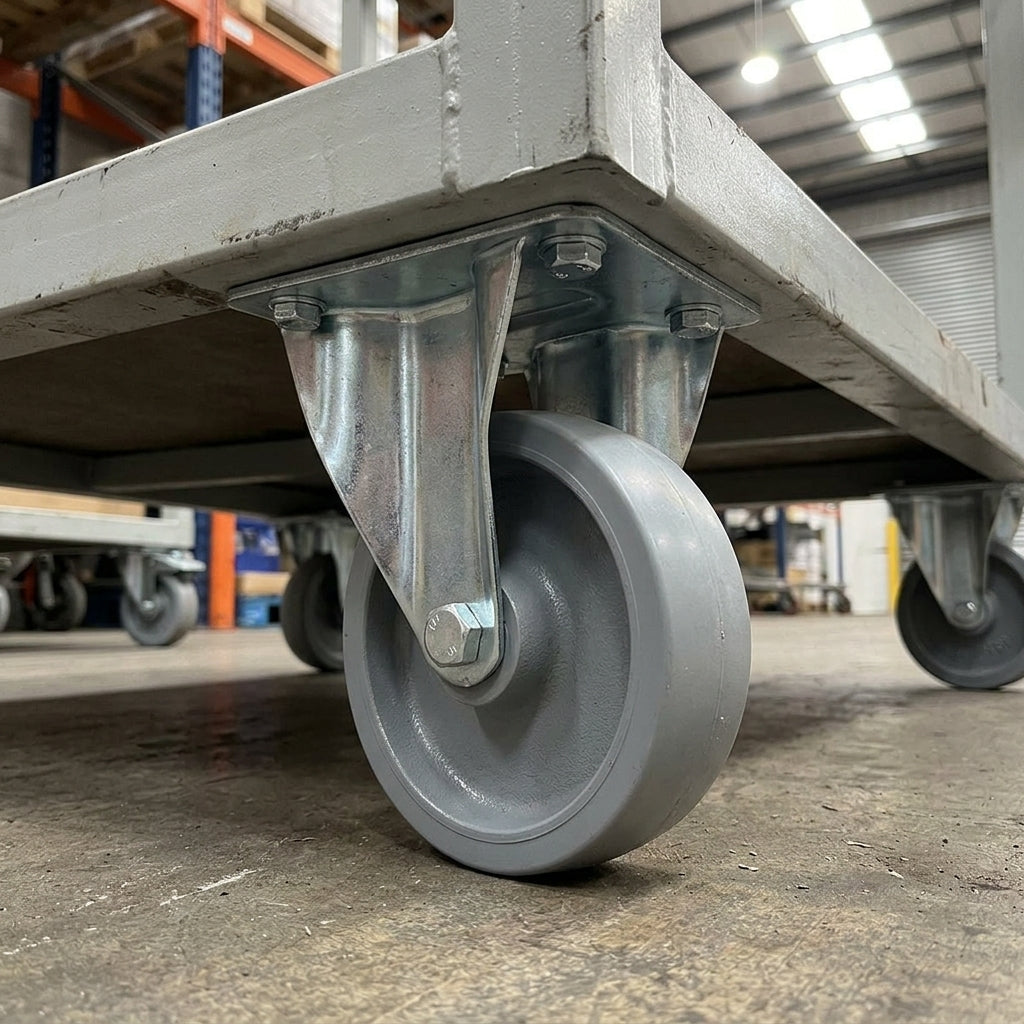

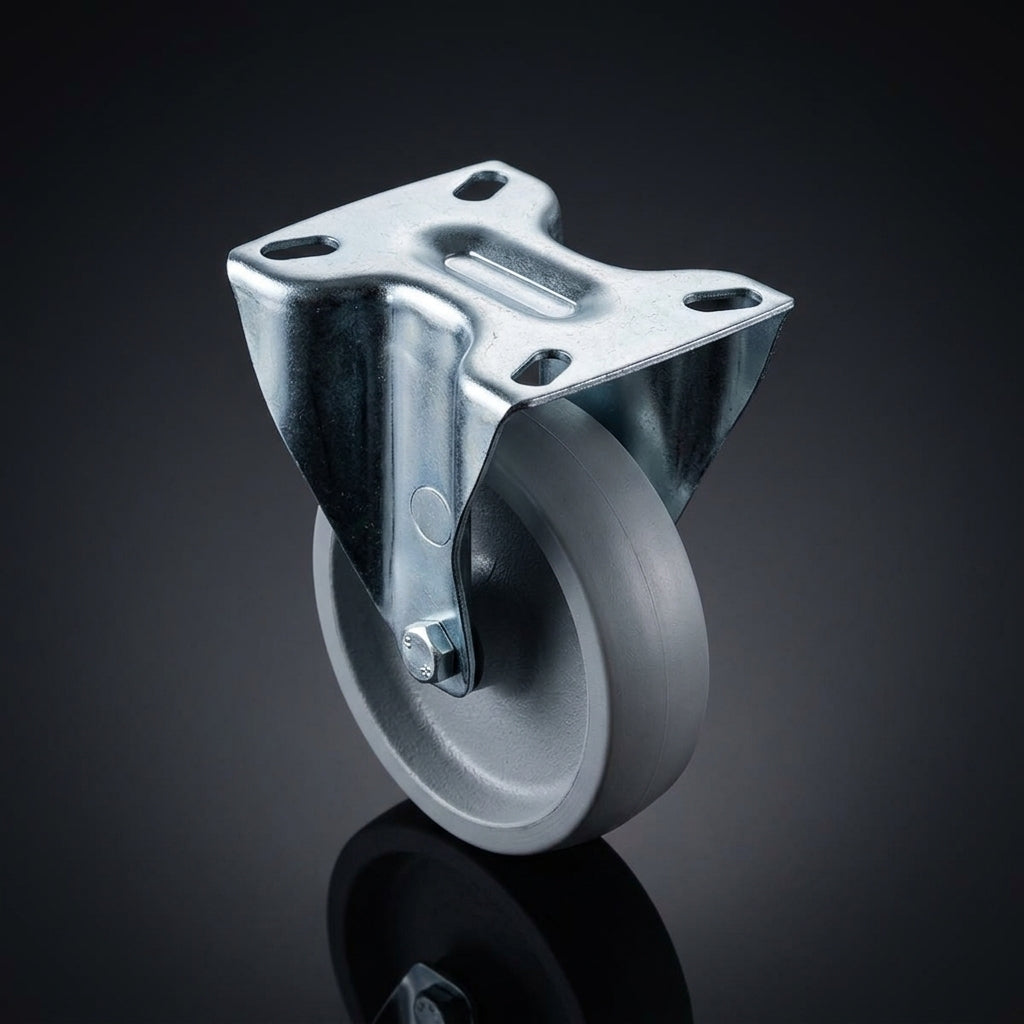

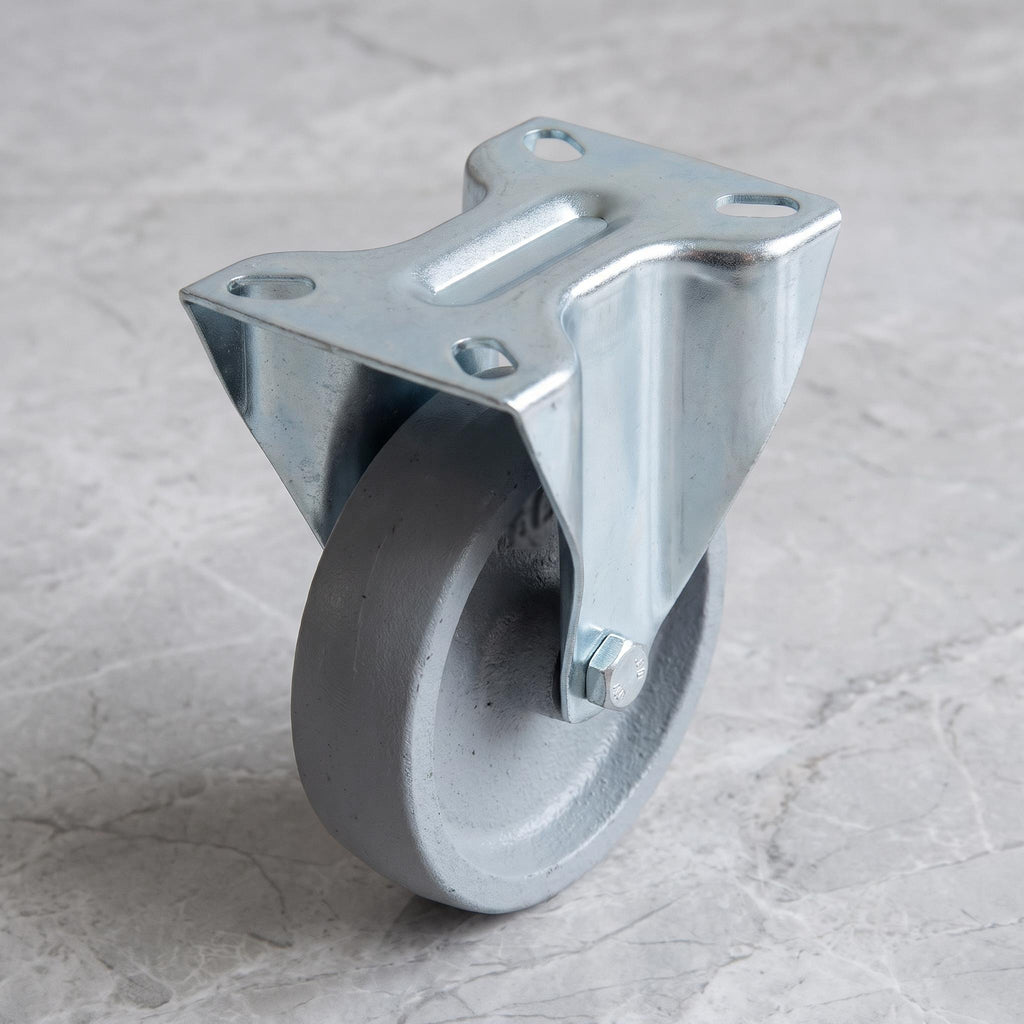

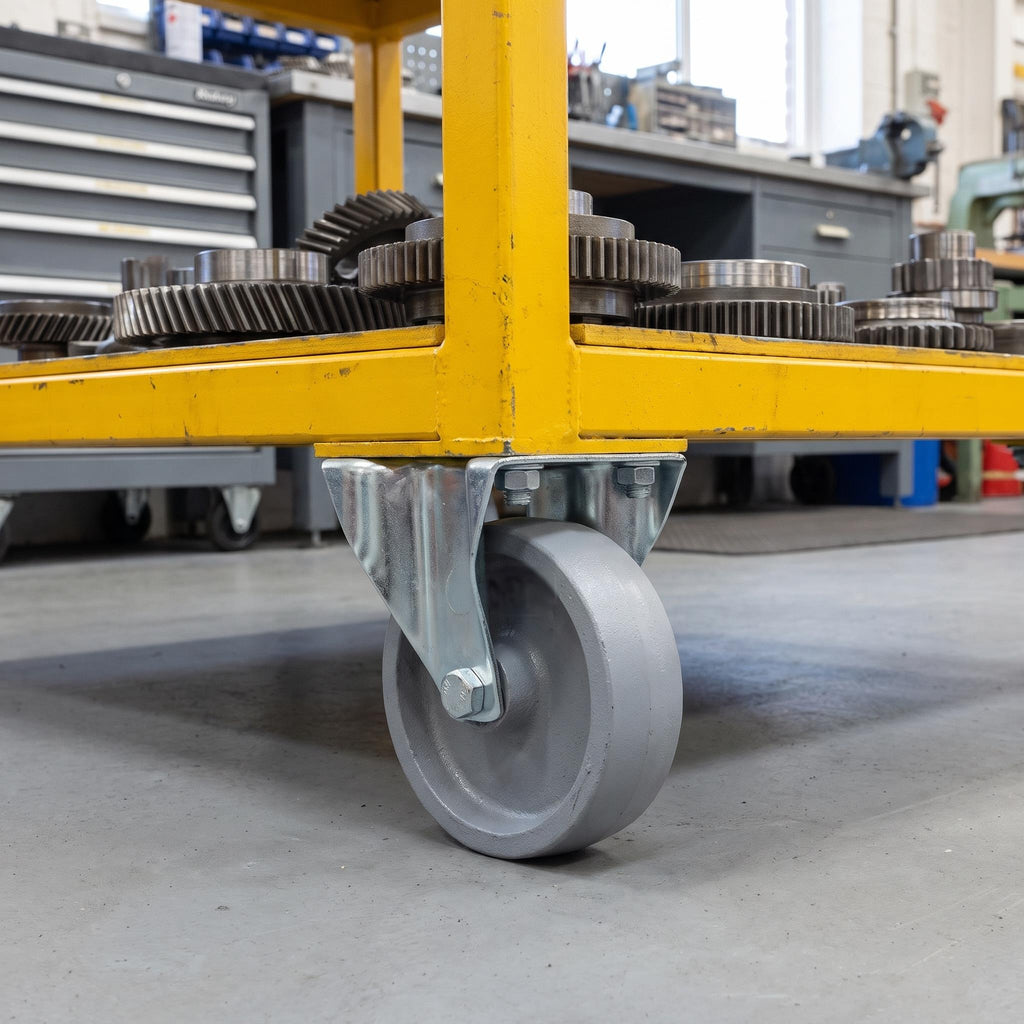

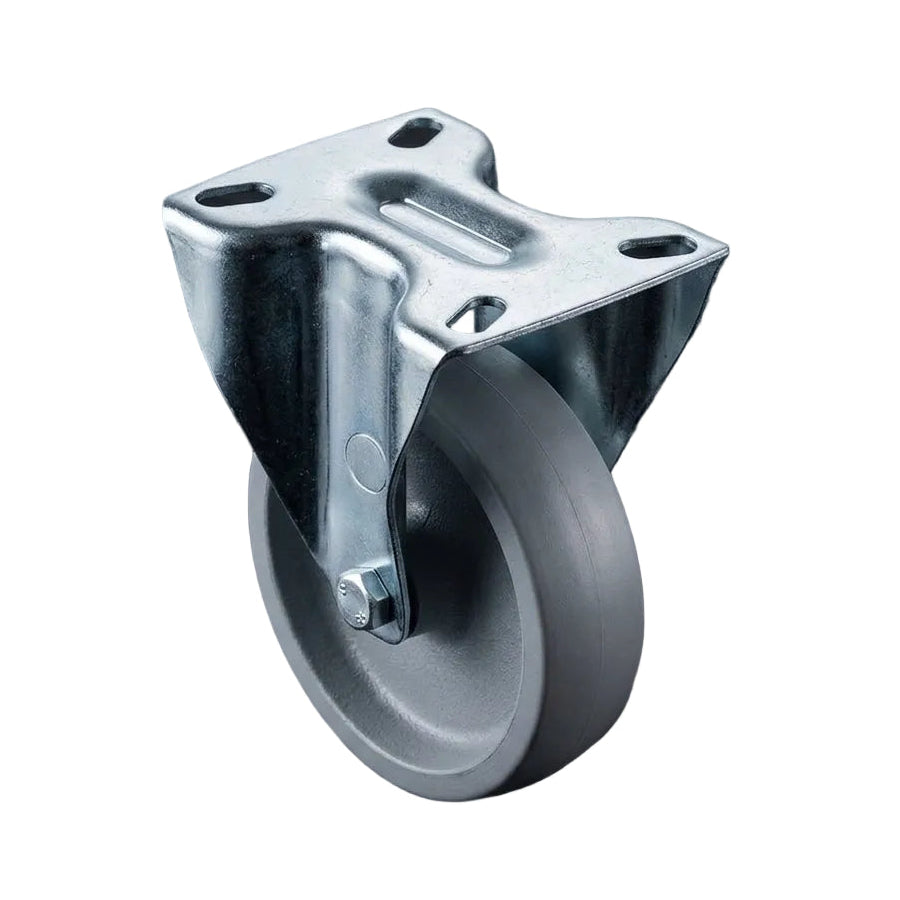

This 100mm pressed steel fixed castor with a grey cast iron wheel is a robust choice for equipment, carts and trolleys that need reliable, straight-line movement. The fixed top plate castor carries up to 140kg per castor, and its cast iron wheel offers excellent durability and resistance to wear in industrial and commercial settings.
Built on a strong pressed steel bracket with a ball journal bearing, a 30mm tread and a total height of 127mm, this rigid castor fits easily with its 100 x 85mm top plate and suits industrial equipment, warehouse trolleys, retail displays and furniture. Pair it with matching swivel castors for easy steering.
Why Choose This Castor
- ✓ Fixed design for reliable support and stable movement
- ✓ Grey cast iron wheel for durability and resistance to wear
- ✓ 140kg load capacity per castor for heavy items
- ✓ Pressed steel construction for a strong, reliable framework
- ✓ Ball journal bearing for smooth operation
- ✓ 100 x 85mm top plate with 60/80mm hole centres for flexible fitting
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best
- ✓ Industrial equipment: machinery and transport systems
- ✓ Furniture moving: mobility for office and home furniture
- ✓ Warehouse trolleys: moving goods and equipment in storage areas
- ✓ Retail displays: easy repositioning of display units and merchandise
Frequently Asked Questions
Does this castor swivel?
No. It is a fixed (rigid) castor that rolls in a straight line. Use it with swivel castors at the other end of your trolley for easy steering.
How much weight can it carry?
Each castor is rated at 140kg. Add up the rating of all the castors on your trolley to find the total capacity.
Why choose a cast iron wheel?
A cast iron wheel offers excellent durability and resistance to wear for demanding industrial and commercial use.
How is the castor fitted?
It has a 100 x 85mm top plate with 8mm holes on 60/80mm hole centres, which you bolt to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 127mm.
