- Load per castor75kg per castor*
- Wheel diameter100mm
- Overall height127mm
- WheelRubber on Pressed Steel
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor with Directional Brake
- Brake
- Foot-operated directional brake
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Pressed Steel
- Wheel Colour
- Black
- Tread Width
- 30mm
- Tread Hardness
- 85 shore A
- Bearing Type
- Ball Journal
- Load Capacity
- 75kg per castor*
- Plate Size
- 100 x 85mm
- Plate Hole Centres (Width)
- 60/80mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 127mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Top Plate Castors

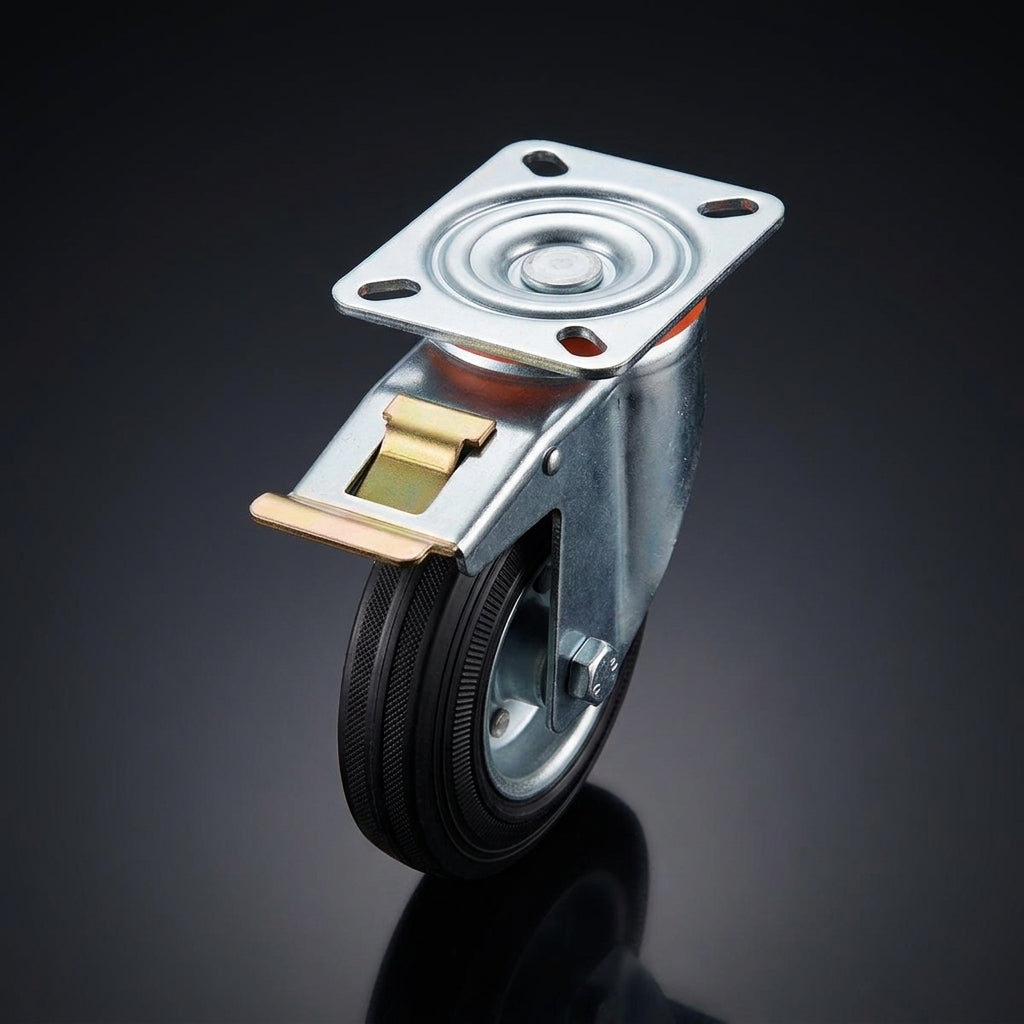

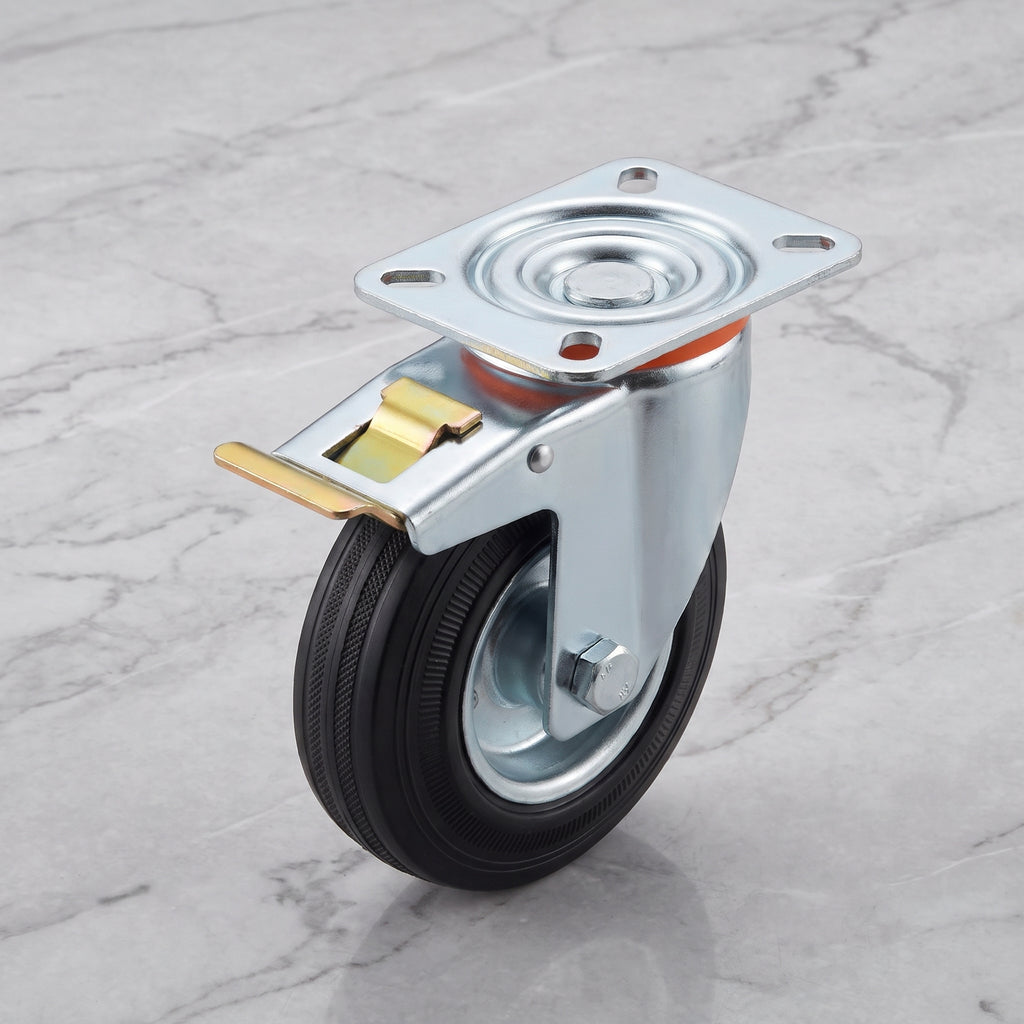

Steer smoothly, then hold your equipment securely in place. This 100mm swivel castor has a black rubber tyre on a pressed steel centre and a foot-operated directional brake that secures the castor when needed. It runs on a ball journal bearing for smooth rolling, and each castor is rated for 75kg.
It fits with a 100 x 85mm top plate with 8mm bolt holes on 60/80mm centres, and stands 127mm tall. The 30mm tread, with a hardness of 85 shore A, balances grip and durability on a wide range of floors. Check the plate size, hole centres and height against your equipment before ordering.
Why Choose This Castor
- ✓ Directional brake secures the castor in place for stability and control when needed.
- ✓ Swivel design easy directional changes and manoeuvrability.
- ✓ Black rubber wheel rubber on a pressed steel centre for durability and resilience.
- ✓ Ball journal bearing smooth, quiet rolling with reduced wear.
- ✓ 30mm tread, 85 shore A reliable grip on the floor while minimising wear.
- ✓ 75kg load capacity per castor for light duty applications.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and 127mm height suit your equipment before fitting.
Where It Works Best
This braked swivel castor suits:

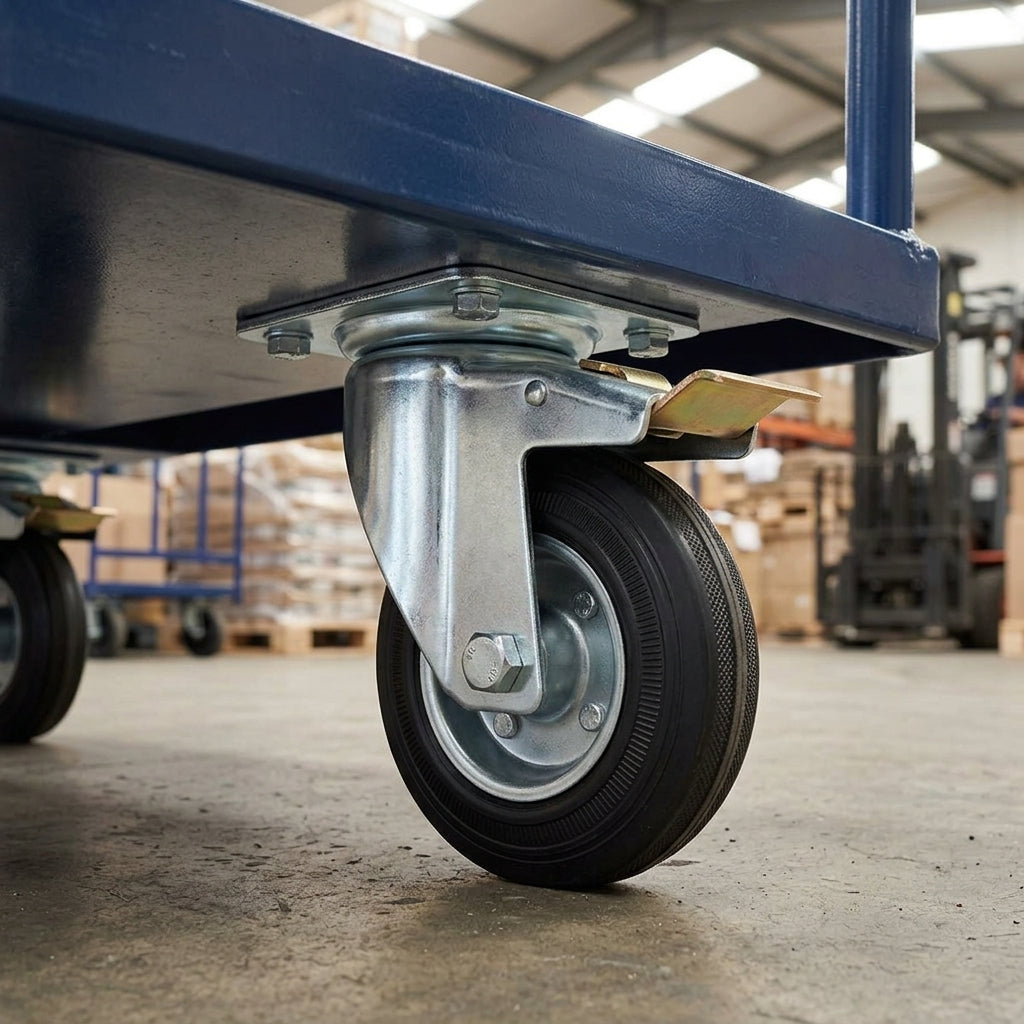

- ✓ Carts and trolleys: moving goods in warehouses and retail environments.
- ✓ Furniture movement: rearranging furniture in offices and homes.

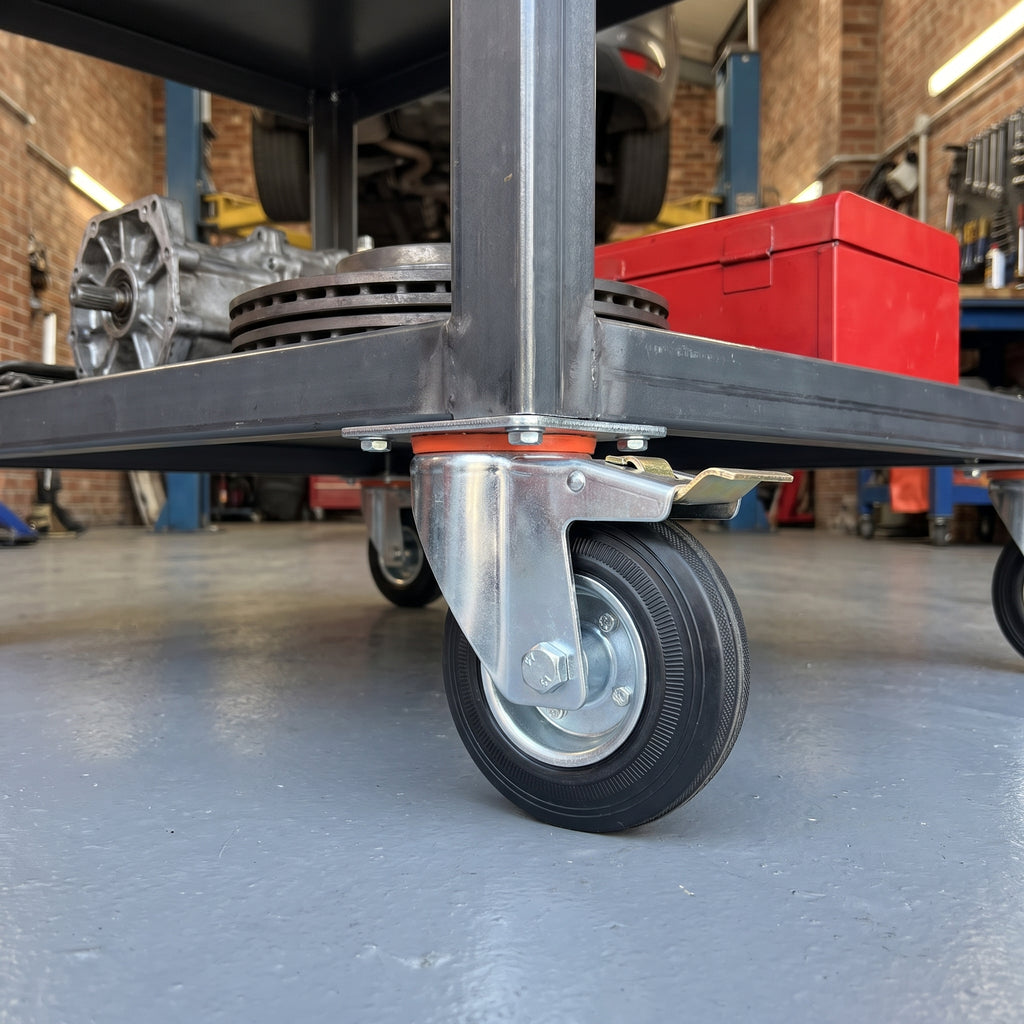

- ✓ Industrial equipment: moving machinery and tools in factories.
- ✓ Display stands: portable exhibition and retail displays.
Frequently Asked Questions
What does the directional brake do?
Press the foot pedal to secure the castor in place, giving stability and control when your equipment needs to stay put. Release it to move and steer again.
How much weight can this castor carry?
Each castor is rated for 75kg. Add up the castors fitted to your equipment to work out the total load.
What is the wheel made of?
A black rubber tyre on a pressed steel centre, 100mm in diameter with a 30mm tread and a hardness of 85 shore A.
What bearing does it use?
A ball journal bearing, for smooth, quiet rolling and reduced wear.
What size is the top plate?
The top plate is 100 x 85mm with 8mm bolt holes on 60/80mm centres.
How tall is the castor?
The total castor height is 127mm.
