- Load per castor150kg per castor
- Wheel diameter100mm
- Overall height338mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Swivel Braked Jacking Castor
- Series
- JA4
- Wheel Diameter
- 100mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 36mm
- Bearing Type
- Roller
- Load Capacity
- 150kg per castor
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Plate Size
- 130 x 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 338mm
- Total Height to Plate Lower Bolt Hole
- 151mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 414mm
- Swivel Radius
- 218mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height338mm
- Swivel radius218mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Medium Duty Jacking Castors

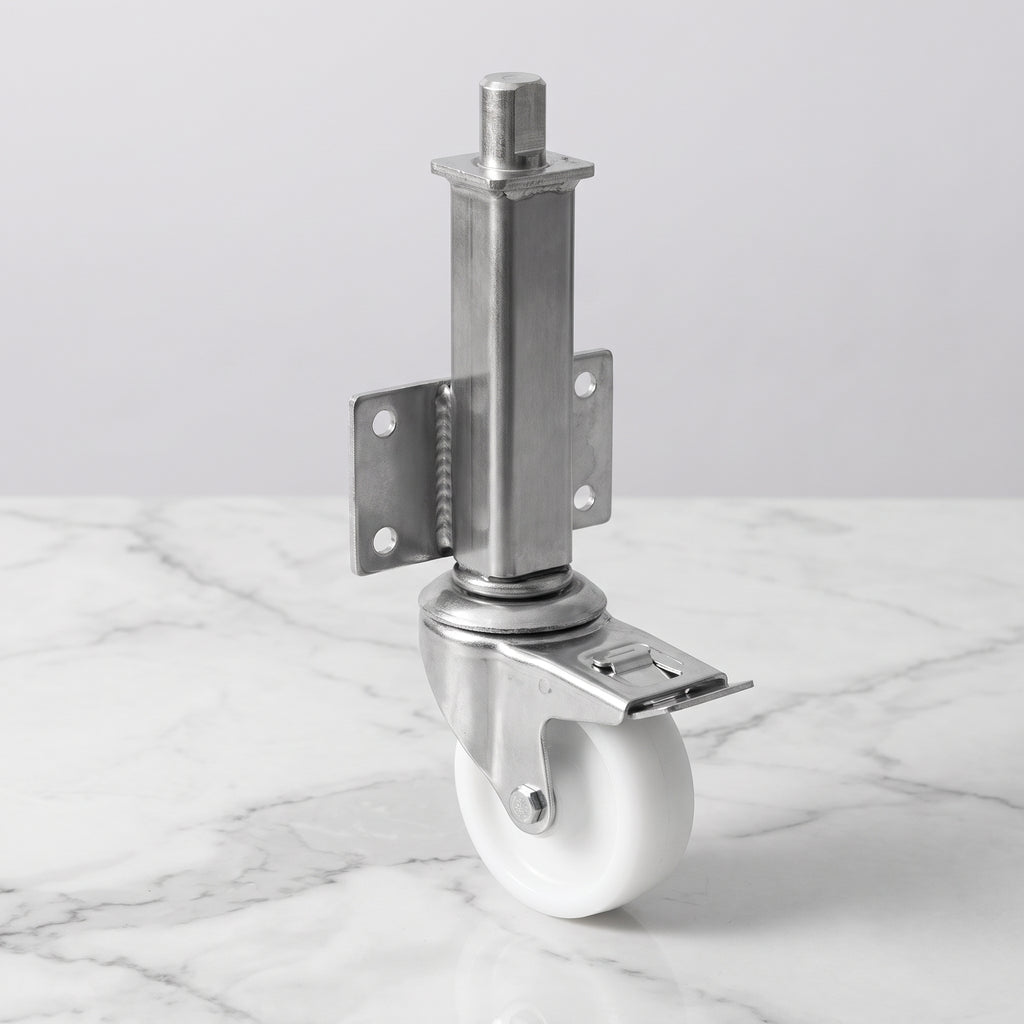

Move heavy equipment with control, then hold it firmly in place. This medium duty braked jacking castor combines a 100mm white nylon swivel wheel and a brake with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine for moving, then wind it back up so the equipment rests firmly on its own feet. The swivel and brake give controlled movement and stability, the durable nylon wheel runs smoothly on a roller bearing, and each castor is rated for 150kg.

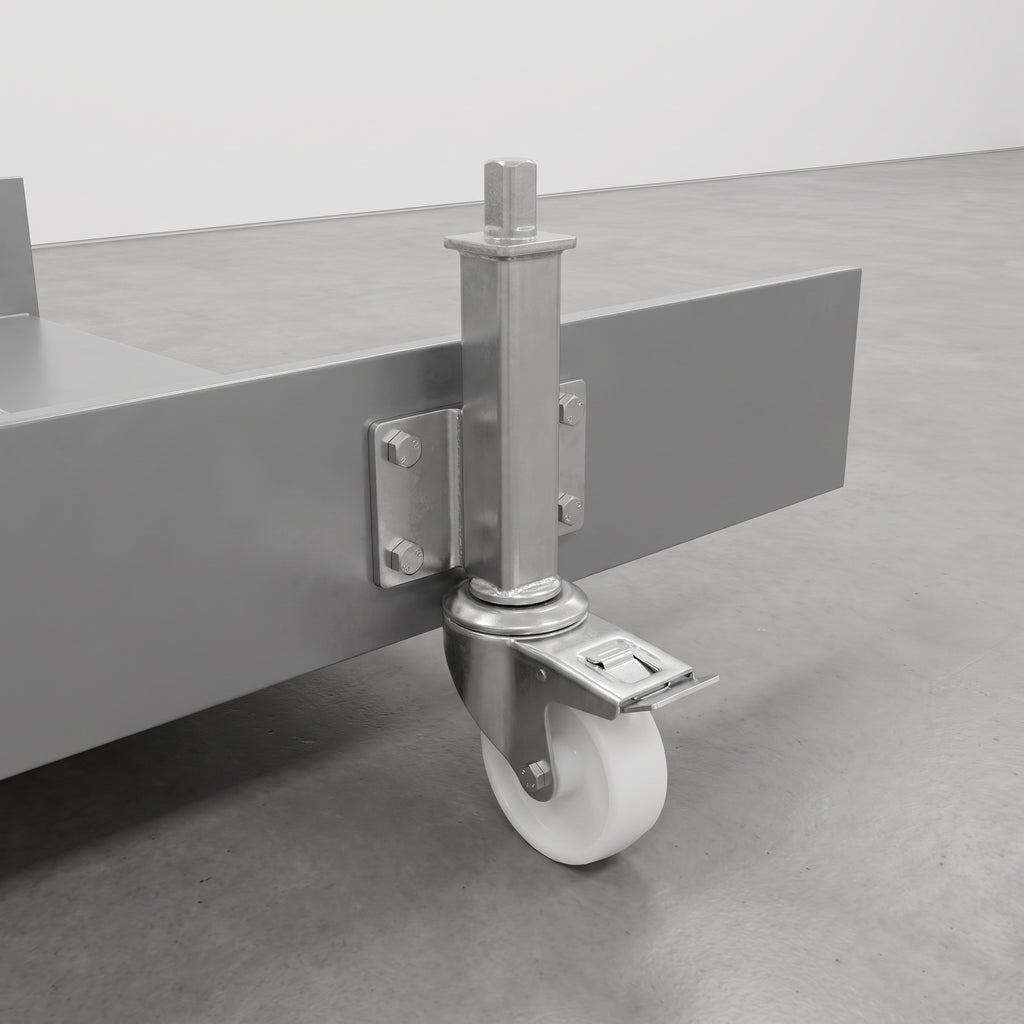

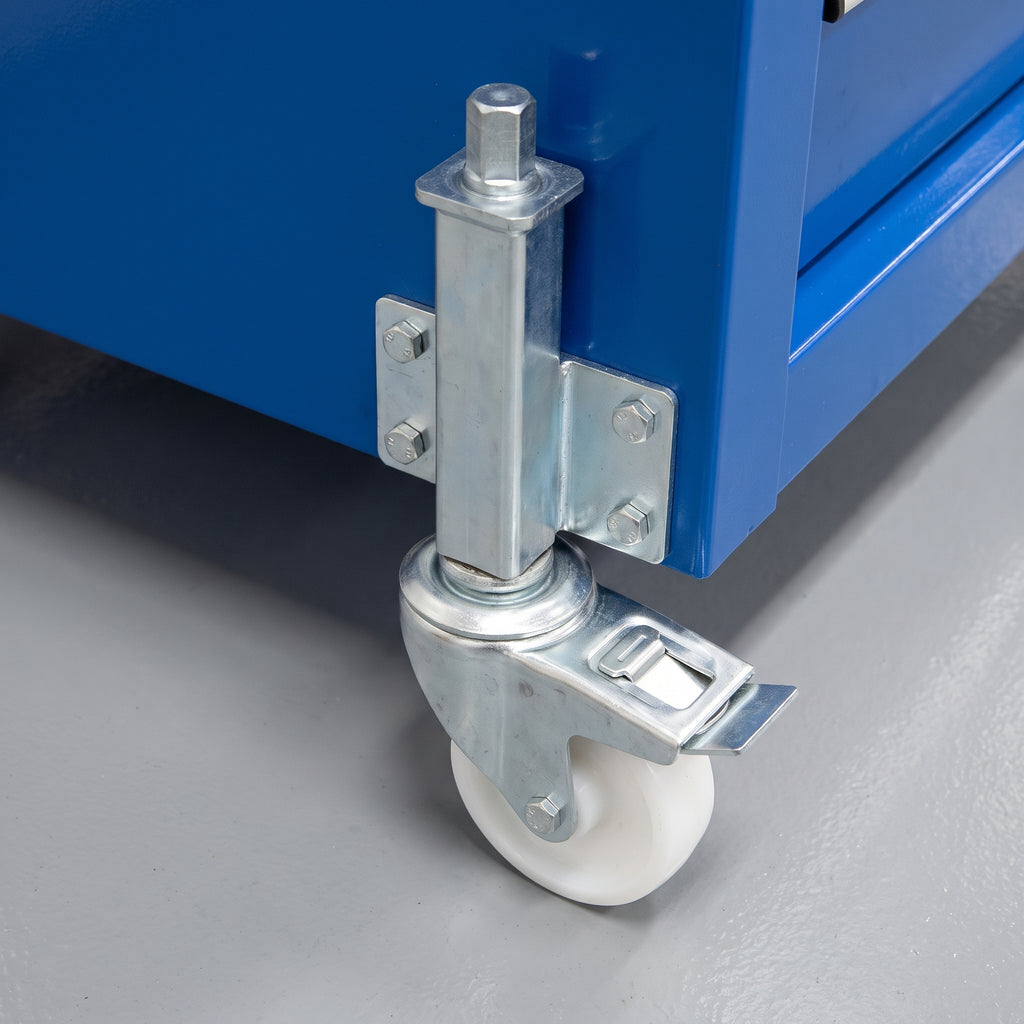

It fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres. The castor is 338mm tall and the jacking unit reaches 414mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift easy jacking and adjustment of your equipment.
- ✓ Brake controlled movement and stability during use.
- ✓ 24mm spanner operation simple, controlled height adjustment.
- ✓ White nylon wheel 100mm heavy-duty nylon wheel with a 36mm tread, suitable for various environments.
- ✓ Roller bearing smooth and efficient operation.
- ✓ 150kg load capacity per castor for medium duty industrial applications.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty braked swivel jacking castor suits:
- ✓ Industrial use: tasks requiring both mobility and stability.
- ✓ Equipment support: supporting and moving heavy equipment.
- ✓ Load handling: transporting loads within industrial settings.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
What does the brake do?
The brake gives controlled movement and stability, helping to hold your equipment in place while it is on its castors.
How much weight can this castor carry?
Each castor is rated for 150kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
A 100mm white nylon wheel with a 36mm tread, running on a roller bearing.
Does this castor swivel?
Yes. The wheel swivels with a 218mm swivel radius, so you can steer your equipment easily once it is lifted onto the castors.
