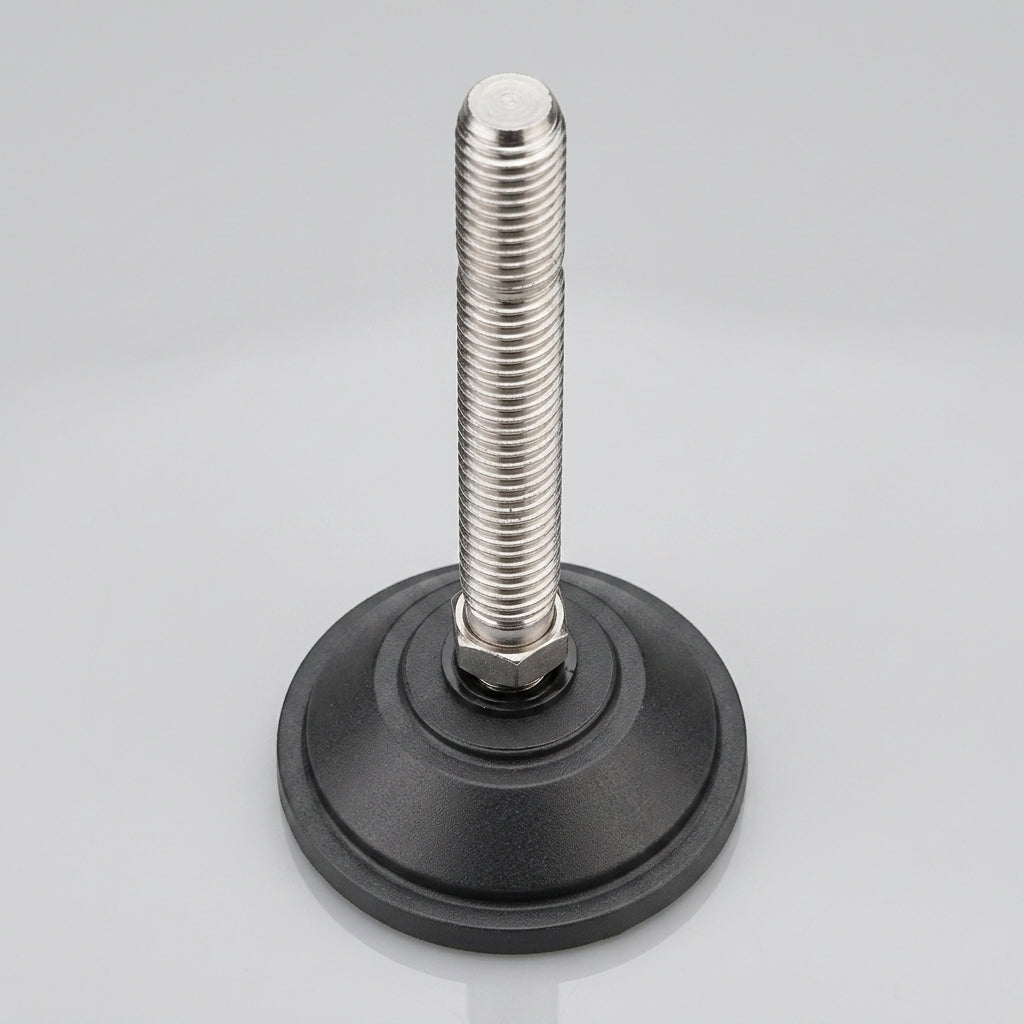

100mm Heavy Duty Adjustable Levelling Foot – M20 x 200mm Thread

Robust adjustable levelling foot for heavy-duty applications.

This heavy duty adjustable levelling foot features a robust M20 x 200mm zinc plated thread, allowing for secure and stable adjustment. The base diameter of 100mm provides ample support, while the tilting foot design accommodates uneven surfaces. With a static load capacity of 2000kg, this product is suitable for high-load applications requiring precise levelling.

Key Features

• Thread Size: M20 – ensures compatibility with standard fittings.
• Thread Length: 200mm – allows for significant height adjustment.
• Base Diameter: 100mm – provides a stable foundation.
• Foot Type: Tilting – adapts to uneven surfaces for stability.
• Static Load Capacity: 2000kg – supports heavy loads effectively.
• Thread Finish: Zinc Plated – offers corrosion resistance.

Specifications

• Thread Size: M20
• Thread Length: 200mm
• Base Diameter: 100mm
• Static Load Capacity: 2000kg
• Foot Type: Tilting
• Thread Finish: Zinc Plated

Applications

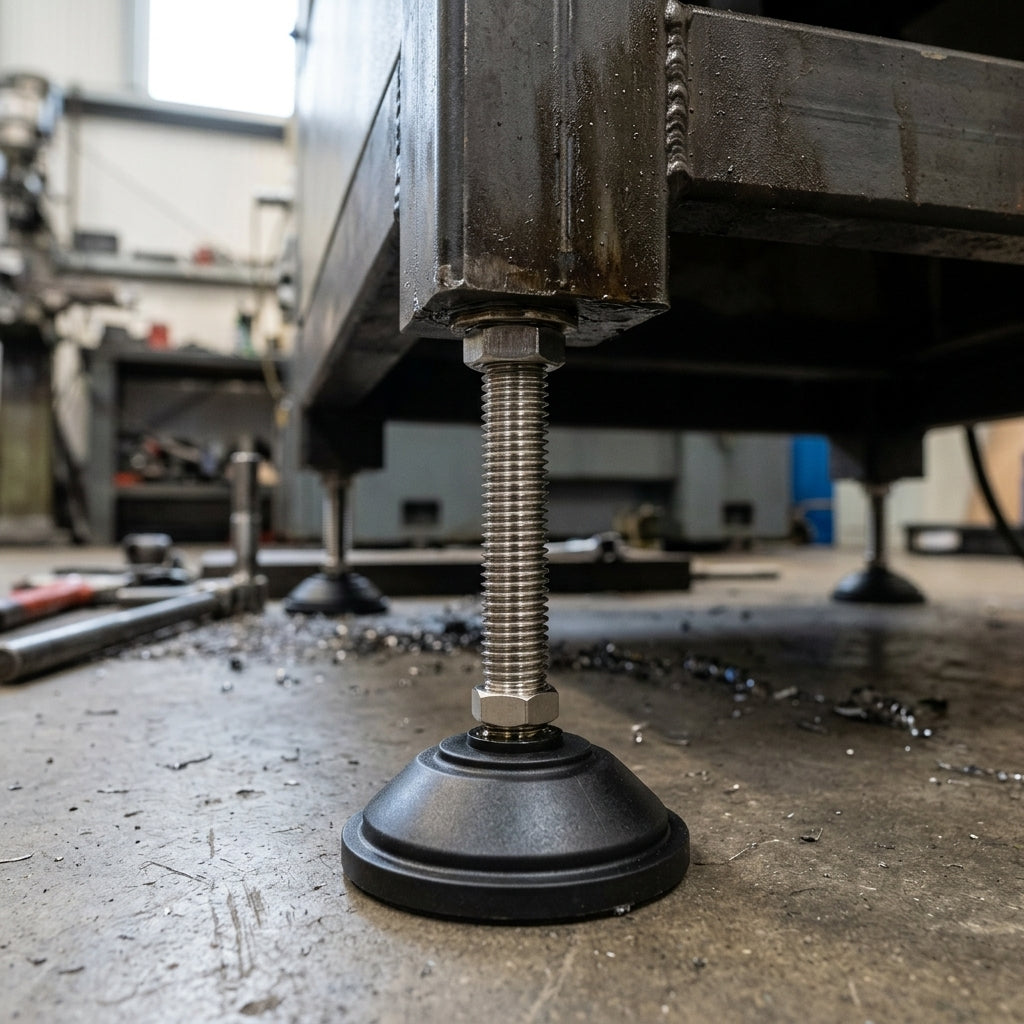

• Machinery and Equipment: Used to level and stabilise heavy machinery.
• Workstations: Provides adjustable support for height variations.
• Storage Units: Ensures stability on uneven floors.
