- Load per castor80kg per castor *
- Wheel diameter100mm
- Overall height128mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Bracket
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 23mm
- Tread Hardness
- A80
- Bearing Type
- Roller
- Load Capacity
- 80kg per castor *
- Top Plate Size
- 101 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height128mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

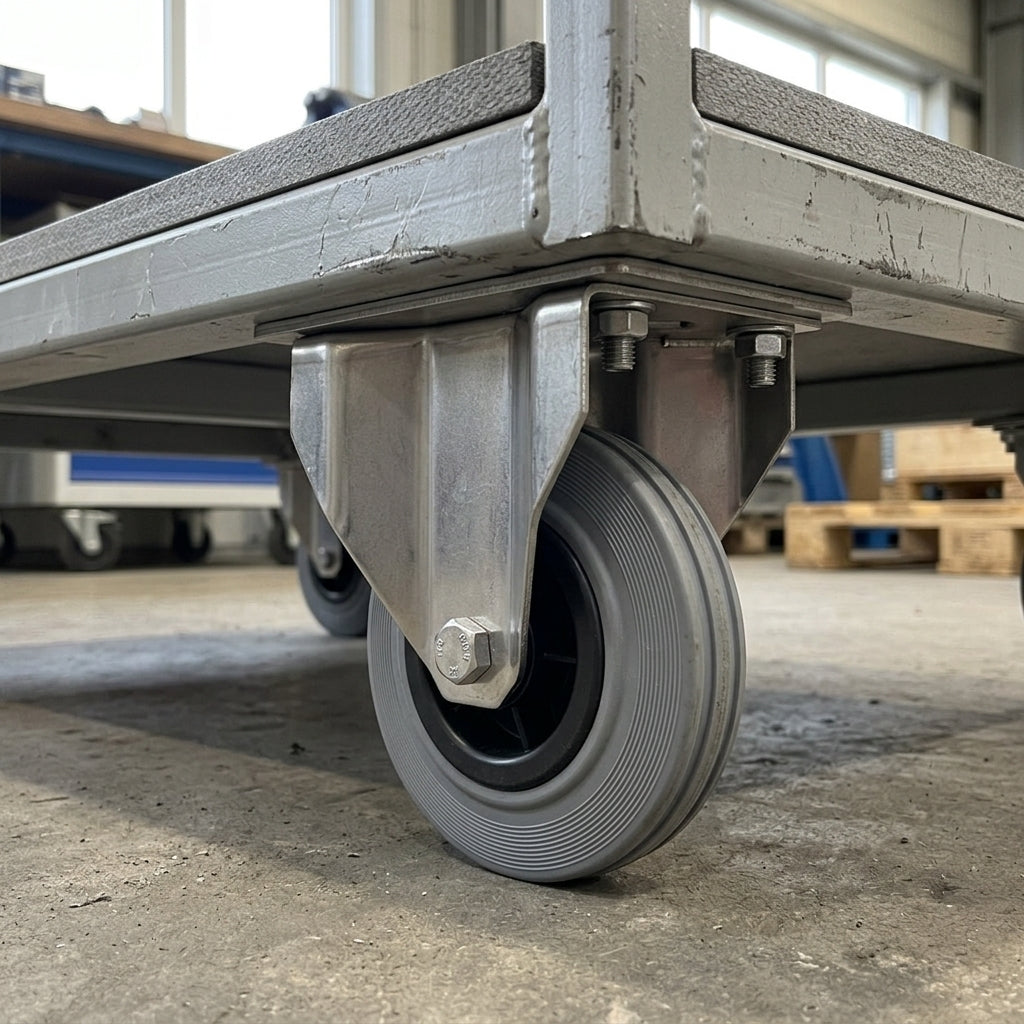

Stainless Steel Fixed Castor
This 100mm stainless steel fixed castor runs on a grey rubber wheel, carrying up to 80kg per castor. It is made for food manufacturing, mobile storage units and catering equipment where hygiene and straight, stable movement matter.
The rigid stainless bracket keeps equipment tracking in a straight line. The rubber tread on a polypropylene centre has an A80 hardness, a roller bearing keeps movement smooth, and the 101 x 85mm top plate with four 8mm holes bolts securely to flat surfaces. It works from -20°C to +60°C.
Why Choose This Castor
- ✓ Stainless steel bracket for washdown and hygienic areas
- ✓ Grey rubber wheel on a polypropylene centre
- ✓ Fixed (rigid) design for straight, stable travel
- ✓ Roller bearing for smooth movement
- ✓ 80kg load capacity per castor with a 23mm tread
- ✓ Works from -20°C to +60°C
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food manufacturing equipment and materials in hygienic environments
- ✓ Mobile shelving and storage units that are moved often
- ✓ Kitchen equipment and service carts in restaurants and catering
Need a different size? See our stainless steel castor range.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with matching swivel castors so your trolley can steer.
How much weight can it carry?
Each castor is rated at 80kg. A set of four is best used for loads up to around 240kg, allowing for uneven floors.
How is it fitted?
The 101 x 85mm top plate has four 8mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
Can it be washed down?
Yes. The stainless steel bracket suits food and catering areas that are cleaned regularly.
What temperatures can it handle?
It is rated from -20°C to +60°C, so it works in chilled and normal room conditions.
How tall is the castor?
The total castor height is 128mm.
