- Load per castor125kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelHigh Temperature Phenolic
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- High Temperature Phenolic
- Wheel Colour
- Black
- Tread Width
- 34mm
- Tread Hardness
- D85
- Bearing Type
- Plain
- Load Capacity
- 125kg per castor
- Fixing
- 4 Bolt Hole Top Plate
- Plate Size
- 101 x 85mm
- Plate Hole Centres
- 80 x 60mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Temperature Range
- -40°C to +280°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Phenolic wheel · working temperature -40°C to +280°C
- High load capacity
- Handles heat, e.g. oven and bakery trolleys
- Easy to push
- Hard tread is noisy on rough floors
Details & FAQs

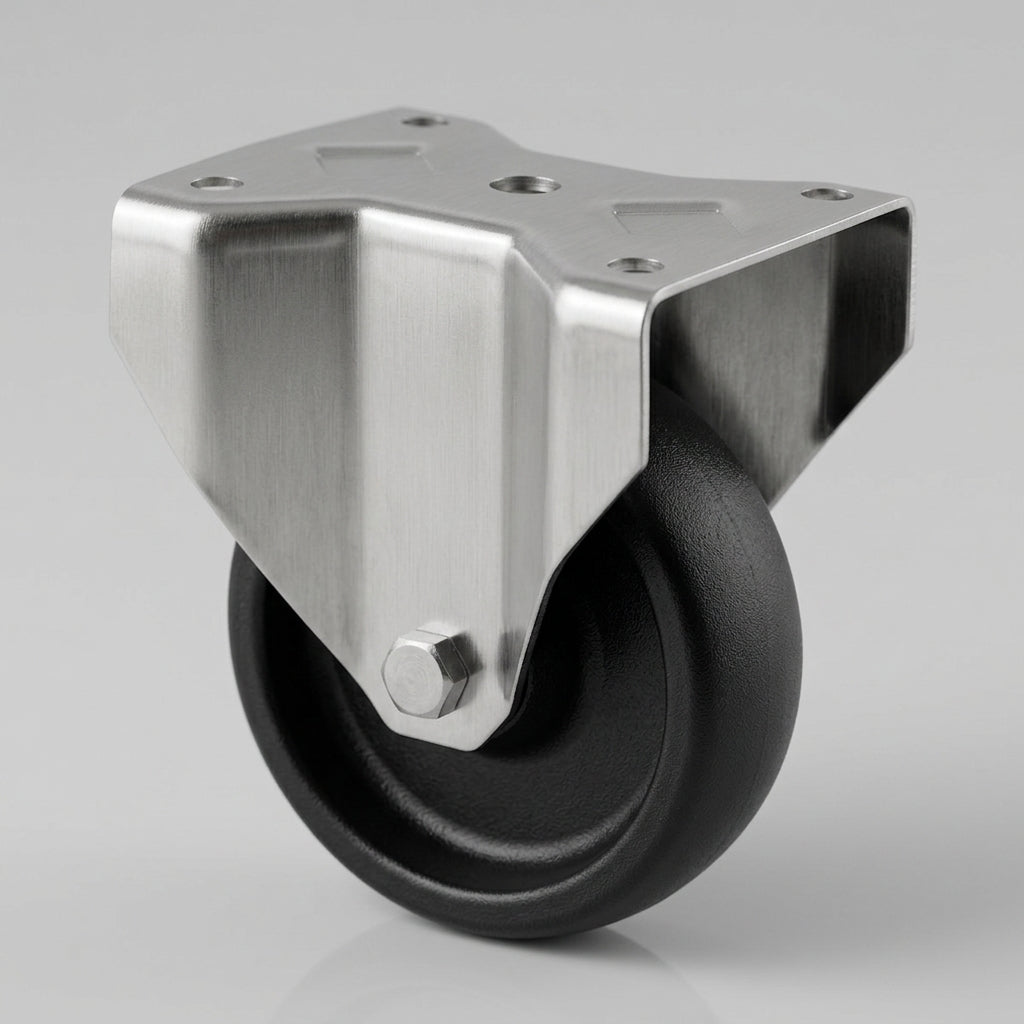

Stainless Steel High Temperature Castor
This 100mm stainless steel fixed castor runs on a black high temperature phenolic wheel that works from -40°C to +280°C, carrying up to 125kg per castor. It is made for food manufacturing equipment, bakery racks and industrial ovens where wheels are exposed to heat.
The stainless steel housing stands up to regular cleaning and damp conditions, and the 101 x 85mm top plate bolts securely to the underside of your equipment. The one-piece fixed bracket keeps the wheel tracking straight, and a hard D85 phenolic tread rolls easily on smooth floors on a plain bearing. Pair it with matching swivel castors for steering.
Why Choose This Castor
- ✓ Works from -40°C to +280°C for ovens, bakeries and hot areas
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ 125kg load capacity per castor
- ✓ Hard black phenolic wheel with a 34mm tread
- ✓ Fixed bracket for straight, stable tracking
- ✓ 101 x 85mm top plate with four 8mm holes
* Load capacity is per castor on a level surface. Check the plate size and hole centres suit your equipment before fitting.
Where It Works Best

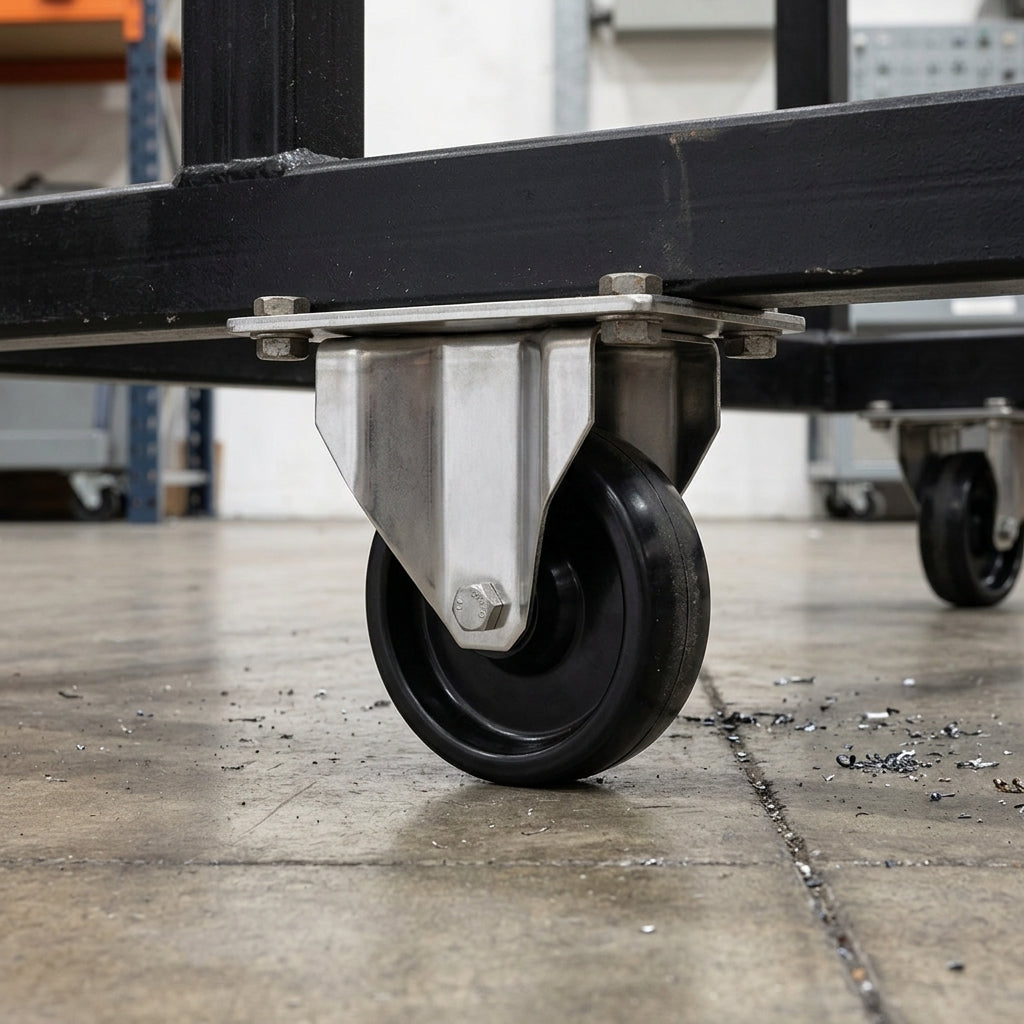

- ✓ Food manufacturing equipment: equipment where wheels are exposed to high temperatures.
- ✓ Bakery racks: racks that work in heated areas.
- ✓ Industrial ovens: equipment working within the rated temperature range.
Frequently Asked Questions
What temperatures can this castor handle?
The phenolic wheel works from -40°C up to +280°C, so it suits oven racks, bakery trolleys and hot work areas.
How much weight can it carry?
Each castor is rated at 125kg. Add up the castors fitted to your equipment to work out the total load.
How is it fitted?
It has a 101 x 85mm top plate with four 8mm holes on 80 x 60mm centres, bolted to the underside of your equipment.
Does this castor swivel?
No. This is a fixed castor, so it keeps a straight line of travel. Fit it with matching swivel castors when you need to steer.
Can it be washed down?
Yes. The stainless steel housing is made for washdown and damp areas such as kitchens and food production.
How tall is the castor?
The total castor height is 128mm, from the floor to the top of the plate.
