- Load per castor320kg per castor
- Wheel diameter100mm
- Overall height145mm
- WheelCast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fabricated Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Cast iron
- Tread Width
- 45mm
- Bearing Type
- Roller bearing
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 135 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 145mm
- Load Capacity
- 320kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Cast iron / steel wheel
- Carries very heavy loads
- Tolerates heat and sharp debris
- Suits concrete, steel and foundry floors
- Noisy
- Will mark or damage finished floors
Details & FAQs

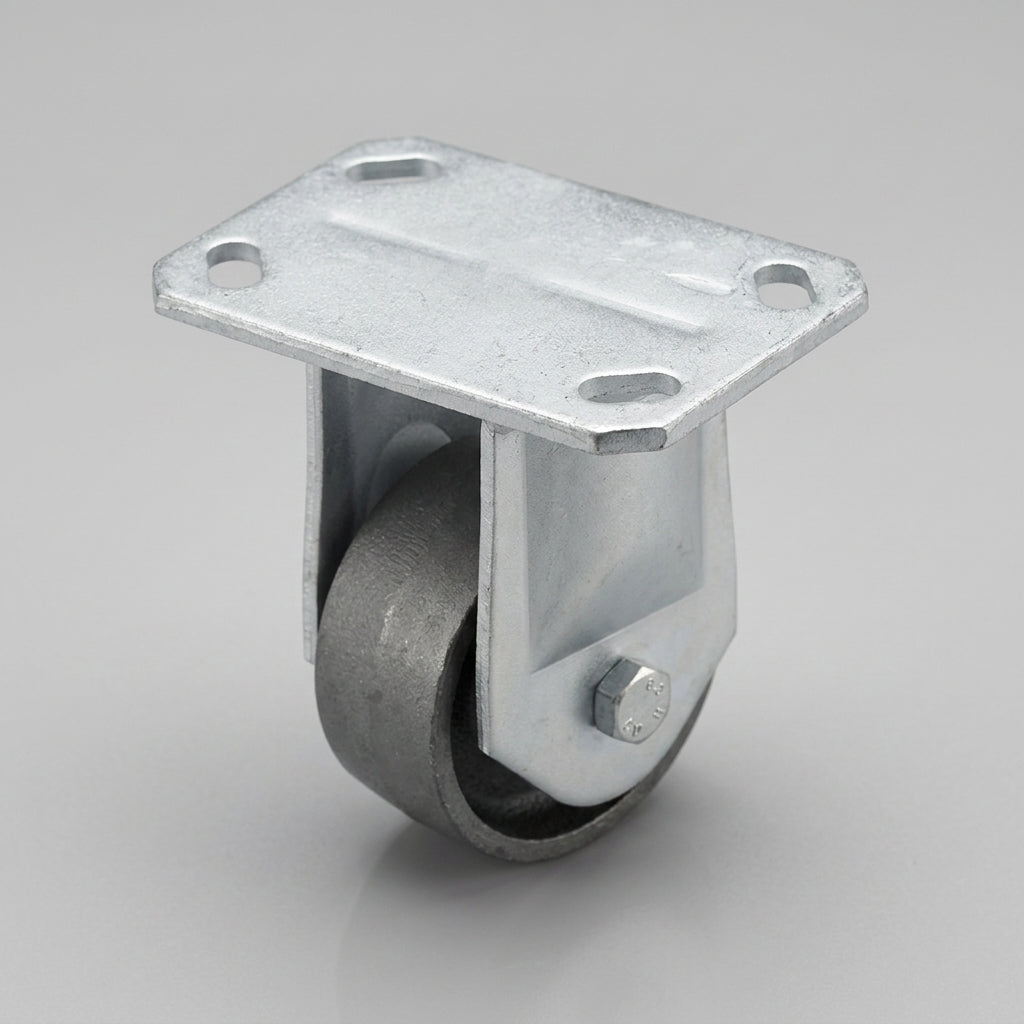

Heavy Duty Fabricated Castors
Built for robust industrial applications, this 100mm heavy duty fabricated fixed castor pairs a cast iron wheel with a roller bearing for exceptional strength, durability and straight-line tracking under heavy loads. Rated for 320kg per castor.
It fixes securely to your equipment with a 135 x 110mm top plate and stands 145mm tall.
Why Choose This Castor
- ✓ 320kg load capacity per castor for heavy industrial loads.
- ✓ Cast iron wheel 100mm diameter with a 45mm tread, built for durability in tough environments.
- ✓ Roller bearing for smooth, efficient wheel rotation.
- ✓ Heavy duty fabricated construction for industrial use.
- ✓ Fixed (rigid) fork keeps equipment running in a straight line.
- ✓ 135 x 110mm top plate with four 10mm holes for a secure attachment.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This heavy duty fabricated fixed castor suits:
- ✓ Industrial equipment: mobility for heavy machinery.
- ✓ Warehousing: moving large items in storage facilities.
- ✓ Manufacturing: transporting tools and materials in production areas.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 320kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 100mm cast iron wheel with a 45mm tread, running on a roller bearing.

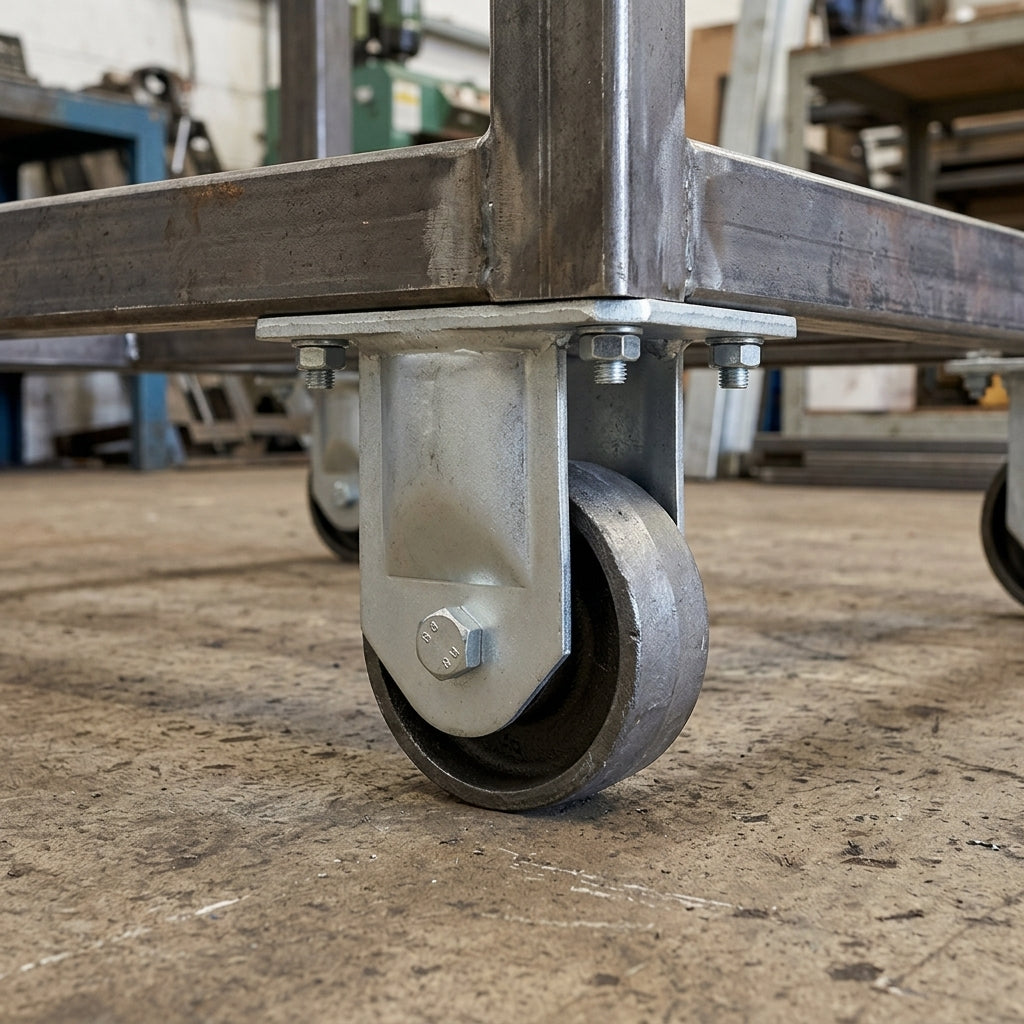

How is the castor fitted?
It has a 135 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
No. This is a fixed (rigid) castor that rolls in a straight line. Pair it with swivel castors if you need to steer. The total castor height is 145mm.
What type of bearing does it use?
A roller bearing, which gives smooth and efficient wheel rotation under heavy loads.
