- Load per castor85kg *
- Wheel diameter100mm
- Overall height122mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Tread Width
- 22mm
- Bearing Type
- Plain
- Load Capacity
- 85kg *
- Plate Length
- 60mm
- Plate Width
- 67mm
- Plate Hole Centres Length
- 48/38mm
- Plate Hole Centres Width
- 48/38mm
- Plate Hole Diameter
- 6mm
- Total Castor Height
- 122mm
Will it fit?
- Top plate60mm × 67mm
- Hole centres48/38mm × 48/38mm
- Fixing holeØ 6mm
- Overall height122mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

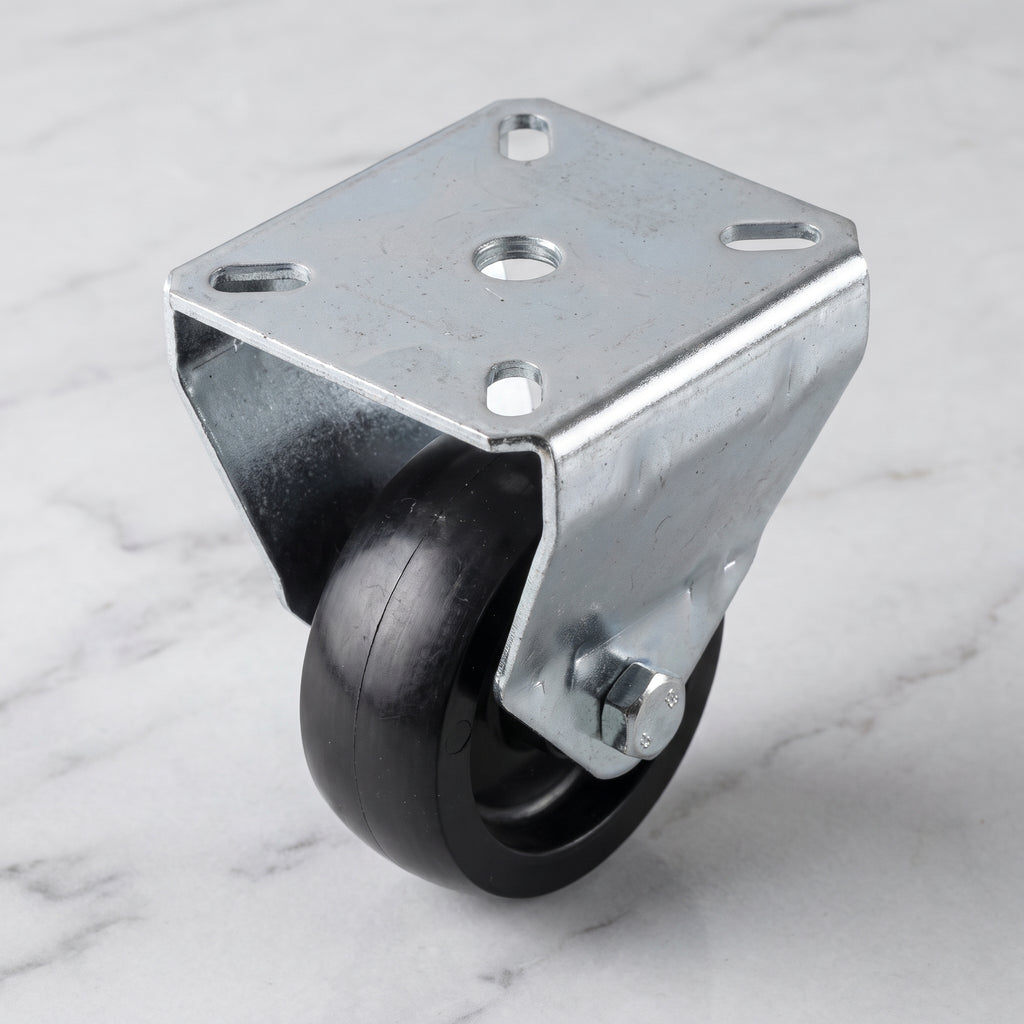

Light Duty Top Plate Castors
This 100mm fixed castor with a black polypropylene wheel is a practical choice for trolleys, carts and platform trucks that need stable, straight-line movement. It carries up to 85kg per castor, making it suitable for supporting moderate loads.
With a lightweight yet durable polypropylene wheel, a 22mm tread, a plain bearing and a total height of 122mm, this light duty top plate castor fits easily with its 60 x 67mm top plate. Pair it with matching swivel castors for easy steering.
Why Choose This Castor
- ✓ Fixed design for stability in linear motion
- ✓ Black polypropylene wheel, lightweight and durable
- ✓ 85kg load capacity per castor
- ✓ 100mm wheel suitable for moderate surfaces
- ✓ Plain bearing for straightforward, smooth rotation
- ✓ 60 x 67mm top plate with 6mm holes for standard bolts
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best

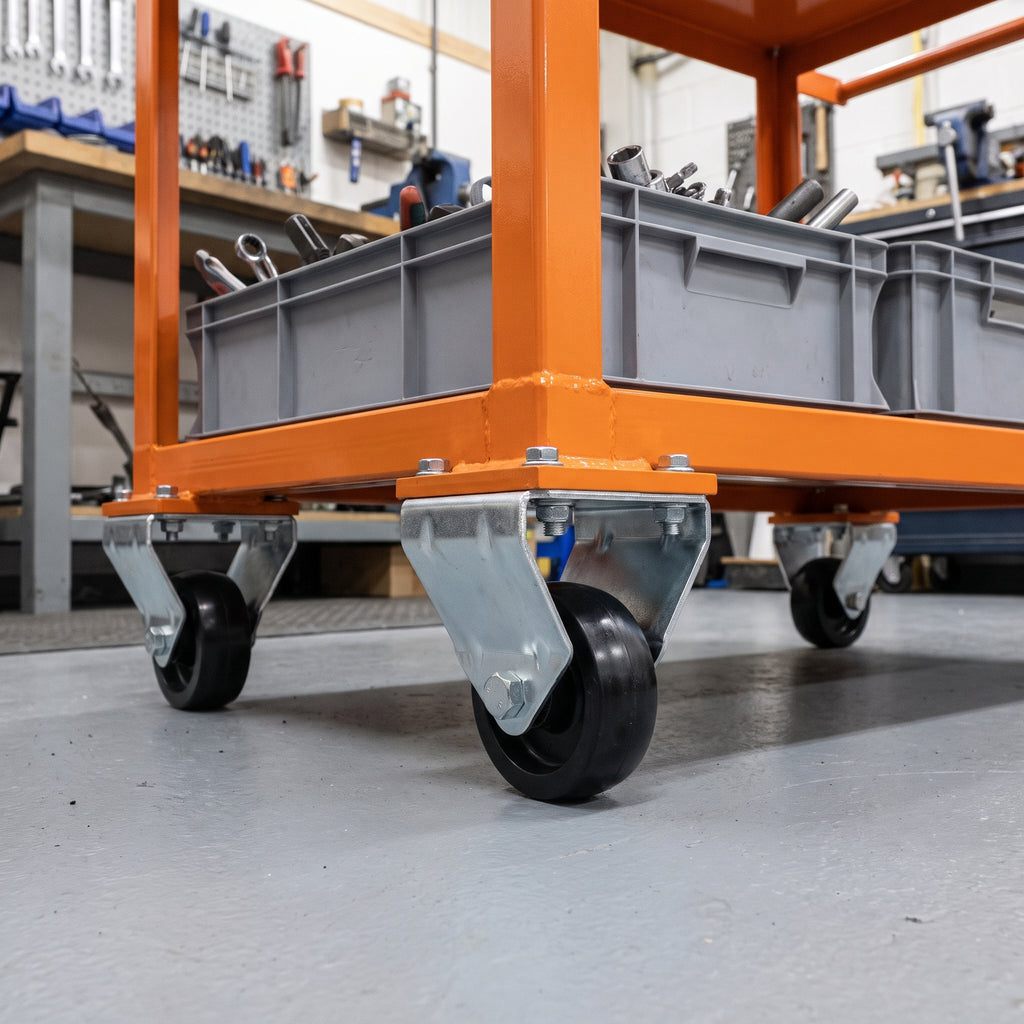

- ✓ Trolleys and carts: mobile equipment requiring directional stability
- ✓ Platform trucks: where fixed directional rolling is essential
Frequently Asked Questions
Does this castor swivel?
No. It is a fixed (rigid) castor that rolls in a straight line. Use it with swivel castors at the other end of your trolley for easy steering.
How much weight can it carry?
Each castor is rated at 85kg. Add up the rating of all the castors on your trolley to find the total capacity.
What is the wheel made of?
The wheel is black polypropylene, which is lightweight and durable.
How is the castor fitted?
It has a 60 x 67mm top plate with 6mm holes on 48/38mm hole centres, which you bolt to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 122mm, so check the clearance you need.
