- Load per castor270kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Type
- Nylon
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 34mm
- Tyre Hardness
- D75
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 101 x 85mm
- Hole Centres
- 80/77 x 60mm
- Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Load Capacity
- 270kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
White Nylon Fixed Castors

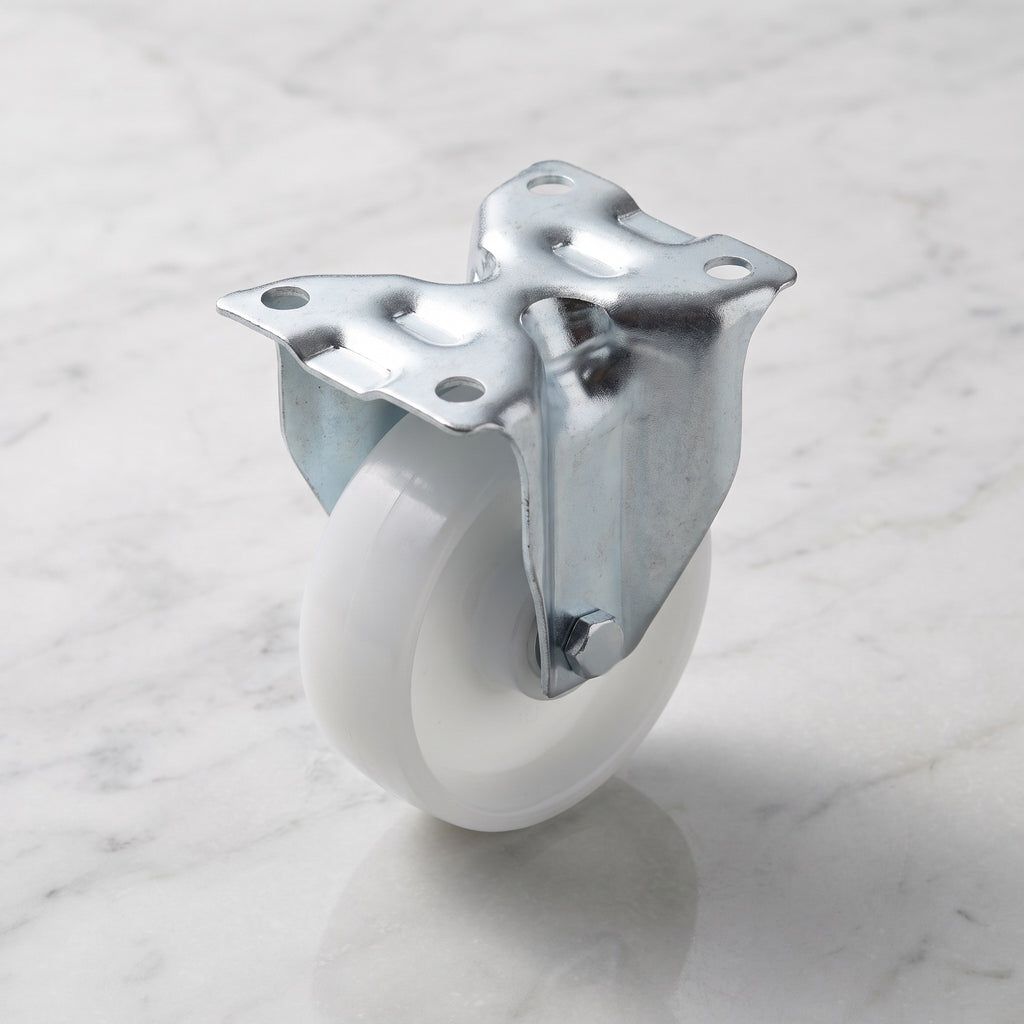

Built with a white nylon wheel, this 100mm fixed castor is made for industrial use where directional stability matters, and supports up to 270kg per castor. The fixed bracket keeps the wheel on a straight path, making it a reliable choice for warehouse trolleys, industrial carts and manufacturing equipment.
The solid nylon wheel has a hard D75 tread for substantial loads on smooth floors, and the roller bearing gives smooth movement along a fixed path. This fixed top plate castor bolts securely to a flat surface with a 101 x 85mm plate, stands 128mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Fixed bracket keeps the wheel aligned for straight-line travel.
- ✓ White nylon wheel for strength on smooth floors.
- ✓ 270kg load capacity per castor for industrial use.
- ✓ Roller bearing for smooth movement under load.
- ✓ 100mm wheel with 34mm tread and D75 tread hardness.
- ✓ 101 x 85mm top plate with four 8mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and mounting space suit your mounting area before fitting.
Where It Works Best
This fixed top plate castor suits equipment that needs steady, straight-line movement:

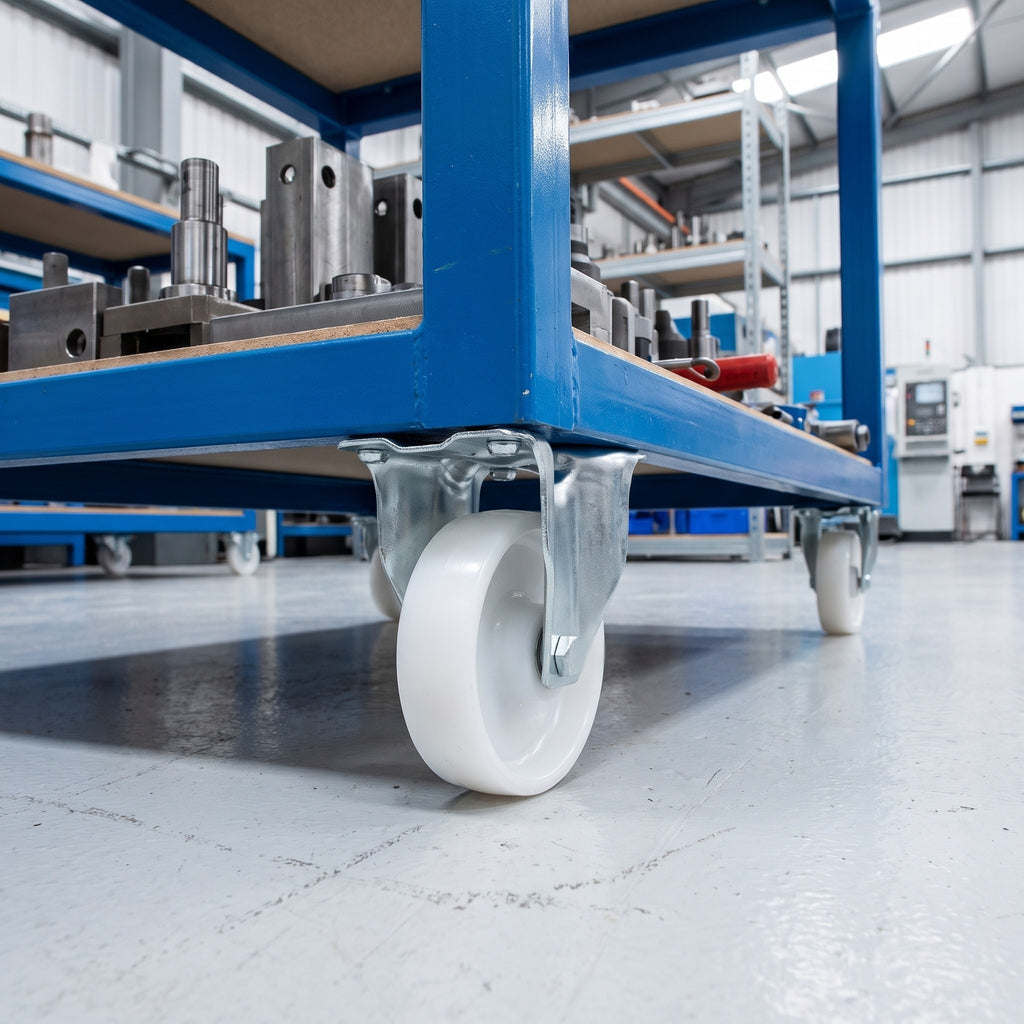

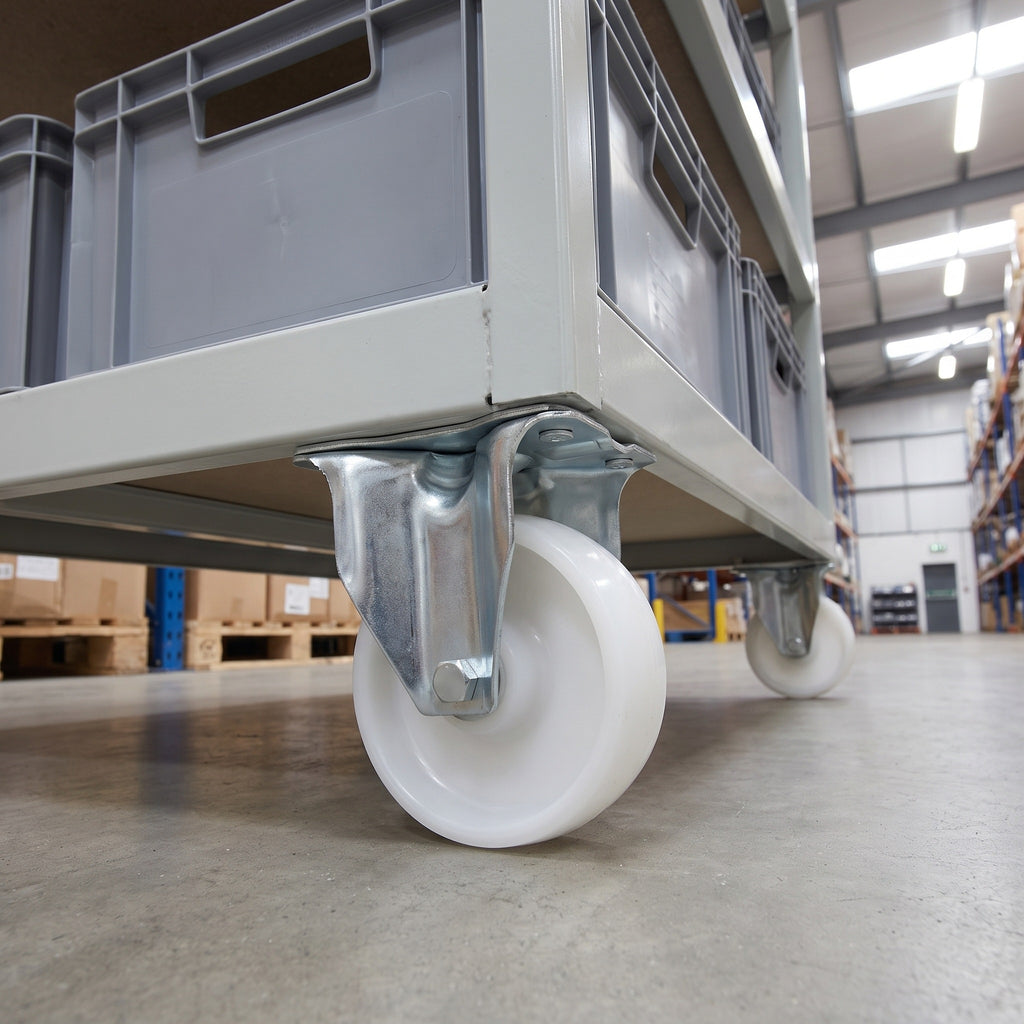

- ✓ Warehouse trolleys: stable movement along fixed paths.
- ✓ Industrial carts: moving heavy loads with directional stability.
- ✓ Manufacturing equipment: steady movement in controlled environments.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that only rolls in a straight line. For steering, pair it with swivel castors with the same 100mm white nylon wheel.
How much weight can this castor carry?
Each castor is rated for 270kg.
How is the castor fitted?
It has a 101 x 85mm top plate with four 8mm holes on 80/77 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is the castor?
The total castor height is 128mm.
What is the wheel made of?
A solid white nylon wheel, 100mm in diameter and 34mm wide, with D75 hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
