- Load per castor150kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelPolypropylene and nylon mix
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Type
- Nylon
- Wheel Material
- Polypropylene and nylon mix
- Wheel Colour
- White
- Tread Width
- 34mm
- Tyre Hardness
- D75
- Bearing Type
- Plain Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 99 x 85mm
- Hole Centres
- 80 x 60mm
- Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Load Capacity
- 150kg per castor
- Temperature Range
- -20°C to +60°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -20°C to +60°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

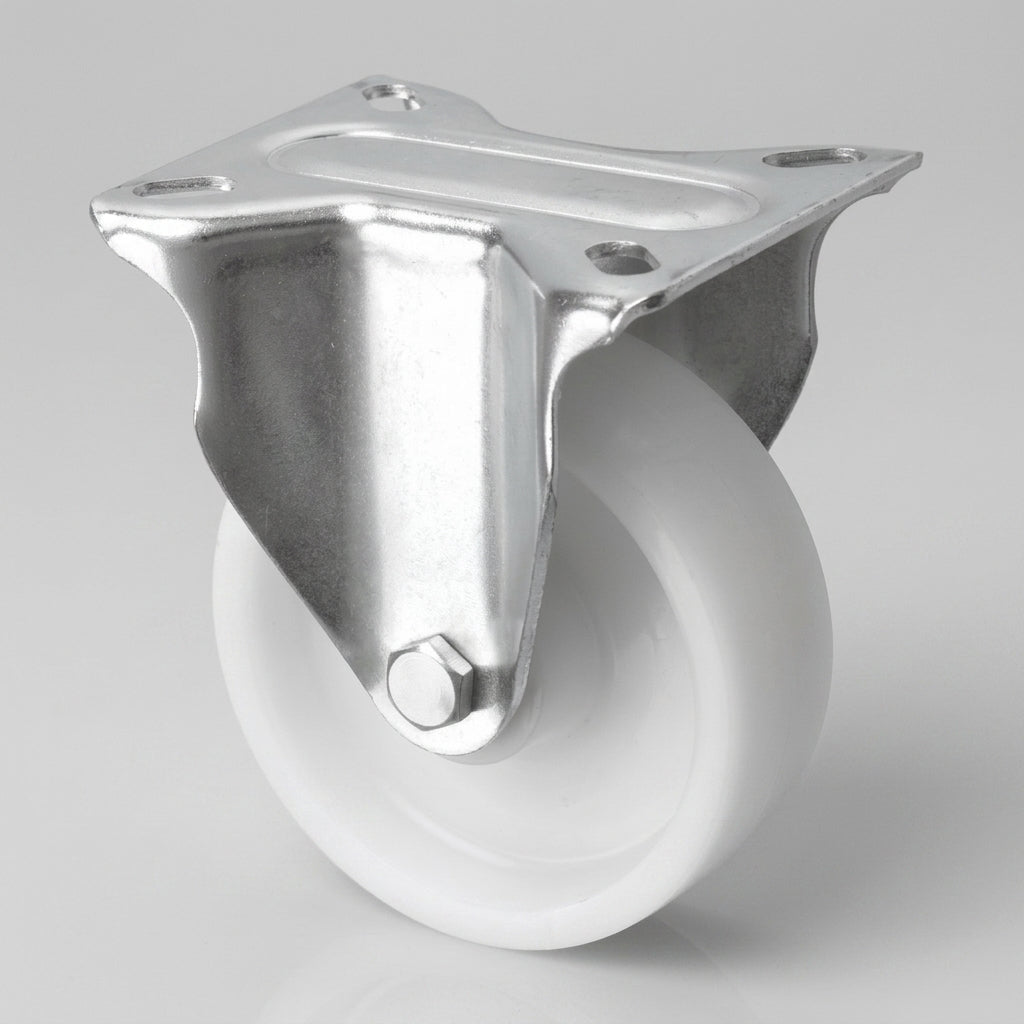

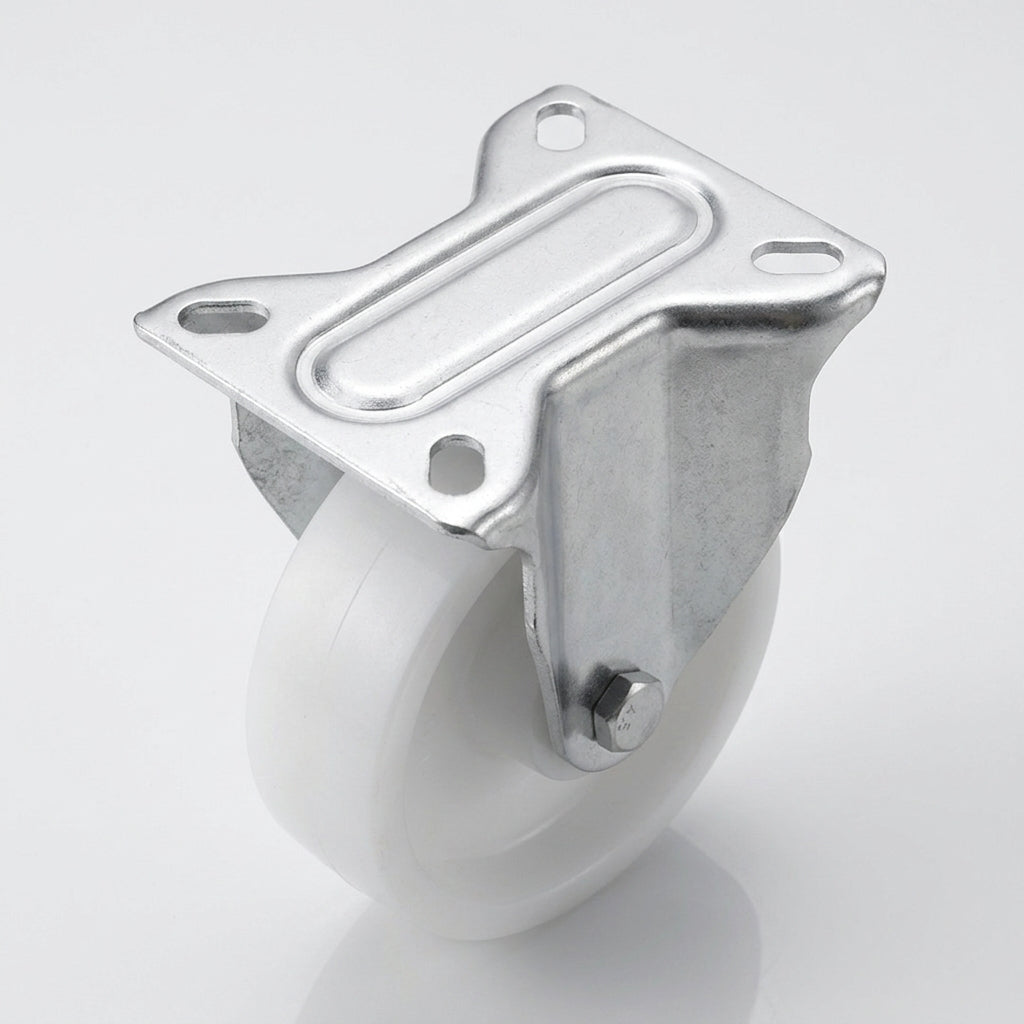

White Nylon Fixed Castors
Made for industrial equipment, this 100mm heavy duty fixed castor has a white wheel in a polypropylene and nylon mix, giving a good balance of strength and weight, and supports up to 150kg per castor. The fixed bracket keeps the wheel on a straight path, making it a solid choice for factory equipment, warehouse trolleys and industrial racks.
The wheel has a D75 tread hardness for smooth floors, and the plain bearing lets it run directly on the axle. This fixed top plate castor bolts securely to a flat surface with a 99 x 85mm plate, stands 128mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ Fixed bracket keeps the wheel aligned for straight-line travel.
- ✓ White nylon wheel for strength on smooth floors.
- ✓ 150kg load capacity per castor for industrial use.
- ✓ Plain bearing for straightforward movement.
- ✓ 100mm wheel with 34mm tread and D75 tread hardness.
- ✓ 99 x 85mm top plate with four 8mm holes.
- ✓ Wide temperature range from -20°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and mounting space suit your mounting area before fitting.
Where It Works Best

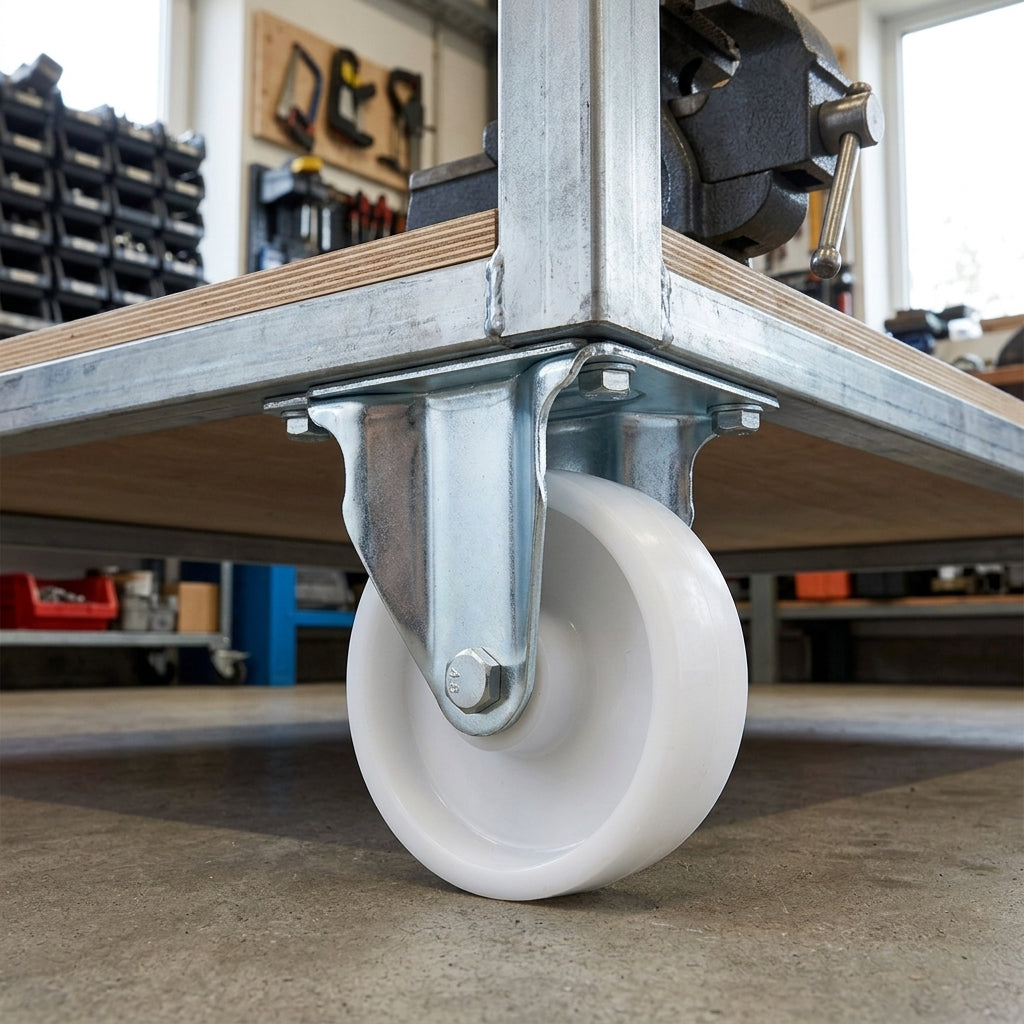

This fixed top plate castor suits equipment that needs steady, straight-line movement:
- ✓ Factory equipment: stable movement for machinery and carts.
- ✓ Warehouse trolleys: moving goods on smooth floors.
- ✓ Industrial racks: racks that need a fixed line of travel.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that only rolls in a straight line. For steering, pair it with swivel castors with the same 100mm white nylon wheel.
How much weight can this castor carry?
Each castor is rated for 150kg.
How is the castor fitted?
It has a 99 x 85mm top plate with four 8mm holes on 80 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is the castor?
The total castor height is 128mm.
What is the wheel made of?
A white polypropylene and nylon mix wheel, 100mm in diameter and 34mm wide, with D75 hardness, running directly on the axle with a plain bearing.
What temperatures can it work in?
The castor is suitable for use from -20°C to +60°C.
