- Load per castor160kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelRubber tread on nylon centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Type
- Noise-reducing rubber tread
- Wheel Material
- Rubber tread on nylon centre
- Wheel Colour
- Grey
- Tread Width
- 36mm
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 101 x 85mm
- Hole Centres
- 80 x 60mm
- Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Load Capacity
- 160kg per castor
- Temperature Range
- -20°C to +60°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Noise-Reducing Fixed Castors
Fitted with a noise-reducing grey rubber wheel, this 100mm fixed castor is made for places where quiet movement matters, such as supermarkets and shops, with a load capacity of 160kg per castor. The fixed bracket keeps the wheel running straight, and it suits supermarket trolleys, warehouse carts and display stands.
The grey rubber tread on a nylon wheel centre dampens sound as it rolls, and the roller bearing gives smooth rotation with less friction. This top plate castor fixes with a 101 x 85mm plate, stands 128mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ Fixed bracket keeps the wheel aligned for straight-line travel.
- ✓ Noise-reducing grey rubber wheel for quiet movement in shops and stores.
- ✓ 160kg load capacity per castor.
- ✓ Roller bearing for smooth, low-friction rotation.
- ✓ 100mm wheel with 36mm tread for steady rolling.
- ✓ 101 x 85mm top plate with four 8mm holes.
- ✓ Wide temperature range from -20°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This quiet fixed castor suits equipment that needs to move smoothly, quietly and in a straight line:
- ✓ Supermarket trolleys: quiet, smooth movement in retail spaces.

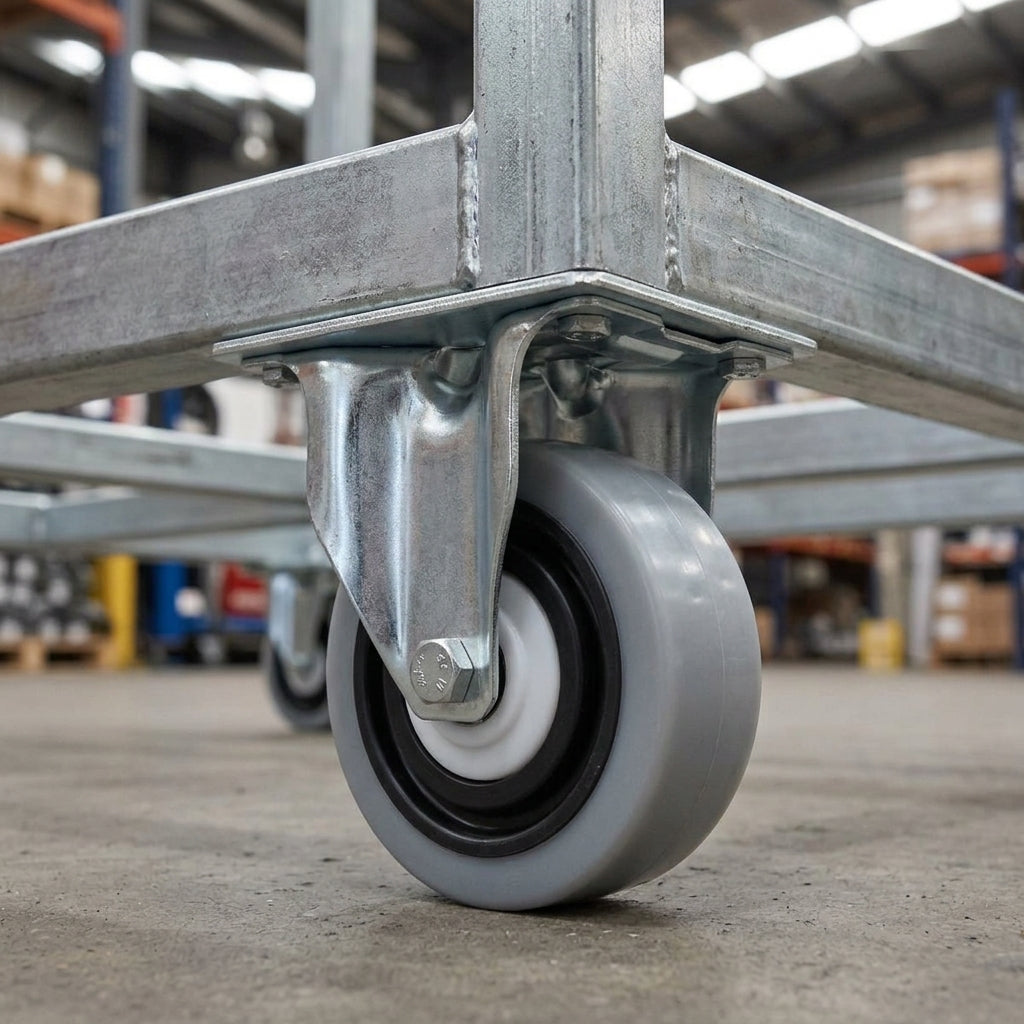

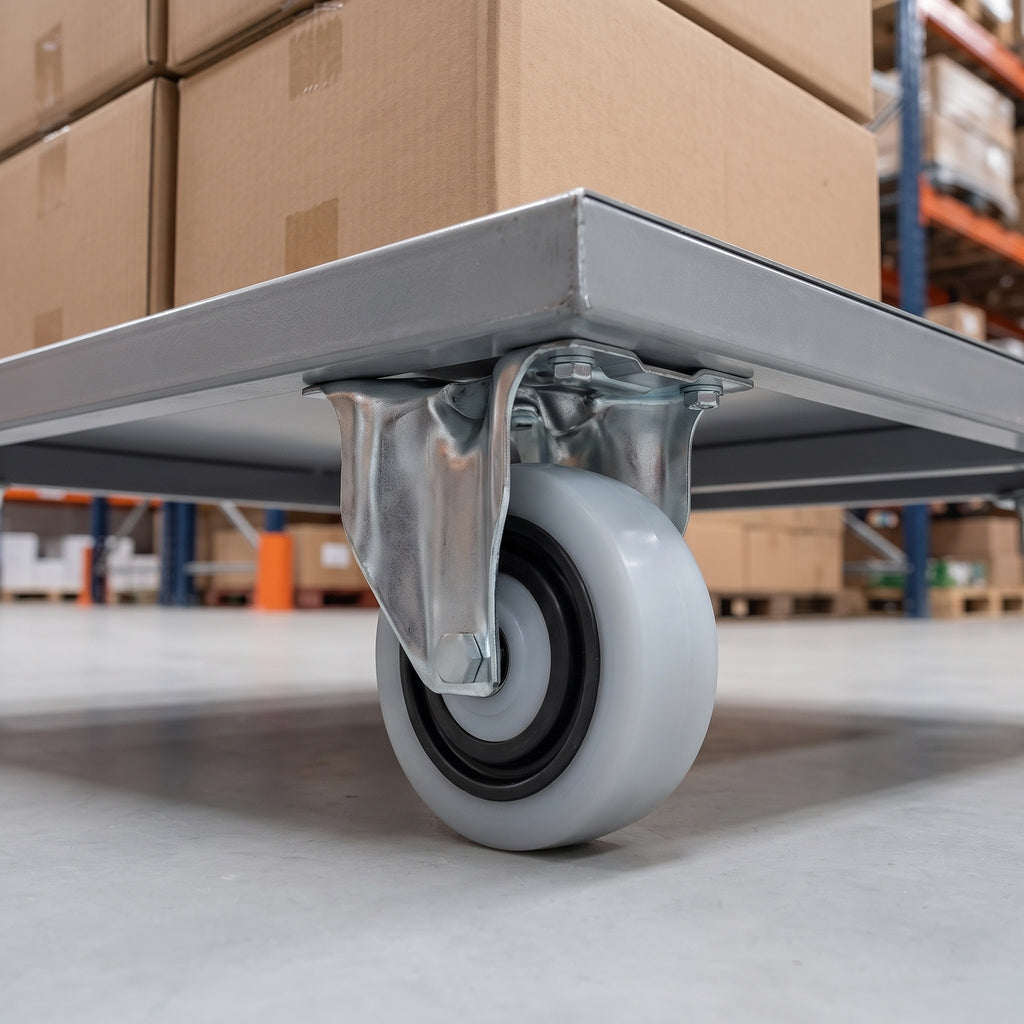

- ✓ Warehouse carts: transporting goods with reduced noise levels.

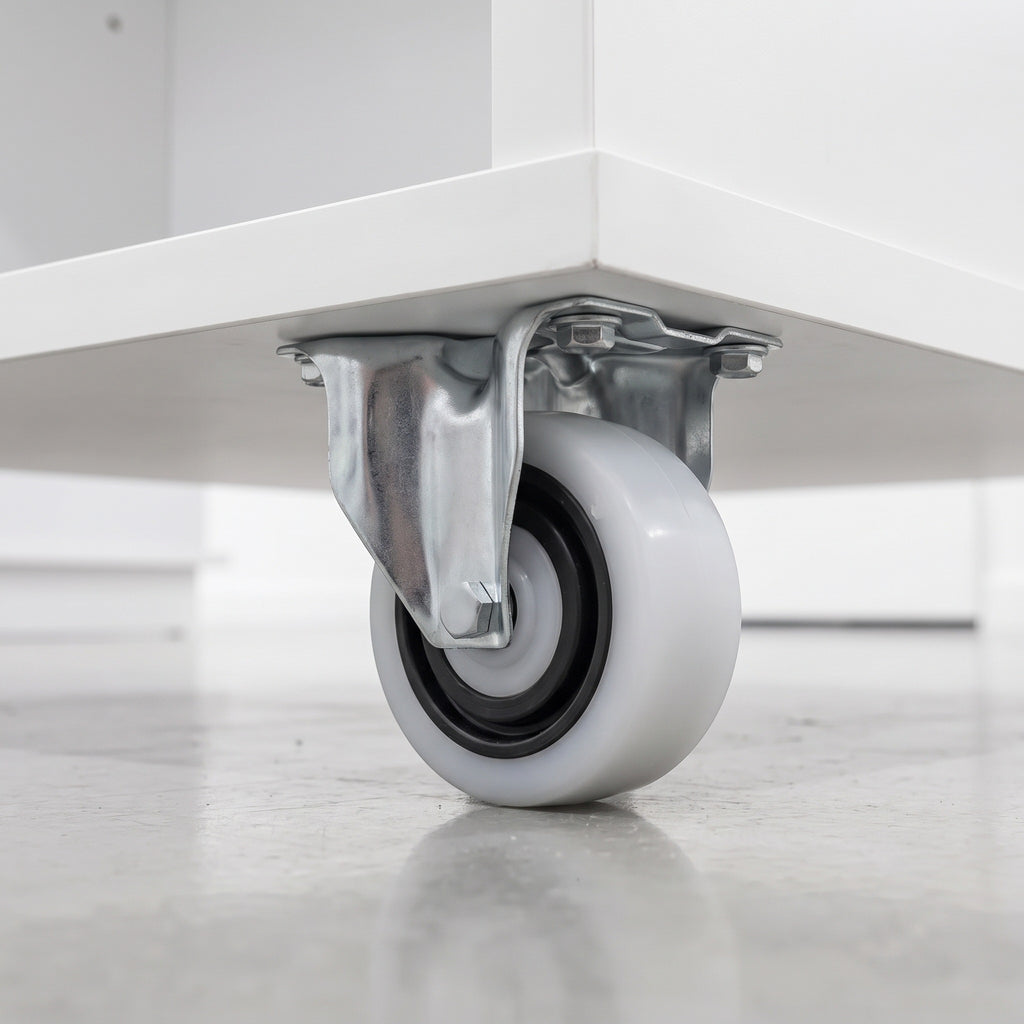

- ✓ Display stands: stability and ease of movement in commercial settings.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that only rolls in a straight line. For steering, pair it with 100mm noise-reducing swivel castors at the other end of your trolley.
Is this castor quiet?
Yes. The grey rubber tread dampens rolling noise, which makes it a good choice for supermarkets, shops and other spaces where quiet movement matters.
How much weight can this castor carry?
Each castor is rated for 160kg.
How is the castor fitted?
It has a 101 x 85mm top plate with four 8mm holes on 80 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is the castor?
The total castor height is 128mm.
What is the wheel made of?
A grey noise-reducing rubber tread on a nylon wheel centre, 100mm in diameter and 36mm wide, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -20°C to +60°C.
