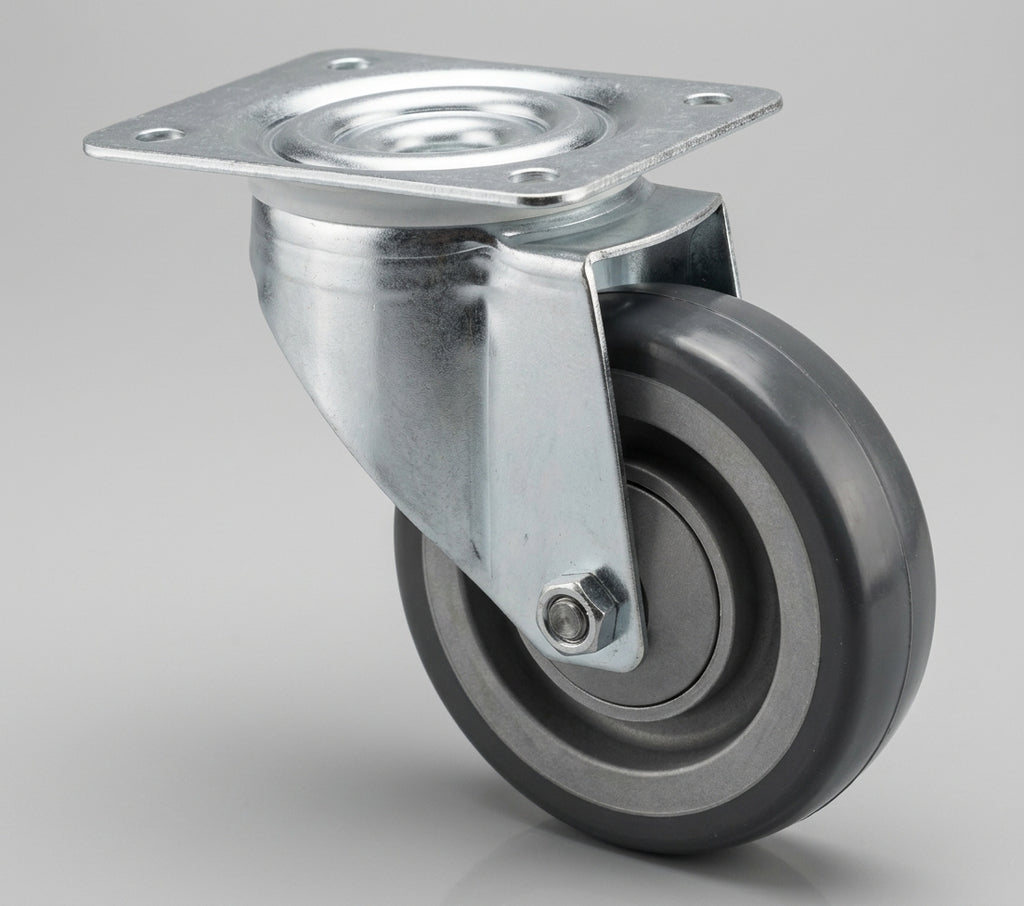

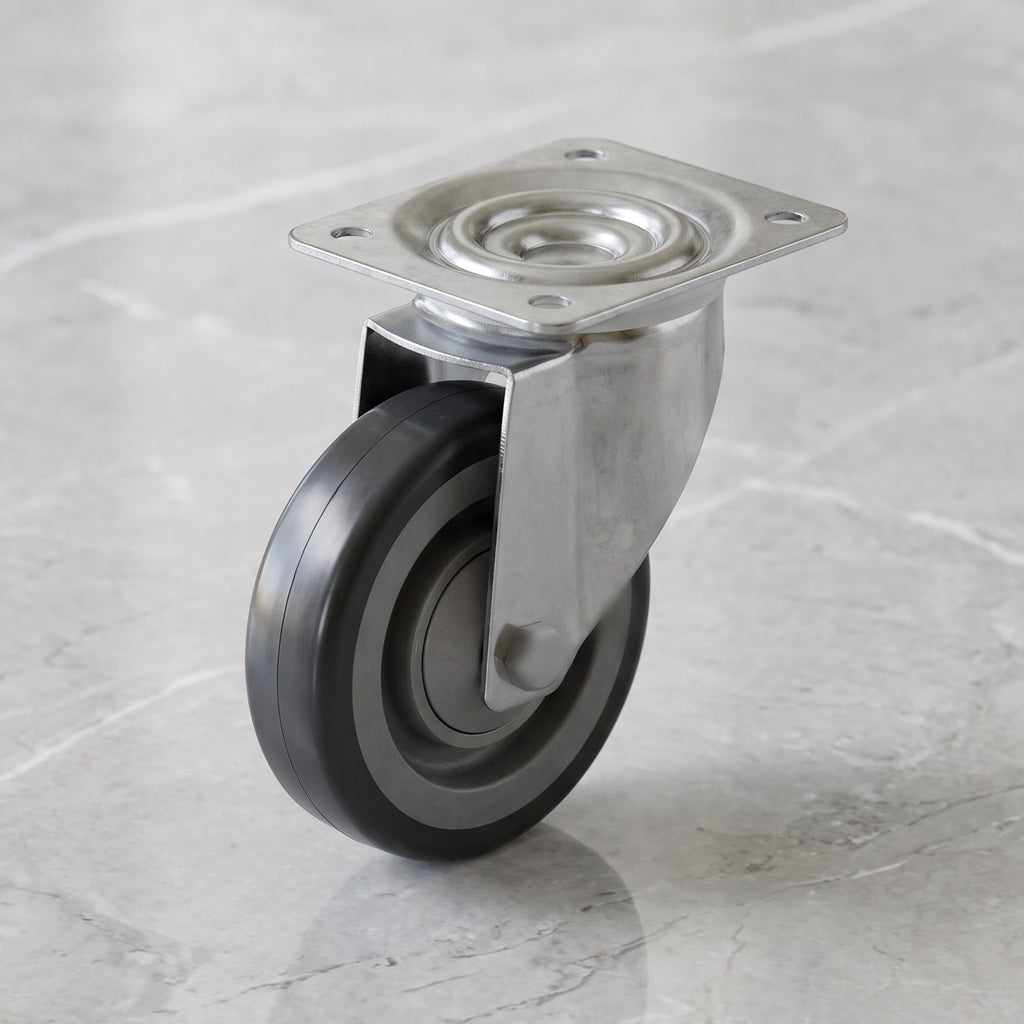

100mm Electro Conductive Braked Castor – 150kg Capacity

Electro conductive braked castor designed for static-sensitive applications.

This 100mm castor features a polyurethane wheel that safely dissipates static electricity, making it perfect for environments like electronics manufacturing and laboratories. With a robust load capacity of 150kg and a built-in brake, it ensures secure positioning while maintaining smooth manoeuvrability.

Key Features

• Wheel Diameter: 100mm – check against the existing wheel size.
• Load Capacity: 150kg – maximum load rating per wheel.
• Swivel Radius: 91mm – important for manoeuvrability.
• Plate Length: 105mm – ensure compatibility with mounting surface.
• Plate Hole Diameter: 8mm – must match fastener size.
• Temperature Range: -40°C to +80°C – consider operating environment.
• Wheel Material: Electrically Conductive Rubber – used to prevent static build-up.

Specifications

• Wheel Diameter: 100mm
• Load Capacity: 150kg
• Swivel Radius: 91mm
• Plate Length: 105mm
• Plate Hole Diameter: 8mm
• Temperature Range: -40°C to +80°C

Applications

• Electronics Manufacturing: Used where static discharge must be controlled.
• Laboratories: Fitted to equipment requiring static management.
• Clean Rooms: Essential for maintaining static-free environments.
