- Load per castor80kg per castor *
- Wheel diameter100mm
- Overall height134mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 30mm
- Hardness of Tread
- A85
- Bearing Type
- Plain Bearing
- Load Capacity
- 80kg per castor *
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 106mm
- Total Castor Height
- 134mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole12mm
- Overall height134mm
- Swivel radius106mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs
Stainless Steel Braked Bolt Hole Castor

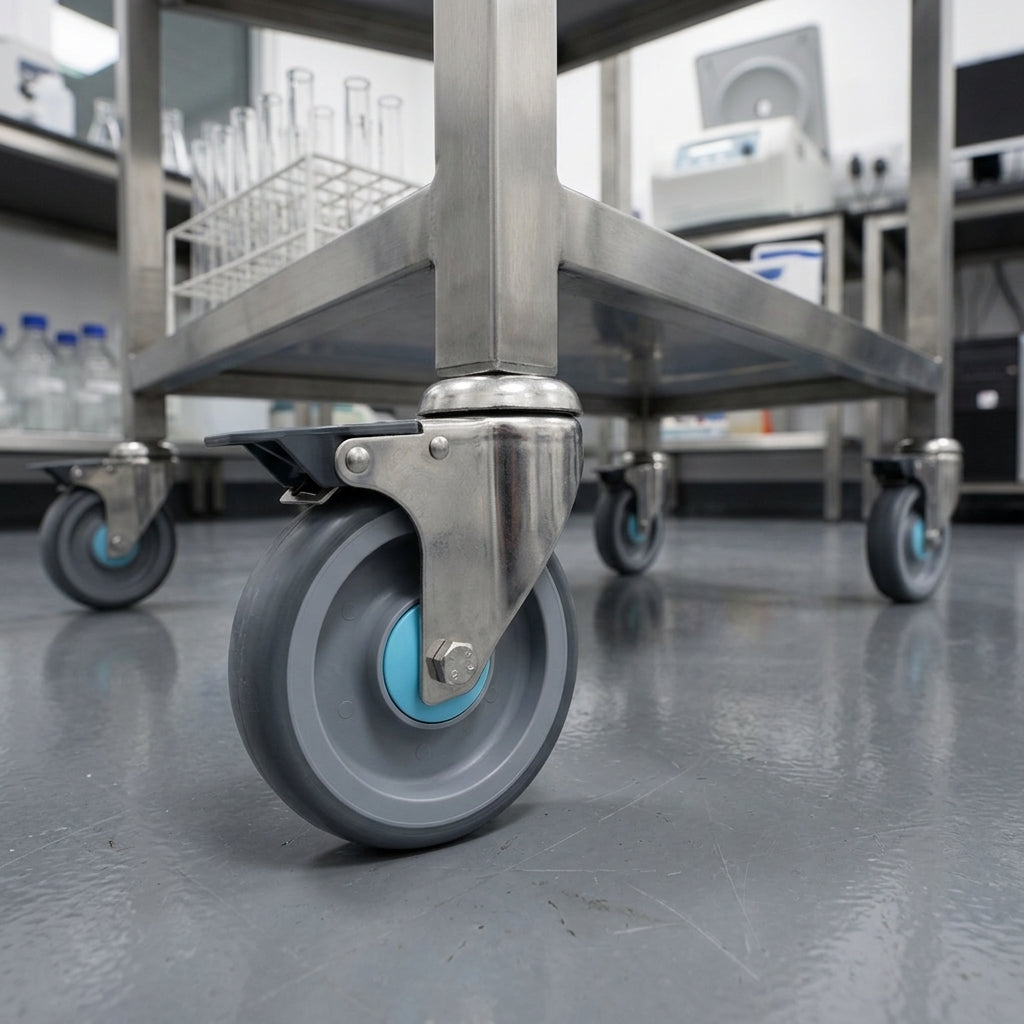

This 100mm stainless steel braked swivel castor runs on a grey thermoplastic rubber wheel on polypropylene and carries up to 80kg per castor. It is made for healthcare equipment, laboratory carts and medical devices that need smooth movement and a brake for parking.
The swivel gives easy manoeuvring with a 106mm swivel radius, and the A85 tread balances grip with durability. A single 12mm bolt hole fits into the end of a tube leg or onto a threaded fixing, which keeps fitting simple.
Why Choose This Castor
- ✓ Foot-operated brake for parking equipment
- ✓ Stainless steel housing for washdown areas
- ✓ Grey thermoplastic rubber wheel on polypropylene
- ✓ A85 tread hardness for a balance of grip and durability
- ✓ Plain bearing
- ✓ 80kg load capacity per castor
- ✓ Single 12mm bolt hole for tube legs and threaded fixings
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Healthcare equipment such as hospital beds and medical trolleys
- ✓ Laboratory carts that need smooth movement
- ✓ Medical devices that need precise positioning
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
What does the brake do?
It is a foot-operated brake that holds the castor in place when the equipment is parked.
How much weight can it carry?
Each castor is rated at 80kg. A set of four is best used for loads up to around 240kg, allowing for uneven floors.
How is it fitted?
It has a single 12mm bolt hole. Fit it with a matching 12mm bolt or threaded stem, or use a matching tube adaptor to fit it into a round or square tube leg.
What temperatures can it work in?
The castor works from -20°C to +60°C.
How tall is the castor?
The total castor height is 134mm and it needs 106mm of clearance to swivel freely.
