- Load per castor160kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelRubber on Polypropylene (non-marking)
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene (non-marking)
- Wheel Colour
- Blue
- Tread Width
- 29mm
- Hardness of Tread
- A64
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate
- Plate Size
- 101 x 85mm
- Plate Hole Centres
- 80/77 x 60mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Load Capacity
- 160kg per castor
- Temperature Range
- -20°C to +80°C
- Brake
- No
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

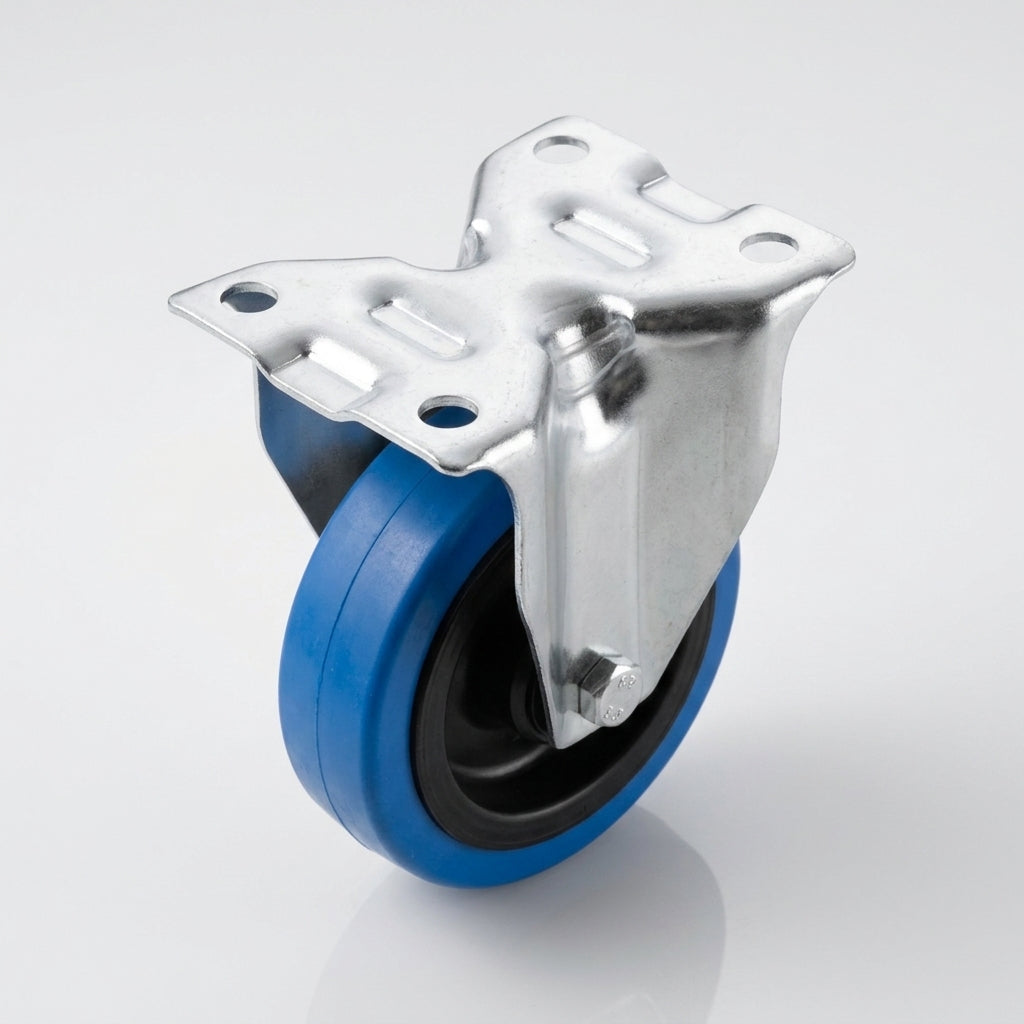

Blue Non-Marking Rubber Castors
Fitted with a blue non-marking rubber wheel, this 100mm fixed castor is engineered for industrial use where clean and mark-free movement is essential. It carries up to 160kg per castor and mounts securely to flat surfaces with a 101 x 85mm top plate, making it ideal for warehouse trolleys, industrial carts, material handling equipment and hospital beds.
The rubber on polypropylene wheel provides a balance of strength and flexibility, while the roller bearing gives smooth rotation and reduces friction during movement. With a 128mm total height and a 29mm A64 tread, this blue rubber fixed top plate castor gives stable, controlled movement and works from -20°C to +80°C.
Why Choose This Castor
- ✓ Blue non-marking rubber wheel for clean and mark-free movement.
- ✓ 160kg load capacity per castor for industrial use.
- ✓ Fixed design for stable, straight-line movement.
- ✓ Roller bearing for smooth rotation and reduced friction.
- ✓ A64 tread hardness with a polypropylene centre for a balance of strength and flexibility.
- ✓ 101 x 85mm top plate with four 8mm holes for secure attachment to flat surfaces.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres match your mounting area before fitting.
Where It Works Best
This fixed top plate castor suits equipment that must move easily and protect floors:
- ✓ Warehouse trolleys: transporting goods smoothly without marking the floor.
- ✓ Industrial carts: stable and controlled movement in industrial settings.
- ✓ Material handling equipment: equipment requiring non-marking wheels.
- ✓ Hospital beds: clean and quiet movement in healthcare environments.
Frequently Asked Questions
Will the blue wheel mark my floor?
No. The blue rubber wheel is non-marking, so it is suited to settings where clean and mark-free movement is essential.
Does this castor swivel?
No. This is a fixed castor, so it gives stable, straight-line movement.
How much weight can this castor carry?
Each castor is rated for 160kg.
What size bolts do I need?
The top plate has four 8mm holes, so it suits M8 bolts. The hole centres are 80/77 x 60mm on a 101 x 85mm plate.
How tall is the castor?
The total castor height is 128mm.
What temperatures can it work in?
The castor is suitable for use from -20°C to +80°C.
