- Load per castor500 kg
- Wheel diameter200 mm
- Overall height240 mm
- WheelRubber on Aluminium
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 500 kg
- Tread Width
- 40 mm
- Temperature Range
- -20 min to +85 max
- Hardness of Tread
- A67
- Max Load Capacity of 4 Castors
- 1500 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 155 mm
- Total Castor Height
- 240 mm
- Wheel Colour
- Black
- Wheel Diameter
- 200 mm
- Wheel Material
- Rubber on Aluminium
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height240 mm
- Swivel radius155 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20 min to +85 max
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

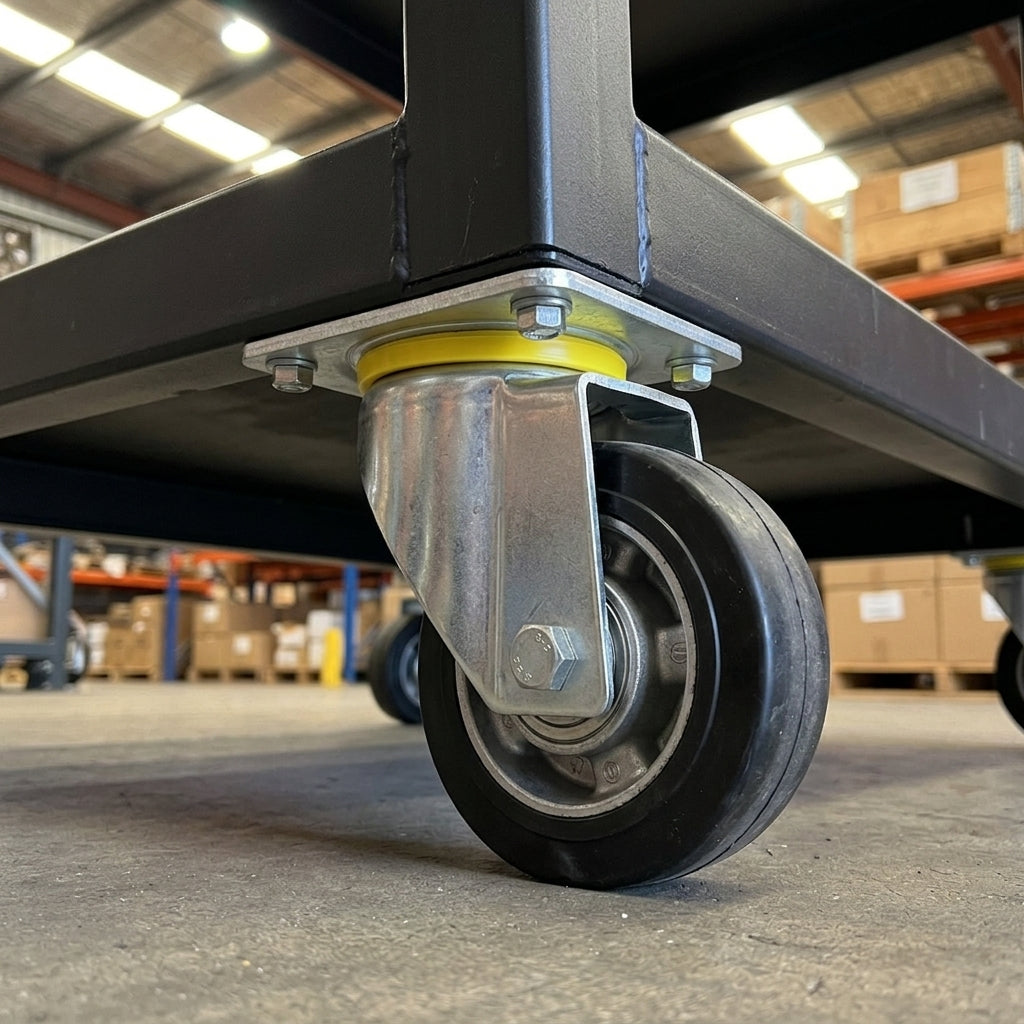

The 200mm Swivel Heavy Duty Castor with a rubber on aluminium wheel is engineered for industrial applications, providing exceptional load-bearing capabilities and smooth manoeuvrability. Designed to support substantial loads of up to 500kg per castor, this product is ideal for environments where heavy equipment and goods require reliable transport.
Applications
This heavy-duty castor is perfect for a variety of industrial settings, including:
- Factories and warehouses requiring the movement of heavy loads.
- Logistics and transport environments where frequent repositioning of equipment is necessary.
- Material handling applications for trolleys and carts in production lines or storage areas.
Frequently Asked Questions (FAQs)
The 200mm Swivel Heavy Duty Castor can support loads of up to 500kg.
The wheel is made of rubber on an aluminium core, providing durability and smooth operation.
Yes, it can operate in a temperature range from -20°C to +85°C, making it suitable for various environments.
The castor features a ball journal bearing that ensures smooth and efficient swivel action.
The wheel diameter is 200mm, providing a stable and smooth ride over different surfaces.
Absolutely, it is specifically designed for heavy-duty applications with a load capacity of 500kg.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
