- Load per castor700 kg
- Wheel diameter160 mm
- Overall height200 mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 700 kg
- Tread Width
- 50 mm
- Temperature Range
- -40 to +60 °C
- Hardness of Tread
- A92
- Max Load Capacity of 4 Castors
- 2100 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 135 mm
- Total Castor Height
- 200 mm
- Wheel Colour
- Yellow
- Wheel Diameter
- 160 mm
- Wheel Material
- Polyurethane on Cast Iron
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height200 mm
- Swivel radius135 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40 to +60 °C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

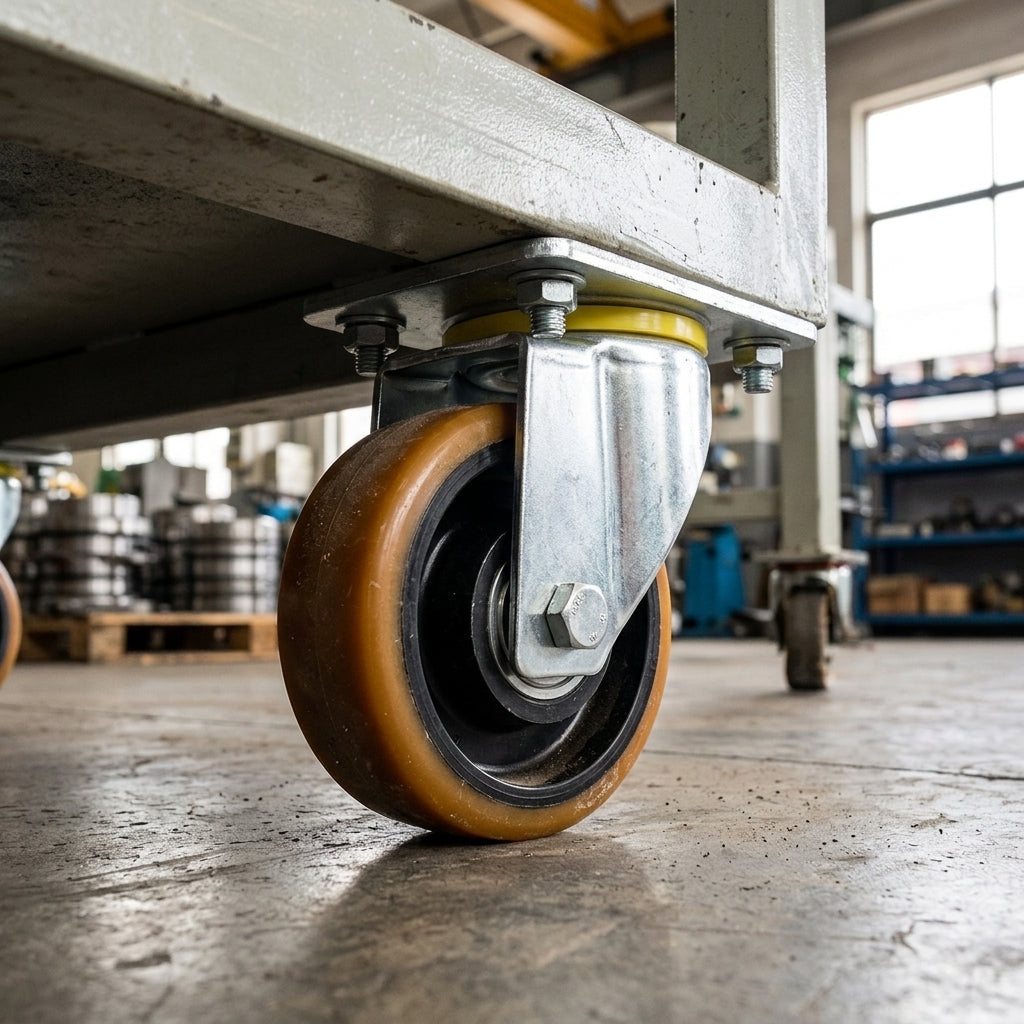

The 160mm Heavy Duty Swivel Castor is expertly designed for industrial applications, offering exceptional performance and reliability. Featuring a durable polyurethane tyre mounted on a robust cast iron wheel, this castor is engineered to handle substantial loads with ease. Its smooth swivelling action, facilitated by a ball journal bearing, makes it ideal for manoeuvring heavy equipment in demanding environments.
Applications
- Industrial Equipment: Perfect for machinery requiring reliable mobility.
- Material Handling: Facilitates easy transportation of heavy loads.
- Warehousing: Enhances efficiency in storage and retrieval operations.
Frequently Asked Questions
- What is the load capacity of this castor?
- This castor has a load capacity of 700 kg, making it suitable for heavy-duty applications.
- What type of bearing does this castor use?
- The castor features a ball bearing for smooth and consistent movement.
- Can this castor operate in extreme temperatures?
- Yes, it operates effectively in temperatures ranging from -40 to +60 °C.
- What is the wheel material?
- The wheel is made of polyurethane mounted on a durable cast iron core.
- Is this castor suitable for outdoor use?
- Yes, its robust construction makes it suitable for various environments, including outdoor applications.
- What is the swivel radius of this castor?
- The swivel radius is 135 mm, allowing for efficient turning and manoeuvrability.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
