- Load rating450 kg
- Wheel diameter100 mm
- Overall height137 mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 450 kg
- Tread Width
- 50 mm
- Plate Length
- 105 mm
- Plate Width
- 85 mm
- Plate Hole Centres Length
- 80 mm
- Plate Hole Centres Width
- 60 mm
- Total Castor Height
- 137 mm
- Wheel Colour
- Orange
- Wheel Diameter
- 100 mm
- Wheel Material
- Polyurethane on Cast Iron
Will it fit?
- Top plate105 mm × 85 mm
- Hole centres80 mm × 60 mm
- Overall height137 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

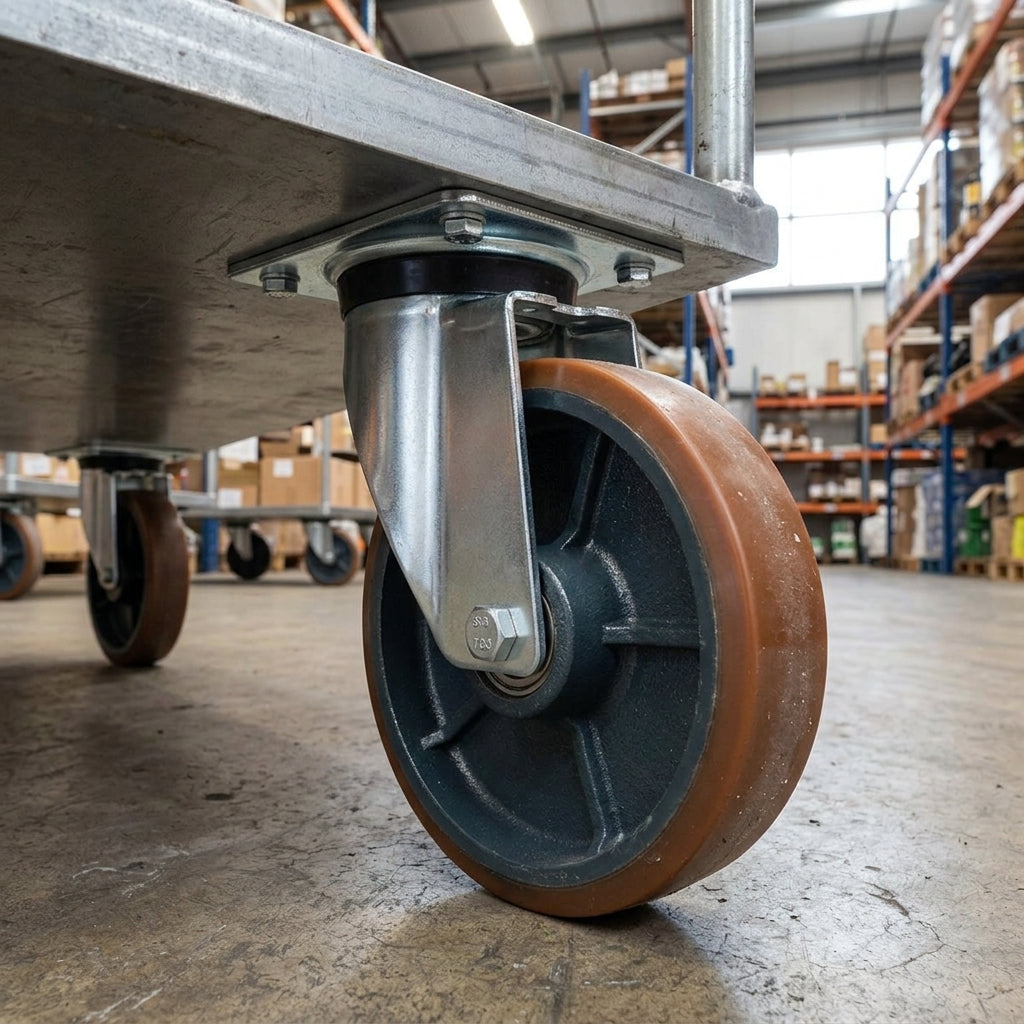

This 100mm heavy duty swivel caster wheel is engineered for the reliable movement of heavy loads in industrial and commercial settings. With a robust load capacity of 450 kg per caster, it is perfect for workshop trolleys, machinery bases, fabrication frames, and mobile equipment where durability and performance are crucial.
Applications
This heavy-duty caster wheel is ideal for:
- Industrial trolleys and carts
- Machinery and equipment movement
- Workshop and factory handling
- Mobile production and assembly units
FAQs
- What is the load capacity of this caster wheel? 450 kg per caster.
- What material is the wheel made of? The wheel is made of polyurethane on a cast iron core.
- Is this caster suitable for outdoor use? Yes, it is designed for tough industrial conditions.
- How does the swivel action benefit handling? It allows for easy directional changes with minimal effort.
- What is the diameter of the wheel? The wheel diameter is 100 mm.
- Can these casters be used on uneven surfaces? Yes, they are designed to provide smooth movement even on uneven surfaces.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
