- Load per castor550 kg
- Wheel diameter250 mm
- Overall height303 mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 550 kg
- Tread Width
- 50 mm
- Temperature Range
- -30°C to +80°C
- Hardness of Tread
- 87 Shore A
- Max Load Capacity of 4 Castors
- 1650 kg
- Plate Length
- 135 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80 mm
- Plate Hole Diameter
- 12 mm
- Total Castor Height
- 303 mm
- Wheel Colour
- Blue
- Wheel Diameter
- 250 mm
- Wheel Material
- Polyurethane on Nylon
Will it fit?
- Top plate135 mm × 110 mm
- Hole centres105 mm × 80 mm
- Fixing holeØ 12 mm
- Overall height303 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -30°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

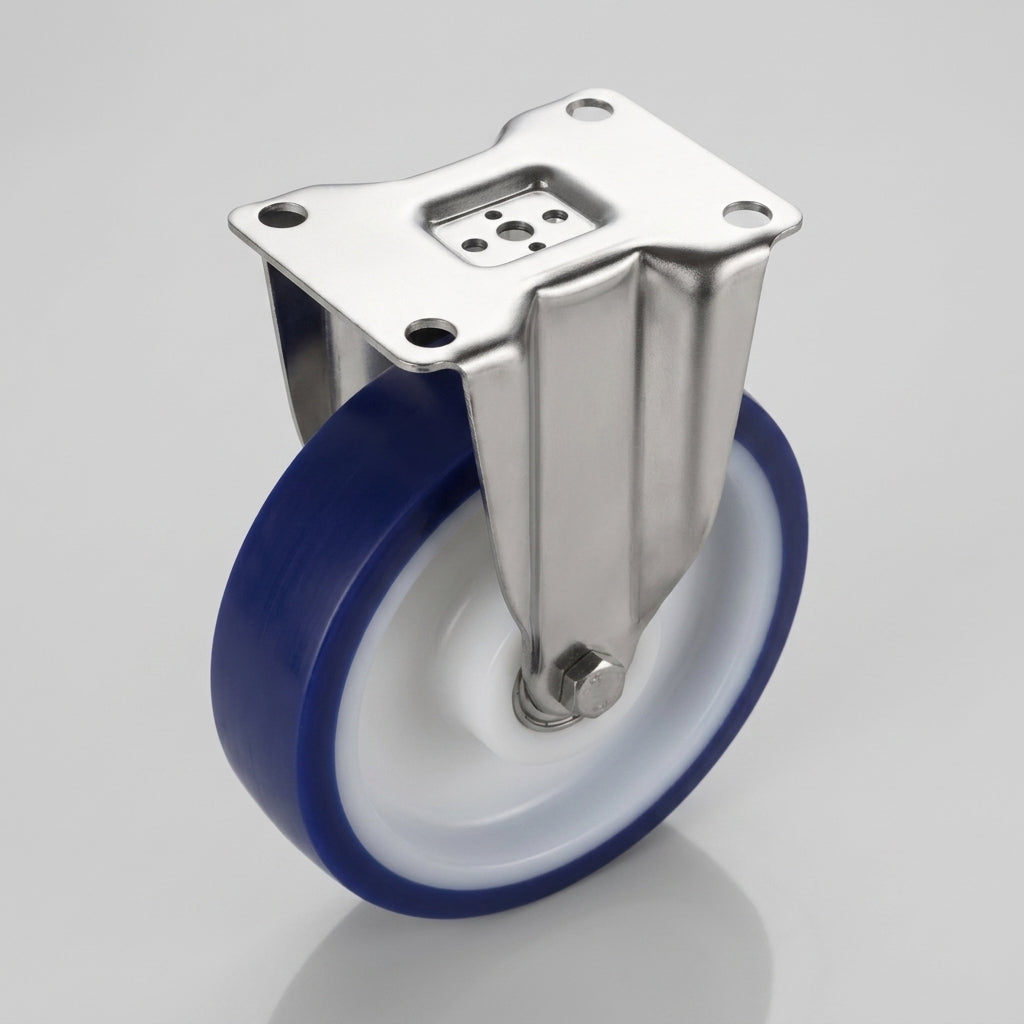

This heavy-duty fixed castor is engineered for high-performance mobility in demanding industrial settings. With a robust 250 mm polyurethane-on-nylon wheel, it excels in environments where strength, durability, and corrosion resistance are paramount. Ideal for heavy loads, this castor ensures smooth movement and reliable operation.
Applications
This castor is perfect for:
- Heavy industrial equipment and machinery bases

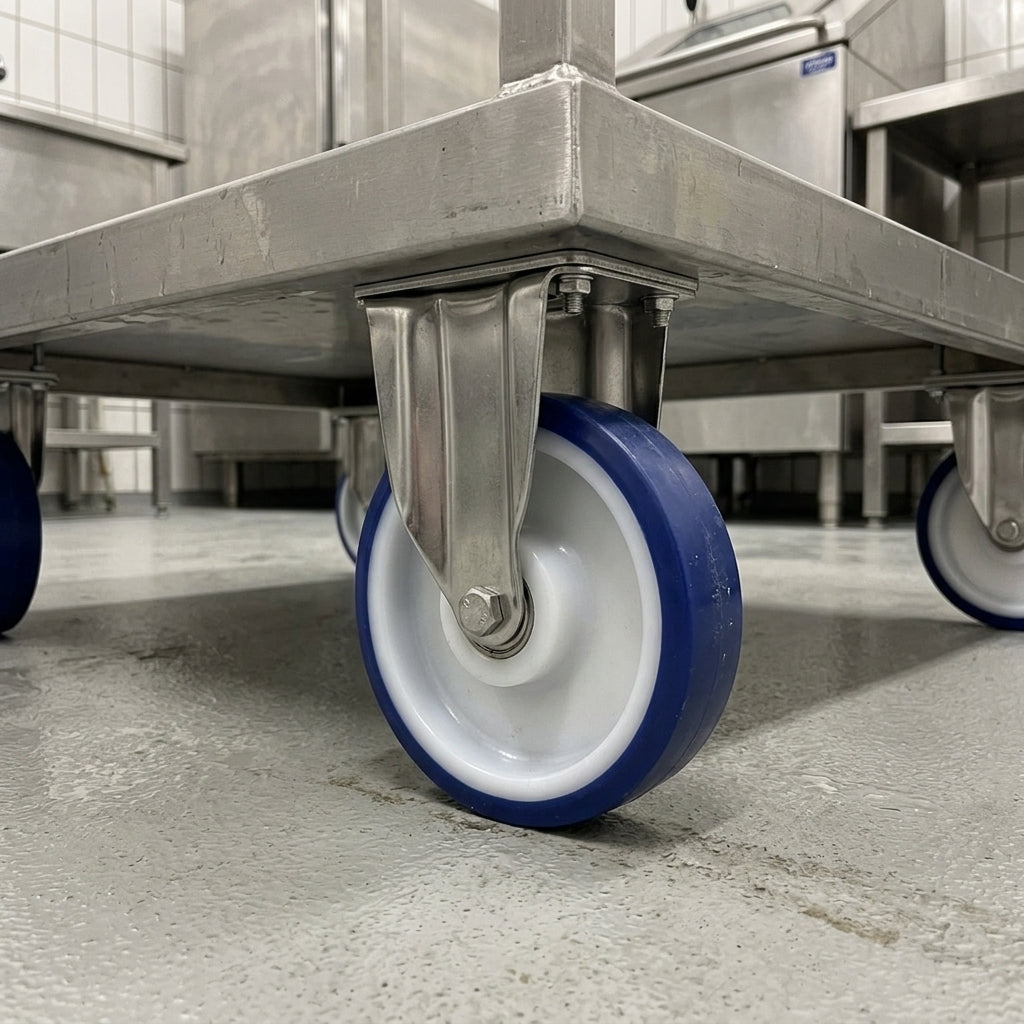

- Food production and hygienic process environments
- Pharmaceutical and laboratory equipment
- Stainless-steel trolleys, dollies, and transport systems
- Wash-down, marine, and chemical environments
- High-load applications requiring low rolling effort
FAQs
Q: What is the load capacity of this castor?
A: The load capacity is 550 kg per castor.
Q: What materials are used in the construction?
A: It features a stainless steel frame and a polyurethane-on-nylon wheel.
Q: Can this castor be used outdoors?
A: Yes, it is suitable for both indoor and outdoor applications.
Q: What is the temperature range for this castor?
A: It operates effectively between -30°C to +80°C.
Q: Is this castor suitable for food processing environments?
A: Yes, its stainless steel construction makes it ideal for hygiene-critical applications.
Q: How does the polyurethane wheel benefit performance?
A: The polyurethane tread offers excellent shock absorption, durability, and floor protection.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
