- Load per castor200 kg
- Wheel diameter160 mm
- Overall height195 mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Bolt Hole Castors
- Bearing Type
- Roller
- Load Capacity
- 200 kg
- Tread Width
- 40 mm
- Temperature Range
- -40 to +80 °C
- Hardness of Tread
- D60
- Max Load Capacity of 4 Castors
- 600 kg
- Swivel Radius
- 135 mm
- Total Castor Height
- 195 mm
- Wheel Colour
- Red
- Wheel Diameter
- 160 mm
- Bolt Hole Size
- 12 mm
- Wheel Material
- Polyurethane on Nylon
Will it fit?
- Bolt hole12 mm
- Overall height195 mm
- Swivel radius135 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40 to +80 °C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

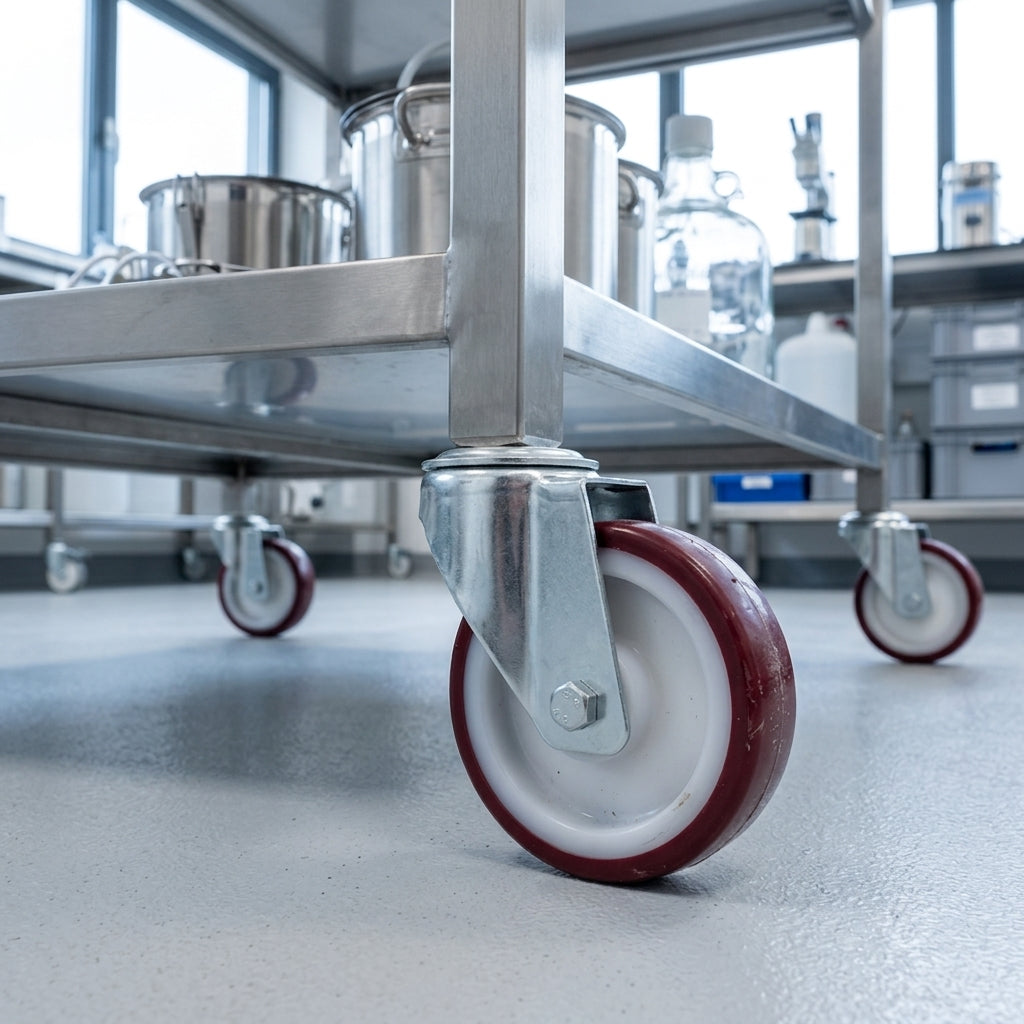

The 160mm Swivel Bolt Hole Castor with a Polyurethane Wheel is engineered for industrial applications, providing exceptional manoeuvrability with its 360-degree swivel capability. This castor is equipped with a robust polyurethane wheel mounted on nylon, ensuring long-lasting durability and resilience across various operational environments.
Applications
This versatile castor is perfect for:
- Industrial Equipment: Ideal for machinery requiring reliable swivel mobility.
- Material Handling: Supports trolleys and carts used in warehouses and factories.
- Manufacturing Facilities: Suitable for equipment that frequently changes position.
FAQs
A1: The load capacity is 200 kg per unit, making it suitable for heavy equipment.
A2: Yes, the polyurethane wheel performs well in various weather conditions, with a temperature range of -40 to +80 °C.
A3: The swivel radius is 135 mm, allowing for efficient directional changes in tight spaces.
A4: Yes, the polyurethane material provides good shock absorption, making it suitable for uneven surfaces.
A5: Check the bolt hole size of 12 mm to ensure secure attachment to your equipment's mounting points.
A6: The tread hardness is rated at D60, providing a balance of grip and durability for various floor surfaces.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
