- Load per castor150 kg
- Wheel diameter100 mm
- Overall height128 mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Bolt Hole Castors
- Bearing Type
- Roller
- Load Capacity
- 150 kg
- Tread Width
- 30 mm
- Temperature Range
- -40°C to +80°C
- Hardness of Tread
- D60
- Max Load Capacity of 4 Castors
- 450 kg
- Swivel Radius
- 80 mm
- Total Castor Height
- 128 mm
- Wheel Colour
- Red
- Wheel Diameter
- 100 mm
- Bolt Hole Size
- 12 mm
- Wheel Material
- Polyurethane on Nylon
Will it fit?
- Bolt hole12 mm
- Overall height128 mm
- Swivel radius80 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

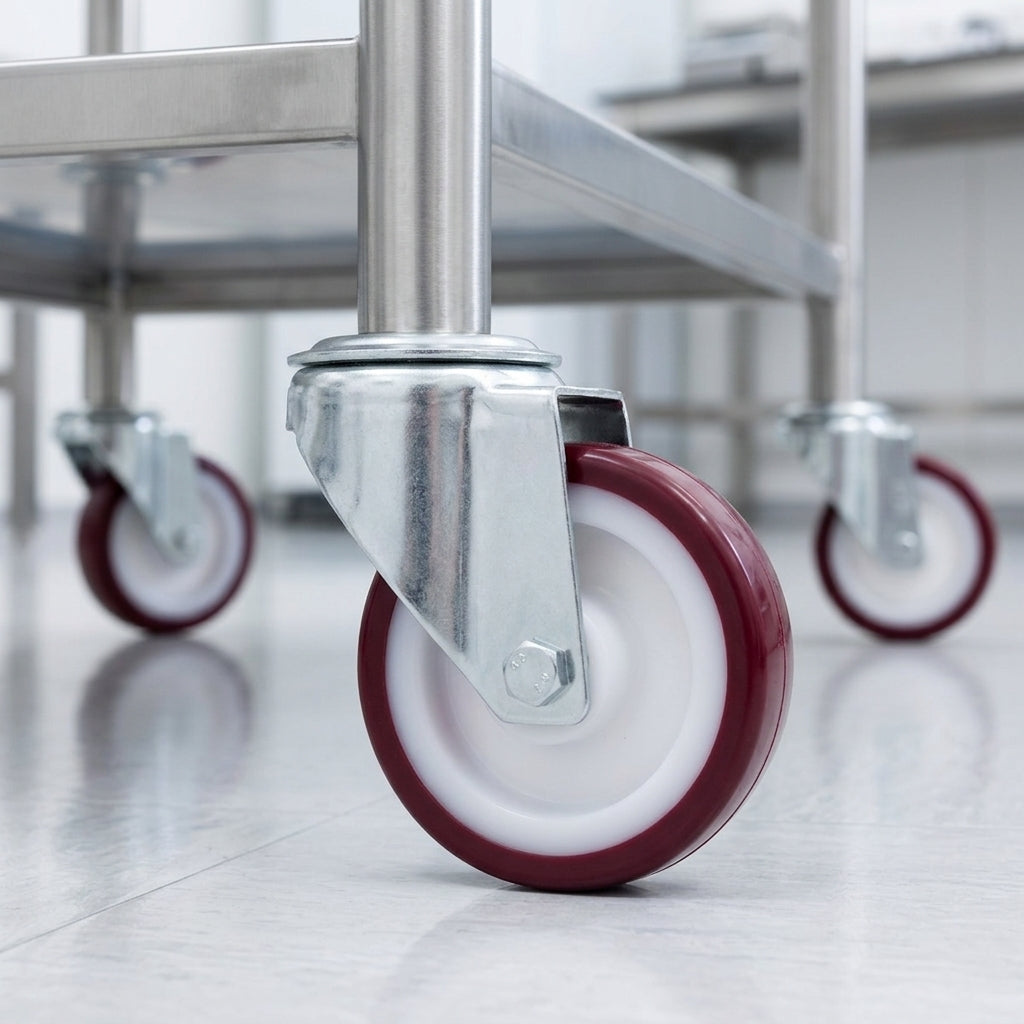

The 100mm Swivel Bolt Hole Castor featuring a robust polyurethane wheel is engineered for industrial applications where exceptional manoeuvrability and durability are paramount. This castor is ideal for trolleys, carts, and other mobile units that require effortless directional changes, making it a reliable choice for various settings.
Applications
This versatile castor is perfect for a variety of industrial applications, including:
- Transporting goods and equipment in warehousing environments.
- Facilitating movement in manufacturing settings.
- Enhancing mobility for trolleys and carts in various industrial operations.
Frequently Asked Questions
The 100mm swivel castor has a load capacity of 150 kg per castor.
Yes, it operates effectively in temperatures ranging from -40°C to +80°C.
Polyurethane wheels provide excellent durability and grip, making them suitable for various surfaces.
Yes, with a maximum load capacity of 450 kg when using four castors, it is ideal for heavy-duty use.
The bolt hole fitting allows for easy attachment to a range of equipment.
The swivel radius is 80 mm, allowing for tight turns and efficient manoeuvrability.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
