- Load per castor250 kg
- Wheel diameter100 mm
- Overall height137 mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 250 kg
- Tread Width
- 40 mm
- Temperature Range
- -30°C to +80°C
- Hardness of Tread
- 87 Shore A
- Max Load Capacity of 4 Castors
- 750 kg
- Plate Length
- 105 mm
- Plate Width
- 85 mm
- Plate Hole Centres Length
- 80 mm
- Plate Hole Centres Width
- 60 mm
- Plate Hole Diameter
- 8 mm
- Swivel Radius
- 92 mm
- Total Castor Height
- 137 mm
- Wheel Colour
- Blue
- Wheel Diameter
- 100 mm
- Wheel Material
- Polyurethane on Nylon
Will it fit?
- Top plate105 mm × 85 mm
- Hole centres80 mm × 60 mm
- Fixing holeØ 8 mm
- Overall height137 mm
- Swivel radius92 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -30°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

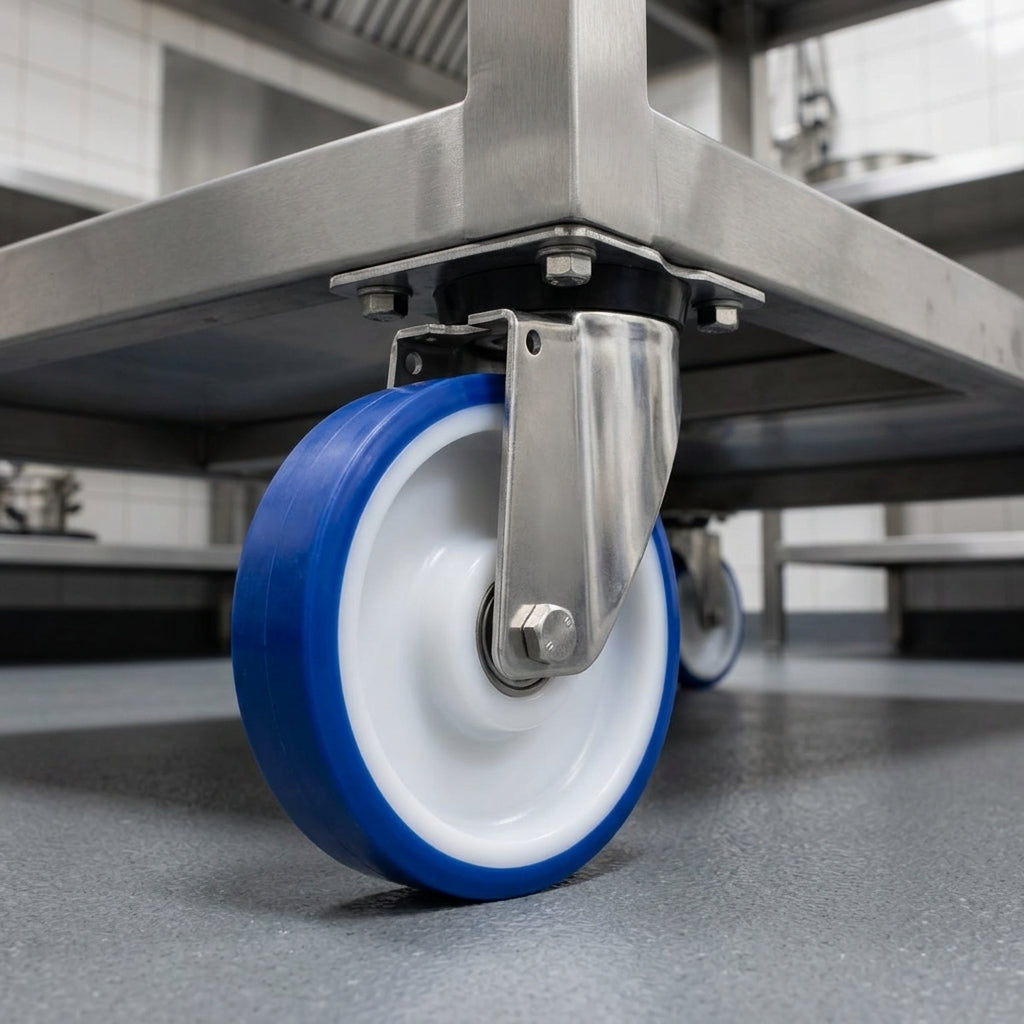

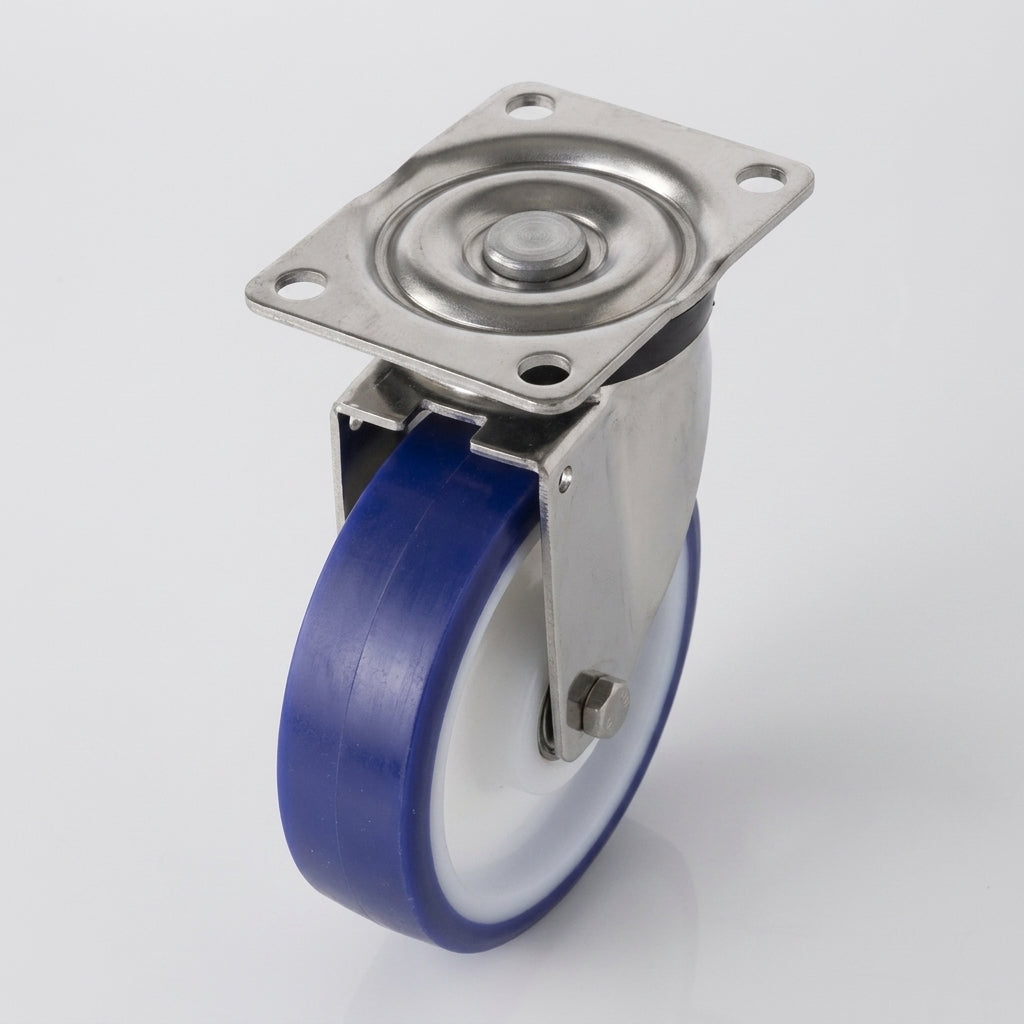

This 100mm swivel castor is expertly designed for industrial and hygienic environments, providing exceptional durability and mobility. Ideal for food processing facilities, commercial kitchens, and pharmaceutical applications, this castor features a corrosion-resistant stainless-steel housing and a blue polyurethane-on-nylon wheel that ensures smooth movement and floor protection.
Applications
This versatile castor is perfect for:
- Food-processing plants and hygienic production systems
- Stainless-steel trolleys and transport carts
- Pharmaceutical and laboratory equipment
- Commercial kitchens, catering, and wash-down areas
- Industrial handling systems requiring smooth, durable mobility
FAQs
1. What is the load capacity of this castor?
The load capacity is 250 kg, making it suitable for heavy-duty applications.
2. Is this castor suitable for food environments?
Yes, it is designed to be food-safe and is ideal for use in hygienic settings.
3. What is the wheel material of this castor?
The wheel is made from polyurethane on nylon, providing durability and floor protection.
4. Can this castor be used in wet environments?
Yes, the stainless-steel housing is corrosion-resistant and suitable for wash-down applications.
5. What is the swivel radius of this castor?
The swivel radius is 92 mm, allowing for excellent maneuverability in tight spaces.
6. What is the temperature range for this castor?
This castor operates effectively in temperatures ranging from -30°C to +80°C.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
