- Load per castor205 kg
- Wheel diameter200 mm
- Overall height240 mm
- WheelRubber on Pressed Steel
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Roller
- Load Capacity
- 205 kg
- Tread Width
- 30 mm
- Hardness of Tread
- A80
- Max Load Capacity of 4 Castors
- 615 kg
- Plate Length
- 137 mm
- Plate Width
- 105 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 165 mm
- Total Castor Height
- 240 mm
- Wheel Colour
- Black
- Wheel Diameter
- 200 mm
- Wheel Material
- Rubber on Pressed Steel
Will it fit?
- Top plate137 mm × 105 mm
- Hole centres105 mm × 80 mm
- Fixing holeØ 10 mm
- Overall height240 mm
- Swivel radius165 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

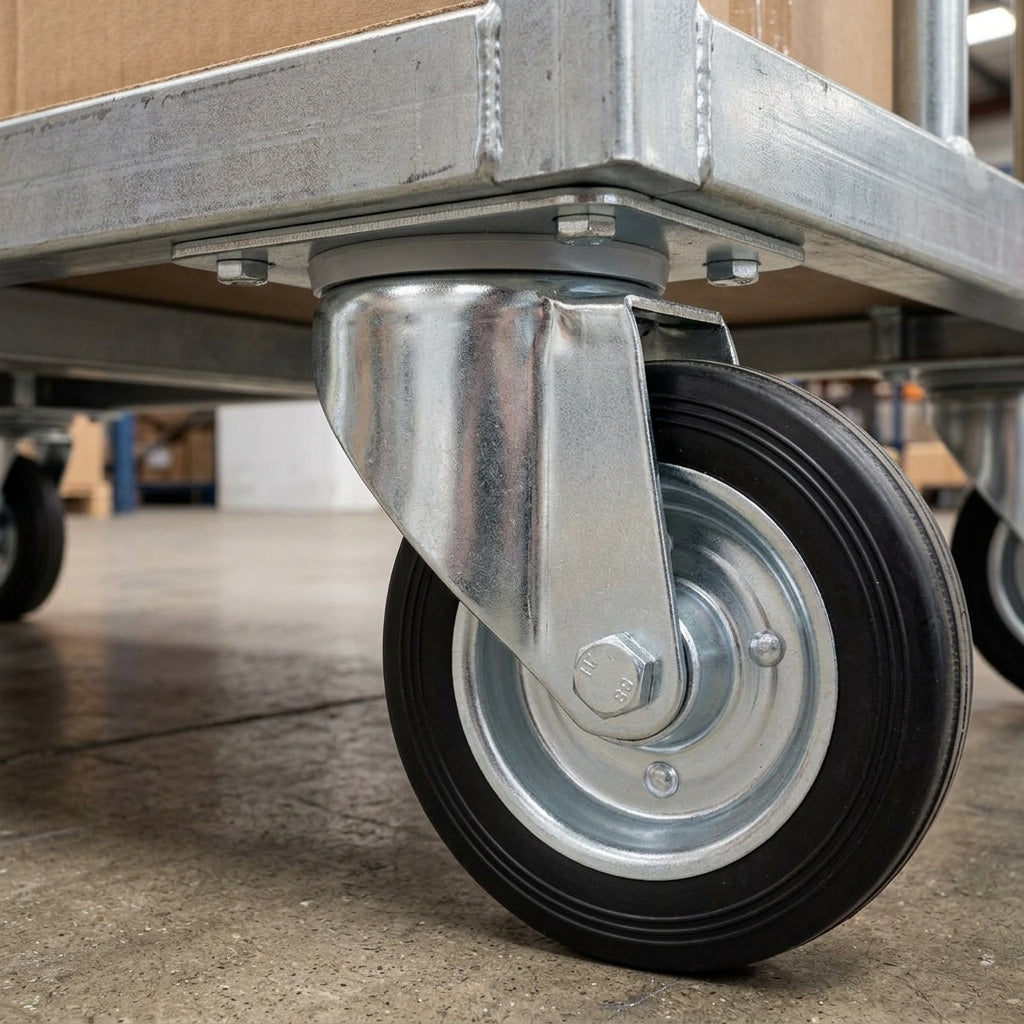

Experience seamless mobility in industrial settings with our 200mm Swivel Castors, expertly designed for efficient movement and heavy load transportation. Featuring a robust black rubber wheel mounted on a durable metal centre, these castors are perfect for a variety of applications including trolleys, carts, and machinery in warehouses and workshops.
Applications
These versatile castors are ideal for:
- Material Handling: Perfect for trolleys and carts in warehouses and distribution centres.
- Manufacturing: Efficient for moving tools and equipment around factory floors.
- Logistics: Streamlined for transporting goods in logistics and supply chain operations.
- Retail: Excellent for mobile shelving and display units in retail environments.
FAQs
- What is the load capacity of these castors? Each castor can support up to 205 kg, making them suitable for heavy-duty applications.
- Are these castors suitable for outdoor use? While designed primarily for indoor use, they can handle light outdoor conditions depending on the surface.
- What surfaces are these castors best suited for? The rubber wheels provide a smooth rolling action on various surfaces, including concrete and wood.
- Can I use these castors on uneven surfaces? Yes, the swivel design allows for easy navigation over uneven terrain.
- How do I install these castors? They come with a top plate that can be mounted easily to your equipment or furniture.
- What is the swivel radius? The swivel radius is 165 mm, allowing for tight turns and manoeuvrability.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
