- Load per castor200kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Wheel Diameter
- 200mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 40mm
- Hardness of Tread
- 75 Shore D
- Bearing Type
- Roller bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 166mm
- Total Castor Height
- 240mm
- Load Capacity
- 200kg per castor
Will it fit?
- Bolt hole12mm
- Overall height240mm
- Swivel radius166mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

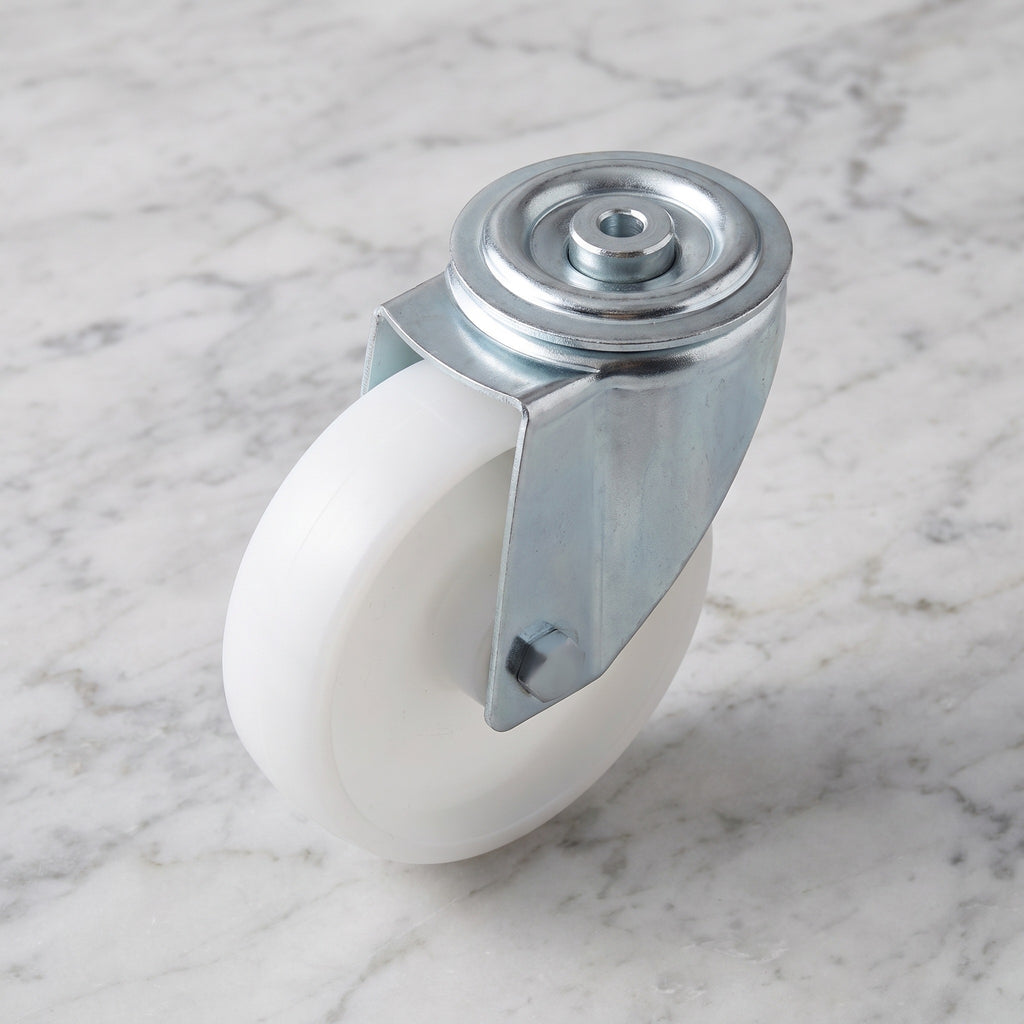

Nylon Bolt Hole Castors
This 200mm swivel castor has a durable white nylon wheel, made for industrial jobs where manoeuvrability and load management matter. The swivel head turns a full 360 degrees for easy changes of direction and better control, and the roller bearing gives smooth wheel rotation. It works from -40°C to +80°C and carries 200kg per castor.
It fixes through a single 12mm bolt hole, has a 166mm swivel radius and stands 240mm tall.
Why Choose This Castor
- ✓ White nylon wheel hard 75 Shore D tread, 40mm wide.
- ✓ Roller bearing for smooth wheel rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 200kg load capacity per castor.
- ✓ Wide temperature range from -40°C to +80°C.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This nylon bolt hole castor suits:
- ✓ Industrial equipment: machinery and carts that need easy manoeuvring.
- ✓ Warehouse trolleys: efficient movement of goods in storage facilities.
- ✓ Manufacturing floors: equipment that needs frequent repositioning.
Frequently Asked Questions
Does this castor have a brake?
No. This is a swivel castor without a brake, made for full 360-degree movement in tight spaces.
What floors does the wheel suit?
The white nylon wheel is 75 Shore D, a hard wheel that rolls easily on smooth, hard industrial floors. It works from -40°C to +80°C.
How much weight can this castor carry?
Each castor is rated for 200kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 166mm and the total castor height is 240mm.
Where can I use this castor?
It suits industrial machinery and carts, warehouse trolleys for moving goods, and equipment on manufacturing floors that needs frequent repositioning.
