- Load per castor200kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelPolyurethane on nylon centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Brake
- Foot brake
- Wheel Diameter
- 200mm
- Wheel Material
- Polyurethane on nylon centre
- Wheel Colour
- Maroon red
- Tread Width
- 40mm
- Hardness of Tread
- 60 Shore D
- Bearing Type
- Roller bearing
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 135mm
- Total Castor Height
- 240mm
- Load Capacity
- 200kg per castor
Will it fit?
- Bolt hole12mm
- Overall height240mm
- Swivel radius135mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Braked Polyurethane Bolt Hole Castors

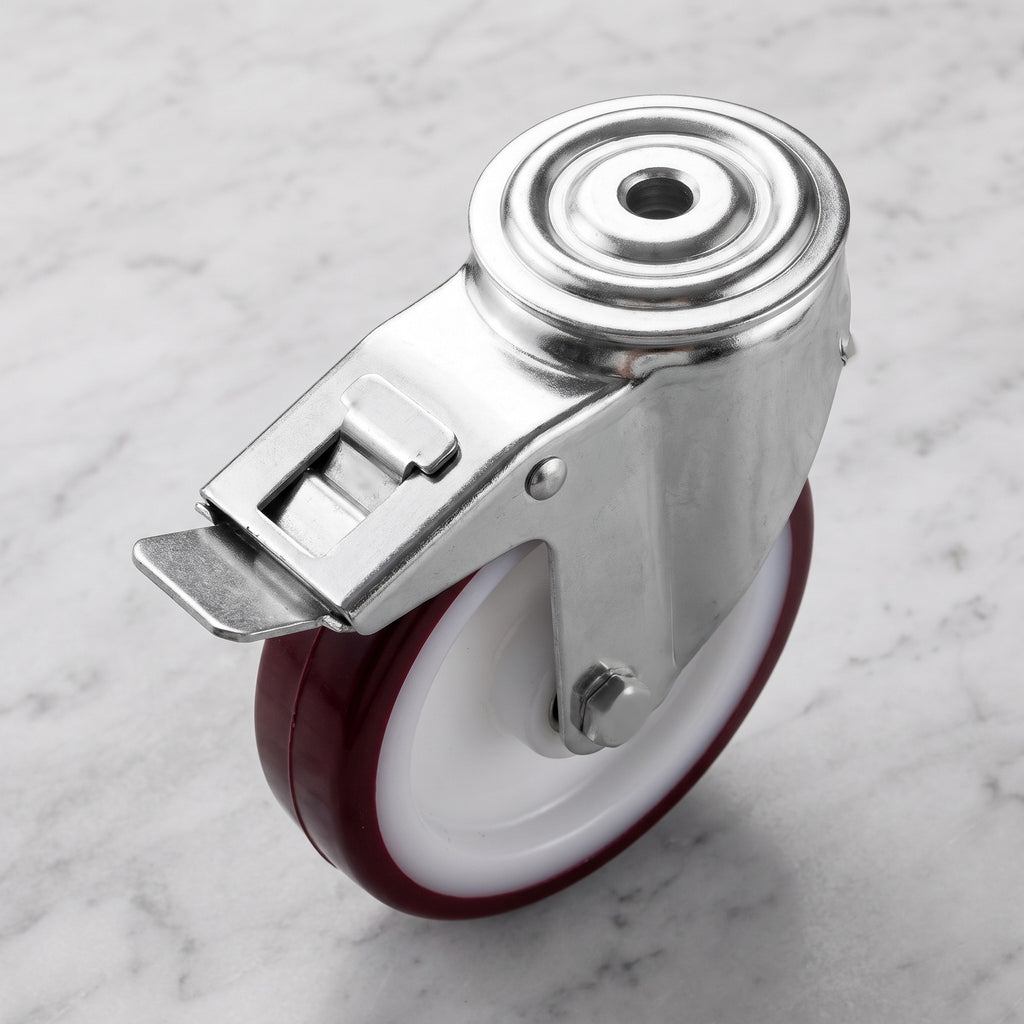

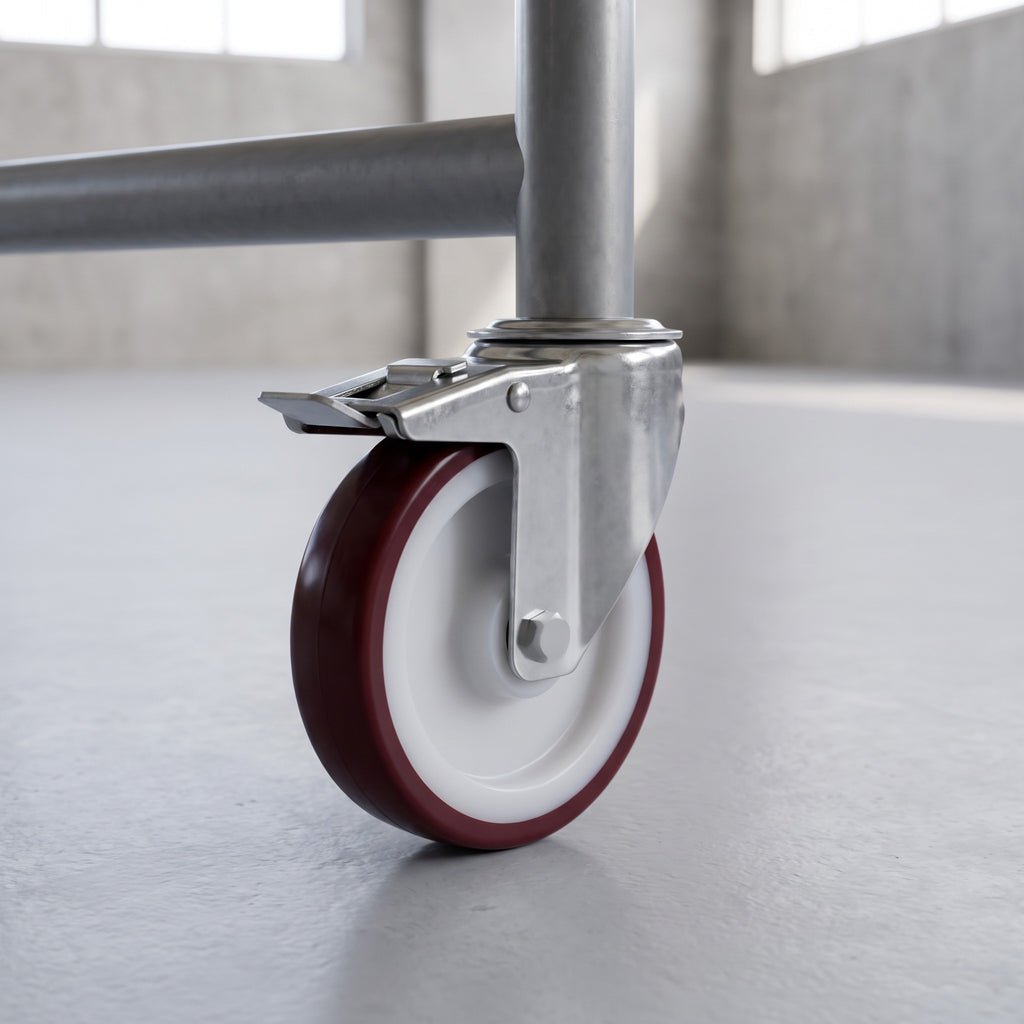

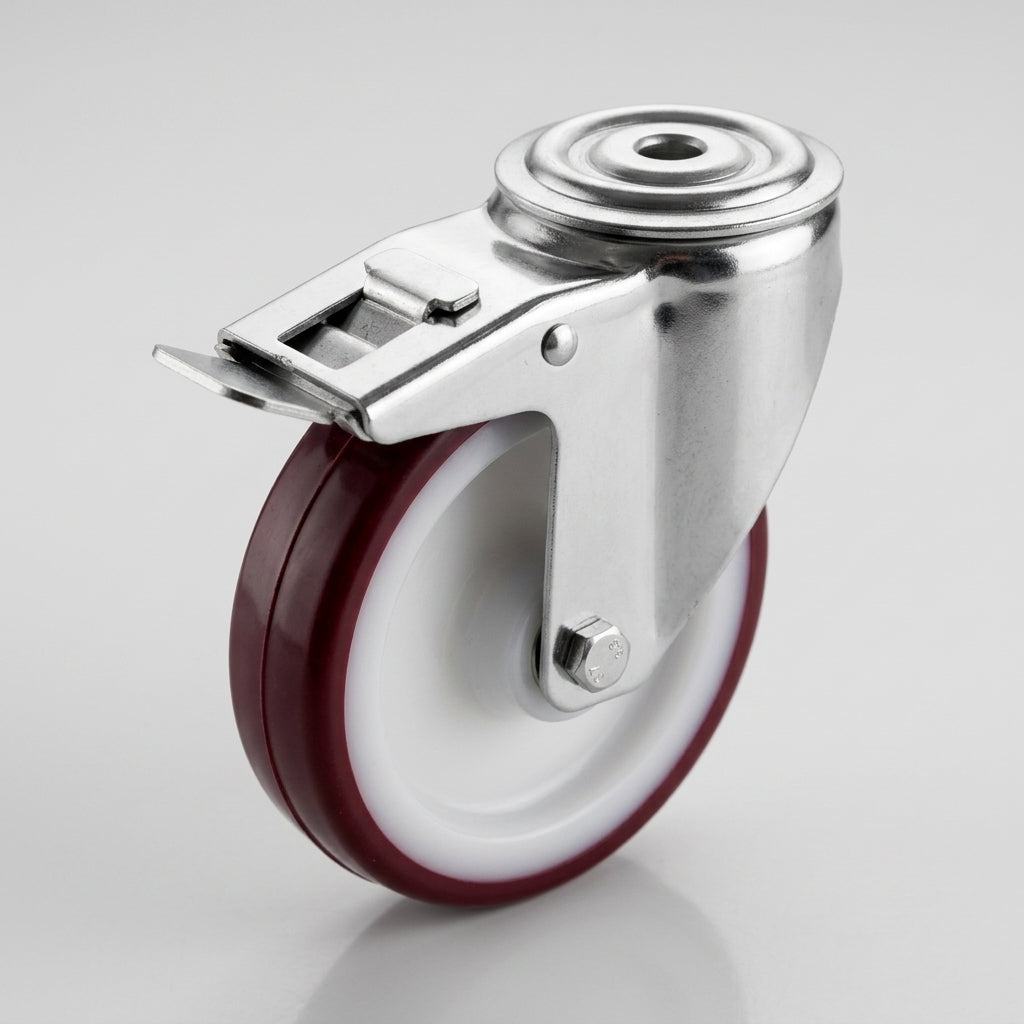

This 200mm braked swivel castor has a maroon red polyurethane tread on a nylon centre, made for industrial jobs where stability and mobility are essential. The swivel head turns a full 360 degrees, the foot brake locks the wheel to keep equipment in place, and the roller bearing gives smooth rotation. It carries 200kg per castor.
It fixes through a single 12mm bolt hole, has a 135mm swivel radius and stands 240mm tall.
Why Choose This Castor
- ✓ Foot brake locks the wheel for secure positioning.
- ✓ Maroon red polyurethane tread on a nylon centre, 60 Shore D, 40mm wide.
- ✓ Roller bearing for smooth wheel rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 200kg load capacity per castor.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This braked polyurethane bolt hole castor suits:

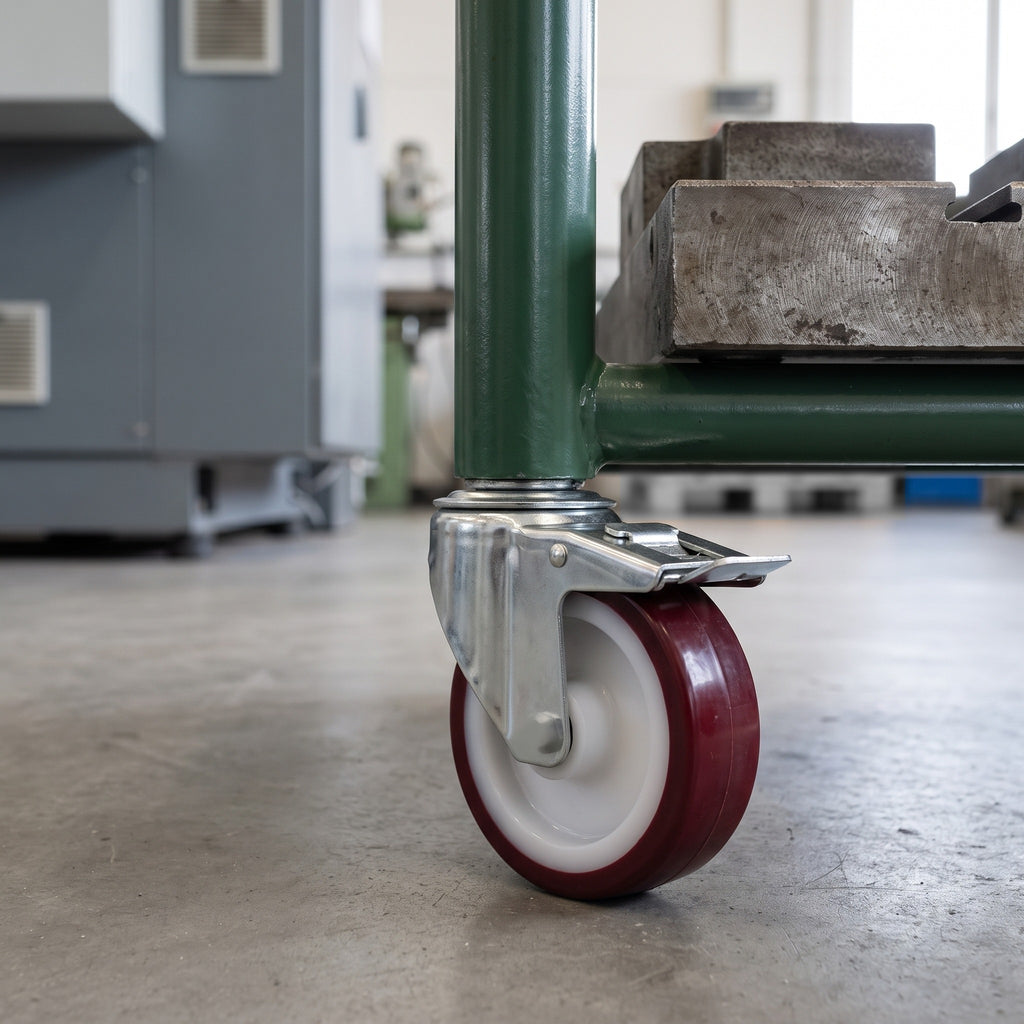

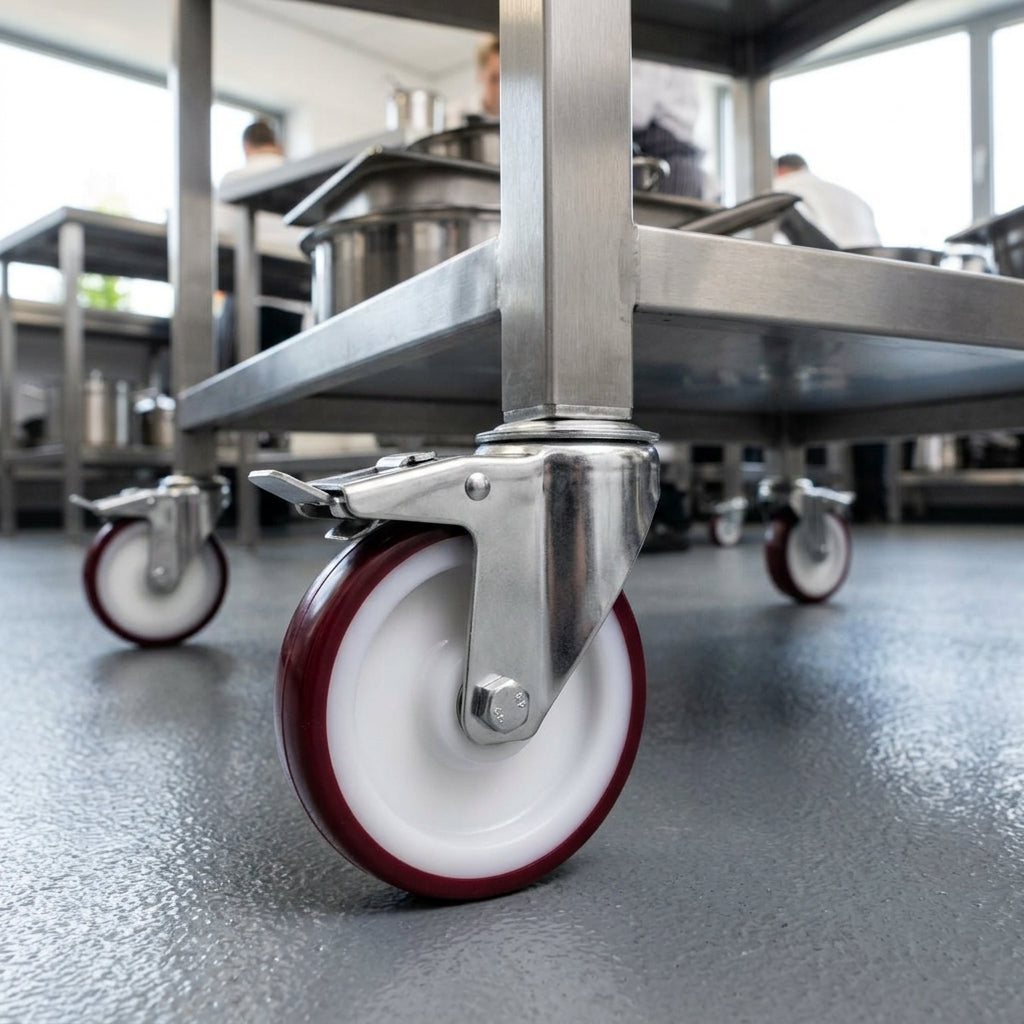

- ✓ Material handling equipment: easy movement and positioning of trolleys and carts.
- ✓ Warehouse use: efficient transport of goods in storage facilities.
- ✓ Manufacturing environments: smooth transfer of heavy components and machinery.
Frequently Asked Questions
What does the brake lock?
The foot brake locks the wheel in place, so your equipment stays put when it is parked. Lift the pedal to release it and move again.
What floors does the wheel suit?
The maroon red polyurethane tread is 60 Shore D, a firm tread that rolls easily on smooth, hard industrial floors.
How much weight can this castor carry?
Each castor is rated for 200kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 135mm and the total castor height is 240mm.
Where can I use this castor?
It suits material handling trolleys and carts, warehouse transport of goods, and moving heavy components and machinery in manufacturing.
