- Load per castor200kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelRubber on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Brake
- Foot brake
- Wheel Diameter
- 200mm
- Wheel Material
- Rubber on polypropylene centre
- Wheel Colour
- Blue non-marking tyre, black centre
- Tread Width
- 40mm
- Hardness of Tread
- 64 Shore A
- Bearing Type
- Roller bearing
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 135mm
- Total Castor Height
- 240mm
- Load Capacity
- 200kg per castor
Will it fit?
- Bolt hole12mm
- Overall height240mm
- Swivel radius135mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Braked Non-Marking Bolt Hole Castors

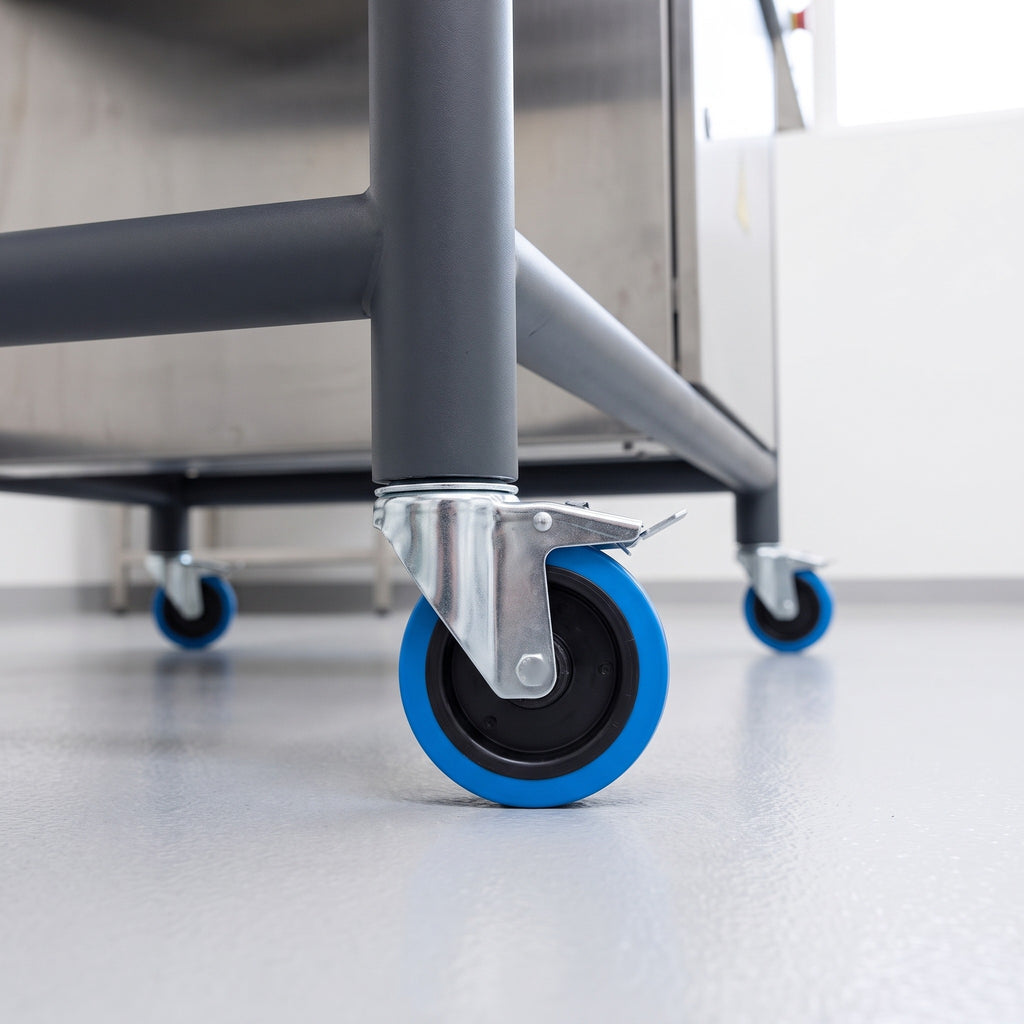

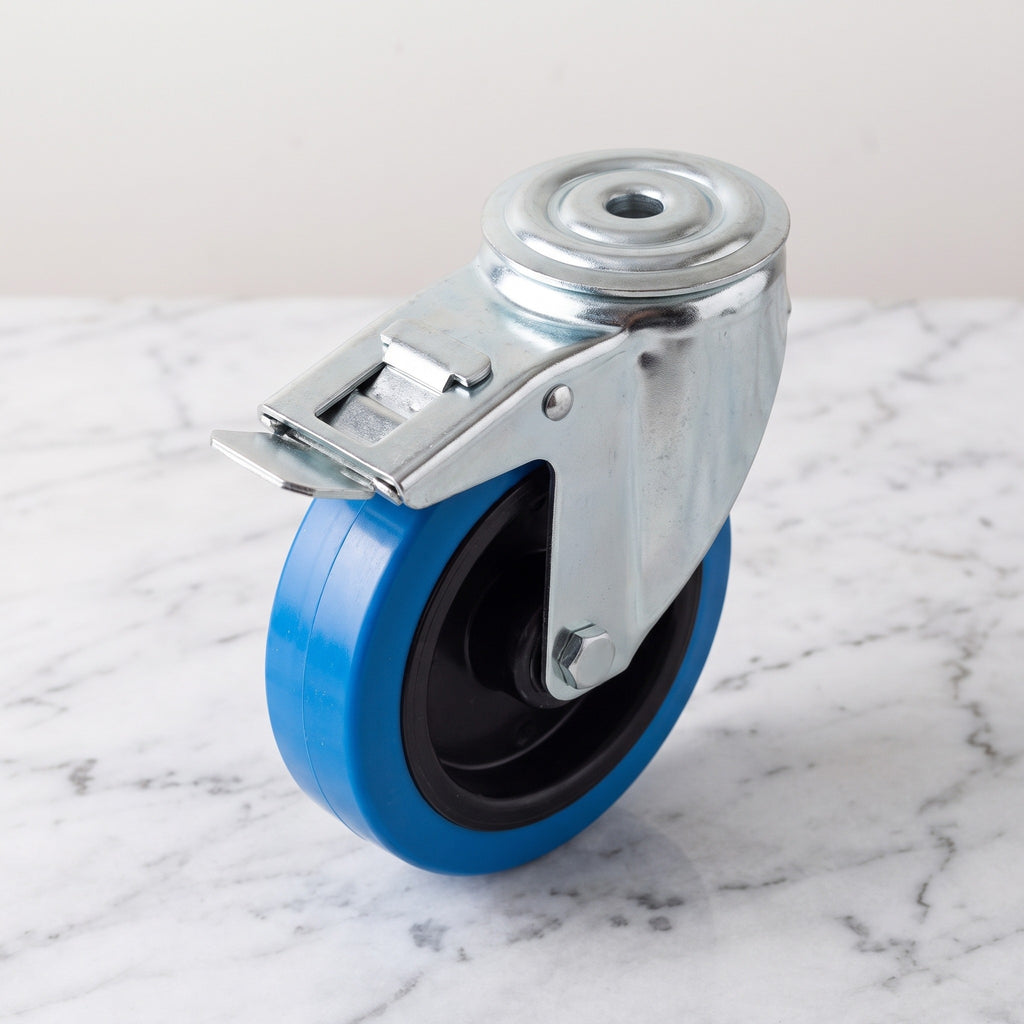

This 200mm braked swivel castor has a blue non-marking rubber tyre on a polypropylene centre, made for industrial equipment that needs both easy manoeuvring and stability. The swivel head turns a full 360 degrees, the foot brake locks the wheel to stop unintended movement, and the roller bearing gives smooth running on various surfaces. It carries 200kg per castor.
It fixes through a single 12mm bolt hole, has a 135mm swivel radius and stands 240mm tall.
Why Choose This Castor
- ✓ Foot brake locks the wheel for secure positioning.
- ✓ Blue non-marking tyre on a polypropylene centre, 64 Shore A.
- ✓ Roller bearing for smooth rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 200kg load capacity per castor.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This braked non-marking bolt hole castor suits:
- ✓ Industrial equipment: machinery and equipment that needs mobility and secure positioning.

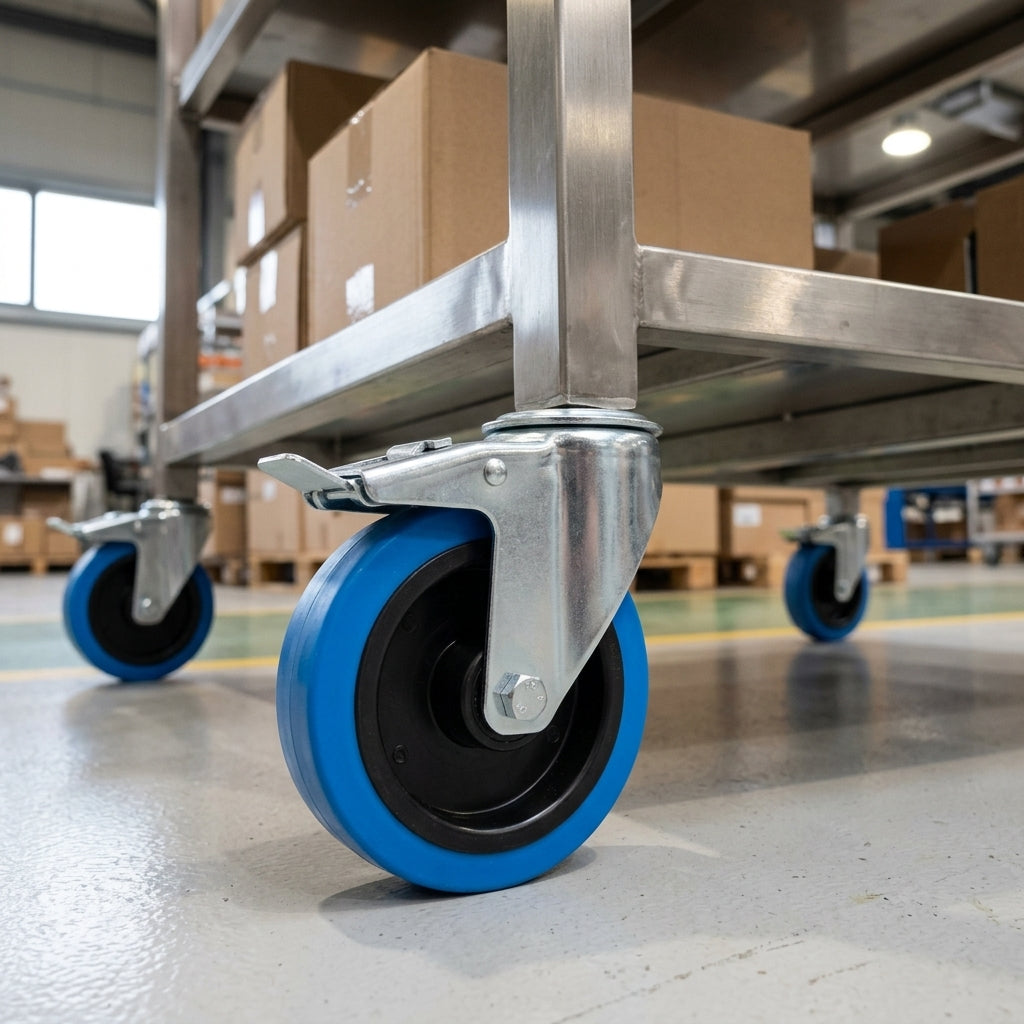

- ✓ Warehousing: trolleys and carts for efficient material handling.

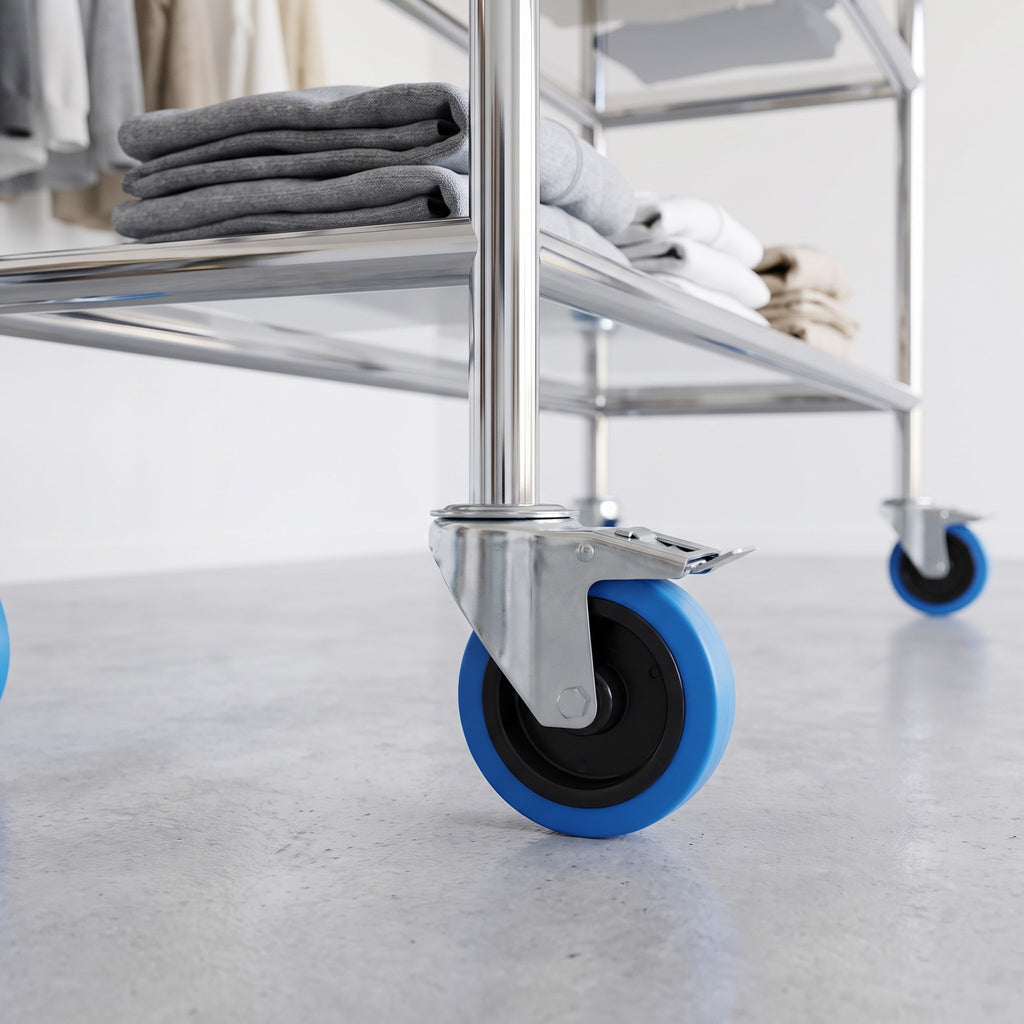

- ✓ Retail displays: moving and positioning display units.
Frequently Asked Questions
What does the brake lock?
The foot brake locks the wheel in place, so your equipment stays put when it is parked. Lift the pedal to release it and move again.
Will the wheel mark my floor?
No. The blue rubber tyre is non-marking, and its 64 Shore A tread gives good grip on smooth floors.
How much weight can this castor carry?
Each castor is rated for 200kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 135mm and the total castor height is 240mm.
Where can I use this castor?
It suits industrial machinery and equipment, warehouse trolleys and carts, and retail display units.
