- Load per castor200kg per castor
- Wheel diameter160mm
- Overall height195mm
- WheelRubber on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Wheel Diameter
- 160mm
- Wheel Material
- Rubber on polypropylene centre
- Wheel Colour
- Blue non-marking tyre, black centre
- Tread Width
- 40mm
- Hardness of Tread
- 64 Shore A
- Bearing Type
- Roller bearing
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 135mm
- Total Castor Height
- 195mm
- Load Capacity
- 200kg per castor
Will it fit?
- Bolt hole12mm
- Overall height195mm
- Swivel radius135mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

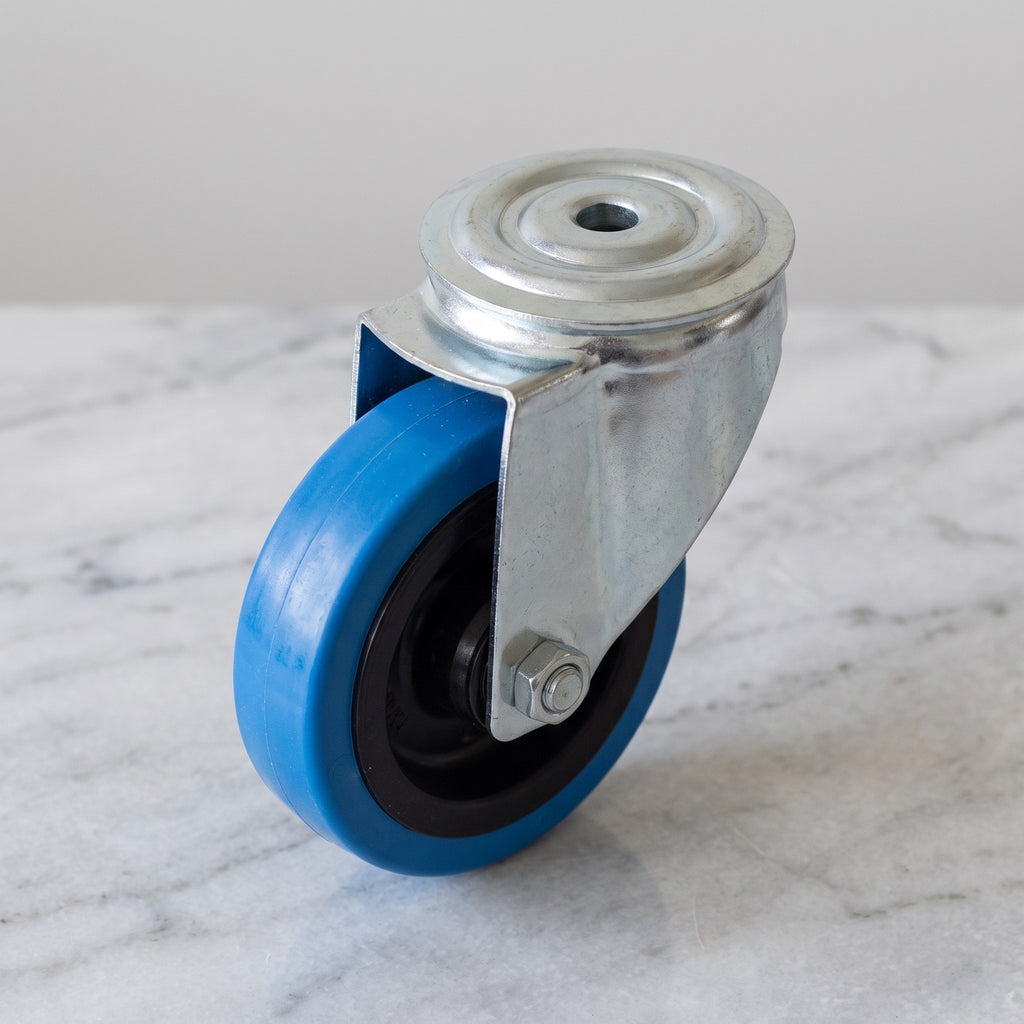

Non-Marking Bolt Hole Castors
This 160mm swivel castor has a blue non-marking rubber tyre on a polypropylene centre, made for industrial equipment that is moved and repositioned often. The swivel head turns a full 360 degrees for easy changes of direction, the robust roller bearing handles significant weight, and the non-marking tread helps prevent floor damage. It carries 200kg per castor.
It fixes through a single 12mm bolt hole, has a 135mm swivel radius and stands 195mm tall.
Why Choose This Castor
- ✓ Blue non-marking tyre on a polypropylene centre, 64 Shore A.
- ✓ Roller bearing for smooth rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 200kg load capacity per castor.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This non-marking bolt hole castor suits:

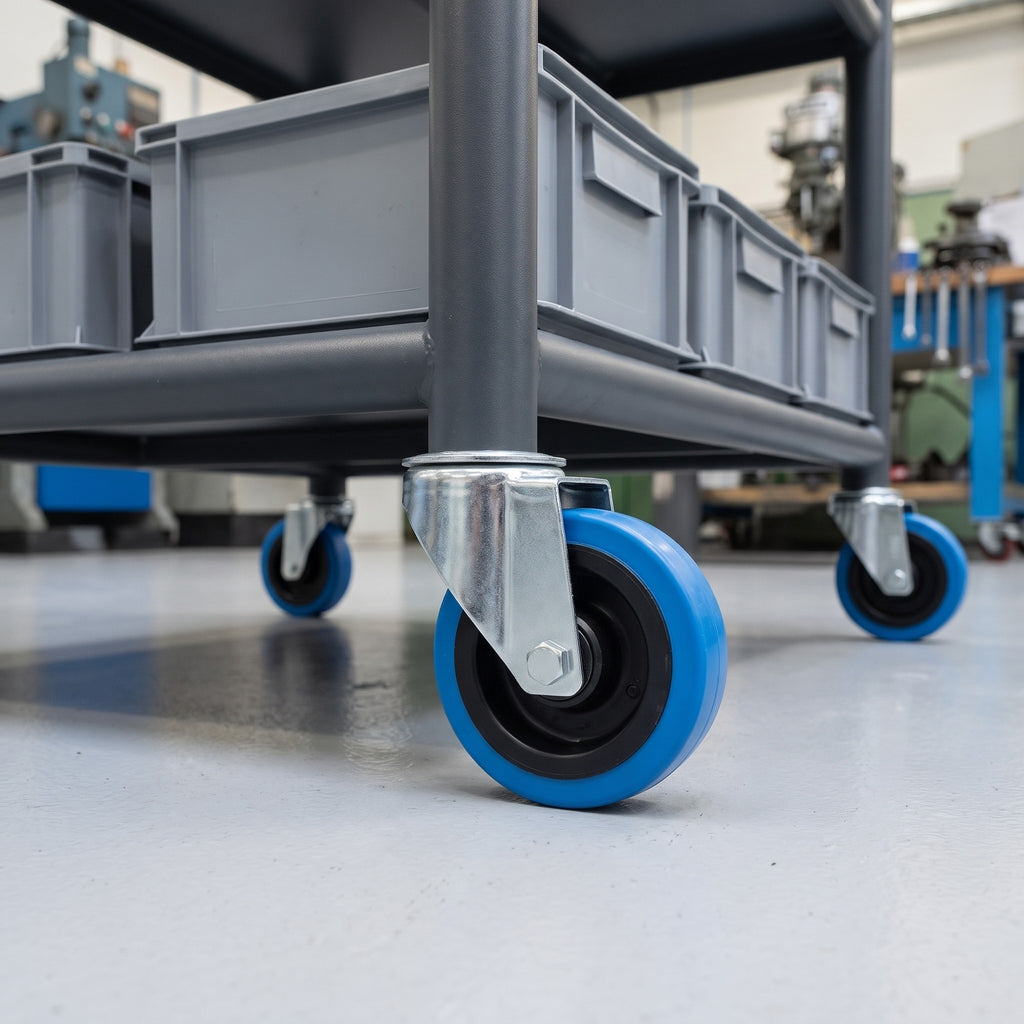

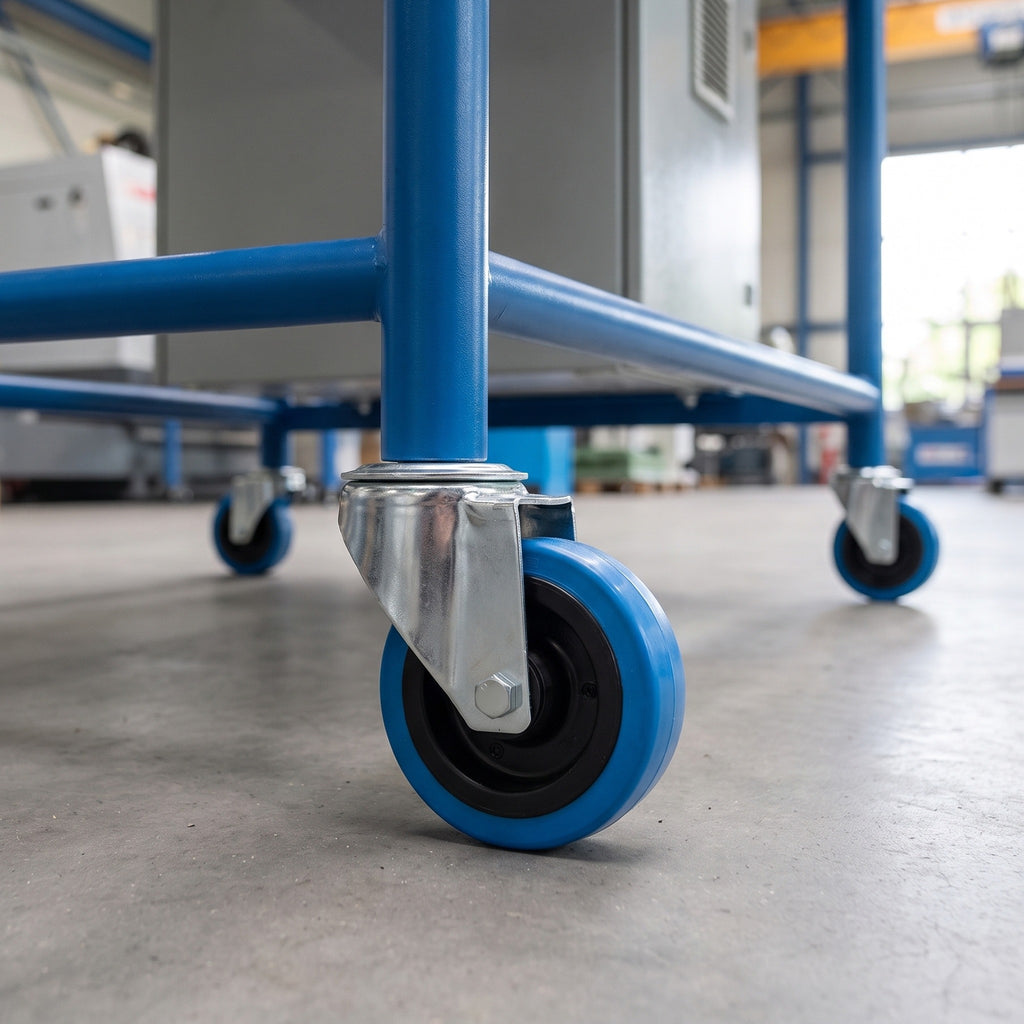

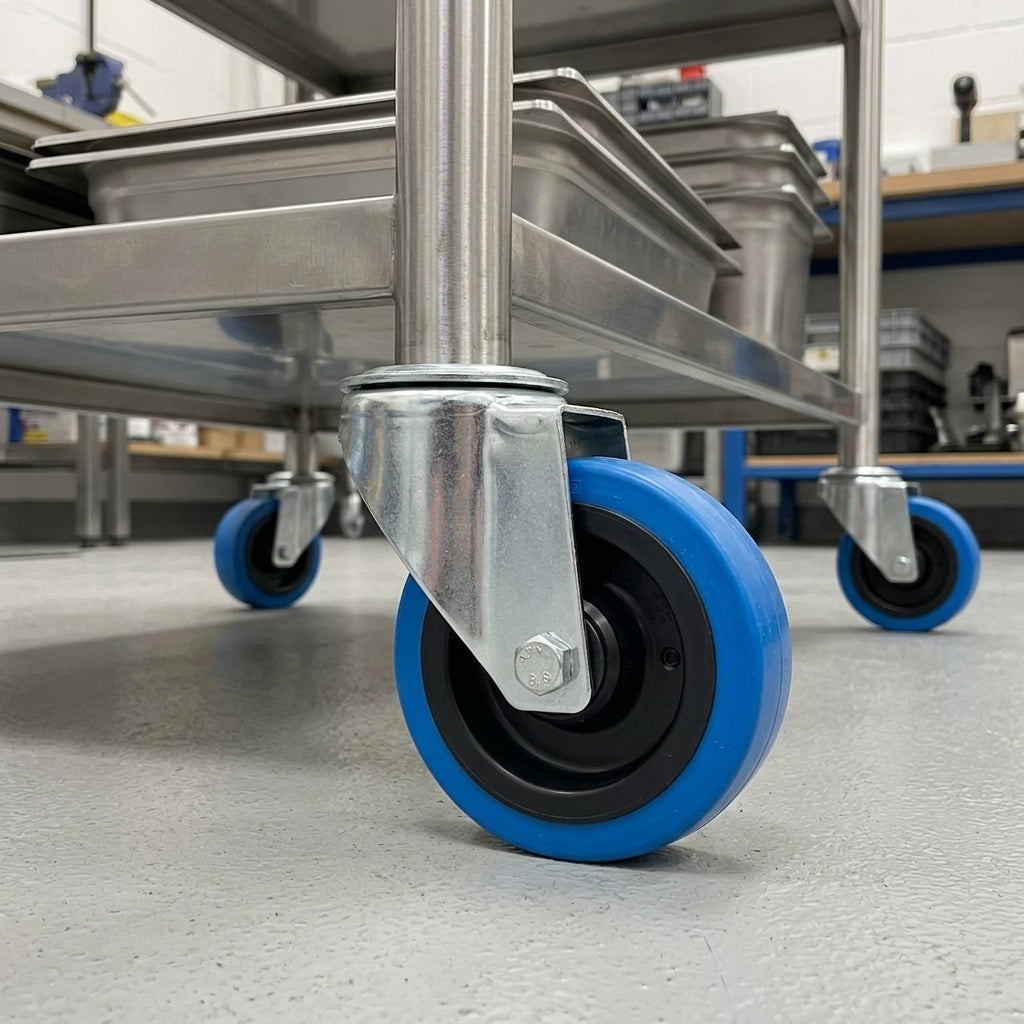

- ✓ Industrial trolleys: easy movement of heavy loads across factory floors.
- ✓ Warehouse equipment: manoeuvrability in storage and distribution areas.
- ✓ Manufacturing machinery: repositioning equipment for operational flexibility.
Frequently Asked Questions
Does this castor have a brake?
No. This is a plain swivel castor without a brake, made for free 360-degree movement.
Will the wheel mark my floor?
No. The blue rubber tyre is non-marking, and its 64 Shore A tread gives good grip on smooth floors.
How much weight can this castor carry?
Each castor is rated for 200kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 135mm and the total castor height is 195mm.
Where can I use this castor?
It suits industrial trolleys, warehouse equipment and manufacturing machinery.
