- Load per castor200kg per castor
- Wheel diameter160mm
- Overall height195mm
- WheelPolyurethane on nylon centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Brake
- Foot brake
- Wheel Diameter
- 160mm
- Wheel Material
- Polyurethane on nylon centre
- Wheel Colour
- Red
- Tread Width
- 40mm
- Hardness of Tread
- 60 Shore D
- Bearing Type
- Roller bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 167mm
- Total Castor Height
- 195mm
- Load Capacity
- 200kg per castor
Will it fit?
- Bolt hole12mm
- Overall height195mm
- Swivel radius167mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

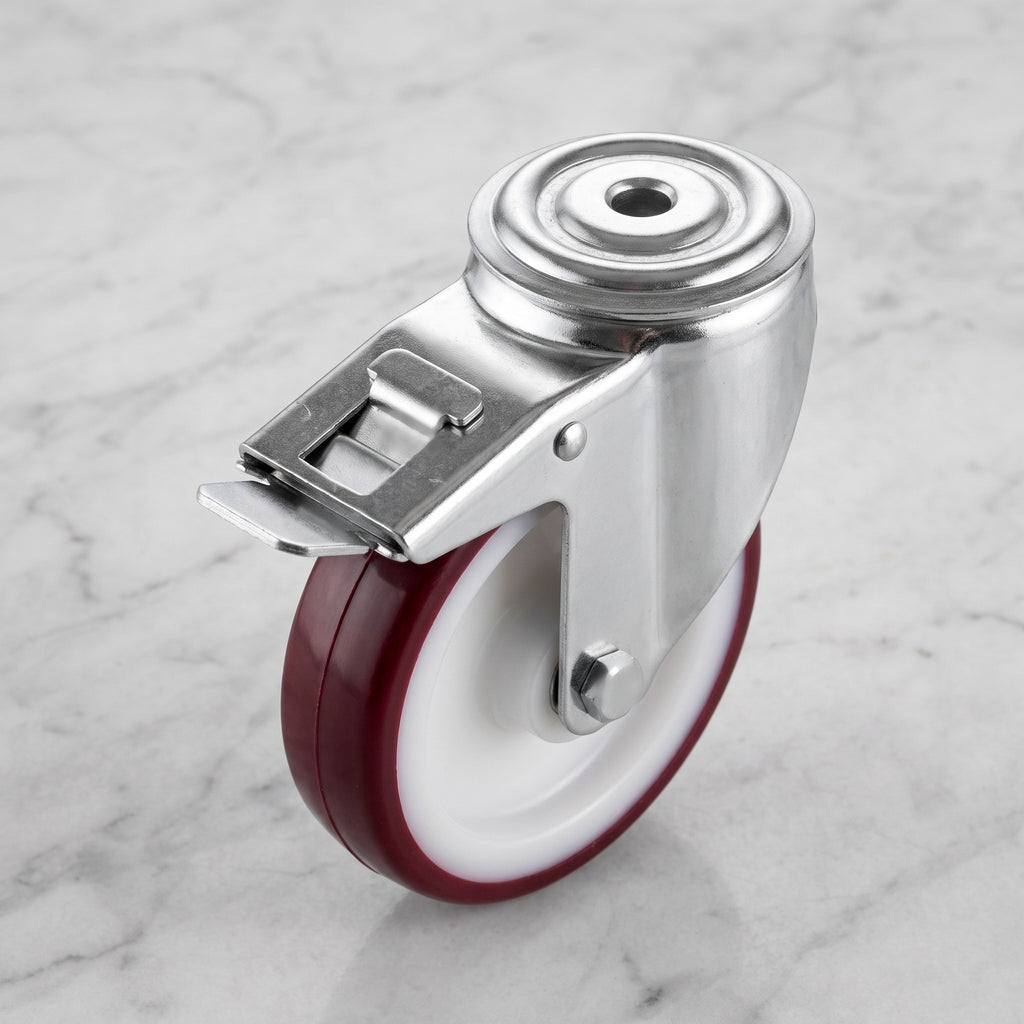

Braked Polyurethane Bolt Hole Castors
This 160mm braked swivel castor has a heavy-duty red polyurethane tread on a nylon centre, made for industrial jobs where stability and manoeuvrability are crucial. The swivel head turns a full 360 degrees, the foot brake locks the wheel to keep equipment in place, and the roller bearing gives smooth rotation. It works from -40°C to +80°C and carries 200kg per castor.
It fixes through a single 12mm bolt hole, has a 167mm swivel radius and stands 195mm tall.
Why Choose This Castor
- ✓ Foot brake locks the wheel for secure positioning.
- ✓ Red polyurethane tread on a nylon centre, 60 Shore D, 40mm wide.
- ✓ Roller bearing for smooth wheel rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 200kg load capacity per castor.
- ✓ Wide temperature range from -40°C to +80°C.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.

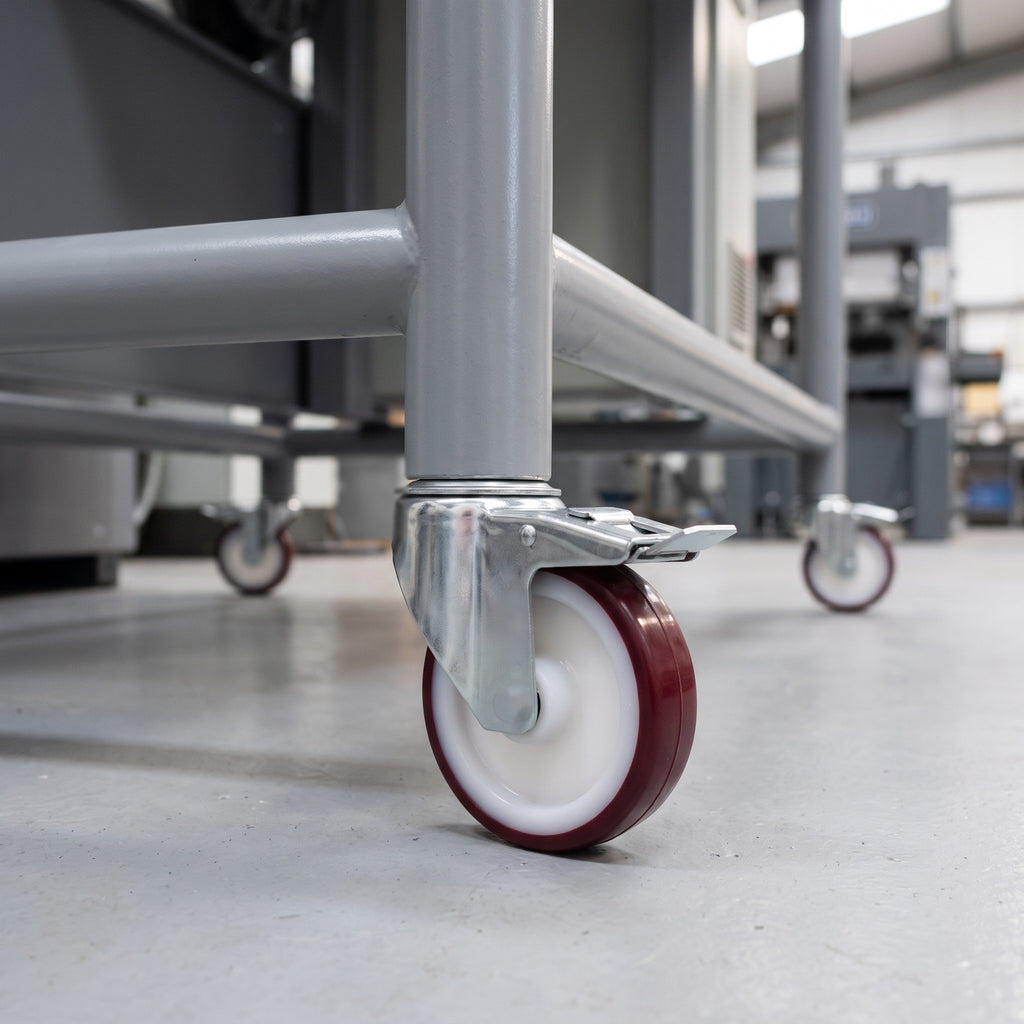

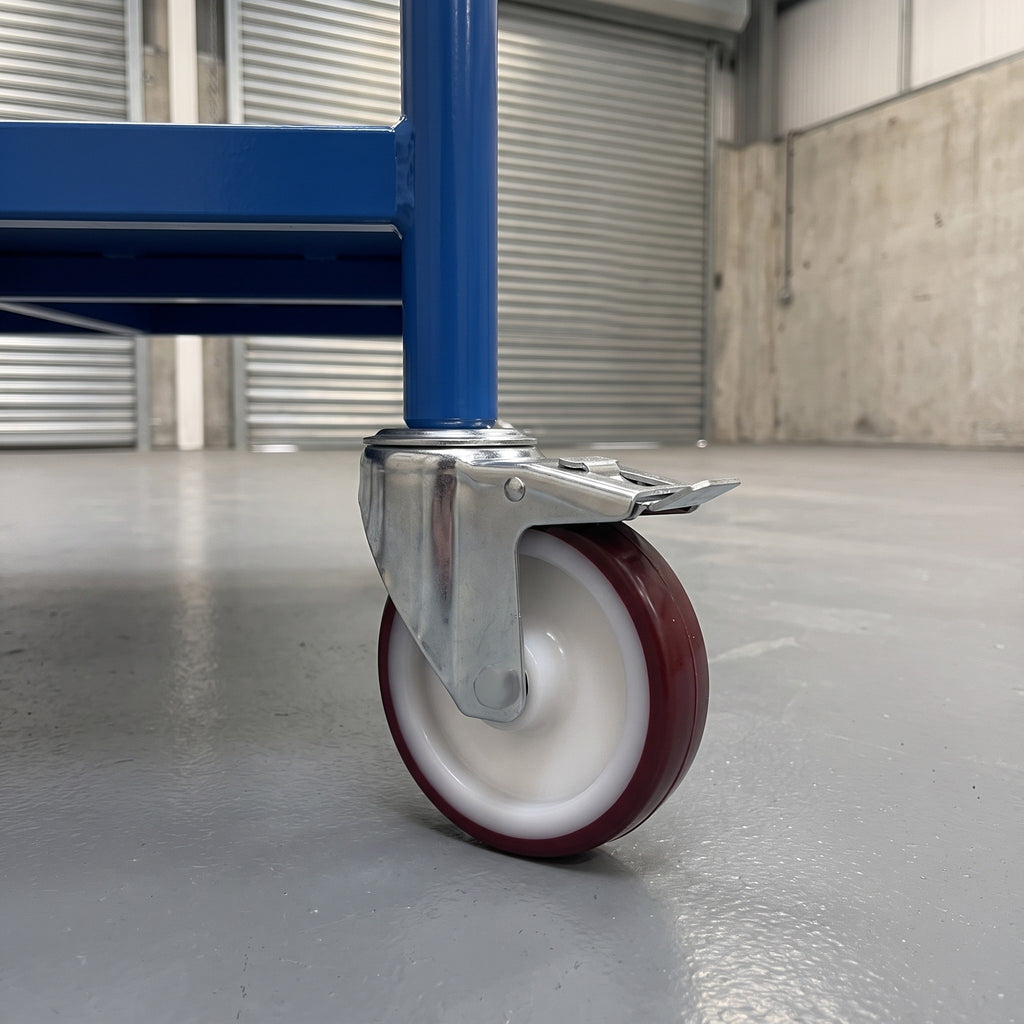

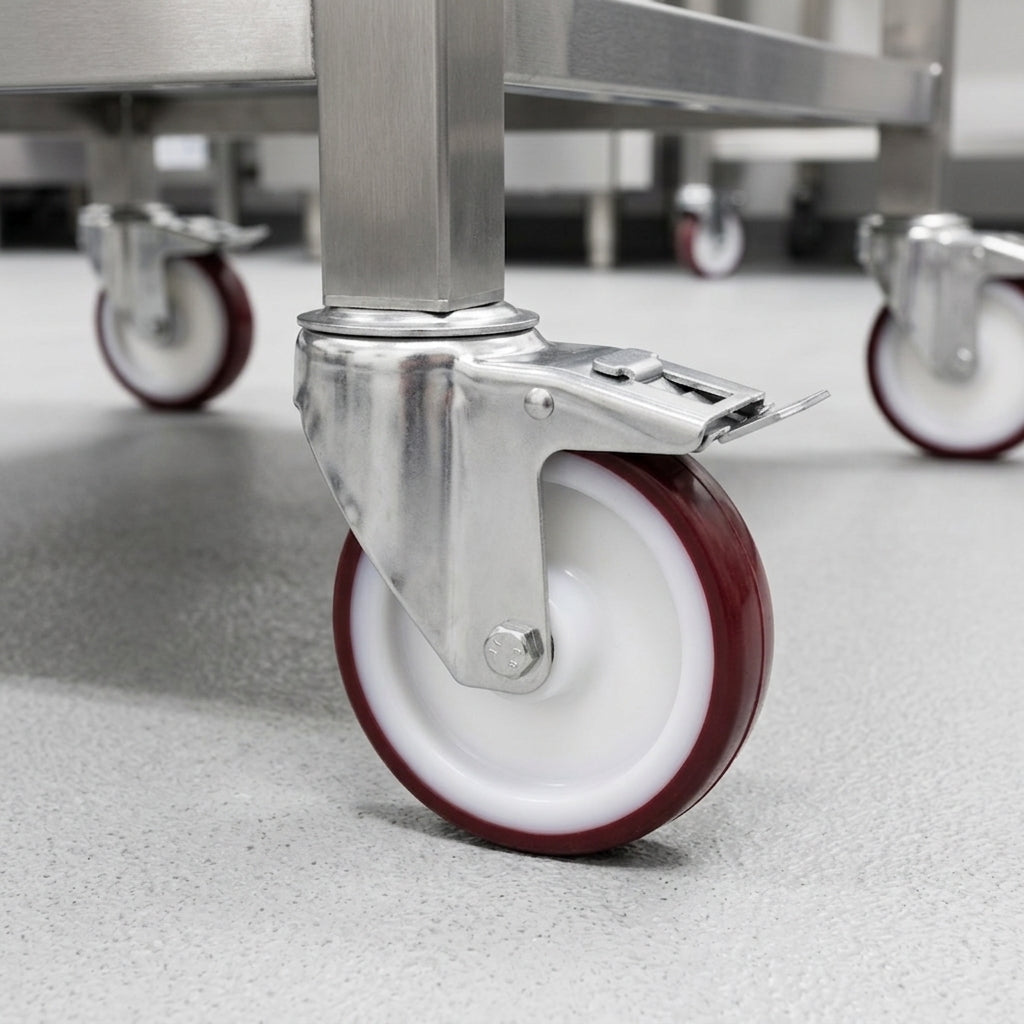

Where It Works Best
This braked polyurethane bolt hole castor suits:
- ✓ Industrial trolleys: stable movement and secure positioning during loading and unloading.
- ✓ Machinery bases: easy movement and precise placement of heavy machinery.
- ✓ Warehouse equipment: efficient handling of goods with reliable braking.
Frequently Asked Questions
What does the brake lock?
The foot brake locks the wheel in place, so your equipment stays put when it is parked. Lift the pedal to release it and move again.
What floors does the wheel suit?
The red polyurethane tread is 60 Shore D, a firm tread that rolls easily on smooth, hard industrial floors. It works from -40°C to +80°C.
How much weight can this castor carry?
Each castor is rated for 200kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 167mm and the total castor height is 195mm.
Where can I use this castor?
It suits industrial trolleys during loading and unloading, machinery bases for heavy machines, and warehouse equipment that needs reliable braking.
