- Load per castor135kg per castor
- Wheel diameter160mm
- Overall height195mm
- WheelAnti-static rubber
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Brake
- Foot brake
- Wheel Diameter
- 160mm
- Wheel Material
- Anti-static rubber
- Wheel Colour
- Black
- Tread Width
- 24mm
- Hardness of Tread
- 80 Shore A
- Bearing Type
- Roller bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 167mm
- Total Castor Height
- 195mm
- Load Capacity
- 135kg per castor
Will it fit?
- Bolt hole12mm
- Overall height195mm
- Swivel radius167mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

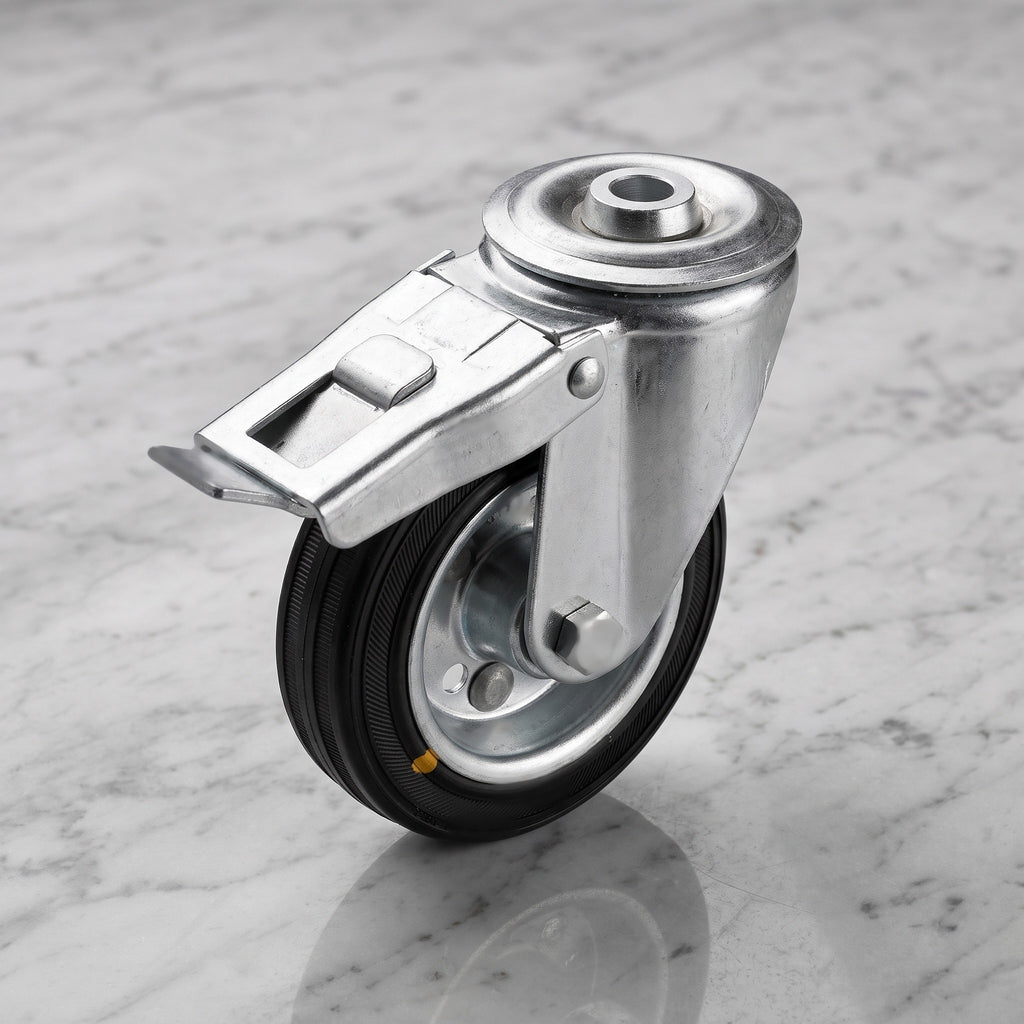

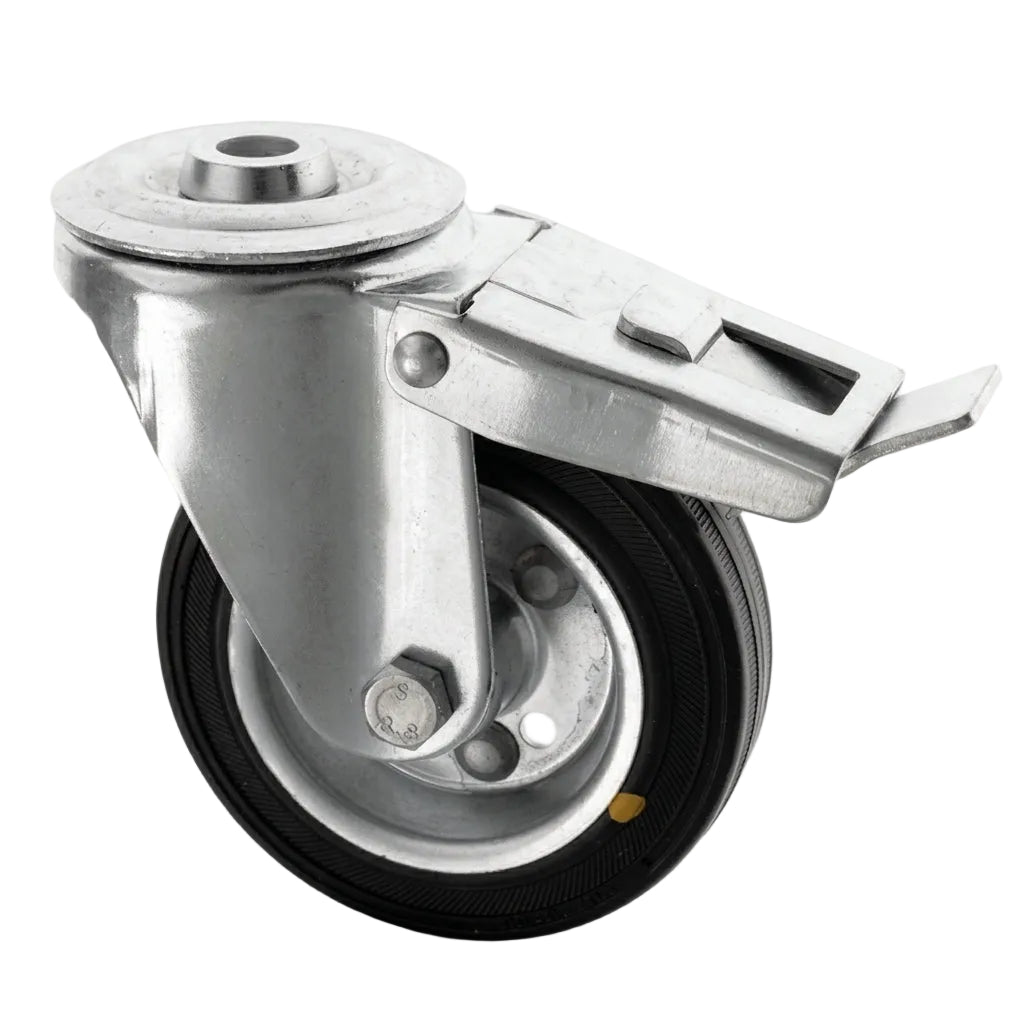

Braked Anti-Static Bolt Hole Castors
This 160mm braked swivel castor has a black anti-static rubber wheel, made for industrial equipment that needs both easy movement and stability, with static control. The anti-static rubber is electrically conductive and helps prevent static build-up. The swivel head turns a full 360 degrees, the foot brake holds the castor in position when needed, and the roller bearing gives smooth movement. It works from -20°C to +60°C and carries 135kg per castor.
It fixes through a single 12mm bolt hole, has a 167mm swivel radius and stands 195mm tall.
Why Choose This Castor
- ✓ Foot brake locks the wheel for secure positioning.
- ✓ Anti-static rubber wheel electrically conductive, helps prevent static build-up.
- ✓ 80 Shore A tyre 24mm wide, balancing grip and durability.
- ✓ Roller bearing for smooth movement.
- ✓ 360-degree swivel head with a 167mm swivel radius for tight spaces.
- ✓ 135kg load capacity per castor.
- ✓ Temperature range from -20°C to +60°C.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This braked anti-static bolt hole castor suits:

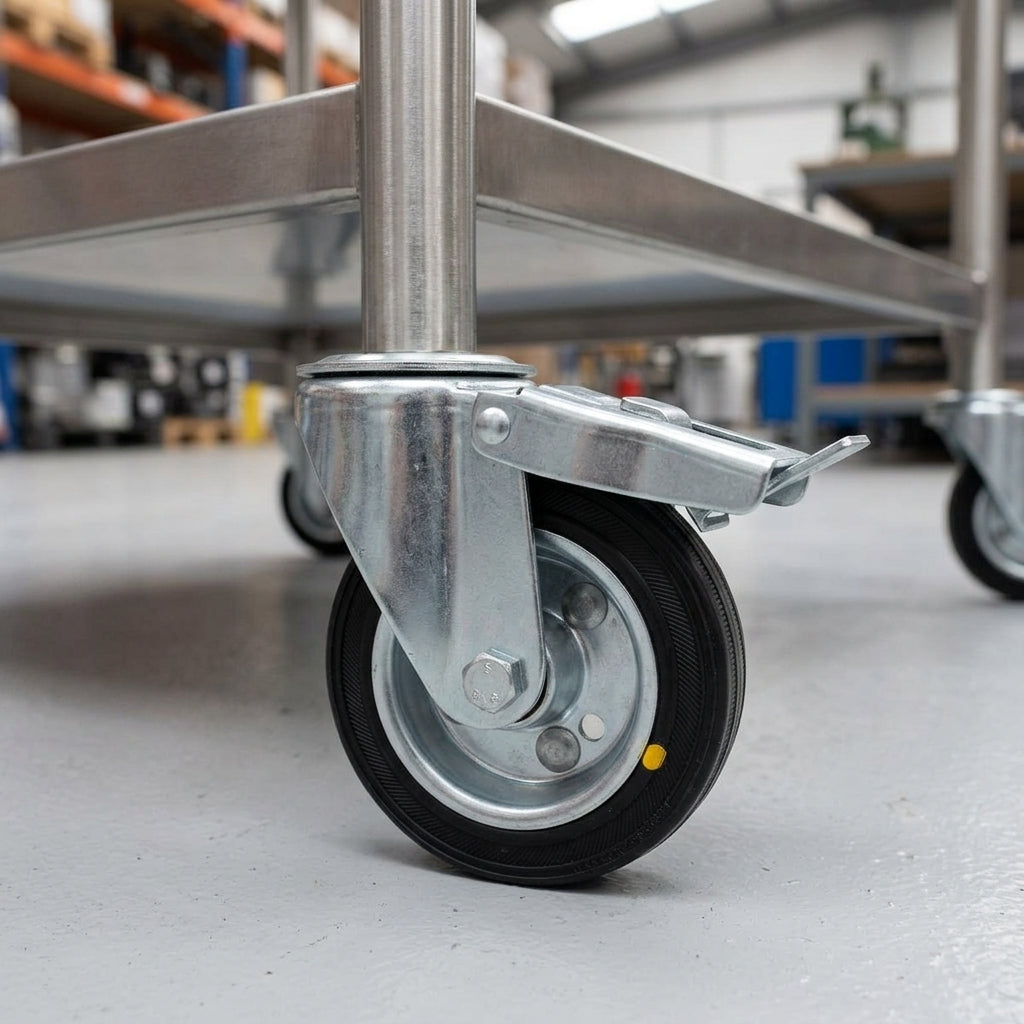

- ✓ Industrial equipment: trolleys, carts and machinery that need mobility and static control.

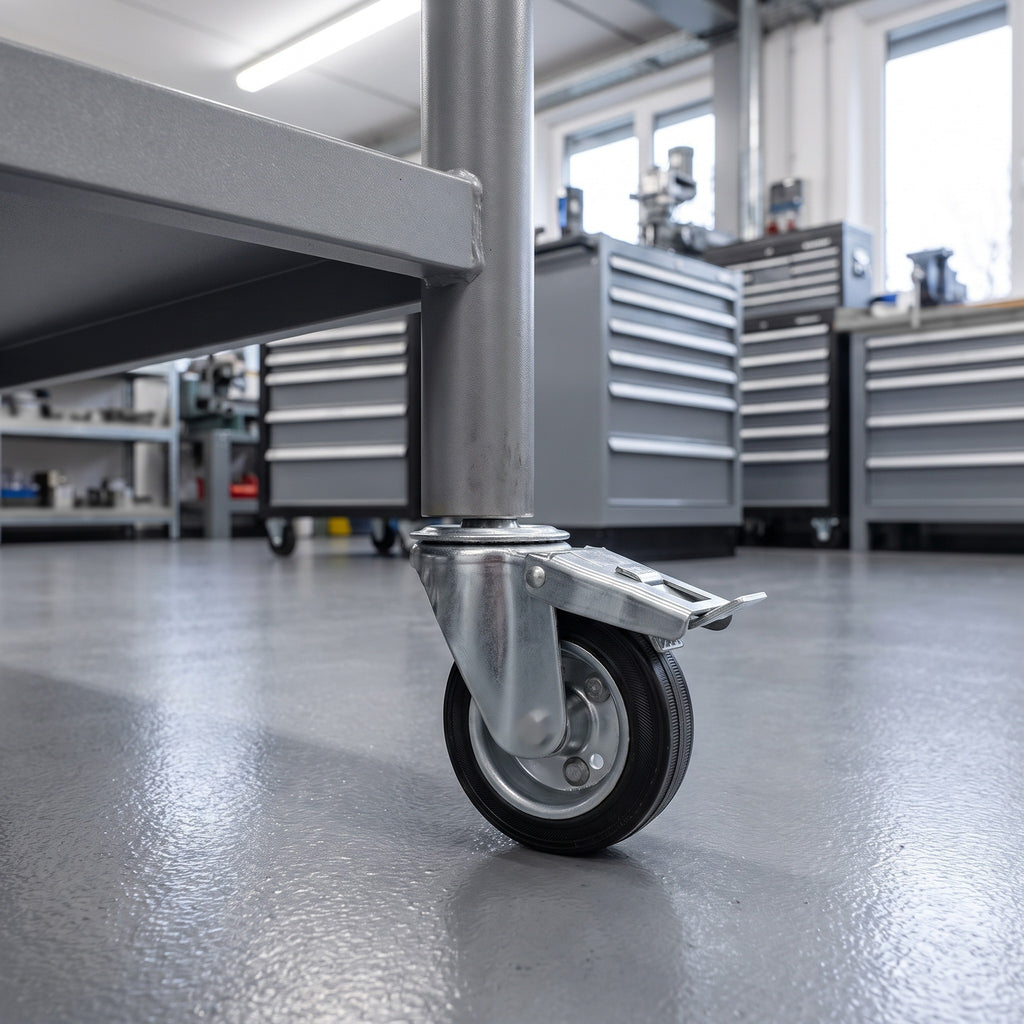

- ✓ Workshops: environments where electrical conductivity and ease of movement matter.

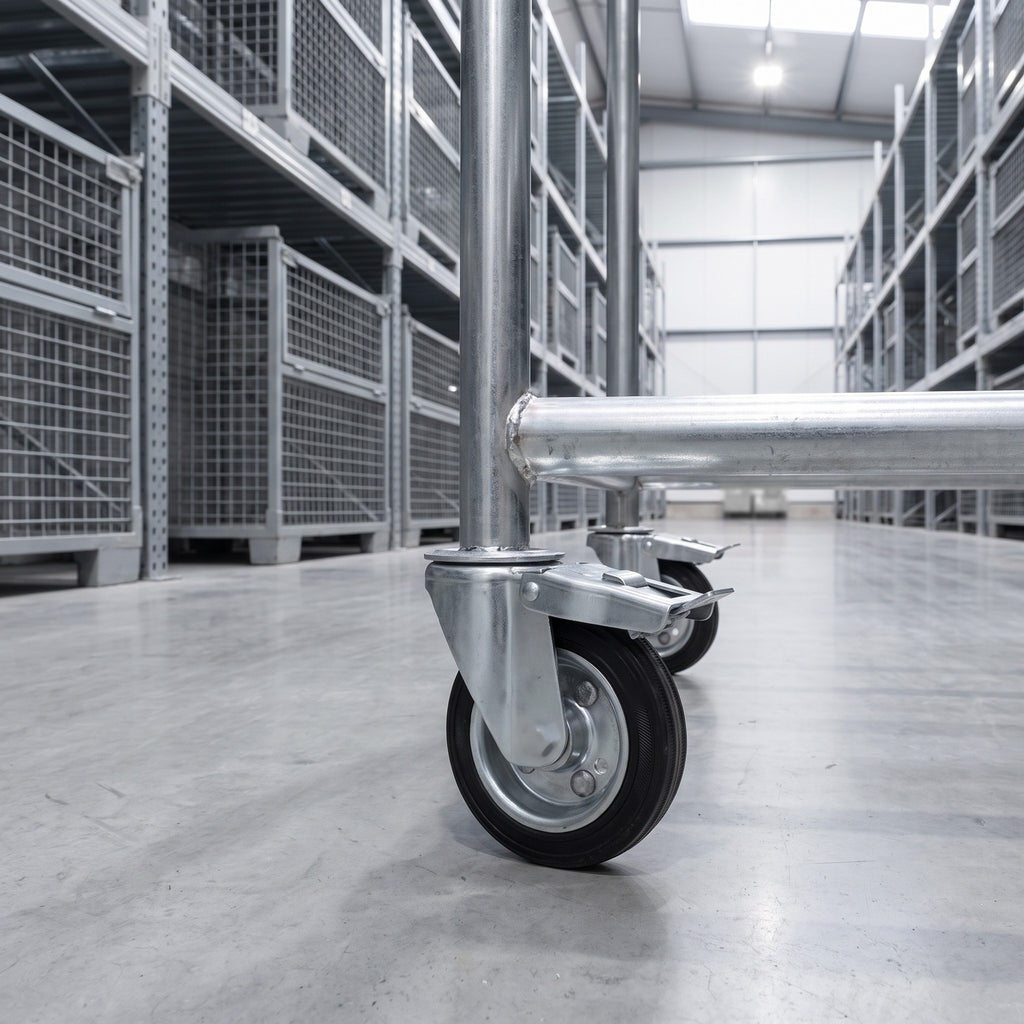

- ✓ Warehouse operations: moving heavy loads efficiently while reducing static build-up.
Frequently Asked Questions
What does the brake lock?
The foot brake locks the wheel in place, so your equipment stays put when it is parked. Lift the pedal to release it and move again.
Why choose an anti-static wheel?
The anti-static rubber is electrically conductive, so it helps stop static building up on your equipment. It is useful where static electricity must be controlled, such as workshops and other sensitive environments.
How hard is the tyre?
The tyre is 80 Shore A, which gives a balance of grip and durability in industrial settings. It works from -20°C to +60°C.
How much weight can this castor carry?
Each castor is rated for 135kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 167mm and the total castor height is 195mm.
Where can I use this castor?
It suits trolleys, carts and machinery that need static control, workshops, and moving heavy loads in warehouses.
