- Load per castor150kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelPolyurethane on nylon centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Polyurethane on nylon centre
- Wheel Colour
- Red
- Tread Width
- 30mm
- Hardness of Tread
- 60 Shore D
- Bearing Type
- Roller bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 80mm
- Total Castor Height
- 128mm
- Load Capacity
- 150kg per castor
Will it fit?
- Bolt hole12mm
- Overall height128mm
- Swivel radius80mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

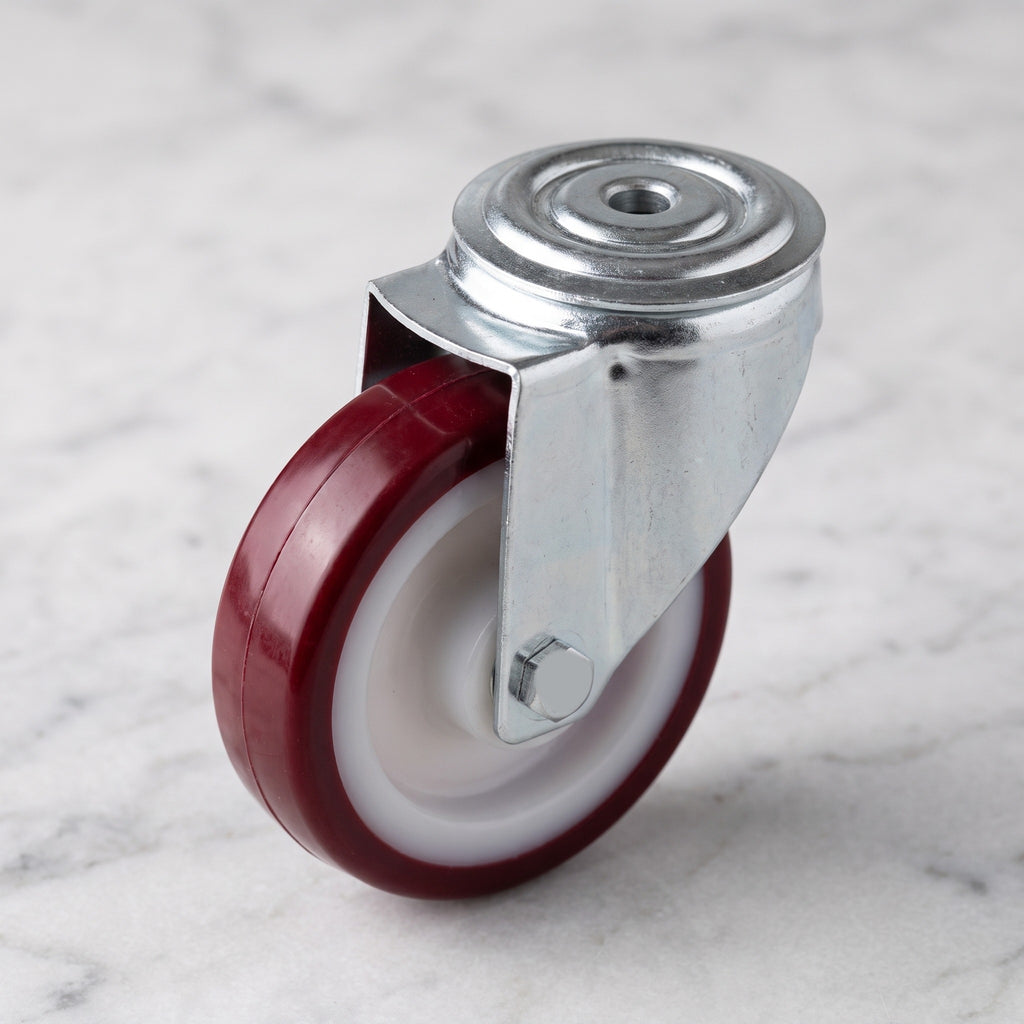

Polyurethane Bolt Hole Castors
This 100mm swivel castor has a red polyurethane tread on a nylon centre, made for industrial jobs where manoeuvrability and durability are needed. The swivel head turns a full 360 degrees for easy changes of direction, the roller bearing gives smooth rotation, and the polyurethane on nylon wheel is robust. It works from -40°C to +80°C and carries 150kg per castor.
It fixes through a single 12mm bolt hole, has an 80mm swivel radius and stands 128mm tall.
Why Choose This Castor
- ✓ Red polyurethane tread on a nylon centre, 60 Shore D.
- ✓ Roller bearing for smooth wheel rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 150kg load capacity per castor.
- ✓ Wide temperature range from -40°C to +80°C.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This polyurethane bolt hole castor suits:

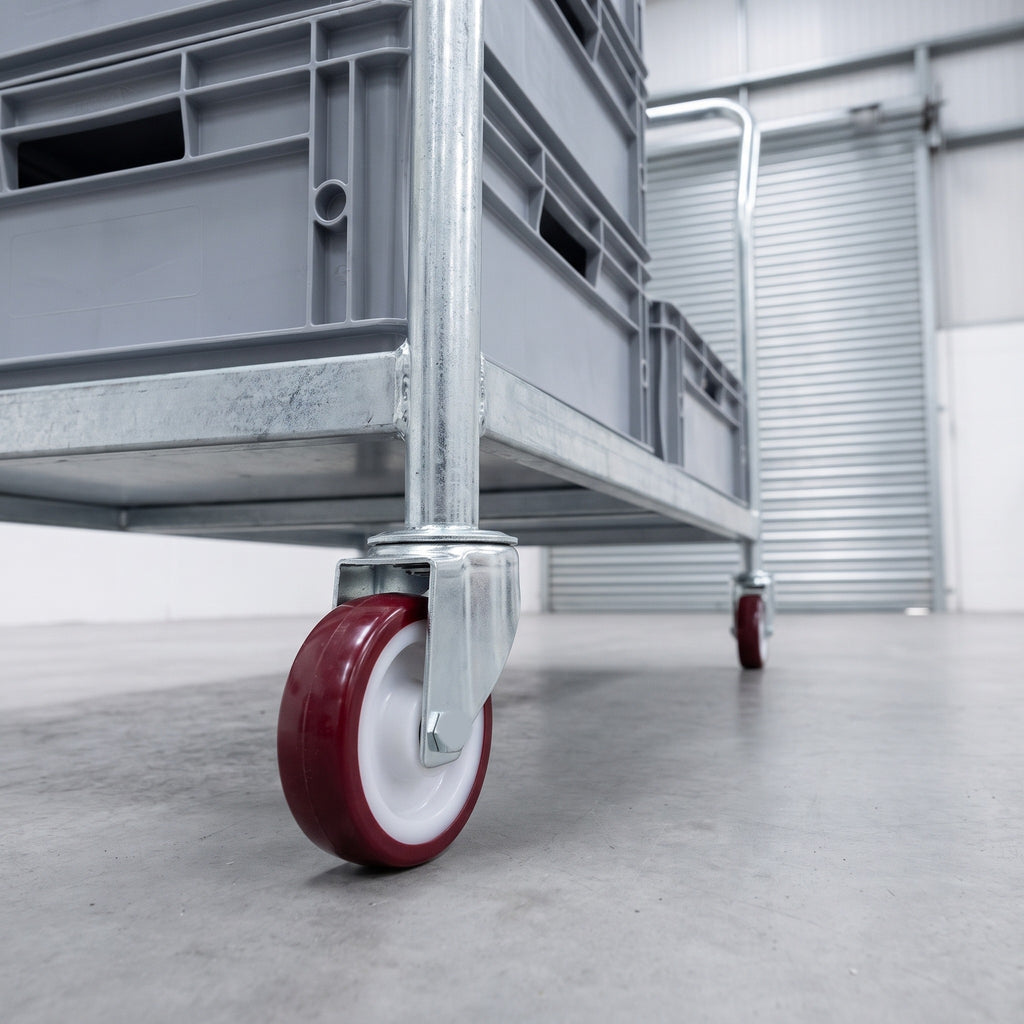

- ✓ Industrial equipment: trolleys, carts and mobile units that need easy changes of direction.
- ✓ Warehousing: moving goods and equipment in storage facilities.

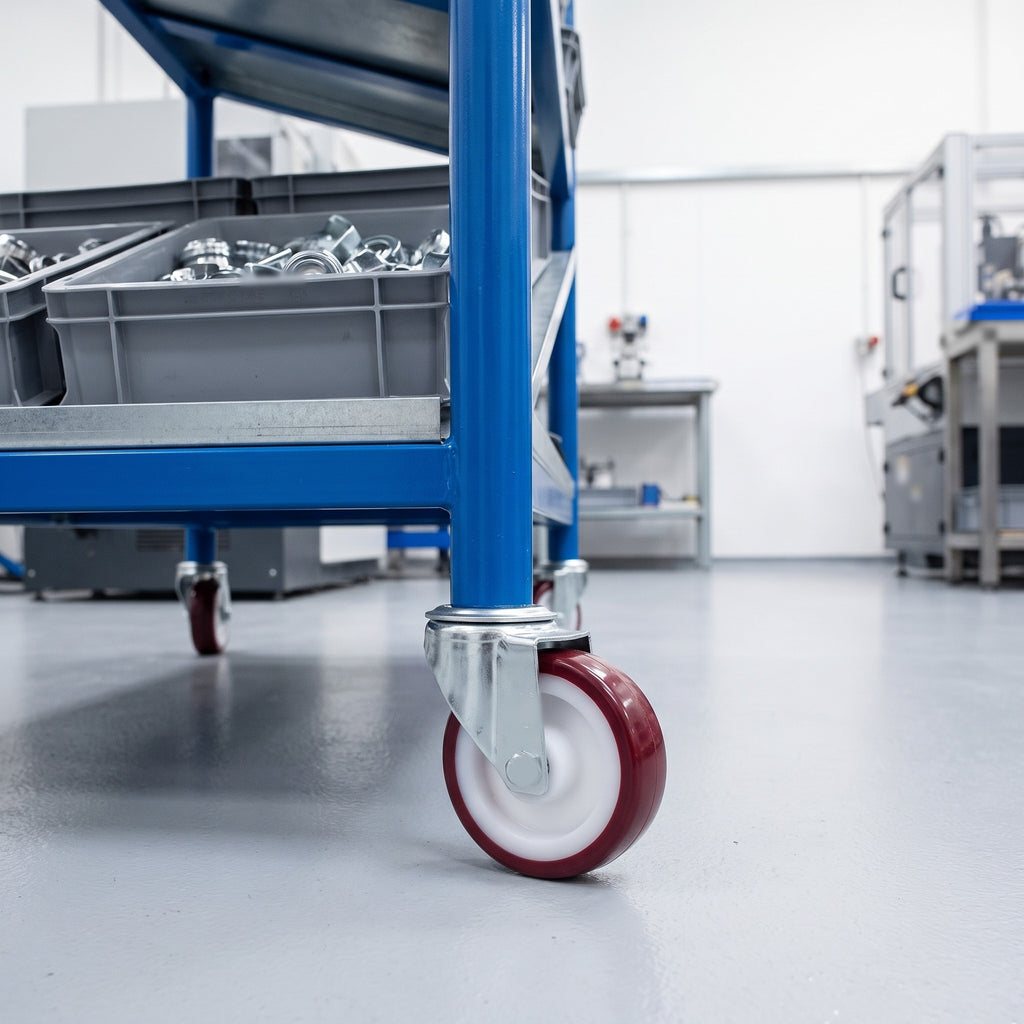

- ✓ Manufacturing: moving materials and components along production lines.
Frequently Asked Questions
Does this castor have a brake?
No. This is a swivel castor without a brake, made for free 360-degree movement and easy changes of direction.
What floors does the wheel suit?
The red polyurethane tread is 60 Shore D, a firm tread that rolls easily on smooth, hard industrial floors. It works from -40°C to +80°C.
How much weight can this castor carry?
Each castor is rated for 150kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 80mm and the total castor height is 128mm.
Where can I use this castor?
It suits industrial trolleys and carts, warehouse equipment, and moving materials and components along production lines.
